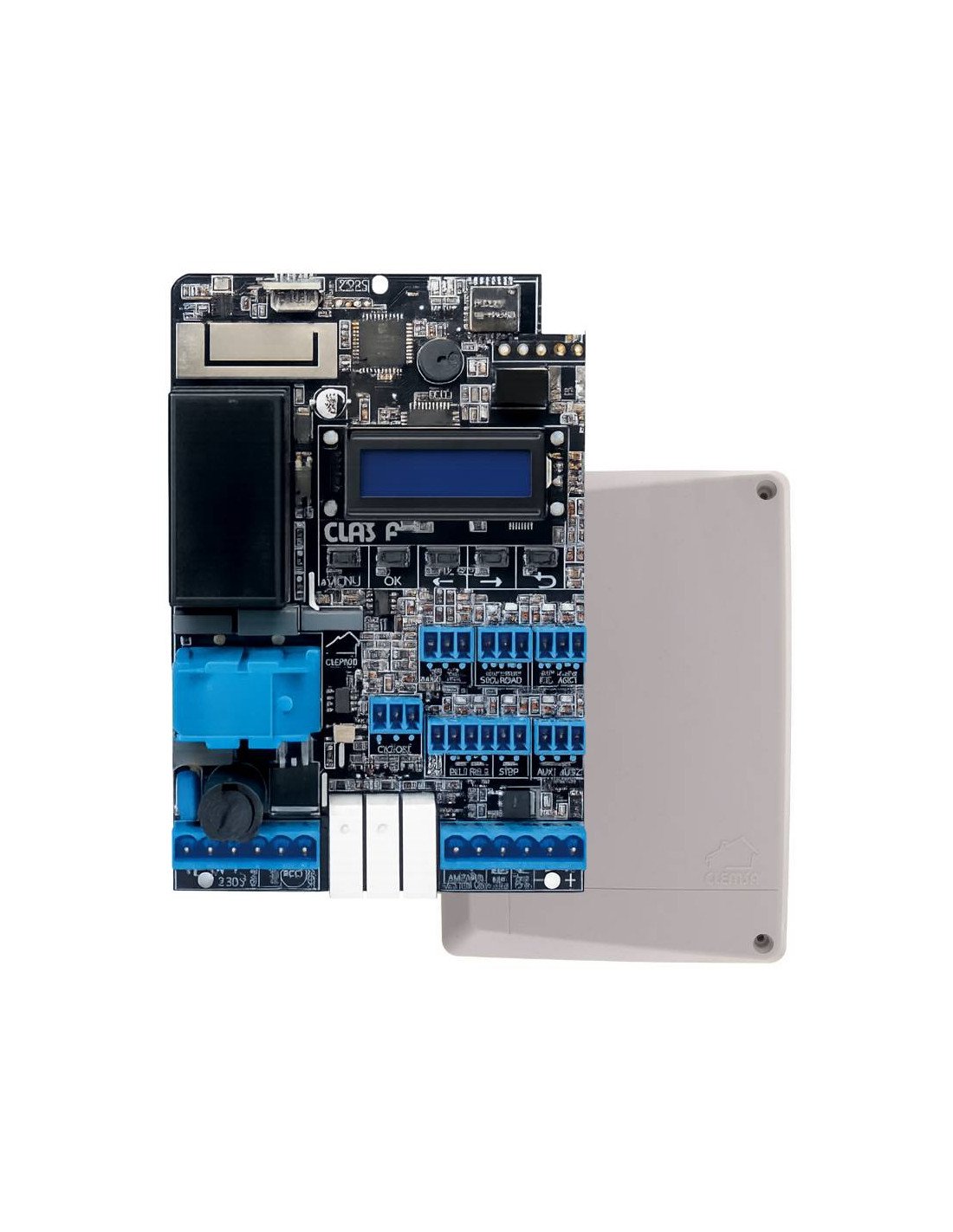

Clemsa CLAS F | 230V maneuvering box for roller doors, sliding and 1-leaf swings

Universal control box for roller, tilting, sliding and folding doors of 1 sheet at 230 VAC, Designed to offer a versatile, safe and reliable solution in residential and industrial facilities. This picture allows you to automate different types of doors with engines 230 V, adapting both new facilities and substitutions at existing doors.

Incorporates Receiver Mutan II LR integrated, tickets for Readers CK 40 and CK 42, as well as multiple advanced functions that facilitate its integration in different configurations. In addition, it has Soft unemployment in opening and closing, improving the functioning of the door and reducing mechanical efforts during maneuvers.

Versatility and adaptability

This maneuver picture stands out for its great versatility, since it allows its use in Sliding, tilting, rolling and folding doors of a sheet. In the case of folding doors, the feeding of the electrocerradura It must be done externally to the table.

It has several connection and configuration options, such as:

• Receiver Mutan II LR integrated
• Entry for CK readers
• Exit for flashing lamp
• Direct security entries
• NC / 8K2 security band entries with individual configuration
• Man present function
• Configurable entries
• Stop button

Advanced security

The table incorporates security functions designed to protect both installation and users. Has Security entries in opening and closing, as well as tickets for NC and 8K2 security band. Also integrate system of Anti-explashing in opening and closing, individually configurable with three operating modes:

• Investment
• Unemployment
• Break free

In addition, it incorporates Optoacoplated entries, Protected power supply and outputs isolated, which helps maximize electrical safety and protect the table during installation and daily use.

Energy efficiency

This control box includes Low consumption function, fulfilling the Ecodesign Directive 2009/125 / EC, which allows to reduce energy consumption at rest and improve the overall efficiency of the installation.

A central maneuvering universal, complete and safe, Ideal to automate 230 Vac doors with a high level of performance, configuration and compatibility.
