Maneuvering CAME ZLX230P for 230V swing engines

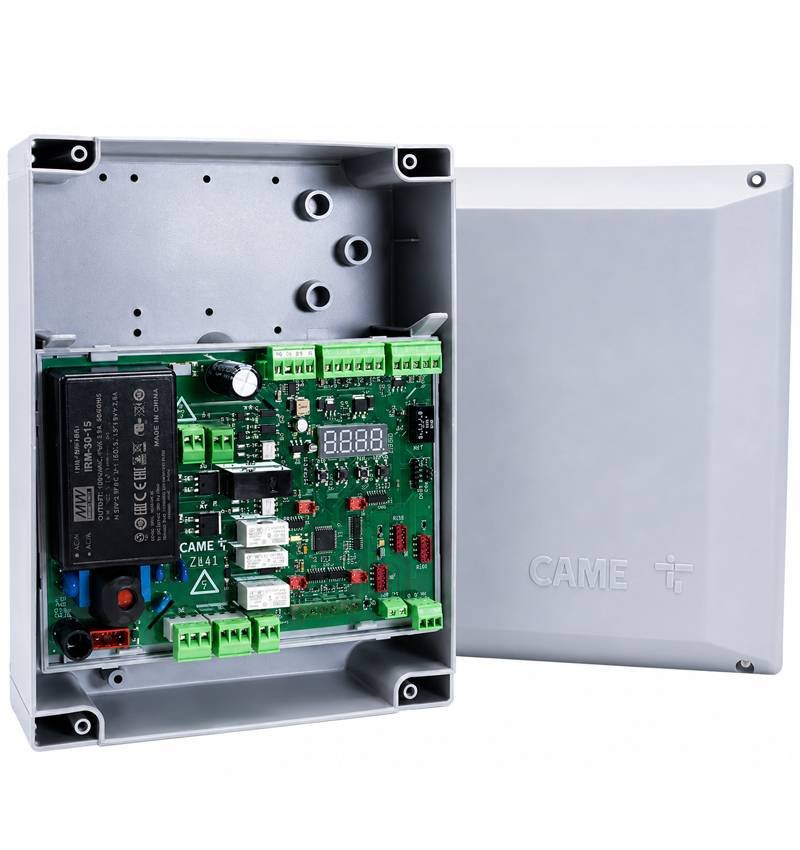

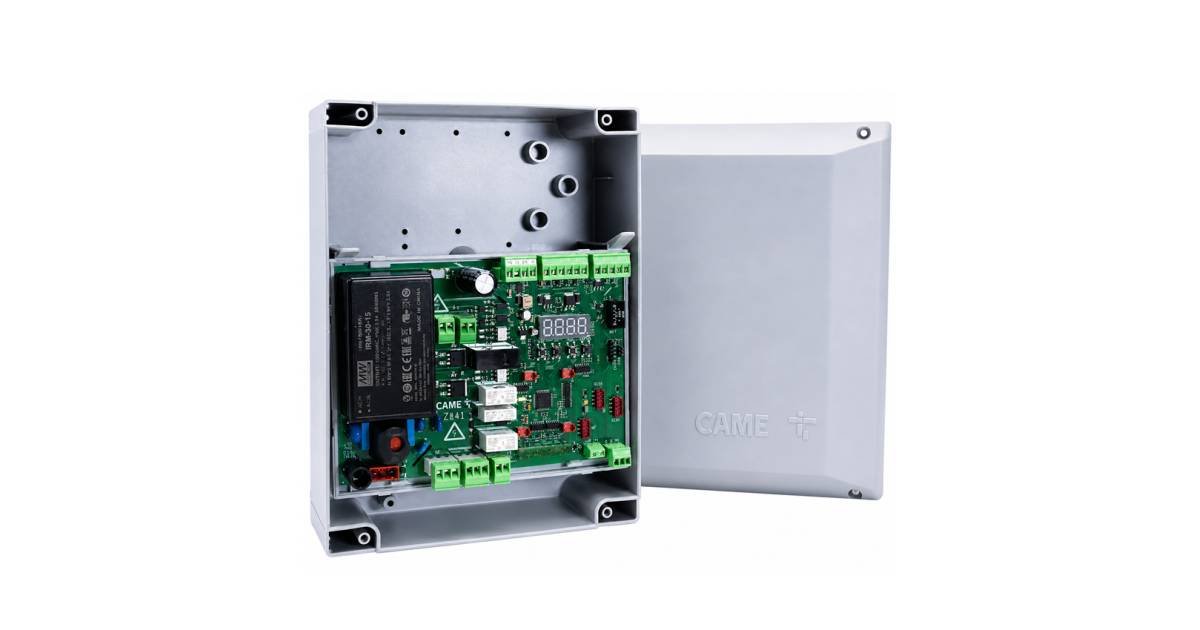

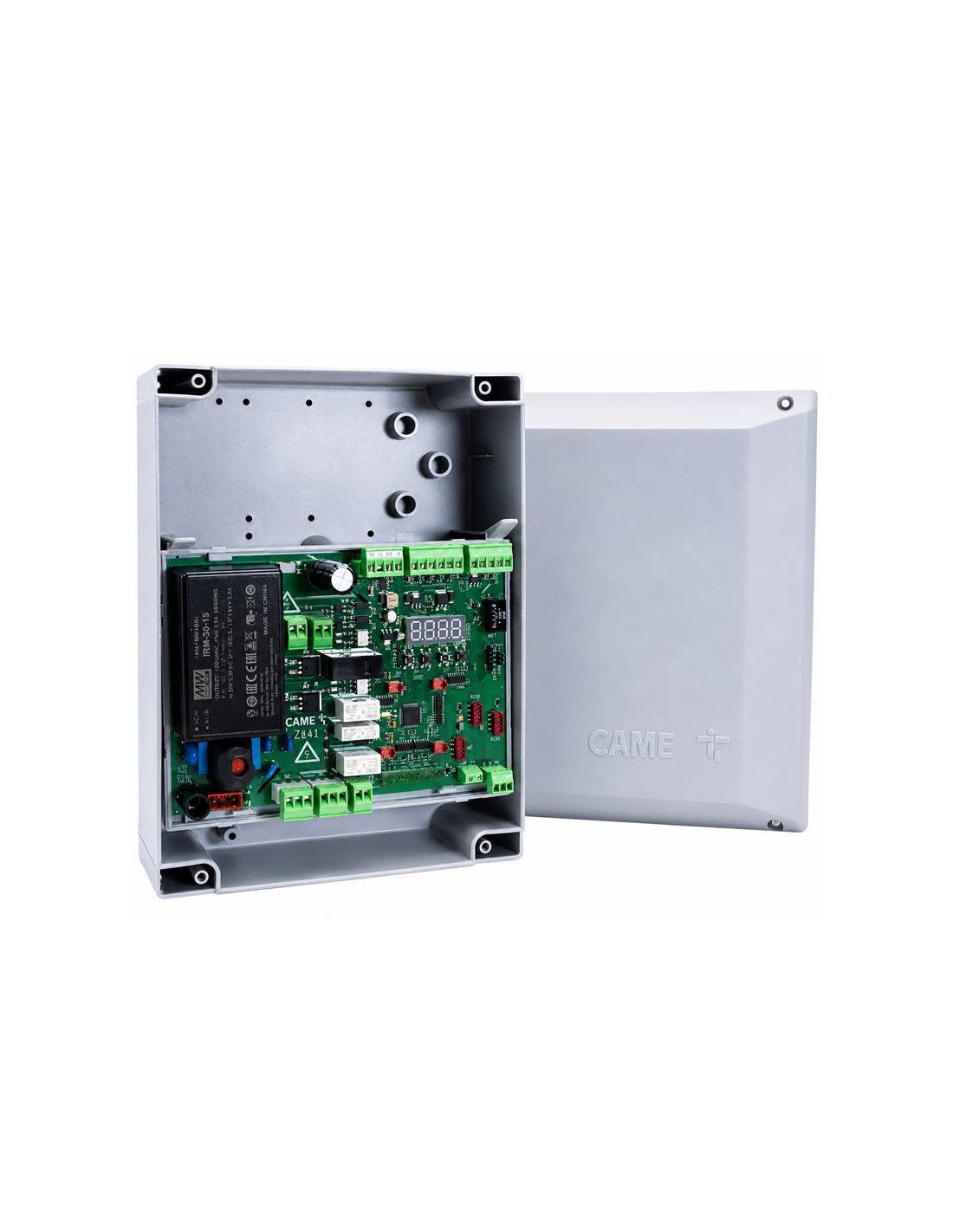

CAME Zlx230p It is a state-of-the-art multifunction electronic power plant designed for automations of swing doors of 230v AC of one or two leaves. This new digital maneuvering box replaces previous models such as CAME Za3p, incorporating advanced programming features, integrated digital display, electronic power control and compatibility with CXN bus accessories.

Thanks to its modern electronics, the ZLX230P central allows an accurate configuration of times, decelerations, automatic closures and security devices, offering a safer, professional and easy-to-configure installation.

Main features

• Central electronic digital for swinging motors 230V AC.
• Compatible with automations of 1 or 2 sheets.
• Integrated Display screen for programming and diagnosis.
• Electronic control of force using technology DTC (Digital Torque Control).
• Management of decelerations in opening and closing.
• Memory 250 users.
• Compatible with plug-in radio receptors CAME Af.
• Advanced safety and self-diagnostic functions.
• Compatible with photocells, safety bands and electrocker.
• Exit for flashing light and courtesy light.
• Compatible with CXN bus by optional module.
• Guided programming through on-screen assistant.
• IP54 protection.

Advanced Functions

• Automatic adjustable closure.
• Configurable pedestrian / partial opening.
• Adjustable pre-flash time.
• Independent retardation between leaves.
• Configuration of deceleration and speed.
• Electronerading or electromagnet management.
• Step-by-step control or sequential.
• Automatic test of security devices.
• Maneuver meter and maintenance notice.
• Protection by obstacle detection.
• Rio wireless security configuration.

Technical data

Compatibility

The central CAME Zlx230p It is compatible with numerous swing motors CAME of 230V, including ranges like:

• CAME ATI
• CAME Krono
• CAME Fast
• CAME Frog
• CAME Ferni
• CAME ATS

It also allows the connection of:

• Photocells CAME Dir and DXR / DLX
• Key selector
• Sensitive safety bands
• Flashing lamps
• Electrocerraduras
• Bus cxn modules
• Wireless Rio Modules
• AF receiver cards

Kit content

• Electronic CAME Zlx230p
• IP54 stagnation box
• Integrated Display
• Fixing accessories
• Installation manual

The new one CAME Zlx230p It is the ideal solution for modern facilities requiring a reliable, complete and prepared plant for future extensions and advanced connectivity.

Documentation

Manual CAME Zlx230p
