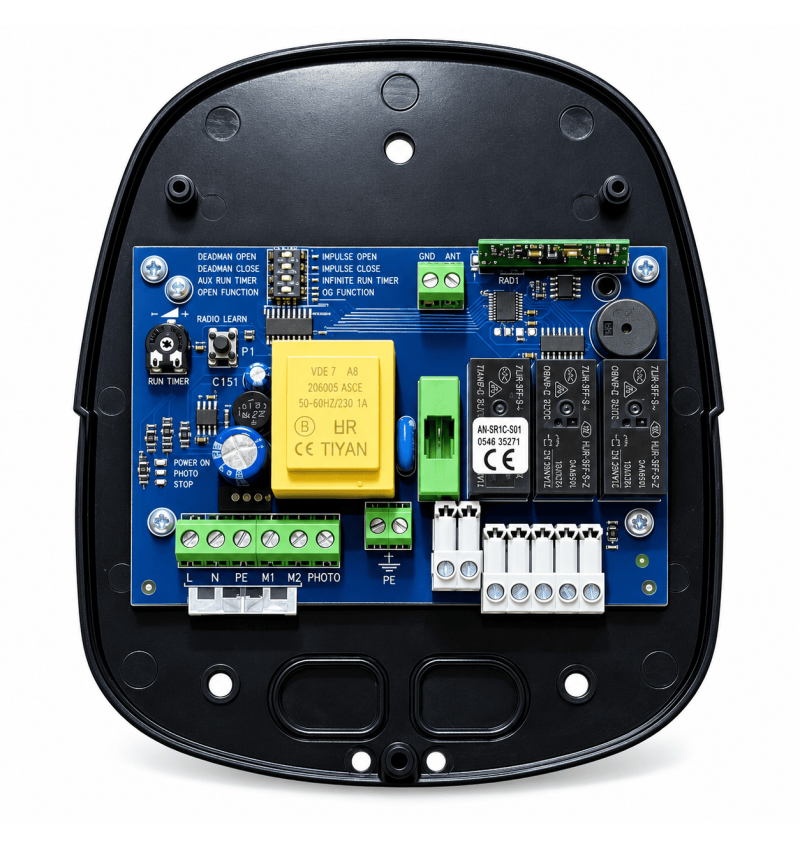

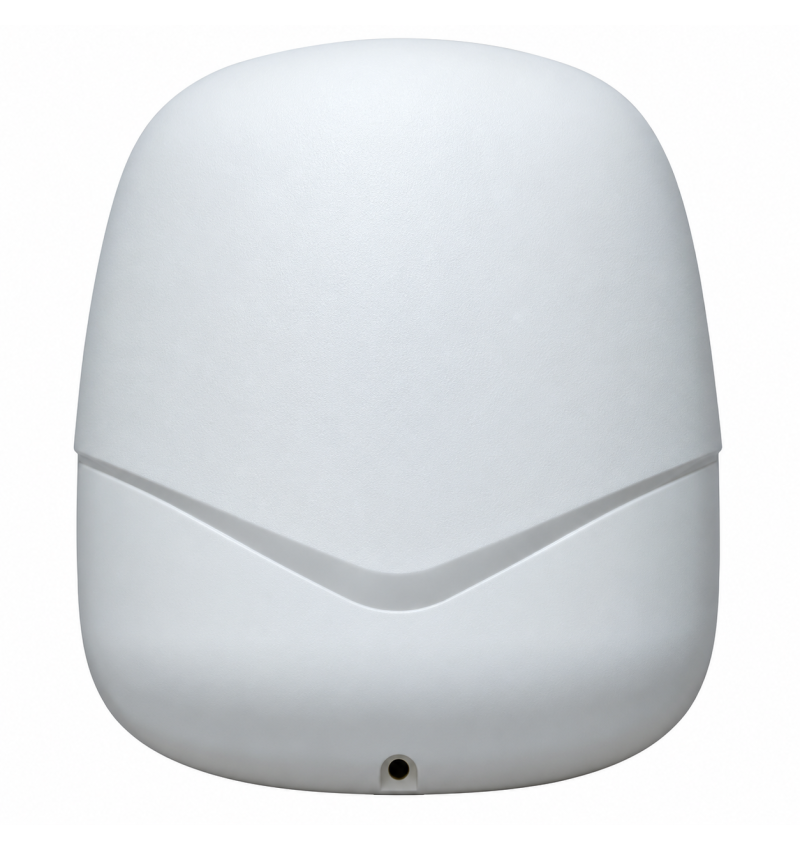

Picture Aprimatic BT12X with Apricode receiver for roller shutters
602775000Q0
€49.00
VAT excluded
59,29 €
Tax incl.

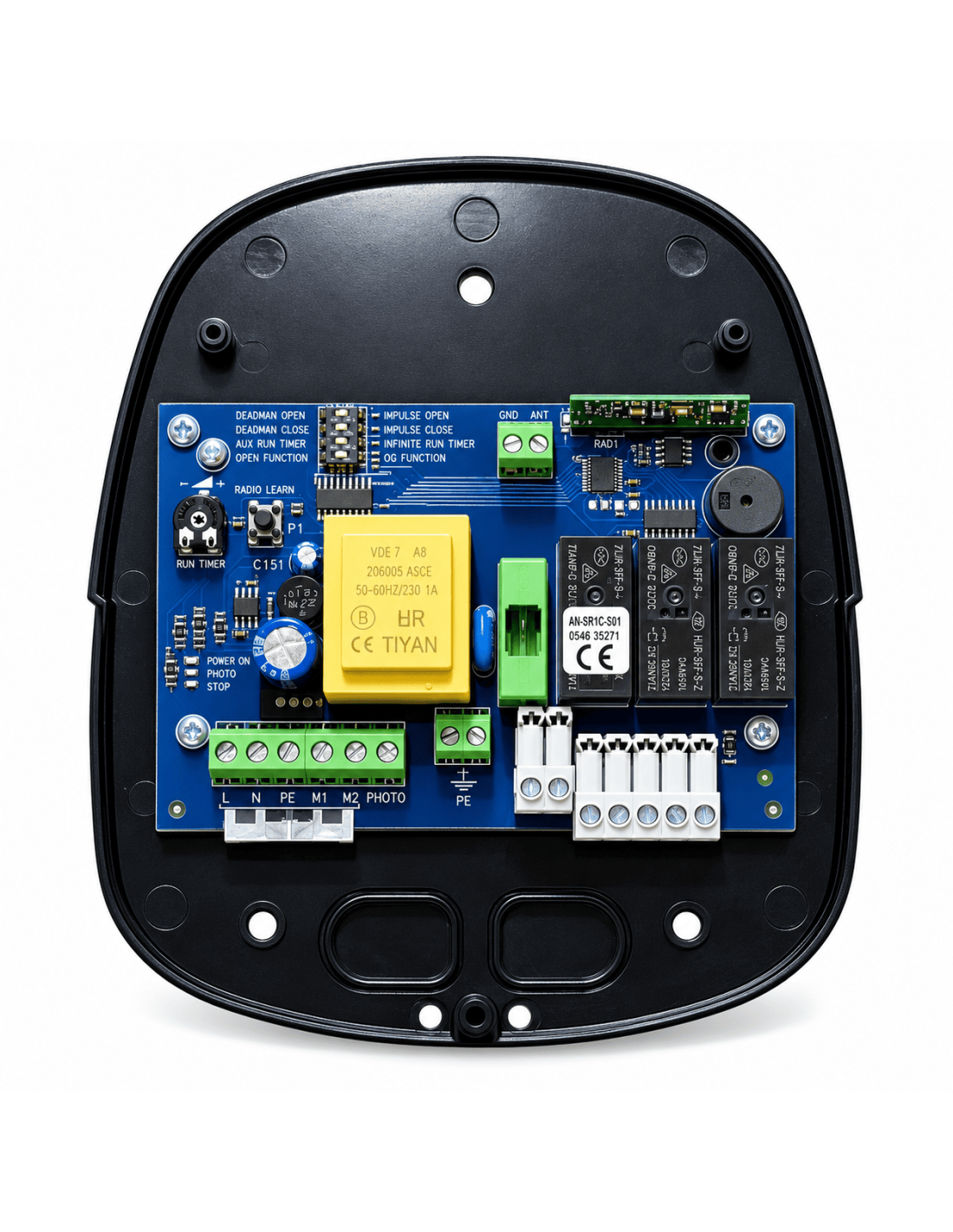

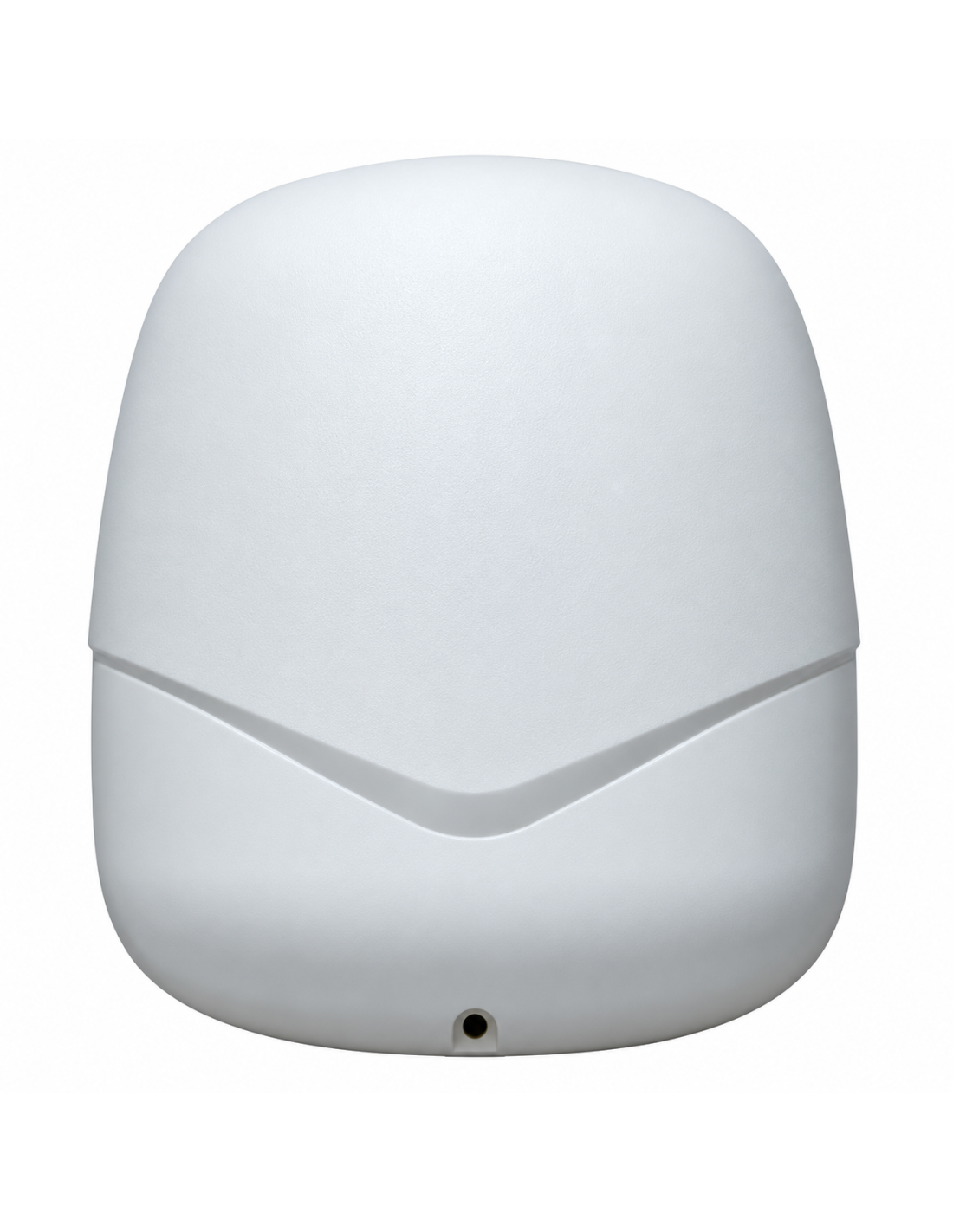

Control box Aprimatic BT12X ref. 602775000q0 for roller blinds and engines 230 VAC up to 1000 W. Incorporates Receptor Apricode 433,92 MHz, compatible with controls TX4E and TX4S, Entrance for photocell and exit for courtesy light.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
Maneuvering Aprimatic BT12X with integrated Apricode receiver
The Aprimatic Bt12x, reference 602775000q0, it is a Programmable control panel for roller shutters and engines of 230 VAC.
It is designed to control A single-phase engine of up to 1000 W and incorporate Integrated Appricode Receiver, compatible with issuers Aprimatic series Tx4.
The control panel allows you to configure different operating modes, including Present man, impulsive operation, step by step and automatic closure.
It also has tickets for Fotocell, Stop, Opening and closing, as well as exit for courtesy light and auxiliary power supply.
Central for roller shutters and engines
✓ Reference 602775000q0.
✓ Aprimatic Bt12x.
✓ 1 motor 230 VAC.
✓ Maximum motor power 1000 W.
✓ Integrated Appricode Receiver.
✓ Compatible with controls Aprimatic TX4E and TX4S.
Main features
✓ Programmable control panel for Rolllable blinds and doors.
✓ Food of the central to 230 VAC / 50 Hz.
✓ Control of 1 motor 230 VAC of up to 1000 W.
✓ Radio receiver Apricode incorporated.
✓ Radio frequency 433,92 MHz.
✓ Memory up 1000 transmitters In Autocodification mode.
✓ Compatible with controls TX4E and TX4S.
✓ Entry for safety photocell.
✓ Input for push button Stop.
✓ Independent entries Open and Close.
✓ Power output for accessories to 24 VDC.
✓ Exit for Courtesy Light 230 Vac.
✓ Configurable work time.
Technical characteristics
| Feature | Information |
|---|---|
| Manufacturer | Aprimatic |
| Model | Bt12x |
| Reference | 602775000q0 |
| Application | Rolllable blinds and engines |
| Feed | 230 VAC / 50 Hz |
| Number of engines | 1 engine |
| Maximum motor power | 1000 W |
| Receiver | Integrated Appricode |
| Frequency | 433,92 MHz |
| Radio capacity | Up to 1000 controls in autocodification |
| Compatible | TX4E / TX4S |
| Output accessories | 24 VDC |
| Courtesy light | 230 VAC / 500 W max. |
| Light timing courtesy | 3 minutes |
| Adjustable work time | 1.5 to 90 seconds |
Functions available
The central Bt12x Allows you to select using different operating modes by DIP-switch.
✓ Present man In opening and / or closing.
✓ Impulsive.
✓ Step by Step.
✓ Independent operation Open / Close.
✓ Automatic closure configurable.
✓ Adjustable operating time by trimmer.
Security and command entries
The control panel has entries for the main control devices and safety of a roller installation.
■ Entry Stop.
■ Entry Open.
■ Entry Close.
■ Entry for photocell.
During closing, the intervention of the photocell can stop or reverse the maneuver according to the selected configuration.
Integrated Appricode Receiver
The BT12X incorporates receiver Aleppricode, so it is not necessary to add an external receiver to use compatible issuers.
In AutoCodification mode it has memory for up to 1000 transmitters.
The manual specifies compatibility with the controls Aprimatic TX4E and TX4S.
Important before placing the order
The BT12X is intended for 230 Vac single-phase motors for blinds and rolling systems, with a maximum power of 1000 W.
Before replacing an existing plant, check Food, motor power, connections and radio system of the installation.
Supply content
■ 1 × Control box Aprimatic BT12X ref. 602775000Q0 with integrated area receiver.
