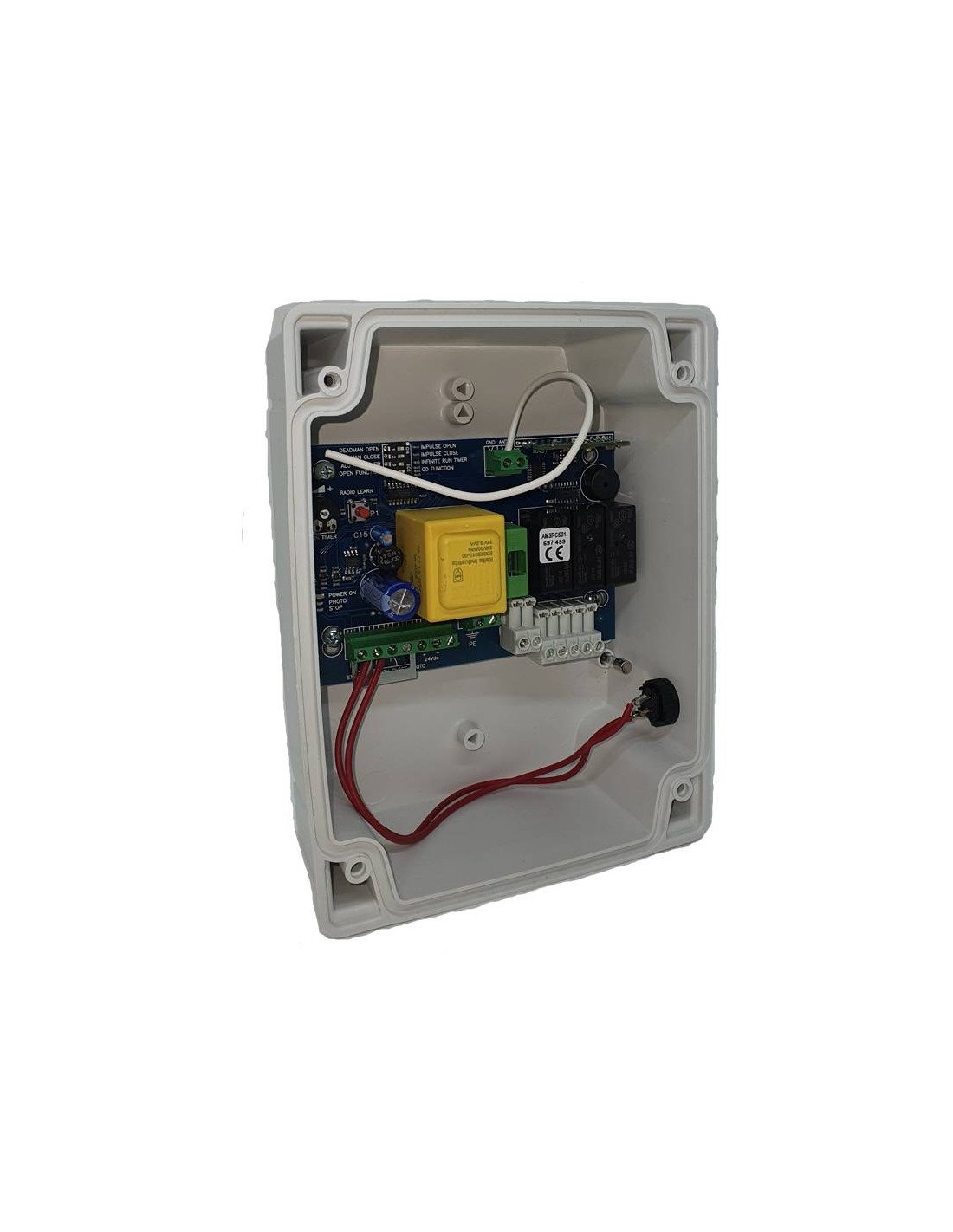

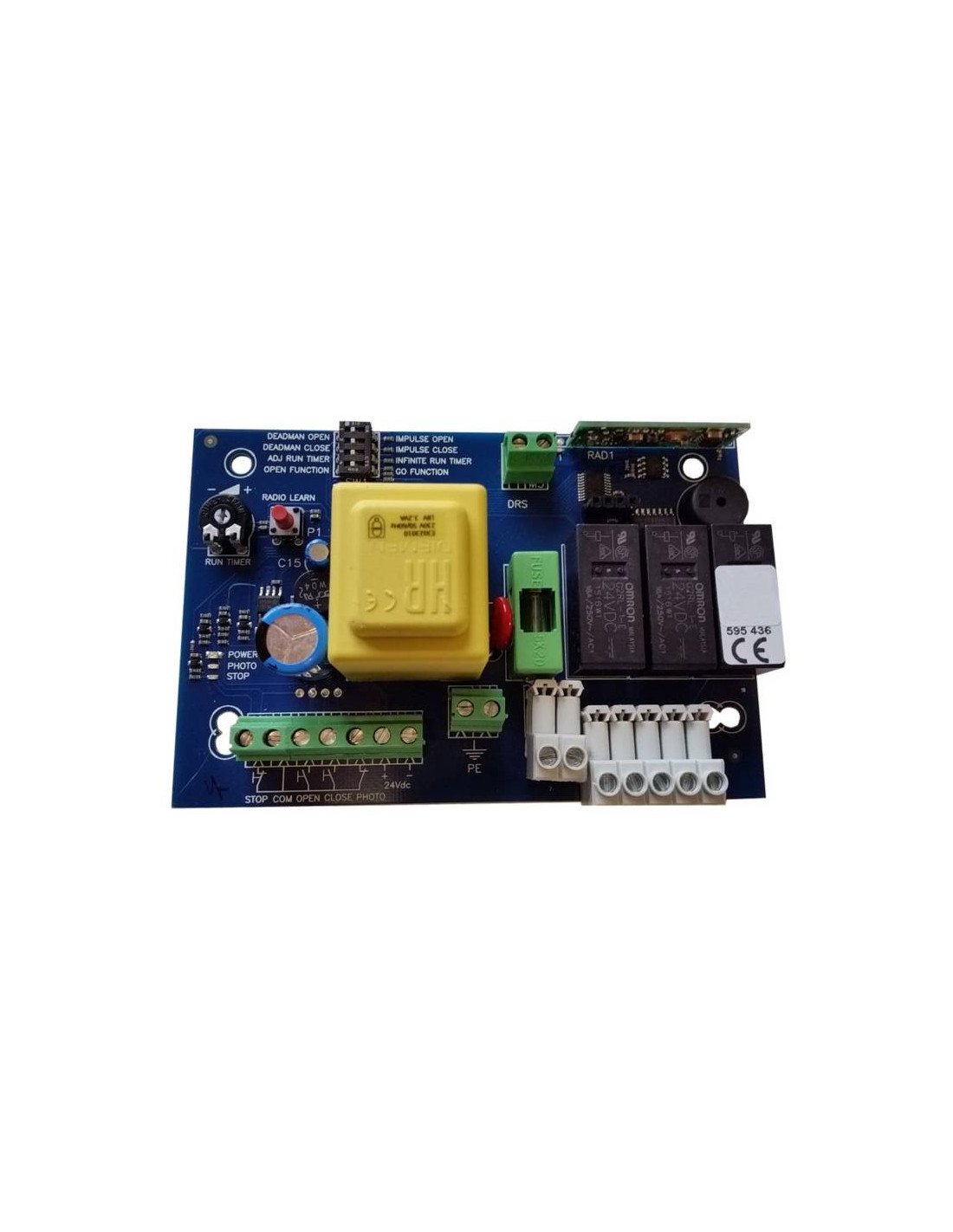

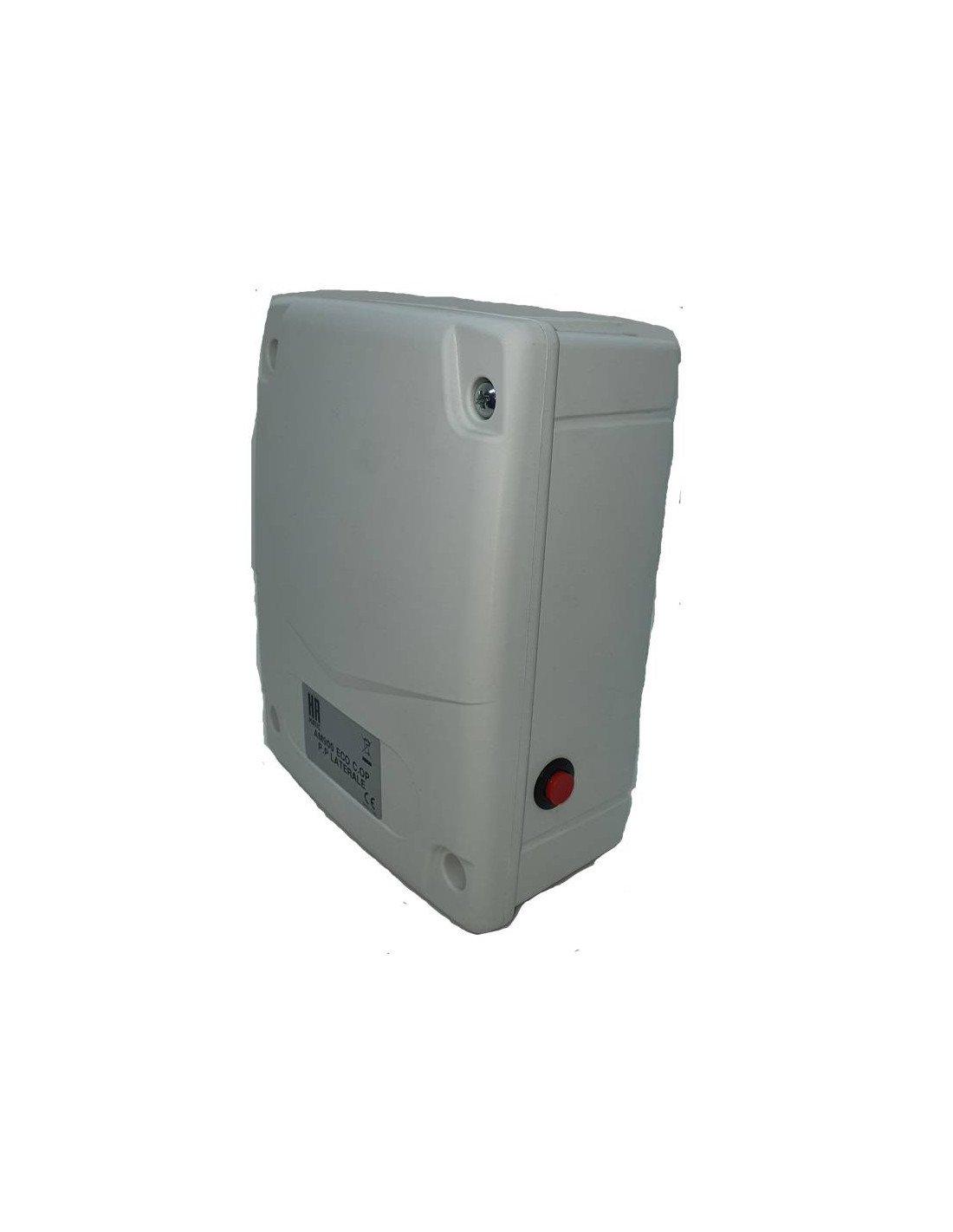

Manoeuvre table for rolling shutter with built-in receiver for open source evolutionary 433,92 MHz designed to operate blinds in a simple and intuitive mode from 230 Vac up to 1000W.

An outlet for the complimentary light is provided and allows to connect photocells at 12/24V.

FUNCTIONS

• Built-in receiver 433.92 MHz.
• Opening by impulse or man present.
• Close by tax or man present.
• Unlimited or adjustable working time regulation.
• Step by step opening available. With different open-stop-lock keys.
• Safety devices with photocell (optional function by default deactivated).
• Courtesy light at 230Vac max 500W.
• Alternate external pusher for uncontrolled opening.

TECHNICAL CHARACTERISTICS

• Power supply: 230 VAC
• Absorption card: 5W Max
• Power supply of photocells: 24 Vdc 3 W Max
• The engine output: 230Vac 1000W Max
• Light output by courtesy: 230Vac 500W Max
• Courtesy light time: three minutes
• Reception code is RollingCode 433.92 MHz
• Radio range in open field: 40-60 meters
• Capacity of memorized controls: 1000

CONNECTION SCHEME
