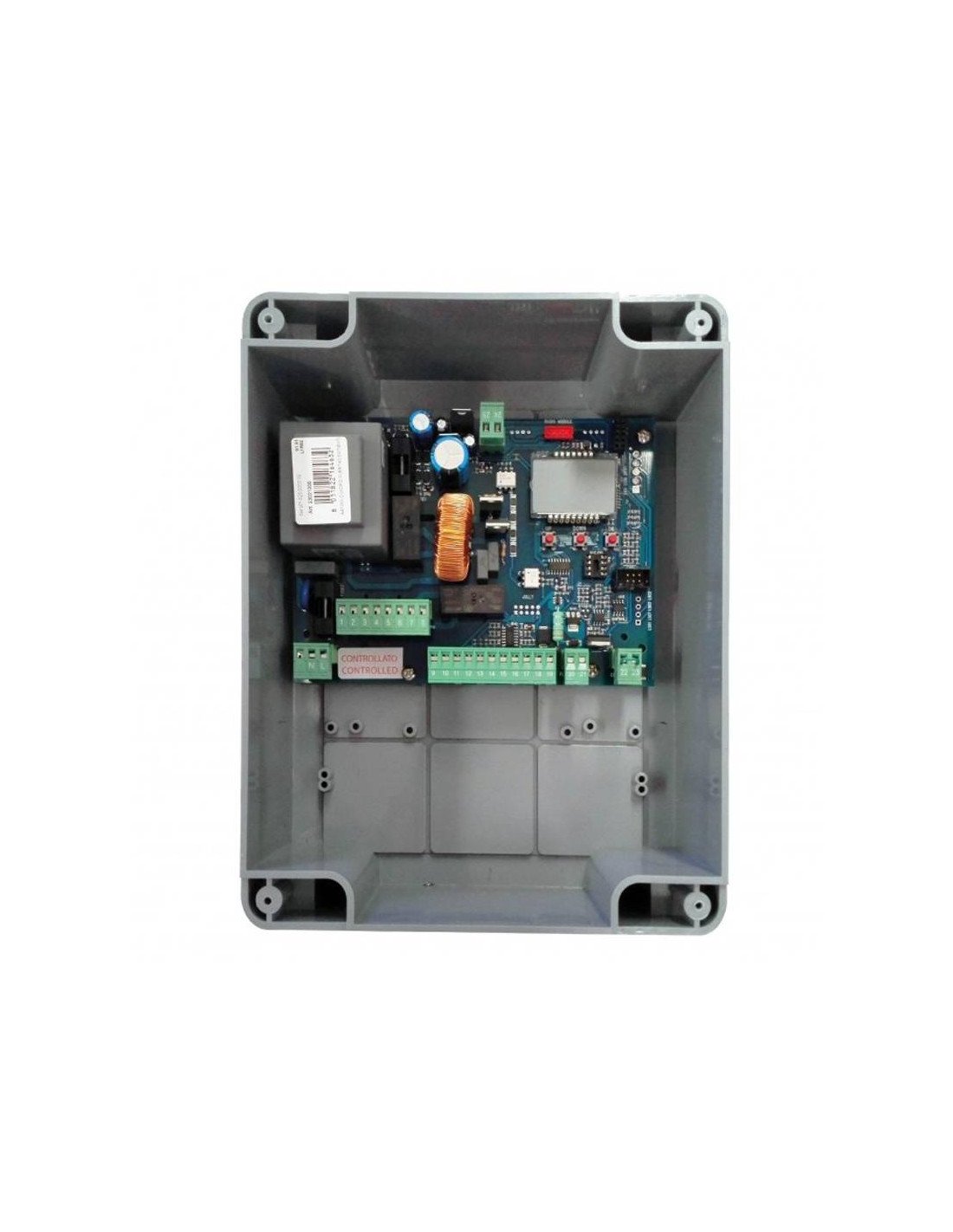

Table of manoeuvres Aprimatic A40DG for controlling 1 or 2 230V motors

Table of manoeuvres Aprimatic A40DG for controlling 1 or 2 230V motors

665200000Q0
€153.00
VAT excluded

185,13 €

Tax incl.

Table of manoeuvres Aprimatic A40DG designed to control one or two motors at 230V up to 800W per motor.



We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain Except bulky



Table of manoeuvres Aprimatic A40DG designed to control one or two motors at 230V up to 800W per motor.

With electronically controlled deceleration at end of run. Discount time when the manoeuvre is interrupted in the closing phase. Motor thrust force control by torque limitation.

The great novelty is the LCD display on board that allows you to view and program all the functions of the plant in a simple and complete way.

NotesThe following: does not include receiving card. It may be included from 'Product accessories'.

TECHNICAL CHARACTERISTICS

Power supply voltage For the purposes of this Regulation, the following definitions shall apply:
Absorption in standby 30 mA
Maximum engine load 800W by motor
Maximum load of accessories 24V (24VA) 24V = 500mA (The load refers to the sum of the two 24V outputs)
Maximum lamp load 24V ((FL) 4W max
Operating temperature -20 oC/+50 oC
Protection accessories/power supply/lock FOR THE PURPOSES OF THIS REGULATION, THE FOLLOWING DEFINITIONS SHALL APPLY:
Operating logic Automated/P.Paso1/P.Paso2/Seg./H.Pres/2 The pulse.
Opening/closing time Self-learning in the programming phase
Pause time Adjustable (OFF to 4 min)
Push force Adjustable opening and closing per individual blade
Speed reduction area Adjustable opening and closing per individual blade
Port of entry Total aperture/Adjustable pedestrian aperture/Balanced band opening and closing/Stop/Photocell 1 and Photocell 2
Outlet terminals LAMP= ((Max 50W) /Motors/24VA= ((Max 500mA) //24V=/Test/Flash/Lock) This is the maximum voltage at which the lamps can operate
Dimensions Other, not further worked than hot-rolled
Outdoor box features Manufacture from materials of any heading
Specific accessories:
-Semaphore tab on connector Exp
-Programmer on the Jolly connector
-OPEN on Prog connector for software upgrade		 Management card for traffic lights
Programmer JOLLY
Programmer JOLLY 2
Programmer OPEN

MANUALS

Type of frame
Frame for swing motor
Two-leaf pendulum board
