In the case of vehicles of categories M1 and N2 for a single leaf and for running ones.

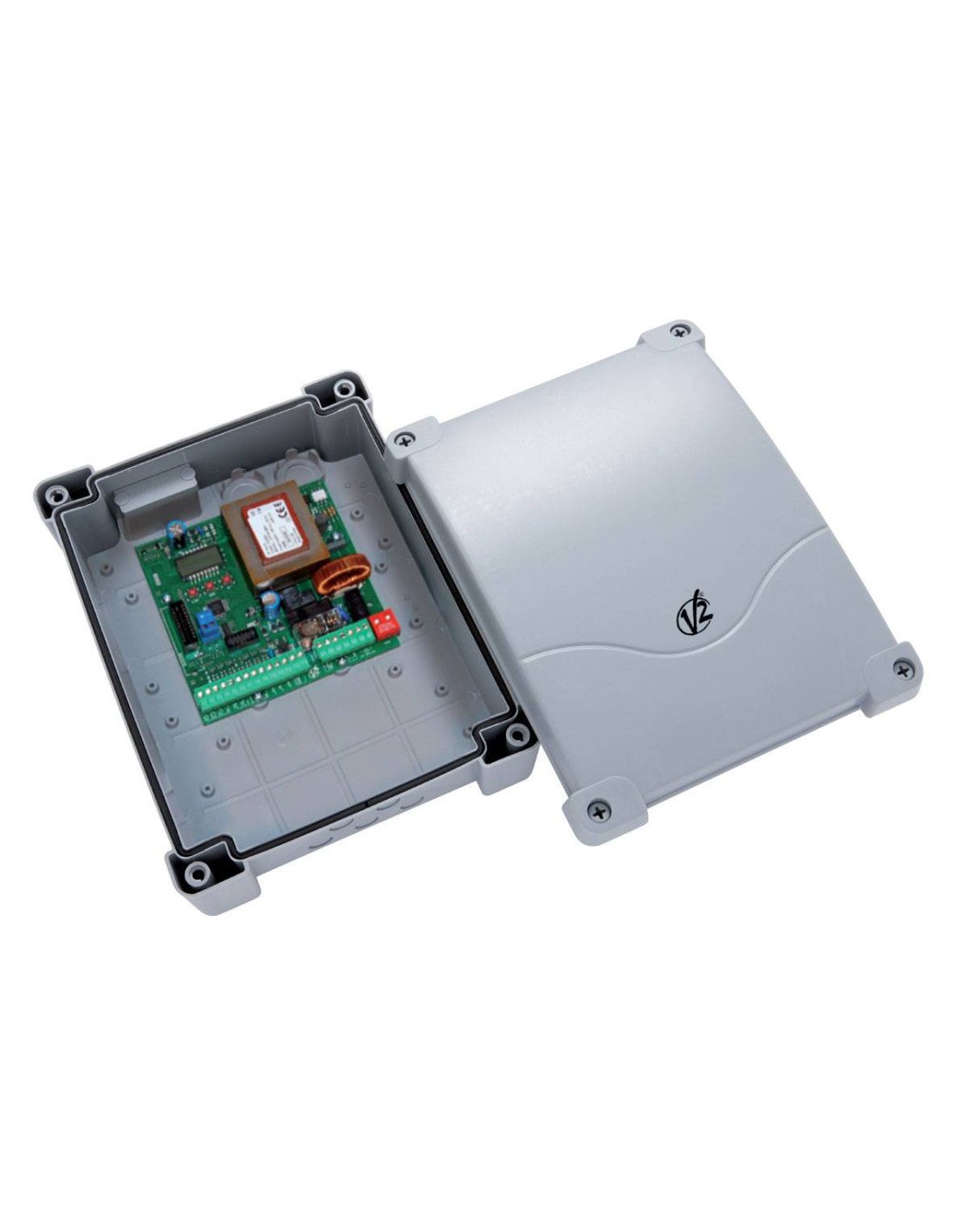

TECHNICAL CHARACTERISTICS

• FoodIt 's 230V / 50Hz
• Maximum engine load: 700W
• Total load max: 10W
• Operating temperature20 °C or +60 °C
• DimensionsThe following: 295x230x100mm
• Weightother:
• Degree of protection: IP55

FUNCTIONS

• Programming with three buttons and screen

• Power supply for a 230V single-phase motor

• USB connector for connecting the control panel to a PC and managing control panel programming, firmware updates and operating diagnostics via software.

• Connector for the LOW ENERGY module allowing significant energy savings (< 0.5 Wh)

• Connector for the MR2 modular radio receiver

• Management for start, pedestrian start and radio stop

• Radio auxiliary channel management

• Output for 230V intermittent signalling lamp

• Test of safety devices before each opening

• Self-learning function of working time

• obstacle detection function

• Operating cycle counter with maintenance signalling programming

• Soft stop of the leaves in the closing phase to prevent noisy closures and bounces

• Soft leaf closure to prevent noisy closures and bounces

• View the status of entries on screen

MANUALS

• Instruction manual V2 CITY4-EVO
