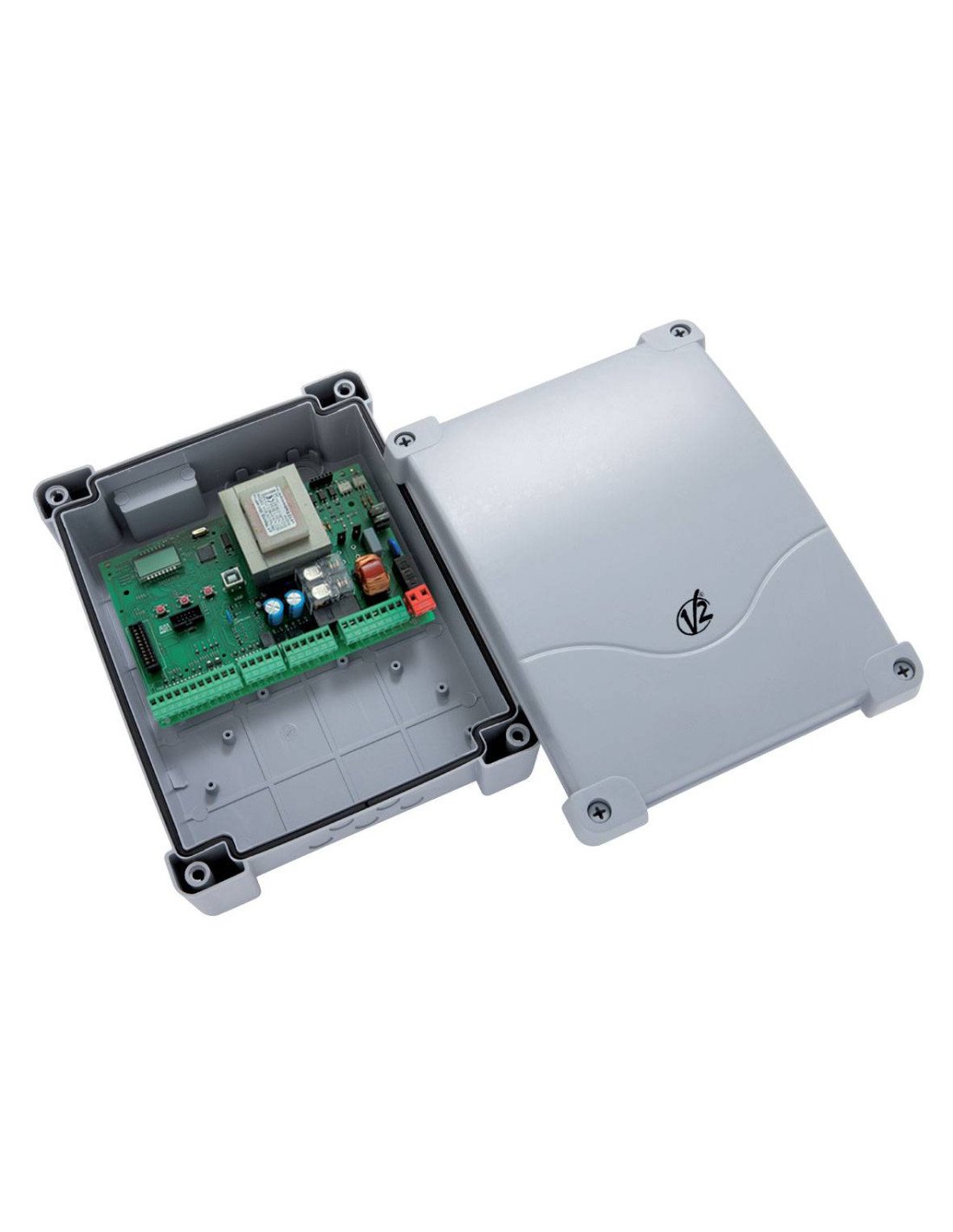

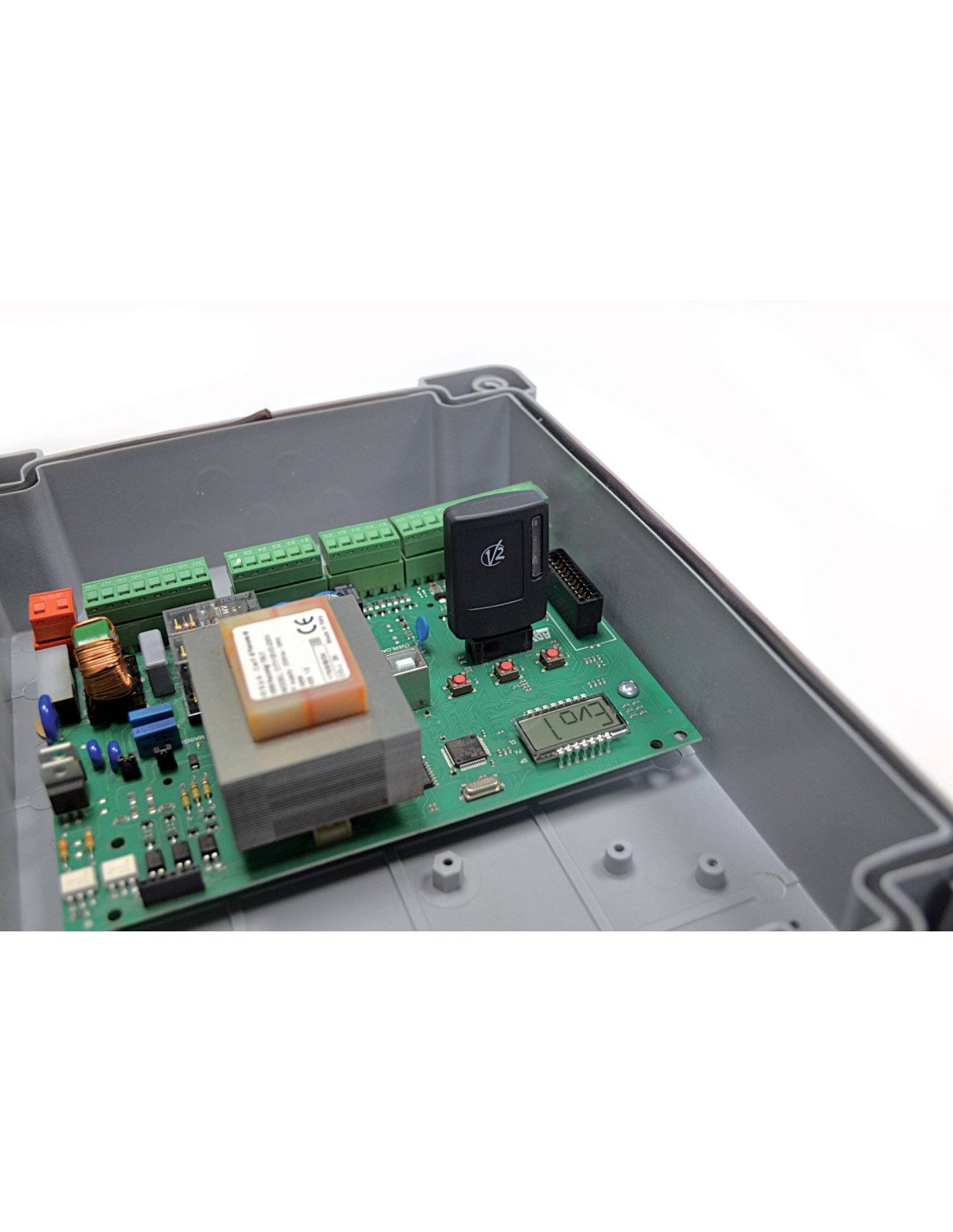

Digital control panel 230V with encoder V2 CITY1-EVO for one- or two-leaf clover and slippers.

TECHNICAL CHARACTERISTICS

• Power supply: 230 - 50 V / Hz
• Maximum engine load: 2 x 700 W
• Maximum load of accessories at 24 VAC: 10 W
• Operating temperature: -20 ÷ +60 °C
• Size: 295 x 230 x 100 mm
• Weight: 1600 g
• Protection degree: IP55

FUNCTIONS

• Programming with three buttons and screen

• Power supply for two 230V single-phase motors with encoder

• USB connector for connecting the control panel to a PC and managing control panel programming, firmware updates and operating diagnostics via software.

• Connector for the LOW ENERGY module allowing significant energy savings (< 0.5 Wh)

• Connector for the MR2 modular radio receiver

• Management for start, pedestrian start and radio stop

• Test of safety devices before each opening

• Output for 230V intermittent signalling lamp

• Self-learning function of working time

• obstacle detection function

• Operating cycle counter with maintenance signalling programming

• Soft start in opening phase and speed deceleration in closing phase (programmable time)

• View the status of entries on screen

• Also available in CITY1-EVO-PB version housed in an industrial container and with a current safety cutter

MANUALS

Instruction manual for the CITY1-EVO
