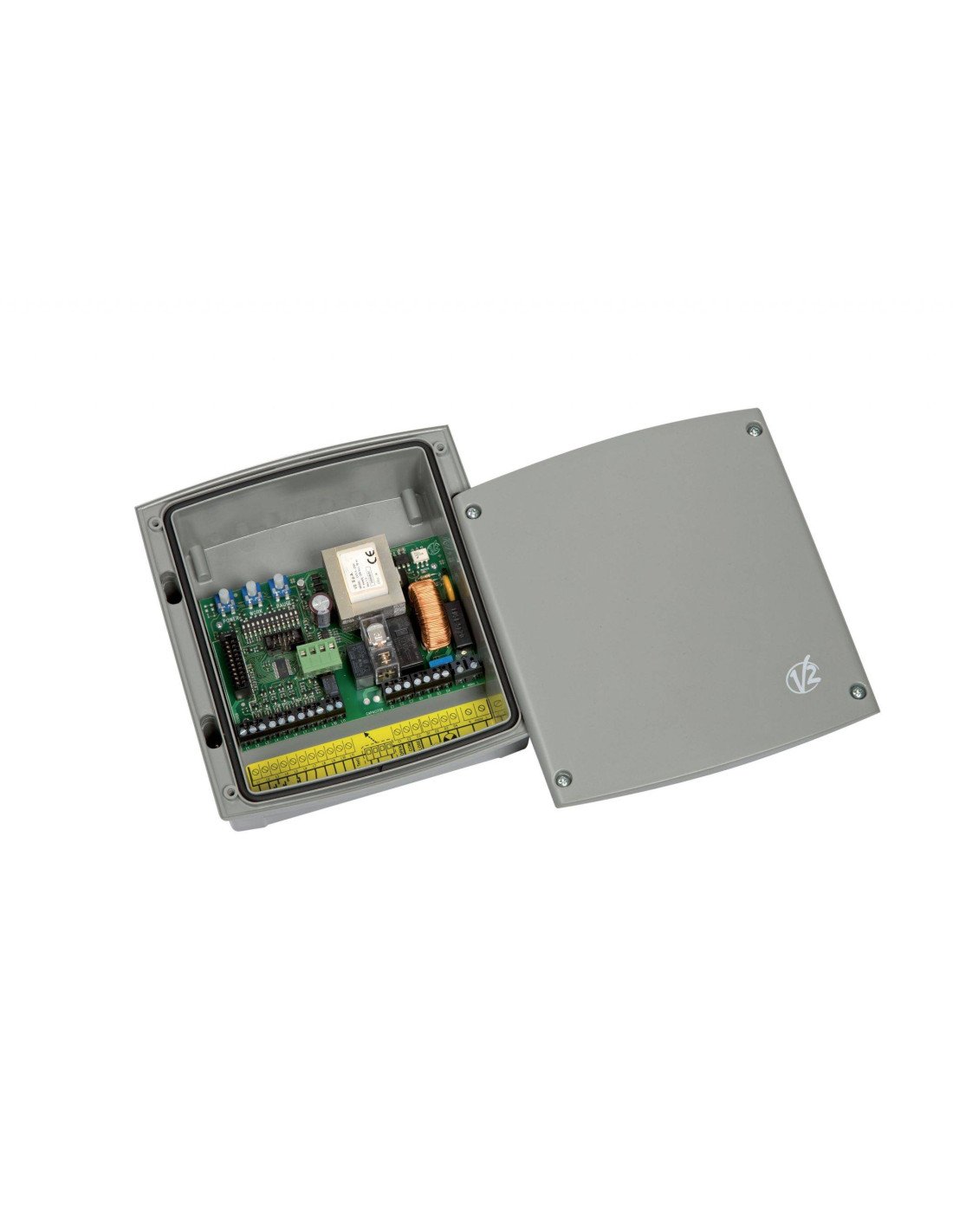

Maneuvering V2 City9 Analog 230V for sliding doors.

"The City9 box has been replaced by the New model flexy2 Totalmenta compatible "

Technical characteristics

• Food: 230 - 50 V / Hz
• Load Max Engines: 700 W
• Load Max Accessories 24 Vac: 3 W
• Operating temperature: -20 ÷ +60 ° C
• Dimensions: 170 x 185 x 70 mm
• Weight: 800 g
• Degree of protection: IP55

Functions

• Regulation and programming through potentiometer and DIP switch

• Feed for a 230V single-phase engine

• Connector for the Modular Radio Receiver MR2

• Management for Start (Home), pedestrian start and unemployment via radio

• Tickets for running running in opening and closing

• 230V signaling lamp output (for use in flashing lamps)

• Test of safety devices before each opening

• Exit for courtesy light (also with the issuer)

• Soft leaves of the leaves in perleo perleo chiusure rumorose e rimbalzi

• Display of the status of entries via LED

Manuals

Manual V2 City9
