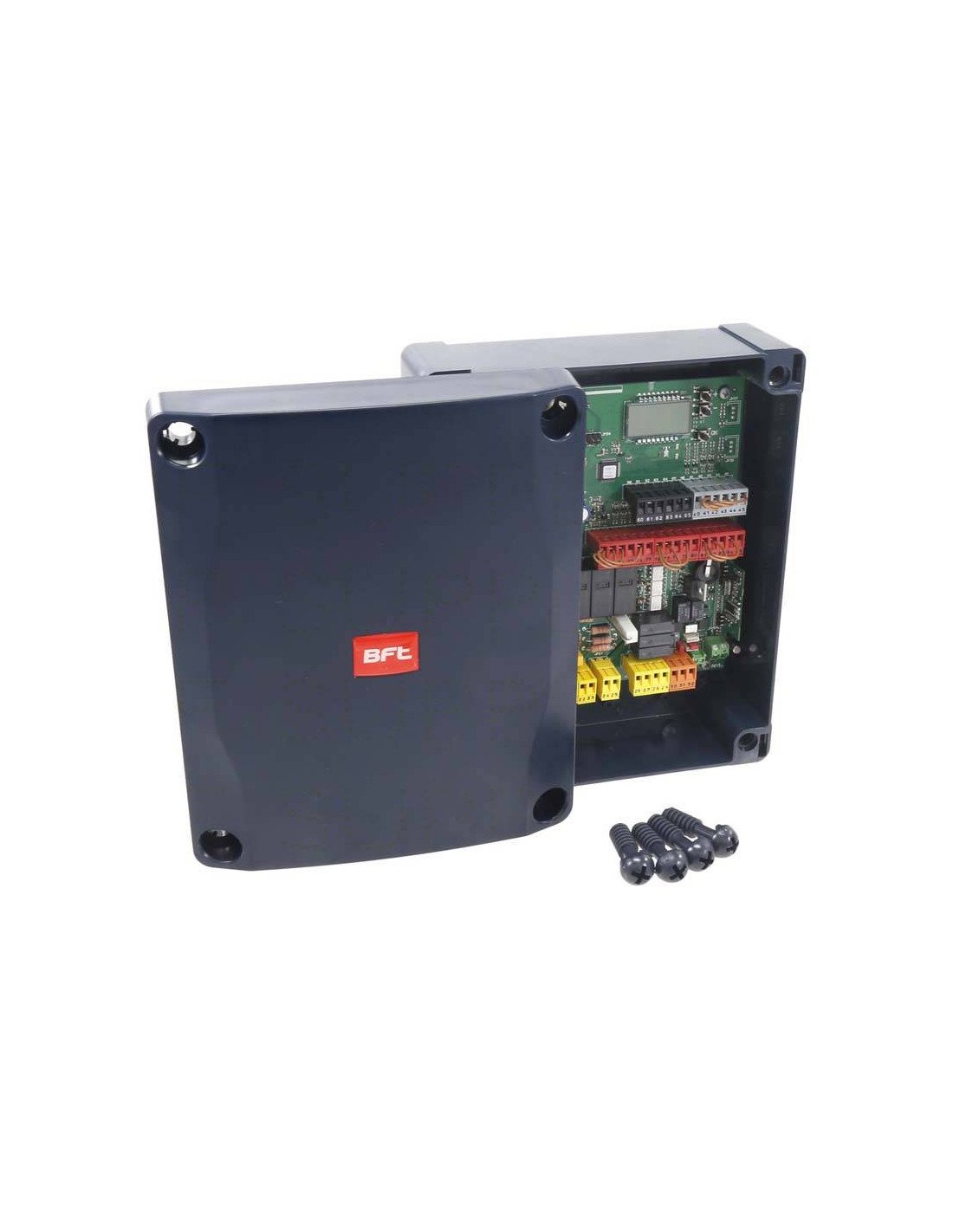

Universal control panel with screen for one or two operators with sliding or sliding doors, 230 V/650+650 W or 230 V/750 W power supply.

MAIN CHARACTERISTICS

Removable block terminal, programming and diagnostics with screen, electronic magnetic torque limiter, electronic deceleration at opening and closing, separate inputs, end of race for each engine, possibilities for traffic light management and hydraulic preheating operators, weekly timer, possibility of cancellation of a specific remote control, customization of the 4 radio channels, customization of output delay duration, adjustment of obstacle sensitivity.

SPECIAL FUNCTIONS

Central fully supports the EELINK protocol. Control of 1 or 2 single-phase motors with thermo-magnetic pad. Note: Two engines of the same type must be used. Manual or automatic regulation of the path of the engines whether or not they have a running end. Electronic adjustment of torque.

Separate end-of-run control inputs for each engine. Separate entrances for security devices. Management of time slots. Integrated obstacle detection. Preheating engines with integrated probe reading. The password.

MANUAL

Instruction manual BFT REGEL 6
