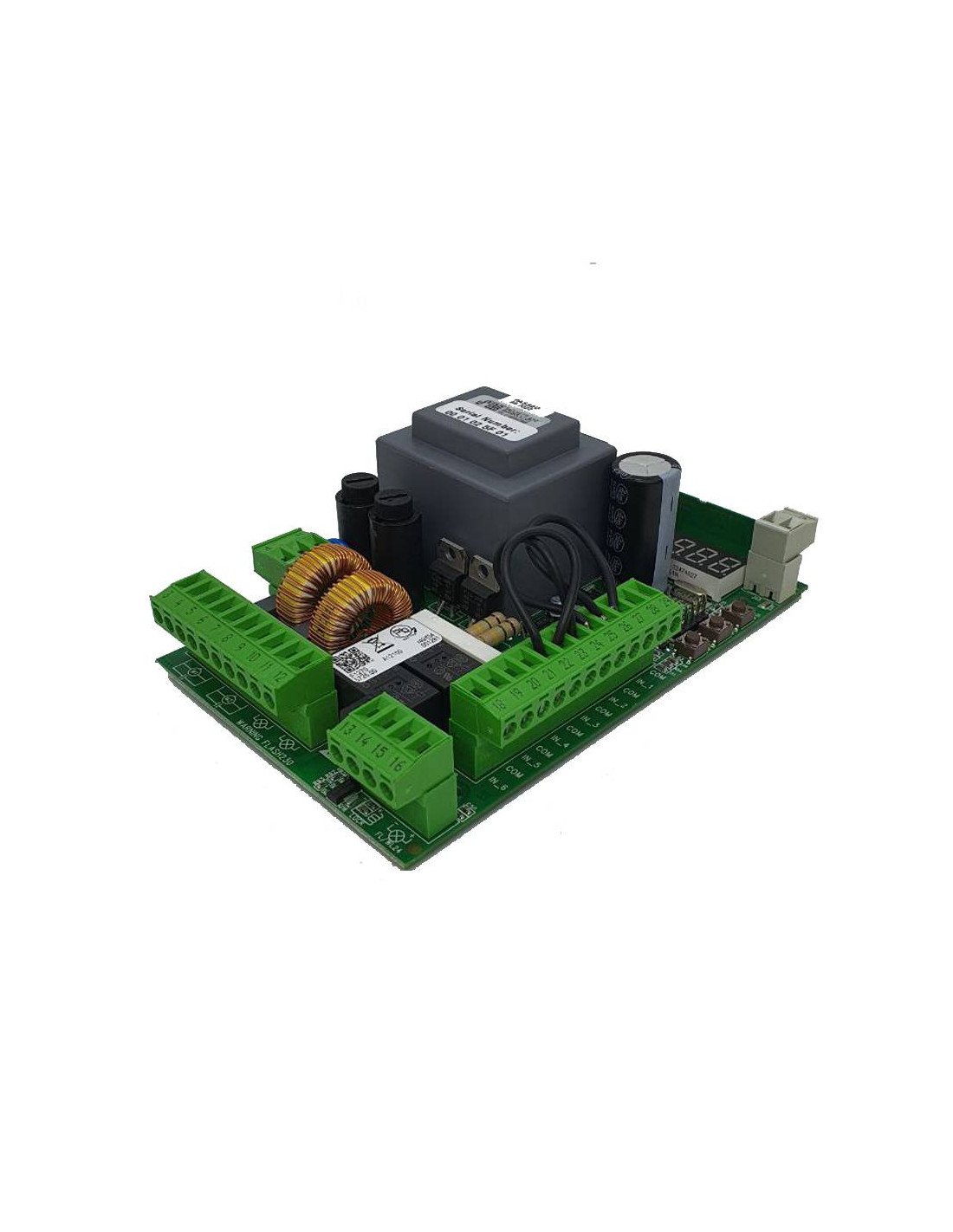

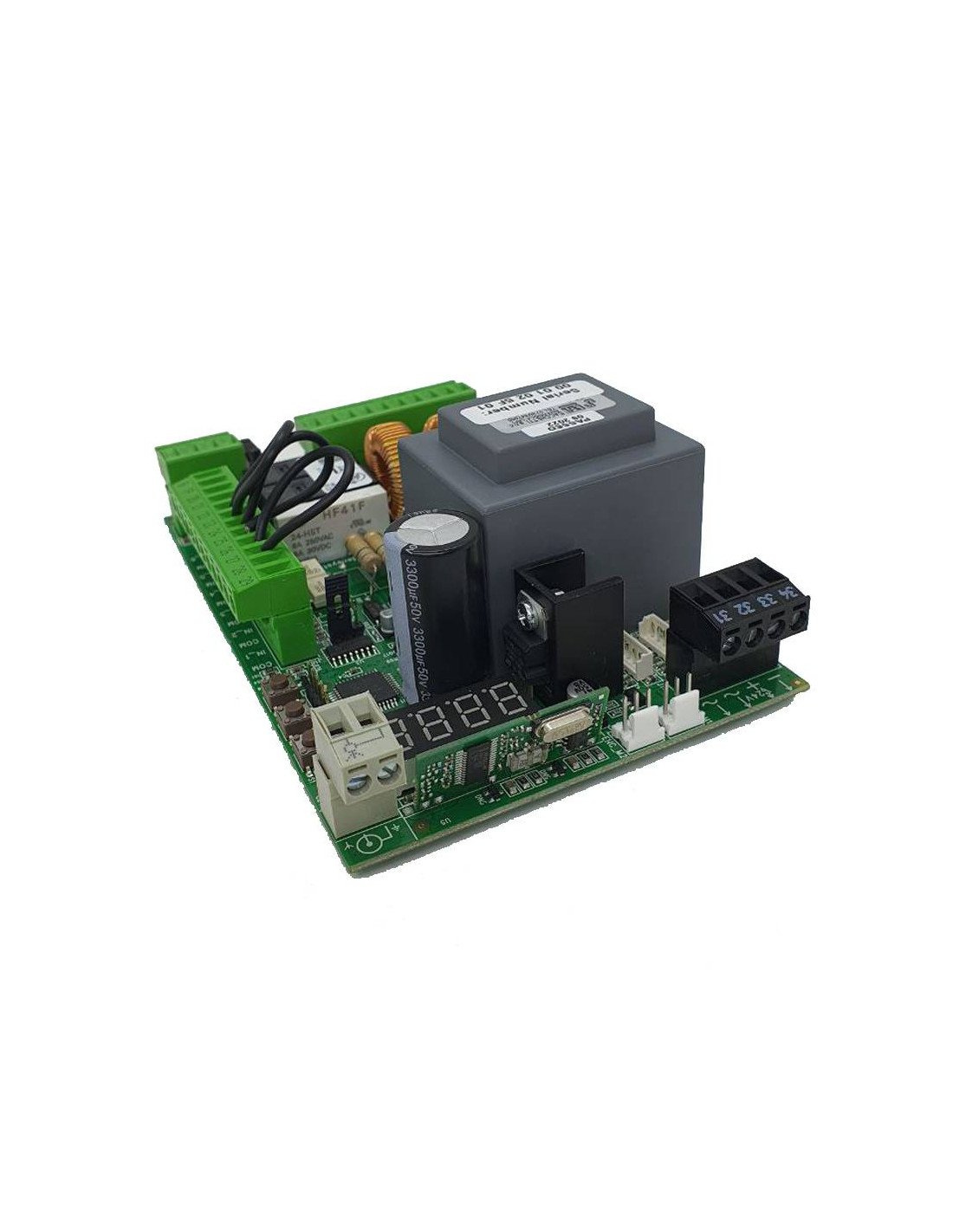

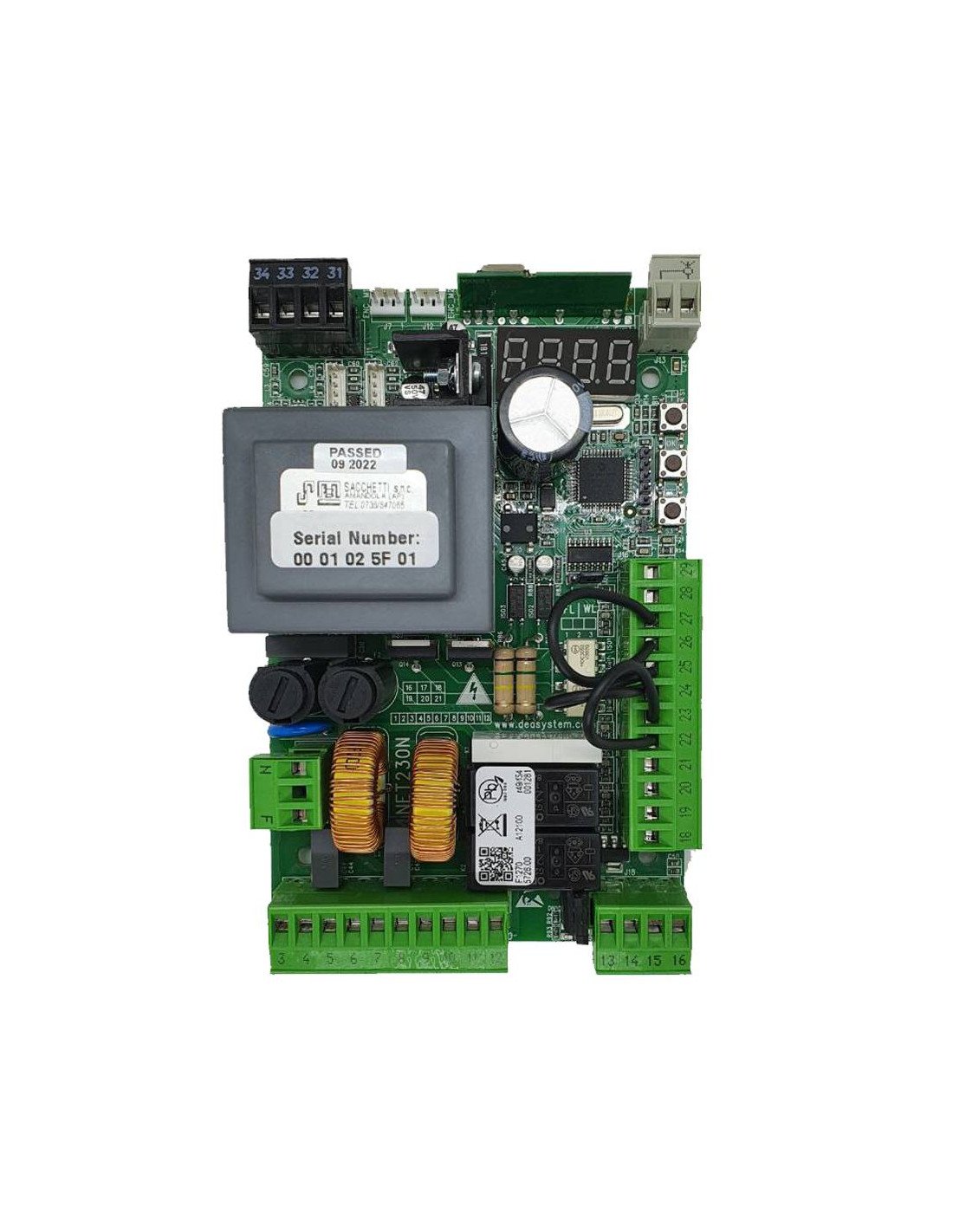

DEA NET230N control panel with built-in receiver, universal with digital display for 1 or 2 motors in 230V, with or without magnetic encoder.

Single-step selection of the type of motor used (sliding, hinge, tilting, barrier, sectional door, bollard), with automatic configuration of all inputs/outputs and operating parameters.

DEA NET230N

ONE UNIT, ALL FUNCTIONS

The control panels DE@NET have the ability to control up to two automations of the same installation, synchronously. As a result, a single control panel is required for a two-leaf door.

To control the automation, the 433MHz receiver has been incorporated and can memorize up to 100 controls (in rolling code).

SECURITY FOR EVERY FACILITY

The control panels are DE@NET available in a version with dynamic stroke control via digital encoder.

The system detects the necessary thrust force during the entire stroke of the door and if an obstacle appears, the detected force increases, therefore the motor stops its movement and reverses the direction of travel.

The control panels are DE@NET available in 230V, compatible with the magnetic encoder with which the motors have been equipped at the same voltage

FAST AND ACCURATE PROGRAMMING

Simplified programming makes it possible to configure the basic parameters for any type of automation in just a few steps.

There are 99 configuration parameters. Among the settings that can be adjusted: the type of automation, the force, the speed of the stroke and deceleration, the sensitivity of the anti-crush sensor, the inputs - and many more variables. Ideal for a global automation work, meticulous and precise in every detail.

After you have completed the installation, you can choose to lock the schedule to prevent modifications to the installation.

Simplified Machine Learning Procedure

SMART ELECTRONICS

The DE@NET control panels are even smarter thanks to NETLINK technology, which allows the installations to be configured and the transmitters to be managed via smartphone.

The 'DEAinstaller App allows full access to the management of the facilities and the parameters of the control panels. In this way, it is possible to always keep an up-to-date backup of the data in DEAcloud, accessible at any time and from anywhere.

AVAILABLE MODELS

• NET230N: Control panel without plastic box.
• NET230N/C: Control panel with IP54 plastic housing.

MANUAL

Instruction manual DEA NET230N
