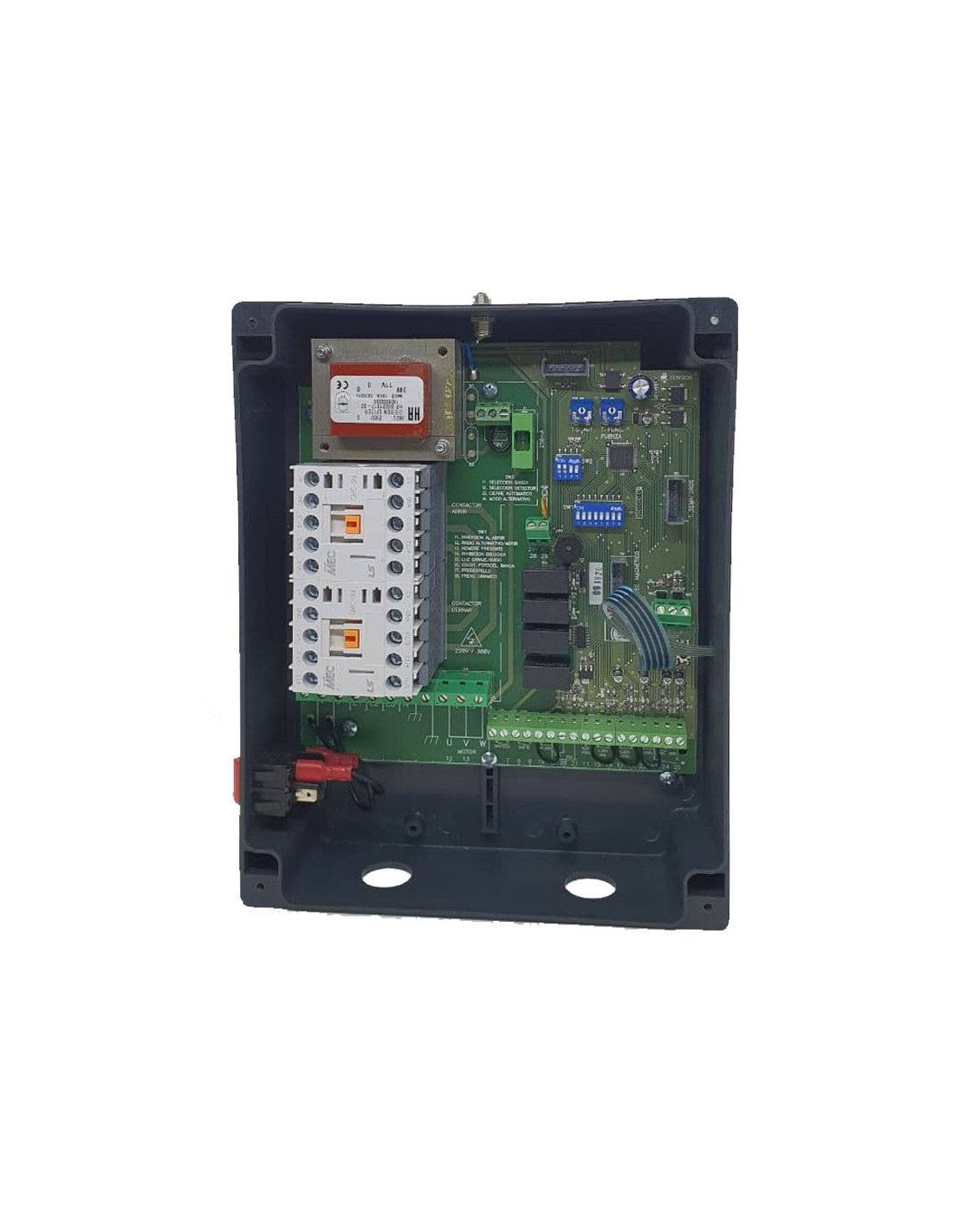

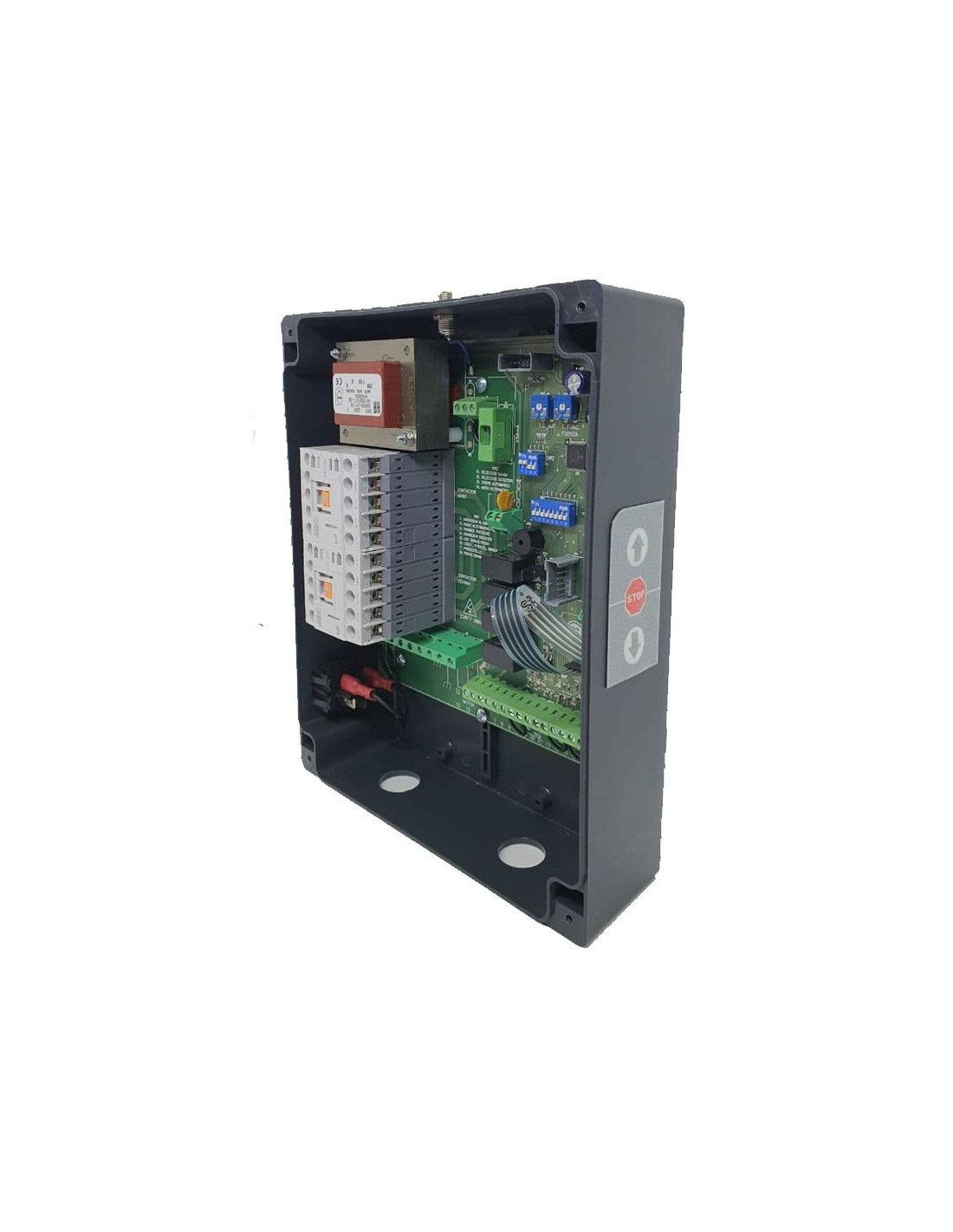

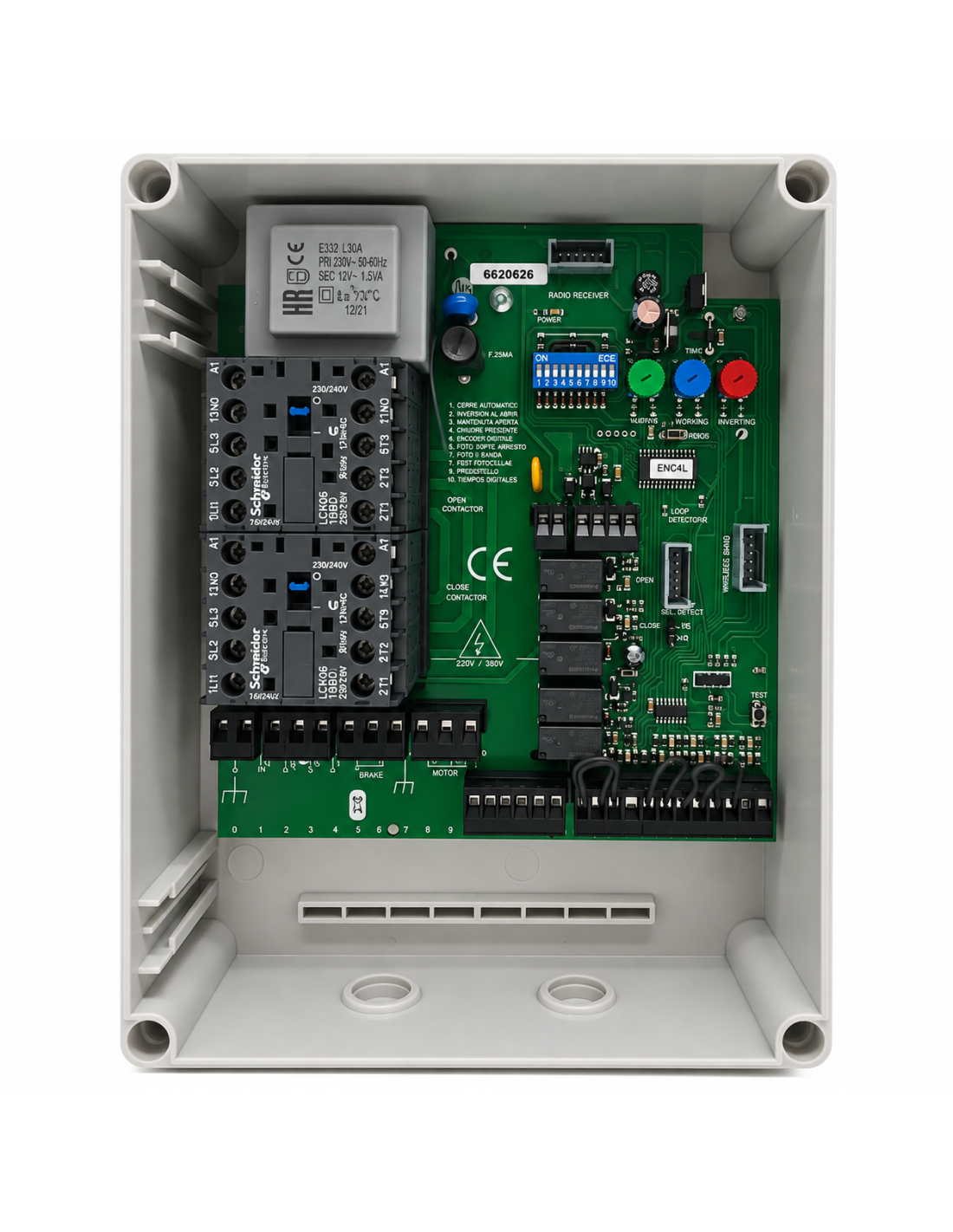

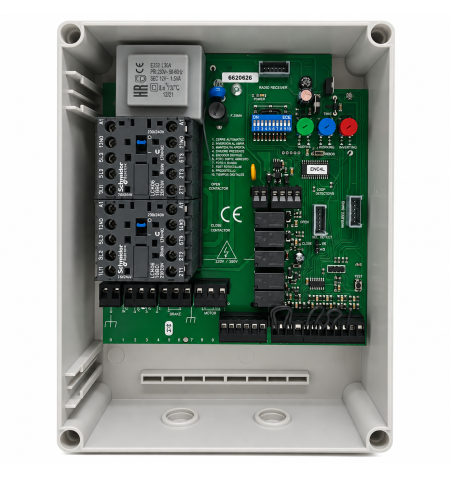

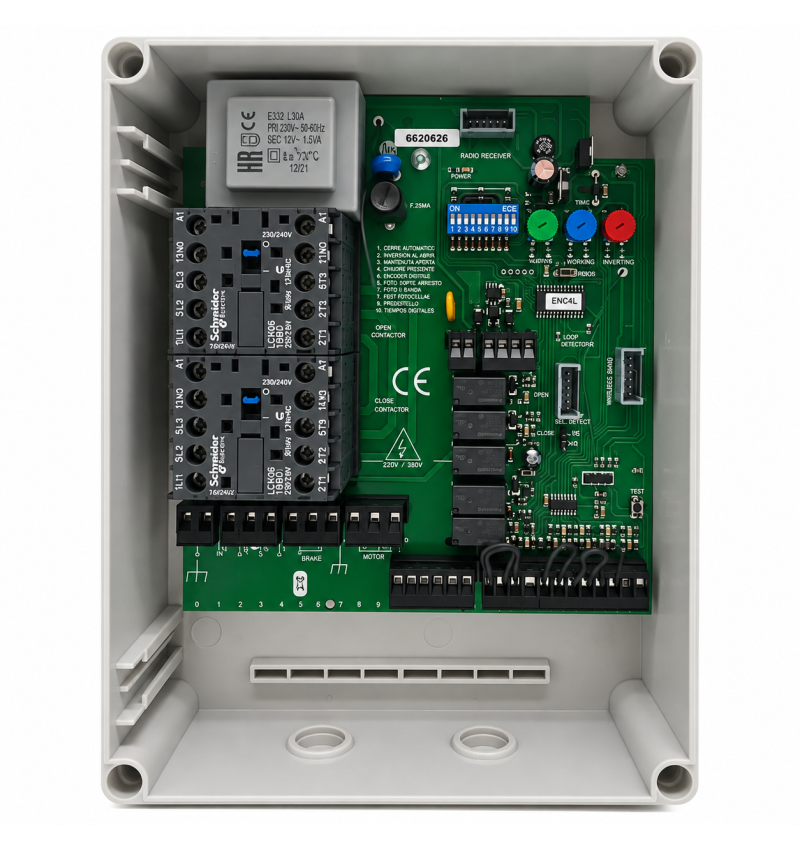

Three-phase control panel Pujol The Master Pro III at 230 V/400 V.

Versatile three-phase control panel for multiple applications and different engine types. (Power of 1,5 hp at 220V and 2,5 hp at 380V) 12V AC output, for power supply of accessories.

TECHNICAL CHARACTERISTICS

• Power supply frame: 220v AC +-10%
• Power supply: 220V 1.5hp / 380V 3hp
• Engine power: 0.5hp
• Power supply accessories: 12V dc 500mA
• Garage light contact: free voltage
• If the vehicle is not equipped with a light source, it shall be switched off
• Operating time: from 8 seconds to 80 seconds
• Automatic shutdown standby time: from 5 seconds to 120 seconds
• Radio card: optional
• Working temperature: from 0oC to 70oC
• Measurements without box: 169 mm x 140 mm

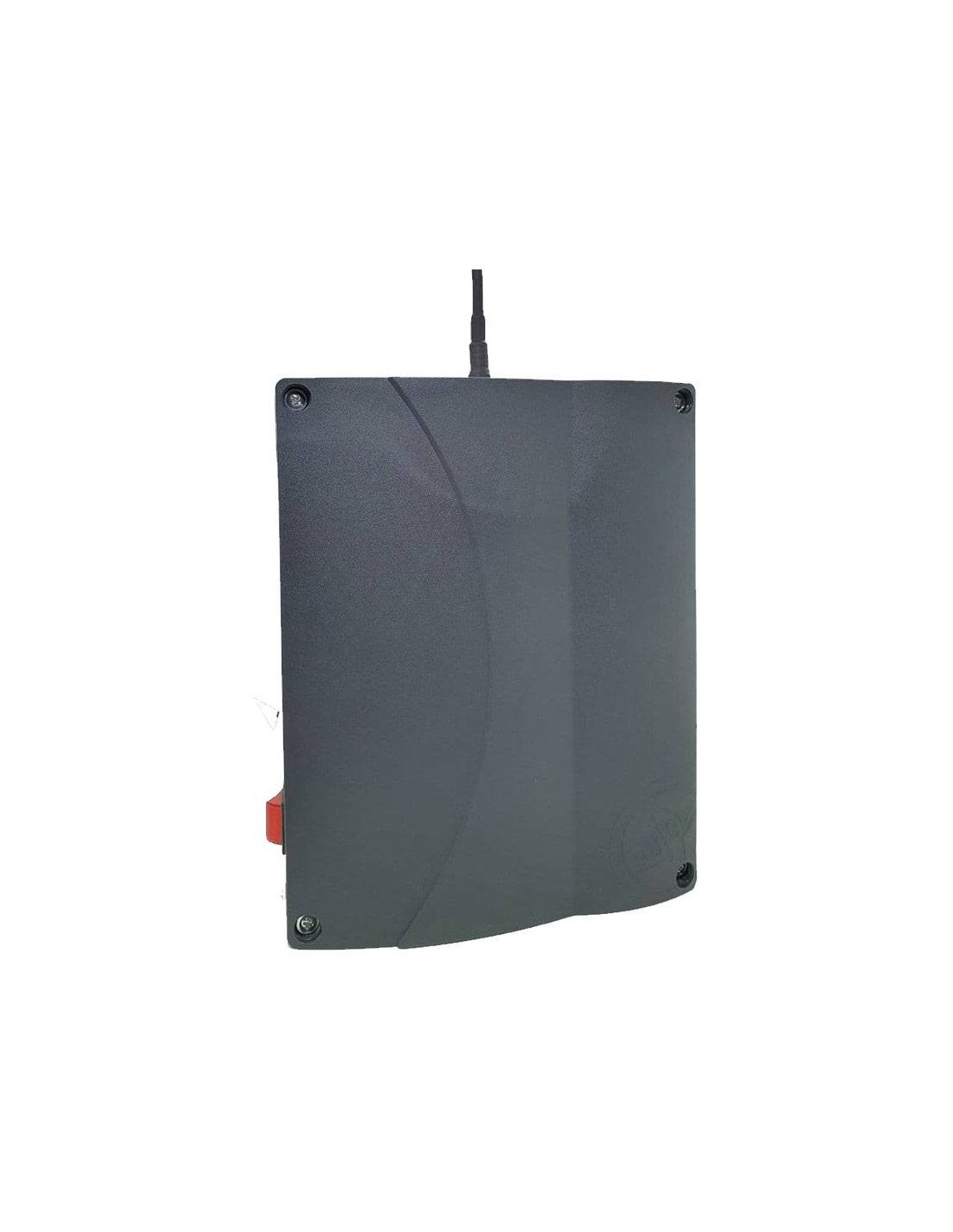

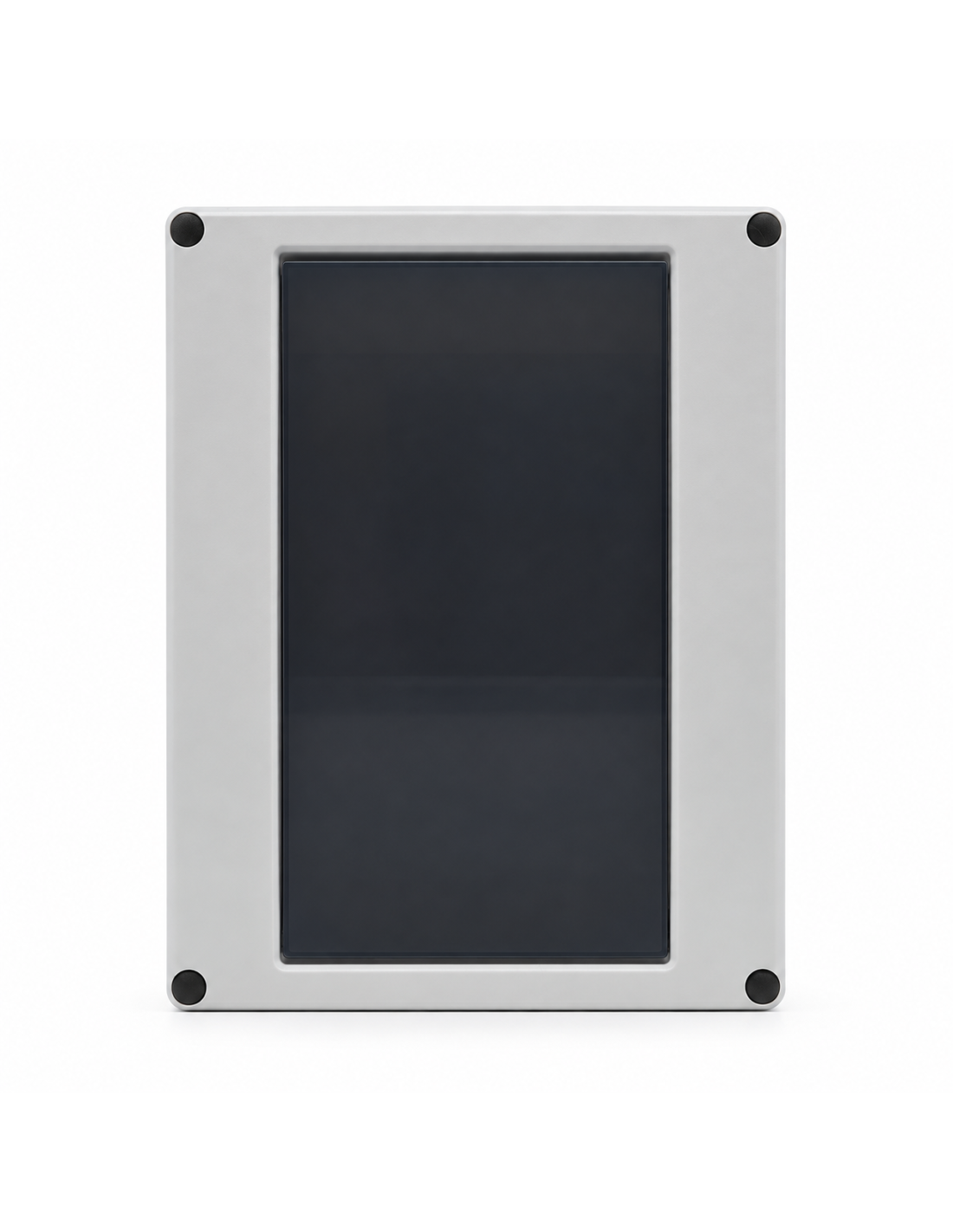

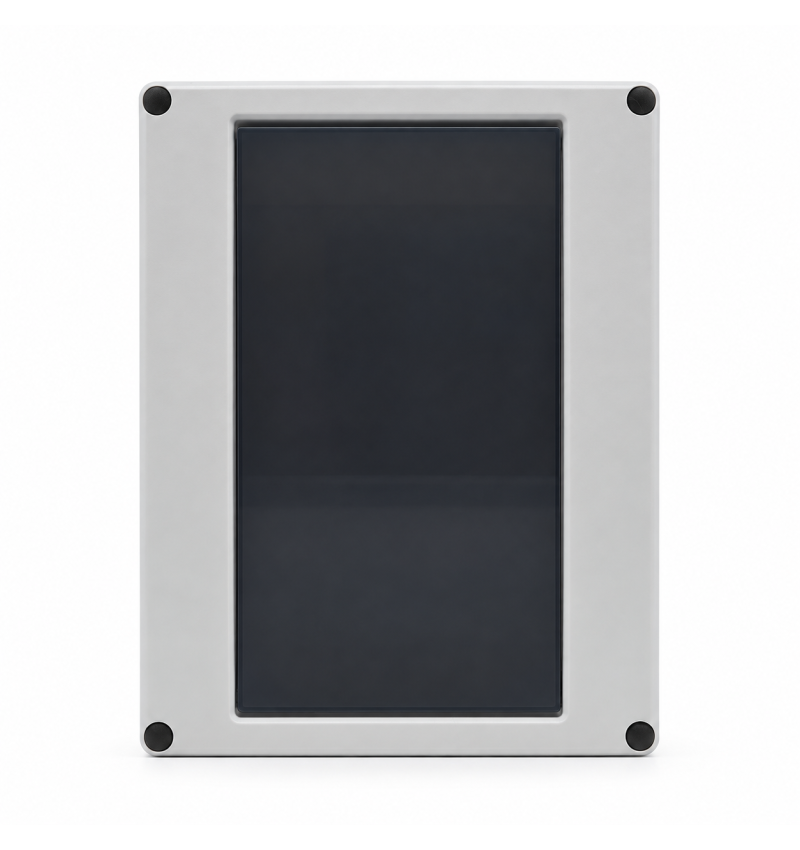

BOX CHARACTERISTICS

• Plastic material
• Type of closure: 4 screws
• In the case of vehicles of categories M1 and N2
• Protection degree: IP55
• Fire resistance: HB UL-94
• For the purposes of this Regulation, the following definitions shall apply:
• Ball pressure: 70oC
• Operating temperature: 60oC
• Size: 239x179x95 mm

MANUAL

• Manual chart Pujol The Master Pro III
