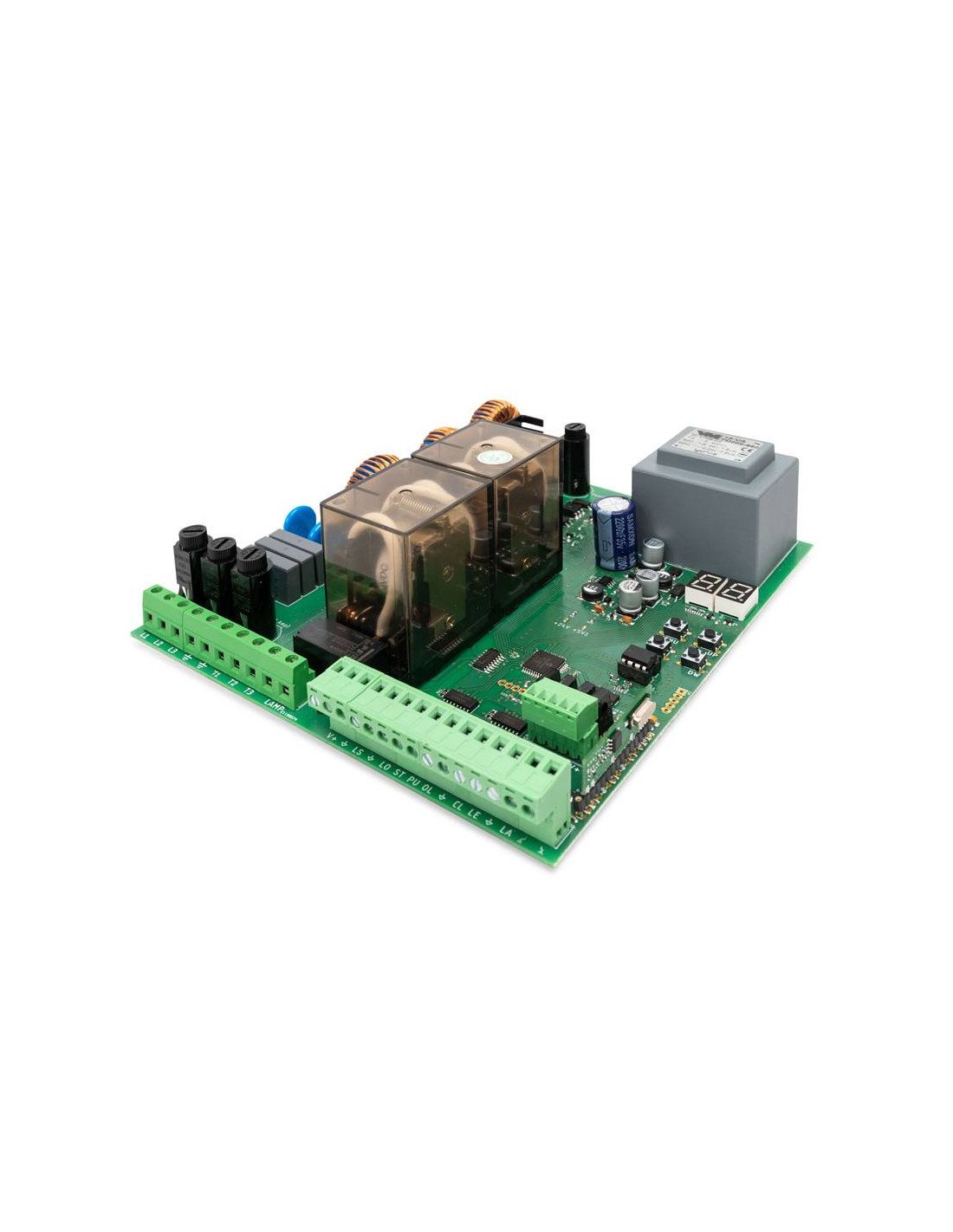

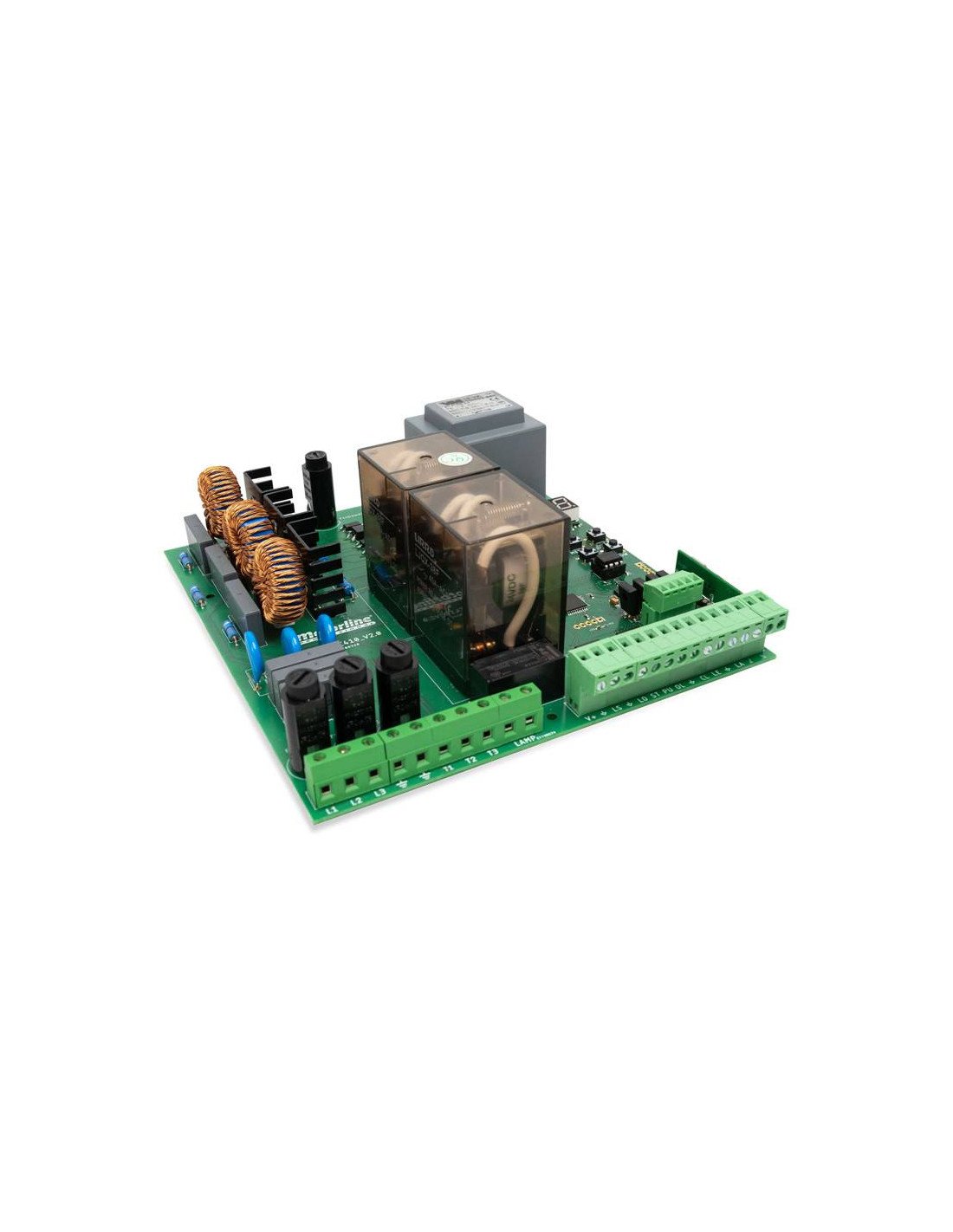

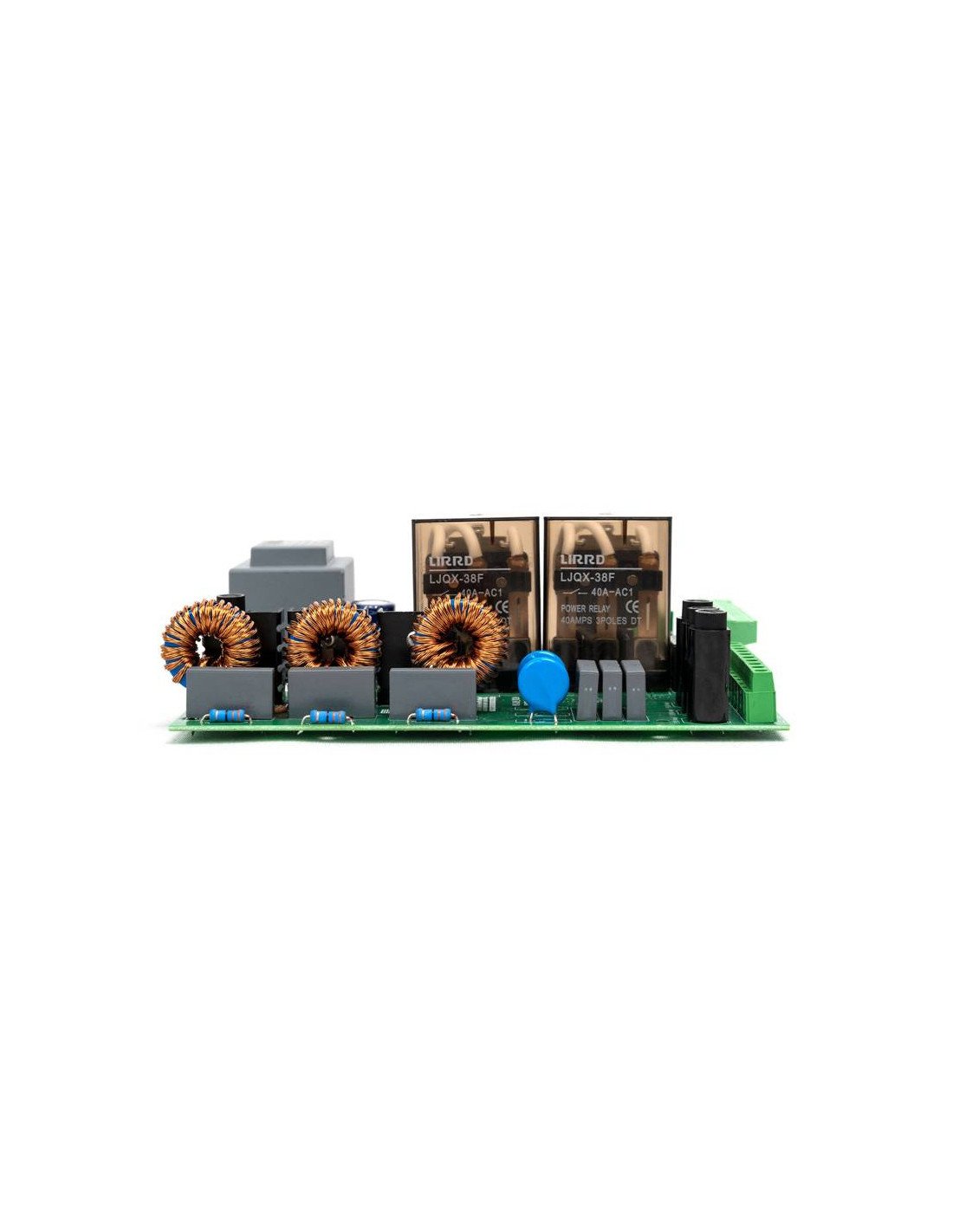

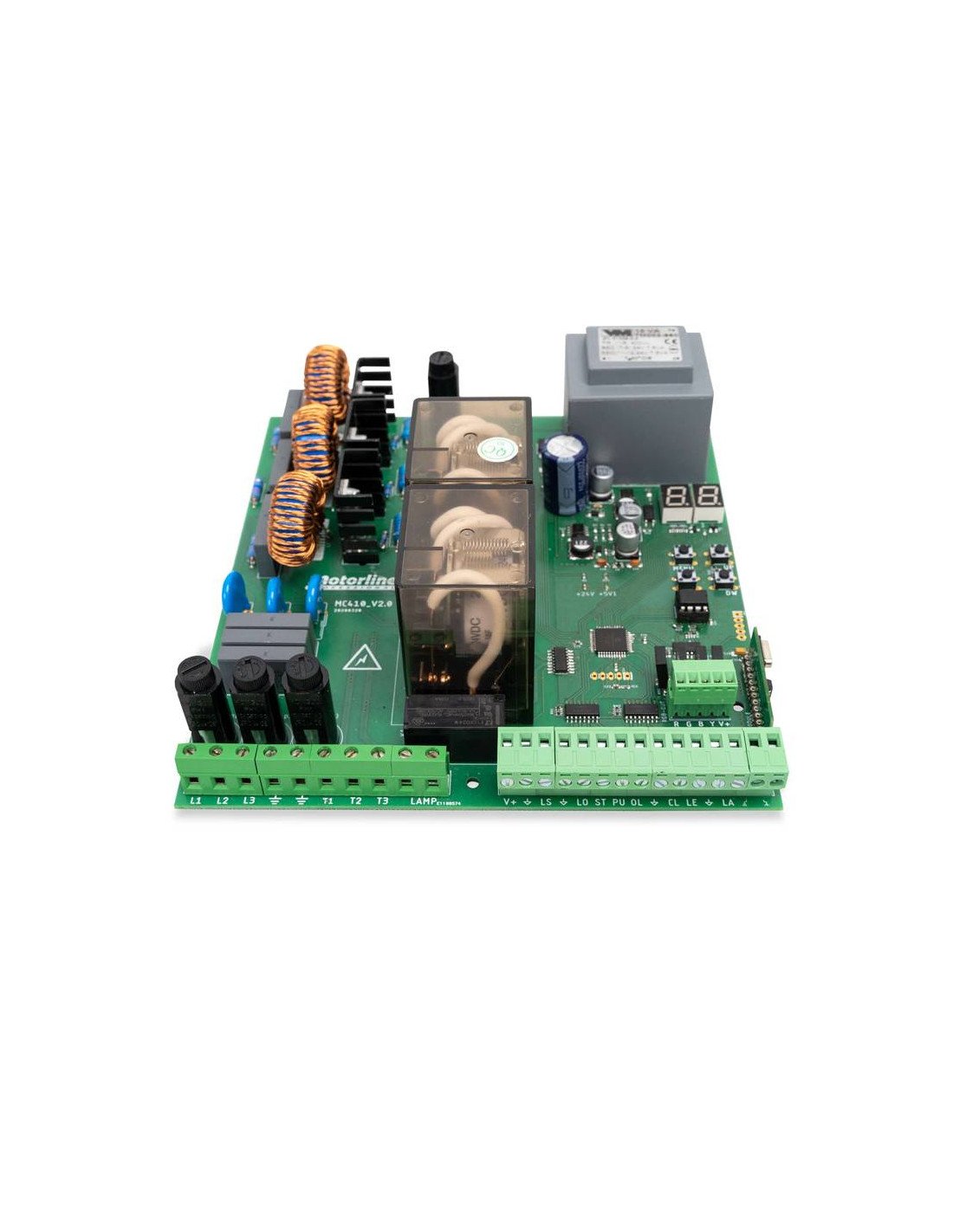

Plant developed to work with three-phase motors from 400Vac to 1500W. What. Ideal for use in STARK, KVM115 and KVM2020 engines.

• Standardization of menus Motorline® with choice of application type (sectional or sliding door)
• Possibility to adjust engine force
• Soft start setting (decreasing engine current at start, reducing impact on mechanical parts and engine) • Phase failure detection
• Soft cap that allows to decrease the inertia of the door when reaching the end of the race
• Regulation of force in soft stop
• Manual or automatic course scheduling • Output for port status signal or RGB firework
• Equipped with emergency button, 2 sets of photocells with different uses and end of race
• Multifunction dry contact output with a maximum capacity of 7A
• Capacity to store up to 200 transmitters (100 full aperture and 100 pedestrians)
• Possibility to adjust courtesy light time up to 99 minutes
• Menu allowing selection of different applications (sectional door / sliding door)
• Follow me function – shutdown order 5 sec. after activation of the photocell device
• • Remote programming
• Man present
• Pedestrian opening
• Electronic brake

MANUAL

Instruction manual Motorline MC410
