V2 WES is the system for control via radio of safety bands, which will allow us to install the anti-crushing rubber wirelessly thanks to the radiofrequency emitter-receiver.

Features

• WES (Wireless Edge System) is the new system of V2 That allows controlling the safety bands via radio.
• The system is composed of a base connected directly to the maneuver box and by one or more sensors (up to 8 per basis) connected to the safety bands.
• The base is powered by the maneuver box and constantly verifies the status of the connected sensors.
• To each base can be connected up to a maximum of 8 sensors.
• The system is compatible with traditional safety bands with N.C contact and resistive safety bands (8.2kohm).
• The system is compatible with any maneuver box.
• As an alternative to the Base Wes, the additional modules of the WES-ADI and WES-EASY maneuvers can be used.

Technical characteristics

Content of the Radiobanda Kit

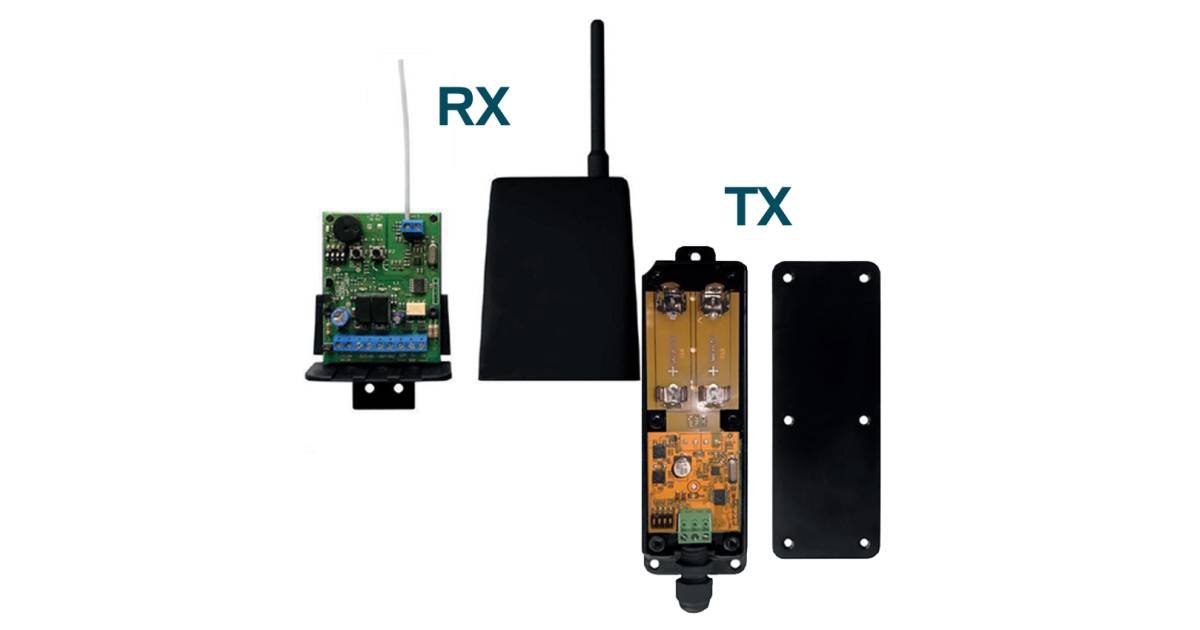

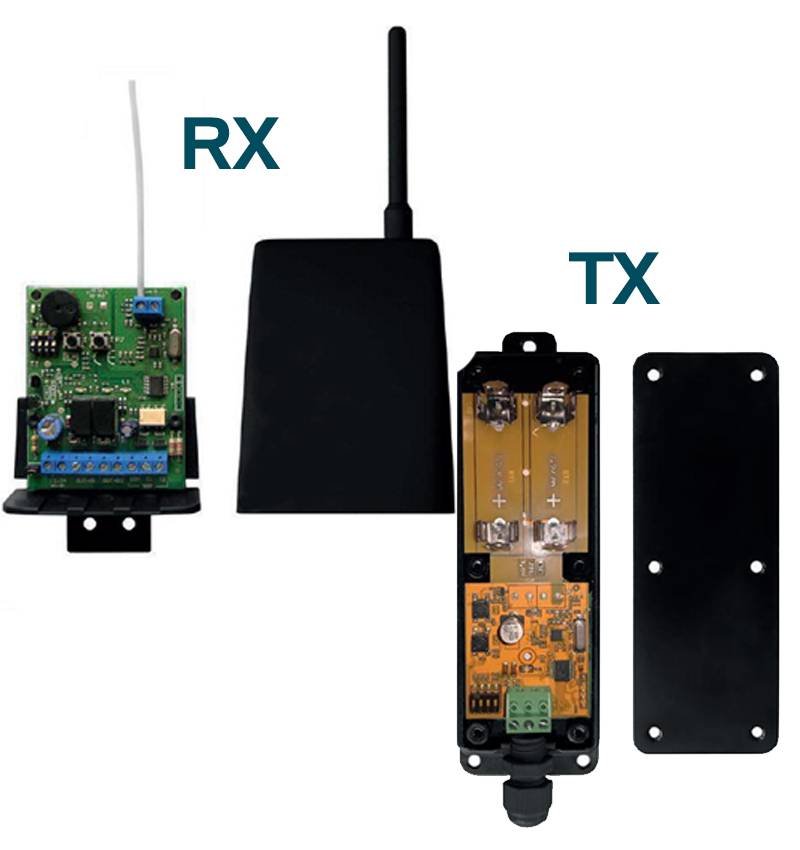

• 1 pc WES-BASE (35B022): Receiver System Safety Band.
• 1 pc WES-SENSOR (35B021): Issuer System Safety Band.

Manual

Wes-Base instruction manual

Instruction Manual WES-SENSOR
