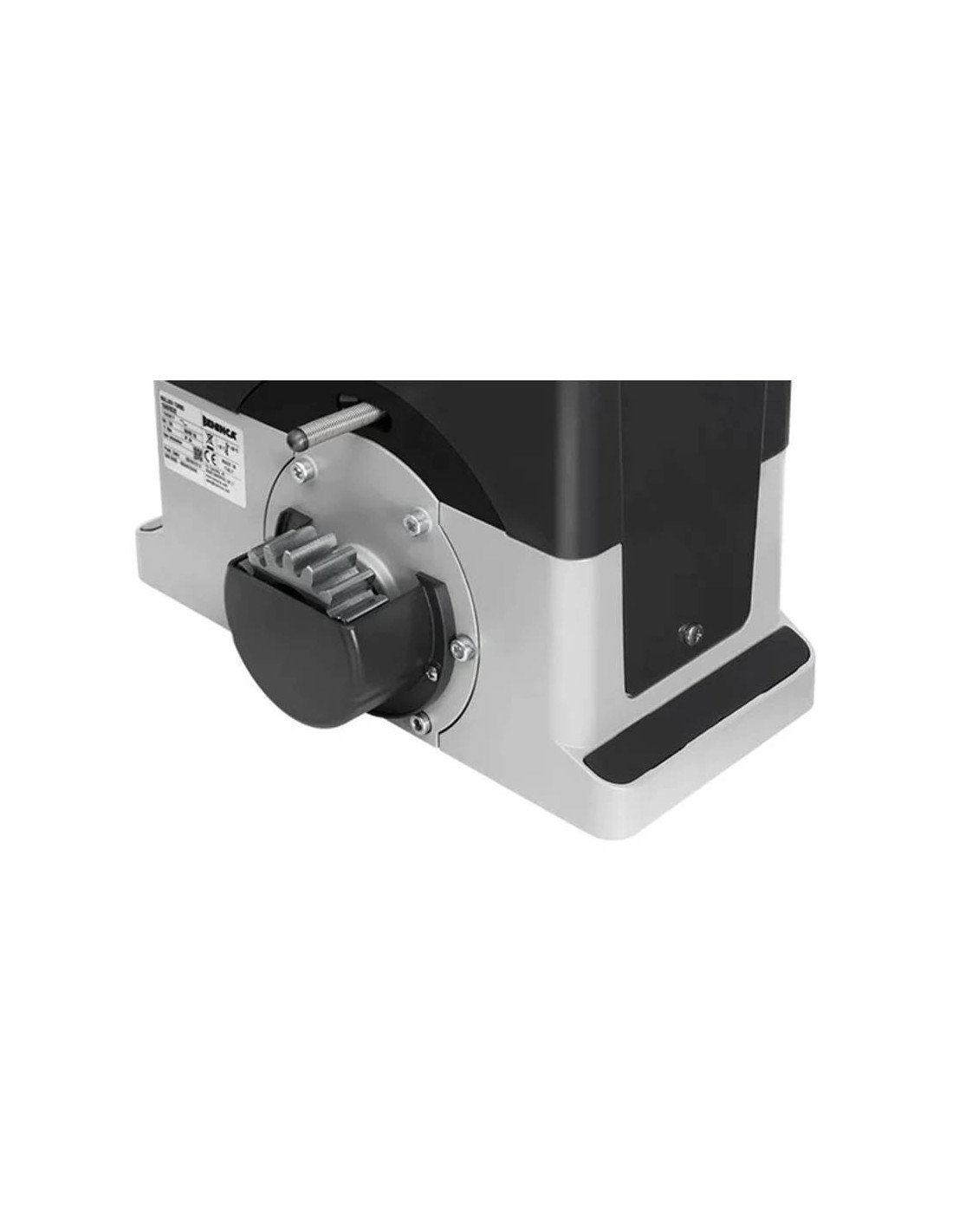

Sliding motor kit Beninca "Bull5M" 230V for residential use cancels up to 500 kg with built-in receiver. Possibility of adding optionally encoder and magnetic career endings.

Caracteríticas

• 230VAC electromechanical gearmotor for residential doors up to 500 kg
• Central and built-in receiver

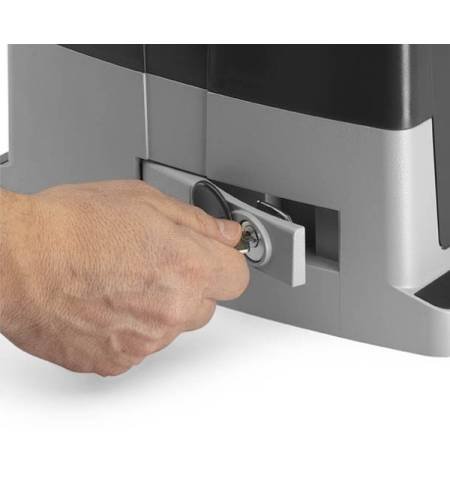

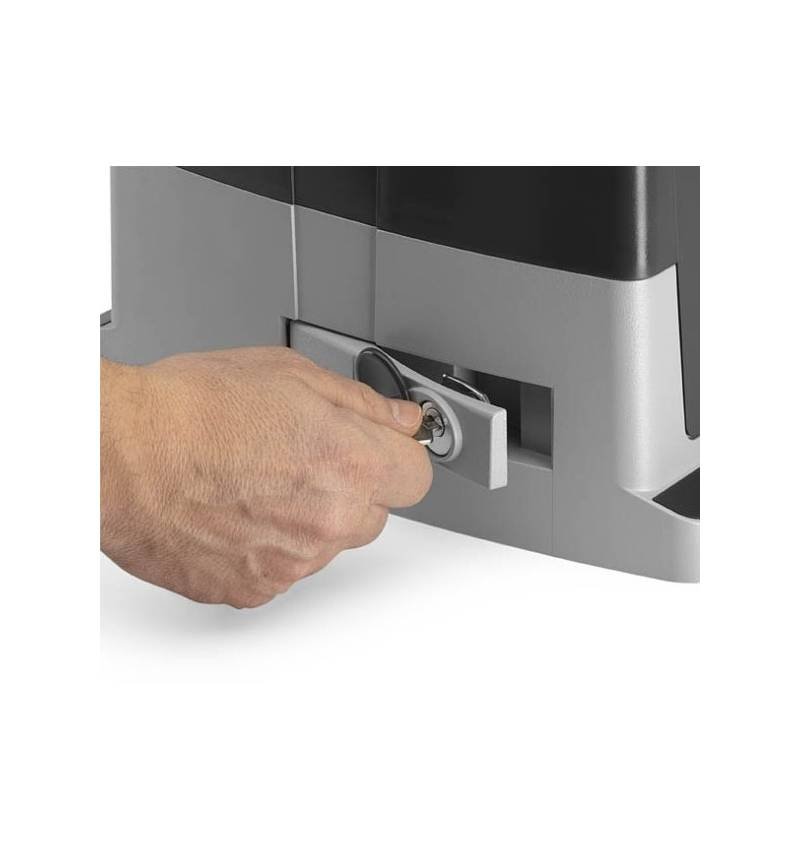

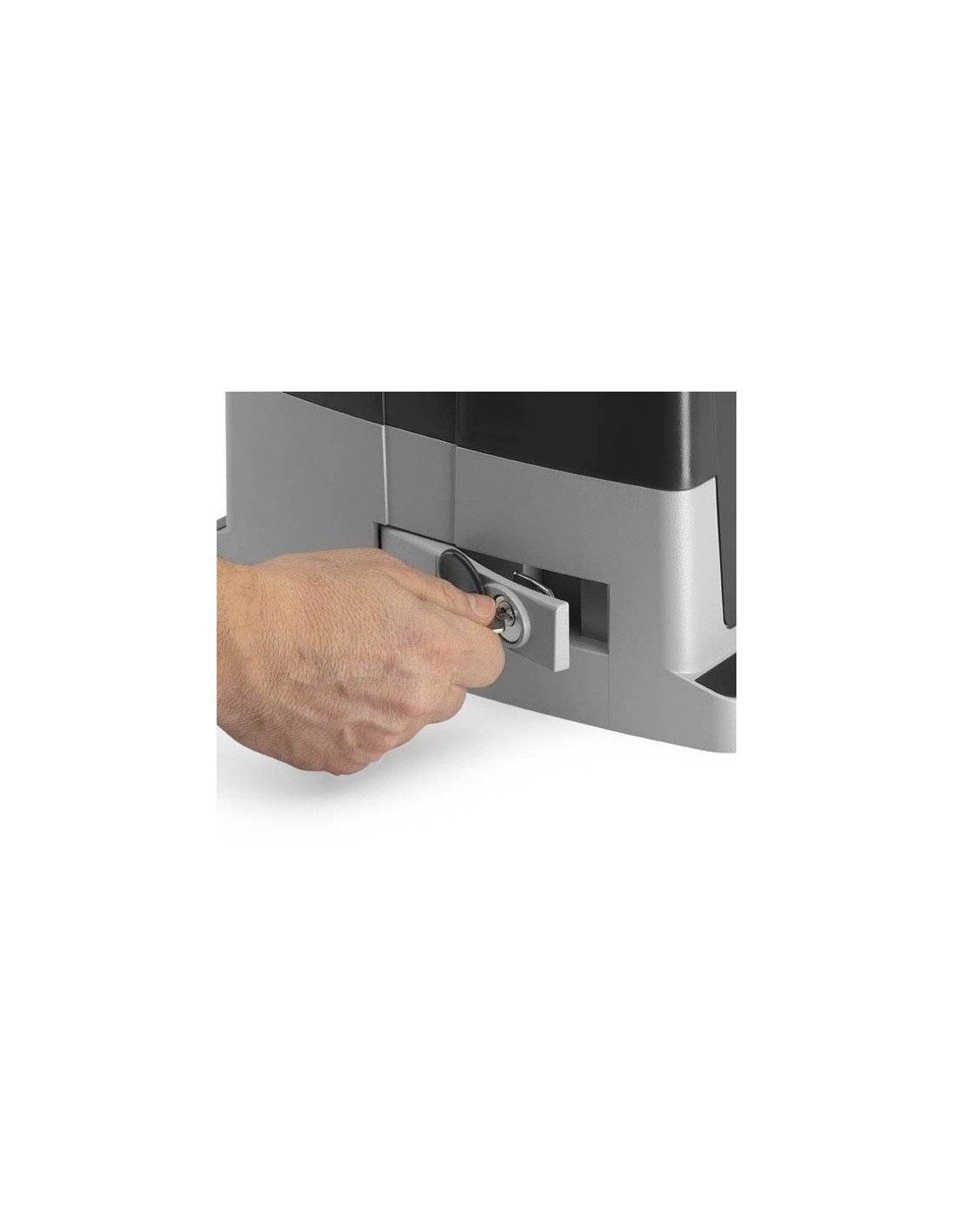

• Personalized unlock key
• Possibility of connection of the encoder through Accessory mag.e
• The encoder device guarantees anti-explaught and precision security during the door movement
• Metallic unlocking lever
• Magnetic career endings available as accessories (MLS)

Installation template included. Measures 325x100x5 mm, 300x75 mm motor fixing distance, 4 holes Ø 9 mm

Technical characteristics

• Food: 230 VAC (50-60Hz)
• Motor Food: 230 Vac
• Maximum current consumption: 1.3 A
• Maximum thrust: 650 N
• Opening speed: 10.5 m / min
• Work cycle: 30%
• Degree of protection: Ip44
• Built-in
• Integrated receiver
• Encoder
• Virtual encoder: no
• Magnetic career end: no (can be added optionally)

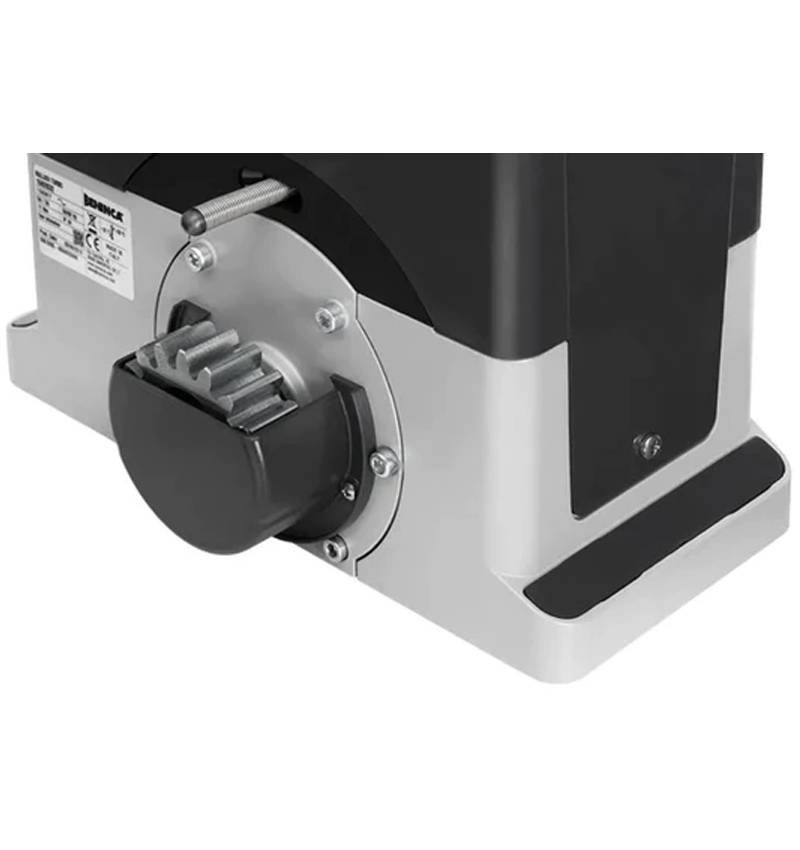

• Zipper pinion M4 Z18
• Operating temperature: -20 ° C / + 50 ° C
• Lubrication: Grease
• Maximum weight of the door: 500 kg
• Weight: 11.3 kg
• Kit weight: 12.1 kg

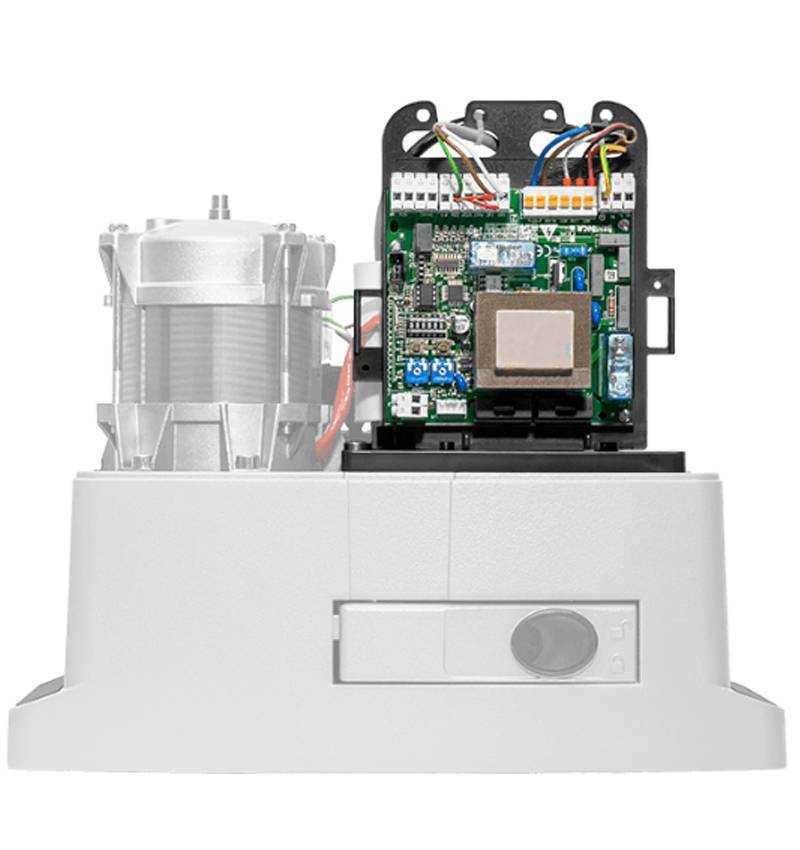

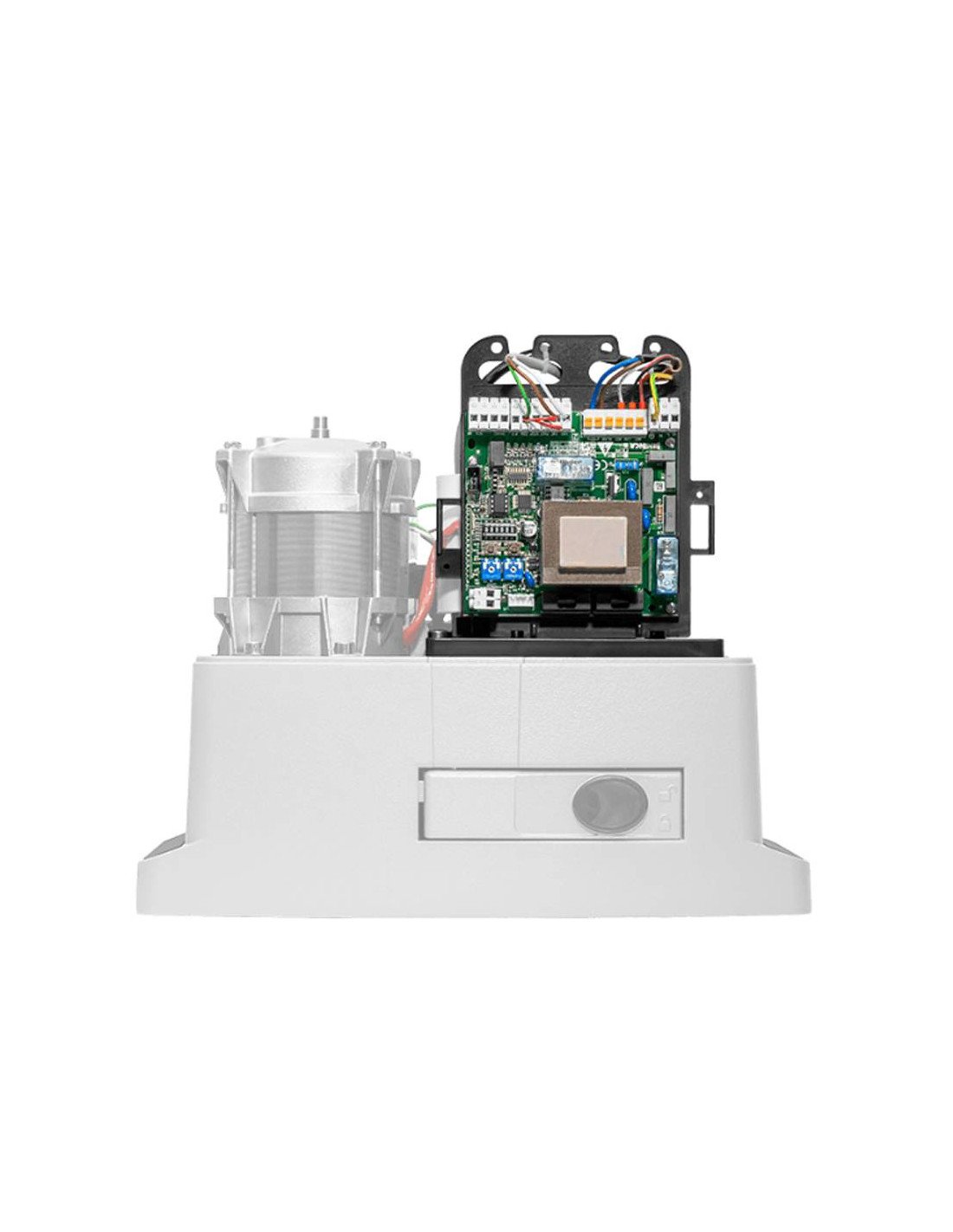

CP.Core maneuver box

• Adjusting the parameters and operating logics by means of trimmer and DIP switches
• Radio receiver built-in 433,92 MHz 64 codes and encoding Radio ARC
• Removable connection strips
• Automatic operating logic, semi-automatic and man present
• Encoder Mag.E input for obstacle detection
• Tickets for End of Race Motor
• Step by step entries, stop and photocell
• Entry step by step configurable as aperture
• Configurable unemployment input as close or pedestrian
• Programmable photocell input Active both in opening and closing, or active only in closing
• Output for light indication pilot open door
• Auto-adjusting the parameters of operation and decelerations
• Adjustable decelerations
• Electronic adjustment of the motor torque in 5 levels
• Possibility of managing remote controls memorized in integrated receiver with Advantouch System

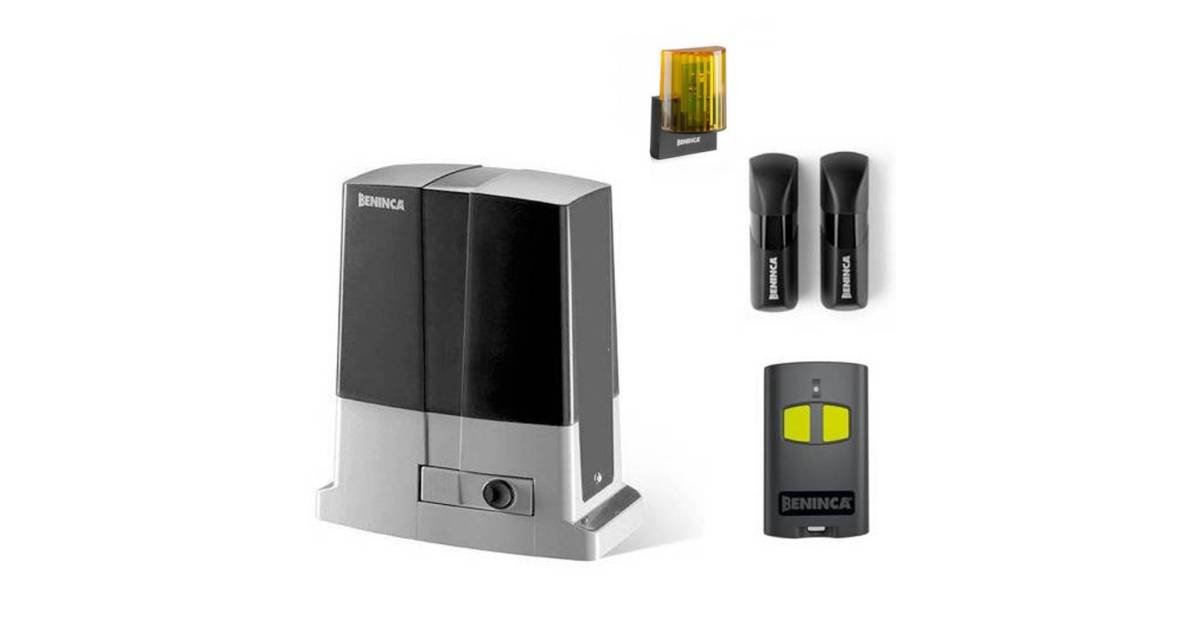

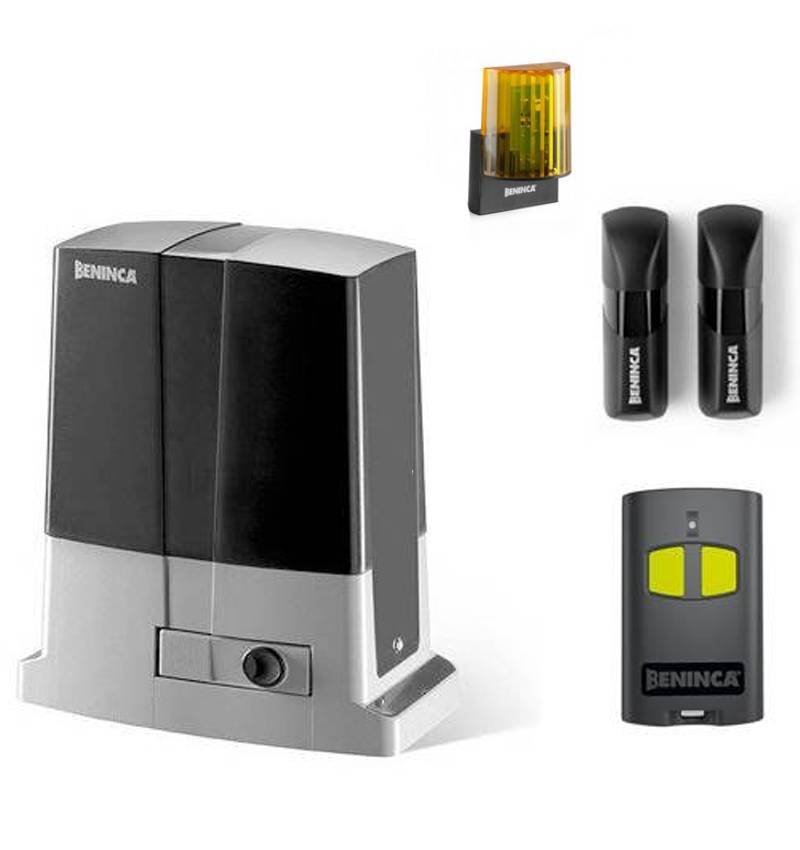

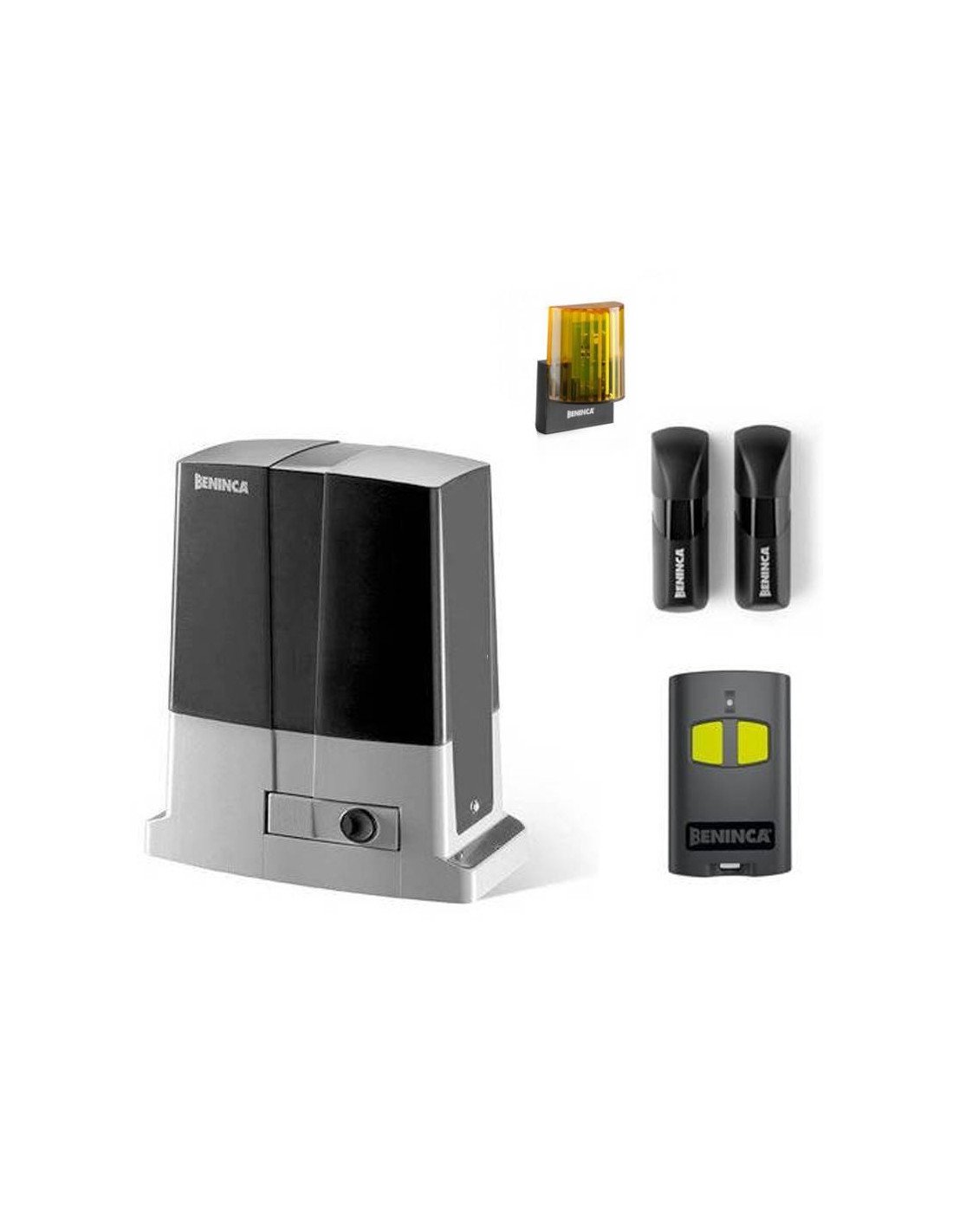

Kit content

• 1 pc Bull5m: 230VAC electromechanical gearmotor with built-in and receiver center.
• 1 pc Pupilla.r: Pair of emitter-receiving safety photocells.
• 1 pc Lampi.led: Flashing lamp.
• 1 pc To.go2va: 2-channel RollingCode Arc emitter.

Measures

Manual

Manual Beninca Bull5m
