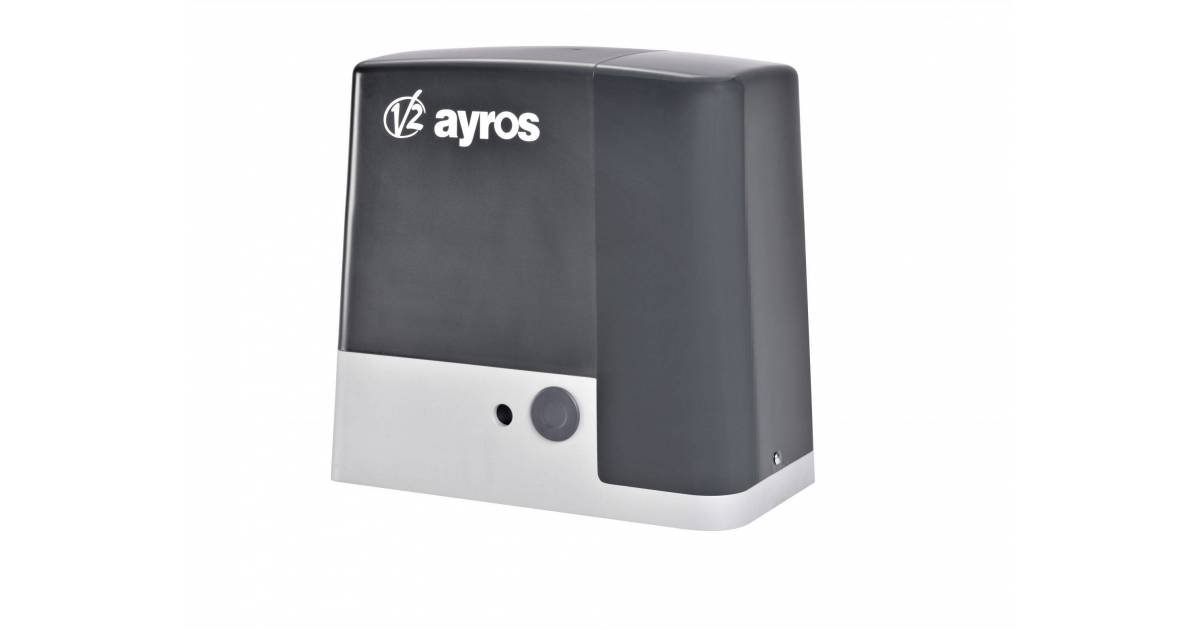

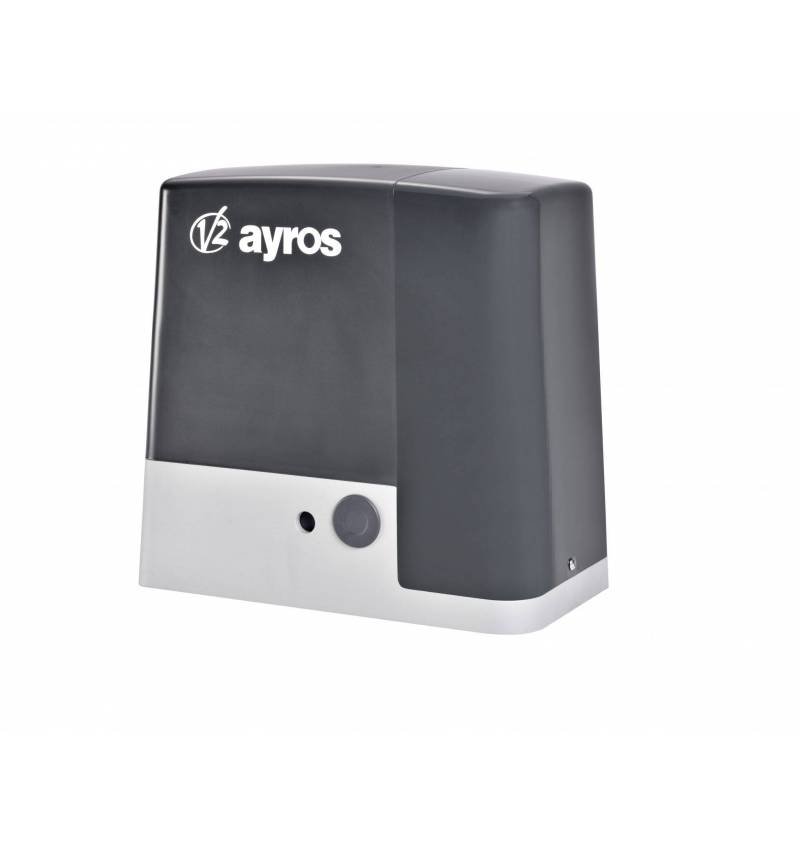

Engines V2 Electromechanical Ayros for sliding doors of 500, 600, 800, 1000, 1200 and 1500 kg with Magnetic career endings and digital maneuver box with encoder.

Models available

• Ayros 500D-24V-F: 24V electromechanical motor doors up to 500 kg (fast engine)
• Ayros600d-24v: 24V Electromechanical Motor Cances up to 600 kg
• Ayros1000d-24v: 24V Electromechanical Engine Cances up to 1000 kg
• Ayros800d-230v: Electromechanical motor 230V canceled up to 800 kg
• Ayros1200d-230v: Electromechanical motor 230V canceled up to 1200 kg
• Ayros1500-I: Electromechanical motor 230V canceled up to 1500 kg (Inverter technology)

Functions

• Accurate and safe operation with Encoder

• Obstacle detection

• Self-learning of opening and closing times

• Synchronized operation of two motors using the Syncro module

• Precise and reliable magnetic career endings over time

24V versions:

• Accelerations and programmable decelerations

• Operation in case of absence of electric current using B-Pack battery

• Solar energy operation using the Eco-Logic system

Version 1500-I:

• Three-phase motor with inverter piloted by a maneuvering box at 230V

• Accelerations and programmable decelerations

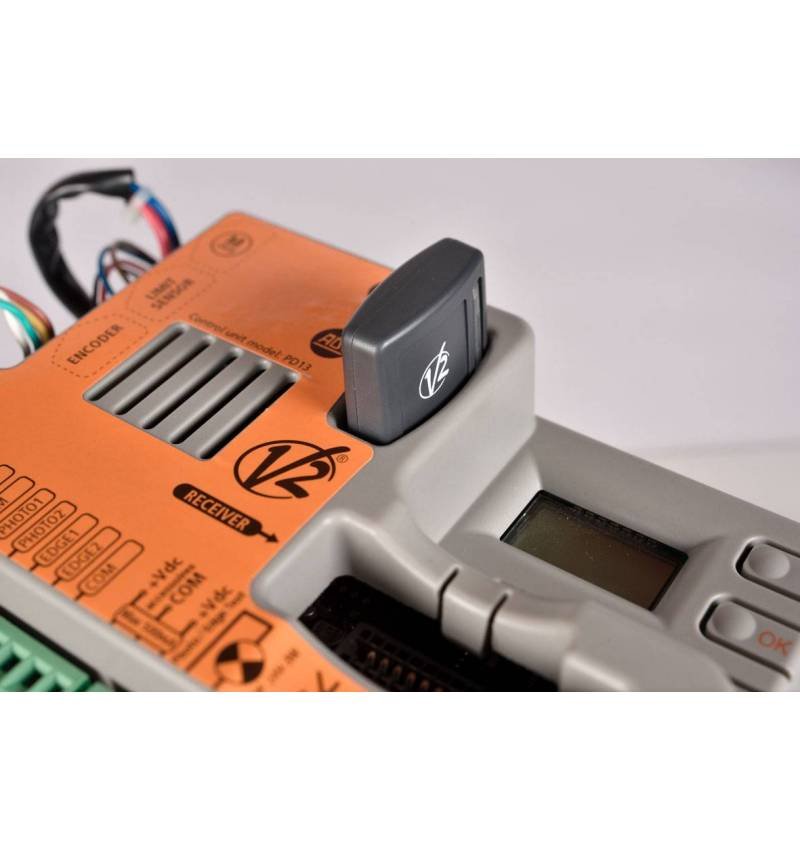

Control unit

• Programming through three buttons and screen
• Connector for Modular Radio Receiver MR2
• 2 tickets for photocells with Autotest function
• 2 Inputs for Mechanical or Resistive Safety Bands
• Exit for courtesy light
• Self-learning function of work times and detection Obstacles
• Operating cycle counter with maintenance signage
• Soft leaves of leaves in close
• ADI connector for connection of the optional module
• Soft start door start (programmable boot ramp)
• Exit for 24V signaling lamp with or without intermittence (24V versions)
• ENERGY SAVING FUNCTION (Energy Saving) to reduce consumption in stand by (24V versions)
• Exit for 230V signaling lamp with flashing (230V versions)
• Brake function with programmable power (230V versions)
• Adjustable speed of 0.035 to 0.35 m / s in career and deceleration (version 1500-i)
• Dynamic torque control during all phases of the opening / closing cycle (version 1500-i)

Manuals

Manual V2 Ayros 230V

Manual V2 Ayros 24V

Manual V2 Ayros 1500i
