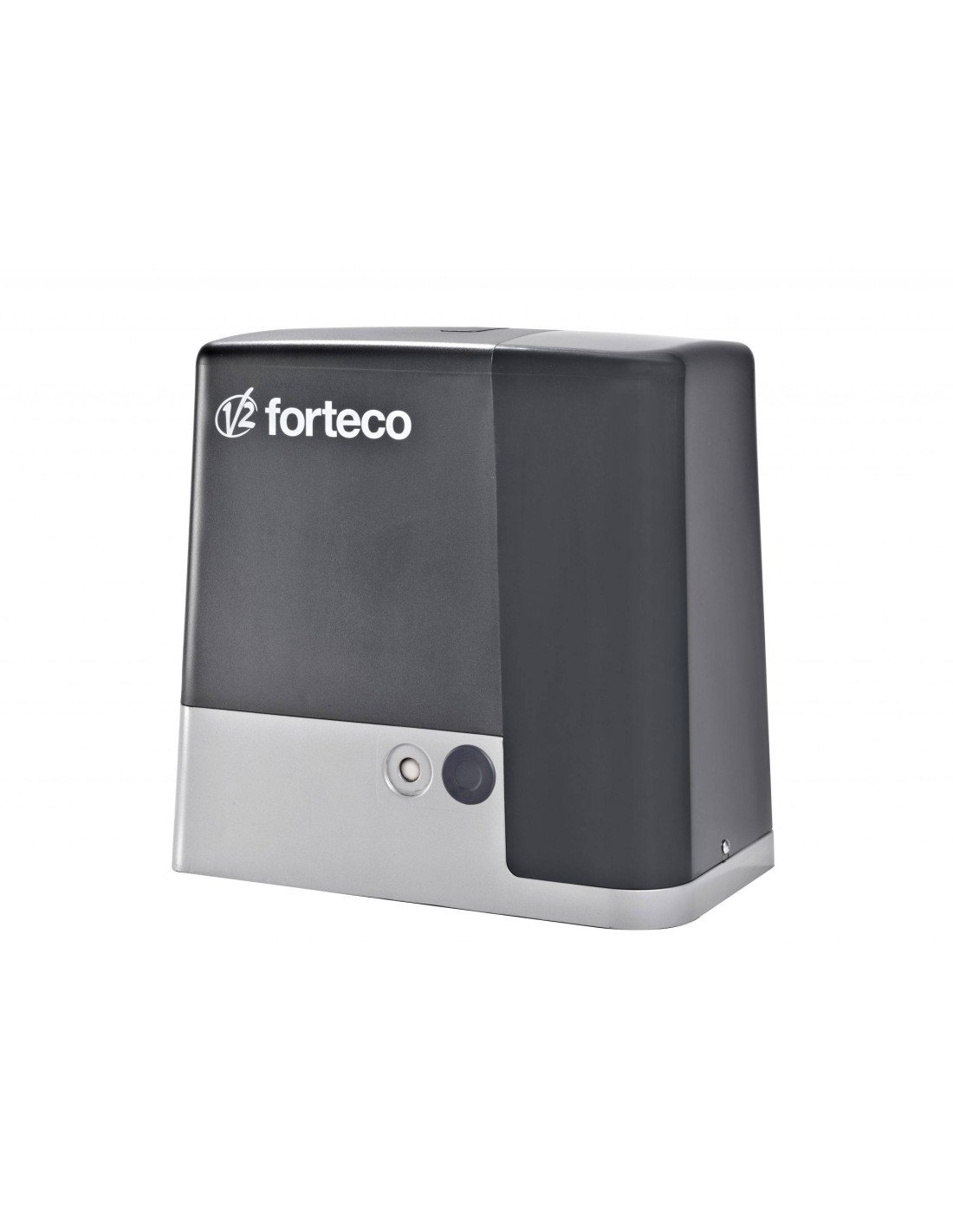

Electromechanical gearmotor V2 Irreversible 230V Forteco For sliding gates of up to 1,800 kg / 2,200 kg and 2,500 kg of weight.

Models available

• Forteco 1800: Electromechanical motor at 230V - doors up to 1800 kg
• Forteco 2200: Electromechanical engine at 230V - doors up to 2200 kg
• Forteco 2500-I: Three-phase motor with Inverter technology - doors up to 2500 kg

Features

• Accurate and safe operation with Encoder

• Obstacle detection

• Self-learning of opening and closing times

• Synchronized operation of two motors using the Syncro module

• Precise and reliable magnetic career endings over time

• Possibility of mounting a pinion M6 Version 2500-I:

• Three-phase motor with inverter piloted by a maneuvering box at 230V

• Accelerations and programmable decelerations

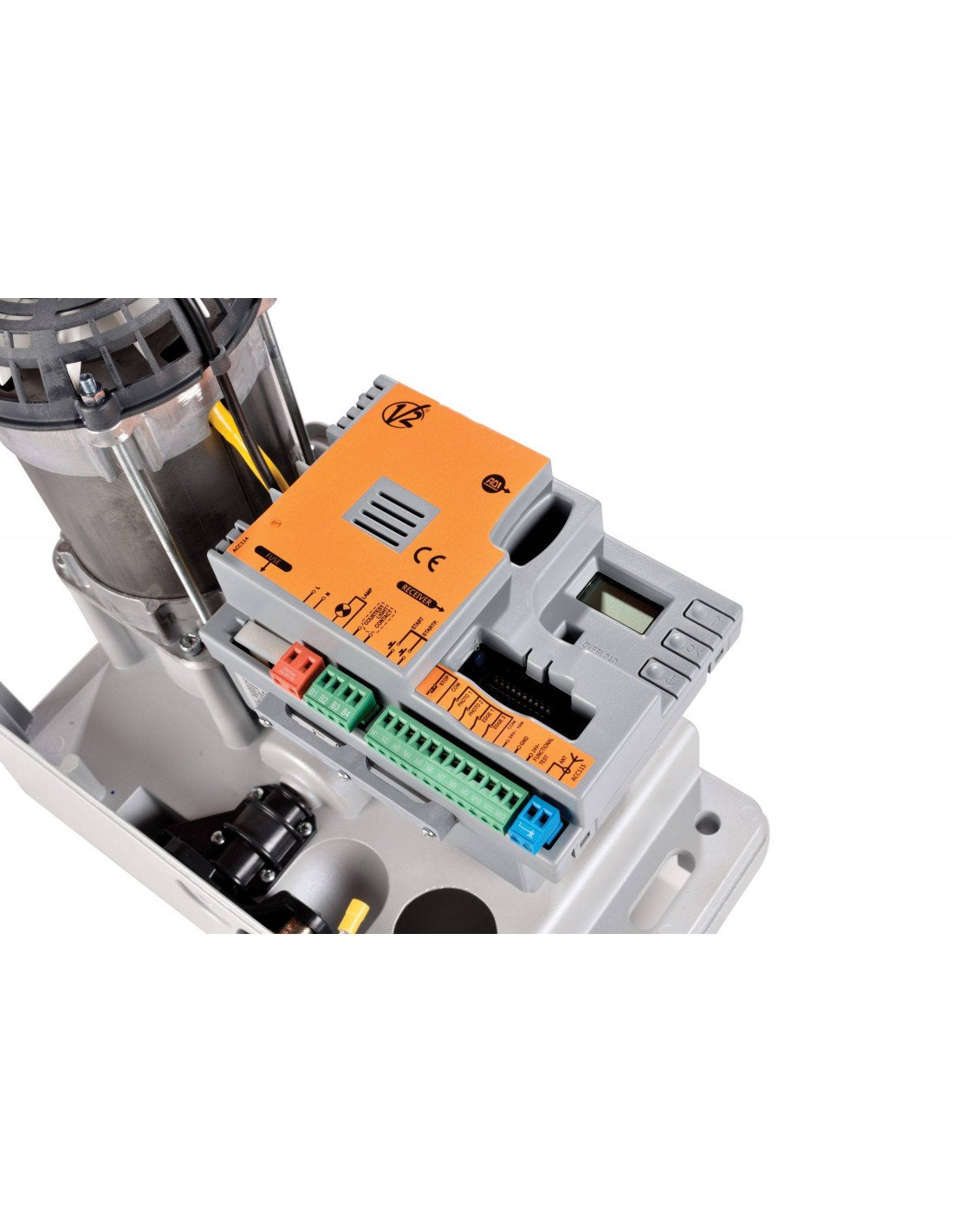

Maneuvering

• Programming through three buttons and screen
• Connector for Modular Radio Receiver MR2
• 2 tickets for photocells with Autotest function
• 2 Inputs for Mechanical or Resistive Safety Bands
• Exit for 230V signaling lamp with intermittent
• Exit for courtesy light
• Self-learning function of work times and detection Obstacles
• Operating cycle counter with maintenance signage
• Soft leaves of leaves in close
• Soft start door start (programmable boot ramp)
• Brake function with programmable power
• ADI connector for connection of the optional module
• Adjustable speed of 0.035 to 0.26 m / s in race and deceleration (version 2500-i)
• Dynamic torque control during all phases of the opening / closing cycle (version 2500-i)

Measures V2 Forteco

Manuals

• INSTRUCTION MANUAL FORTECA 1800/2200 KG
• INSTRUCTION MANUAL FORTECO 2500 KG
