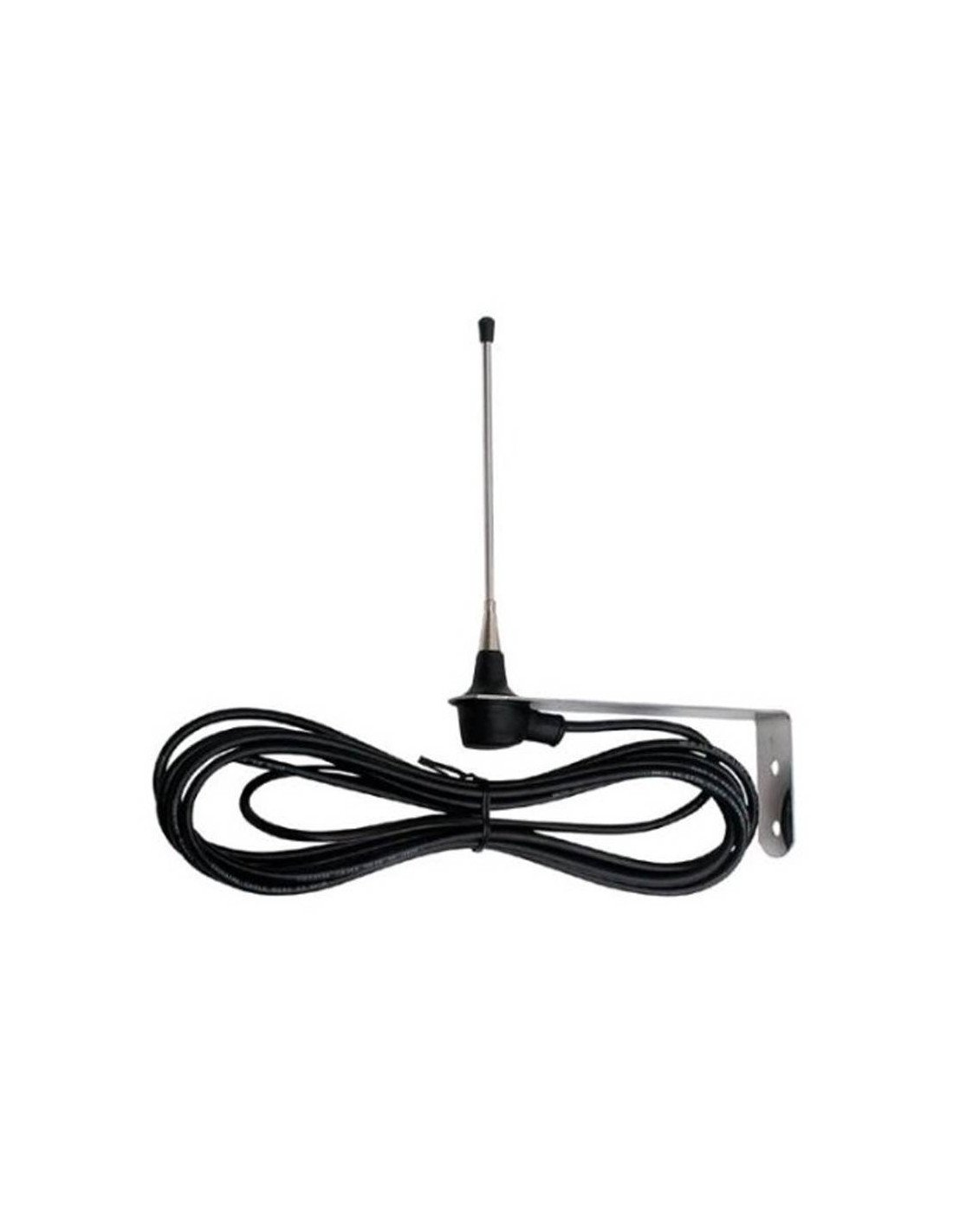

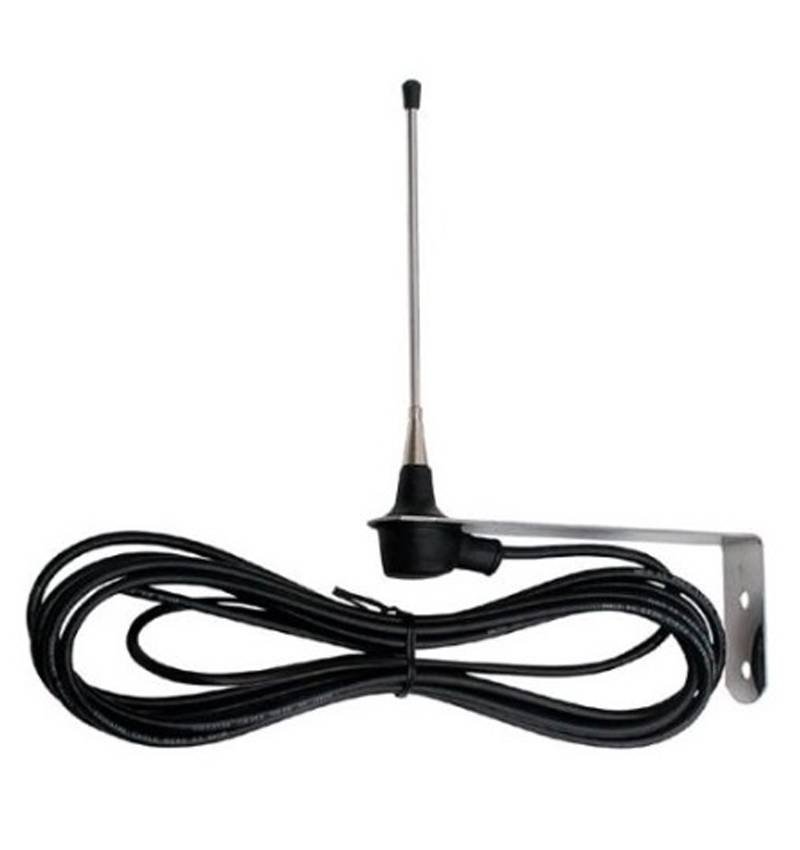

Professional antenna Erreka Kraet 433/868 MHz for exterior with 4 5 58 RG-58 cable
KRAET
€18.00
VAT excluded
21,78 €
Tax incl.
Erreka Kraet is a professional antenna for outdoor designed for Improve the reception of radio signals From the controls and issuers used in automations for doors, gates and access controls.
Is equipped with metallic support and a Cable RG-58 shielded 4 meters with connector, allowing to place the antenna in a more favorable position than the receiver to obtain a better radio coverage.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
Professional Antenna Exterior Erreka Kraet for Receivers 433 and 868 MHz
Erreka Kraet is a professional antenna for outdoor designed for Improve the reception of radio signals From the controls and issuers used in automations for doors, gates and access controls.
Is equipped with metallic support and a Cable RG-58 shielded 4 meters with connector, allowing to place the antenna in a more favorable position than the receiver to obtain a better radio coverage.
Erreka Kraet - Professional Antenna for Exterior
External antenna to improve the reception radio of automatic door installations and access controls.
Compatible with systems 433 MHz and 868 MHz and supplied with 4 meters of shielded RG-58 cable.
External antenna to improve the reception radio of automatic door installations and access controls.
Compatible with systems 433 MHz and 868 MHz and supplied with 4 meters of shielded RG-58 cable.
Improve the reception of remote controls
The use of an external antenna allows you to install the reception point in a more favorable location, especially when the receiver or the maneuvering box is installed within a closet, metal structure, garage or area that can hinder the spread of the radio signal.
The Kraet It is designed specifically to receive signals from the issuers used in door installations and motorized gates.
Main Advantages of Antenna Erreka Kraet
- Professional antenna designed for exterior installation.
- Improved the reception of the controls and radio emitters.
- Compatible with frequencies 433 MHz and 868 MHz.
- No power supply requires.
- Includes 4 meters of shielded RG-58 cable.
- Cable supplied with connector.
- Includes metallic support For installation.
- Impedance of 50 Ω.
- Gain of 2.1 dB.
- Fit for professional automation and access control facilities.
Technical characteristics Erreka Kraet
| Manufacturer | Erreka |
| Model / Reference | Kraet |
| TYPE | Outside antenna for radio receivers |
| Compatible frequencies | 433/868 MHz |
| Impedance | 50 Ω |
| Gain | 2.1 dB |
| Cable type | RG-58 shielded |
| Cable length | 4 meters |
| Support | Metal |
| Power supply | It does not require |
| Installation | Outside |
Compatible with frequencies 433 and 868 MHz
The antenna Erreka Kraet It can be used in radio installations that work on the bands of 433 MHz or 868 MHz, allowing us to use the same antenna reference for different compatible radio systems.
Important
The antenna It does not change the receiver frequency. The receiver and the controls used in the installation must work on the same frequency and be compatible with each other.
The Kraet acts only as a radio signal reception element.
The antenna It does not change the receiver frequency. The receiver and the controls used in the installation must work on the same frequency and be compatible with each other.
The Kraet acts only as a radio signal reception element.
No power supply
The Kraet is a passive antenna, so you do not need a source of independent power.
Its installation consists of placing the antenna in a suitable location and connecting its shielded cable to the compatible receiver or radio system.
Recommendations to get a better reception
The location of an antenna is very important to obtain the maximum possible performance of the radio installation.
Erreka recommends during installation:
- Install the antenna in a elevated position Whenever possible.
- Keep it away from Large structures or metallic elements.
- Maintain a minimum distance of 4 meters compared to other antennas.
- Take a Reception test before definitely fixed The antenna.
The final scope of the controls will depend on different factors such as the location of the antenna, obstacles, metal structures, radio interference, features of the receiver and conditions of the environment.
When is it advisable to install an outdoor antenna?
Erreka Kraet is especially useful in facilities where it is necessary to improve the reception conditions of the radio receiver.
- Community garage doors.
- Sliding doors and swingers.
- Automatic vehicle control barriers.
- Industrial access.
- Receptors installed inside cabinets or metal boxes.
- Facilities where the integrated receptor antenna is in an unfavorable position.
Product content
The Antenna Erreka Kraet is composed of:
- 1 antenna rod.
- 1 Metallic support.
- 4 meters of RG-58 cable shielded with connector.
Installation note
The screws and elements needed to fix the wall support or structure they are not included. They must be selected depending on the type of surface where the antenna is going to be installed.
The screws and elements needed to fix the wall support or structure they are not included. They must be selected depending on the type of surface where the antenna is going to be installed.
