High-powered magnet for automatic doors.

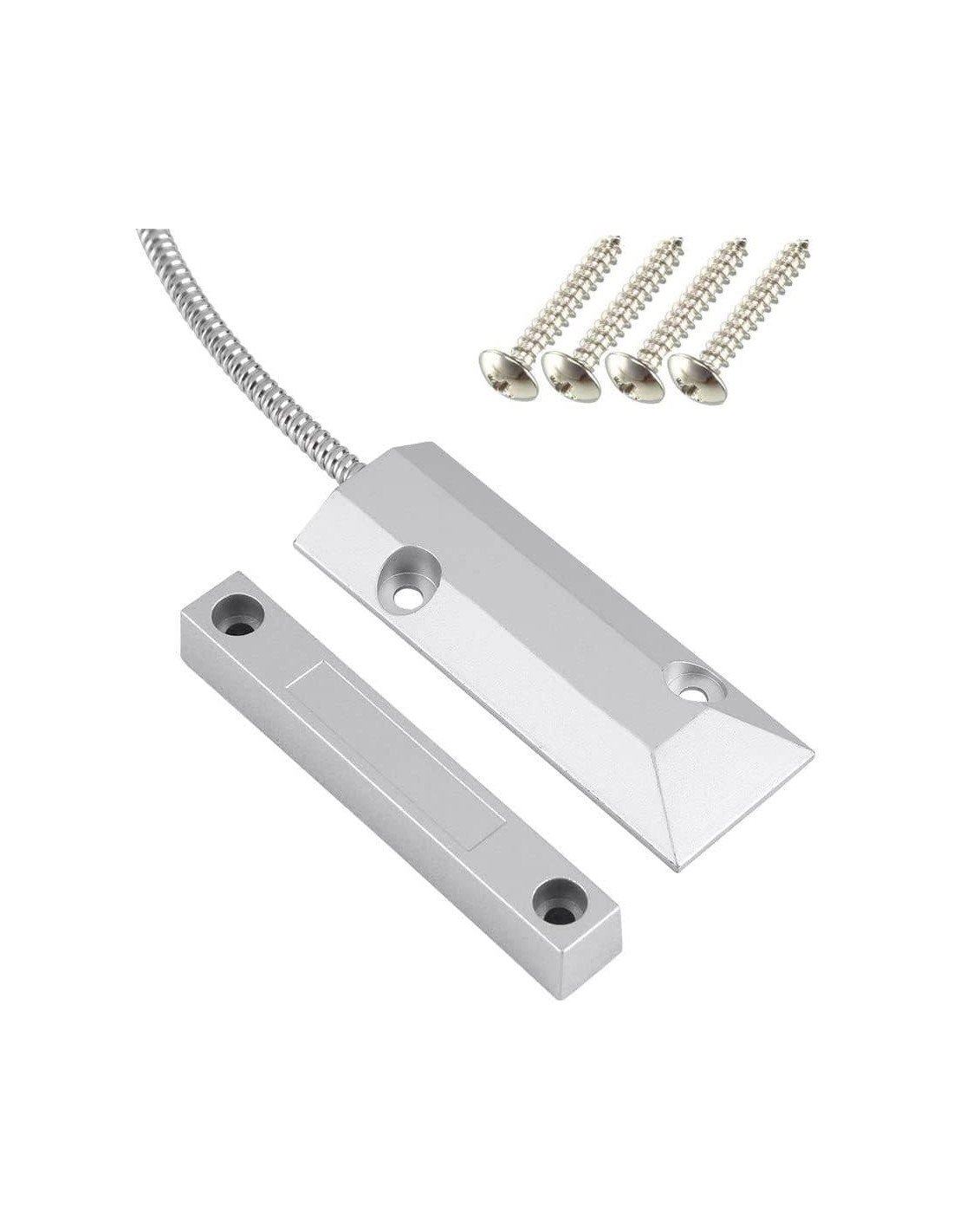

Content of the package

1 × magnetic magnet

1 × Sensor switch

4 × Screw

Kind of: normally closed

Our door leaf switches are NC. Please be kind enough to find out before you place your order.

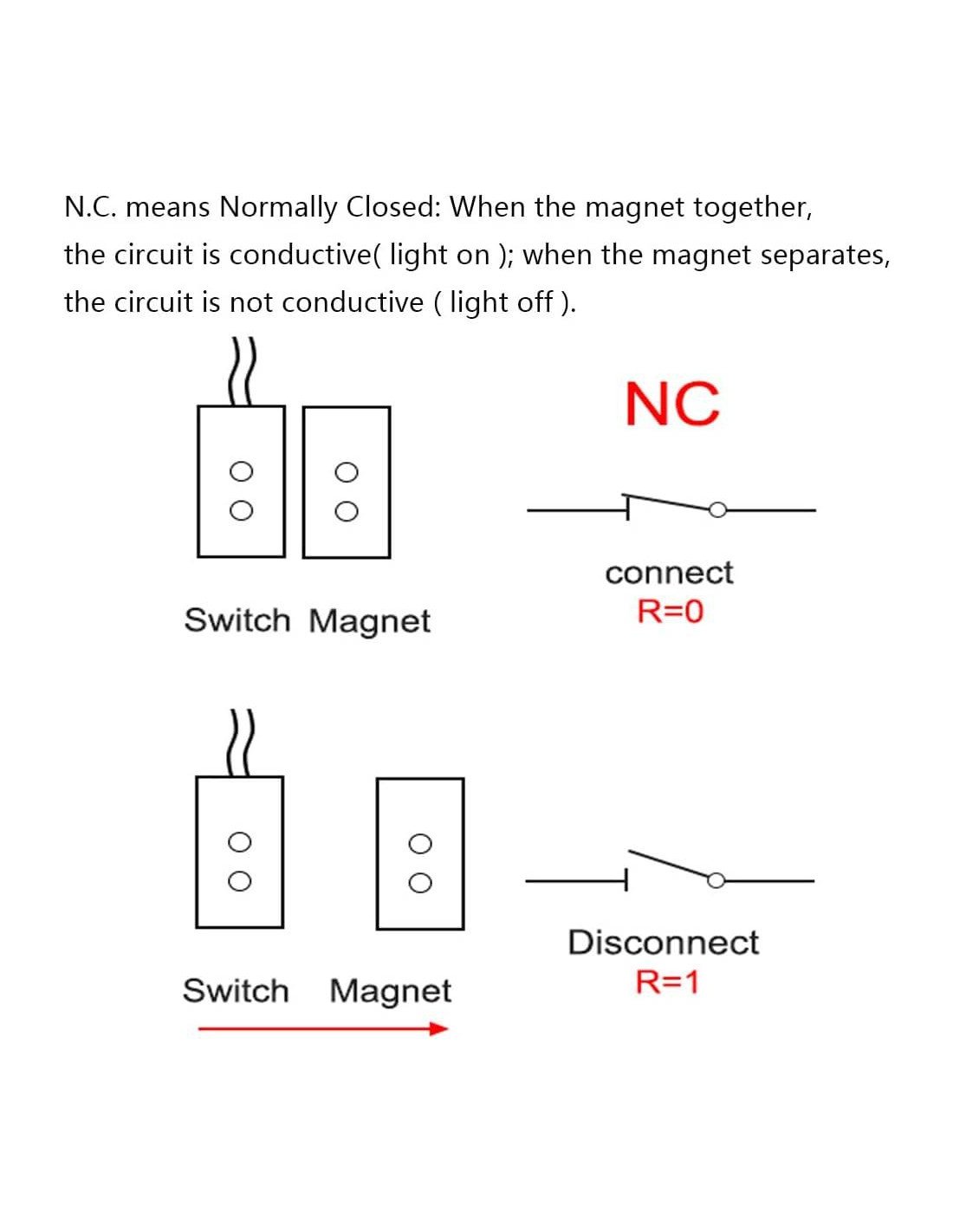

NC normally means closed: when the magnet is together, the circuit is conductive (light on); when the magnet is separated, the circuit is not conductive (light off).

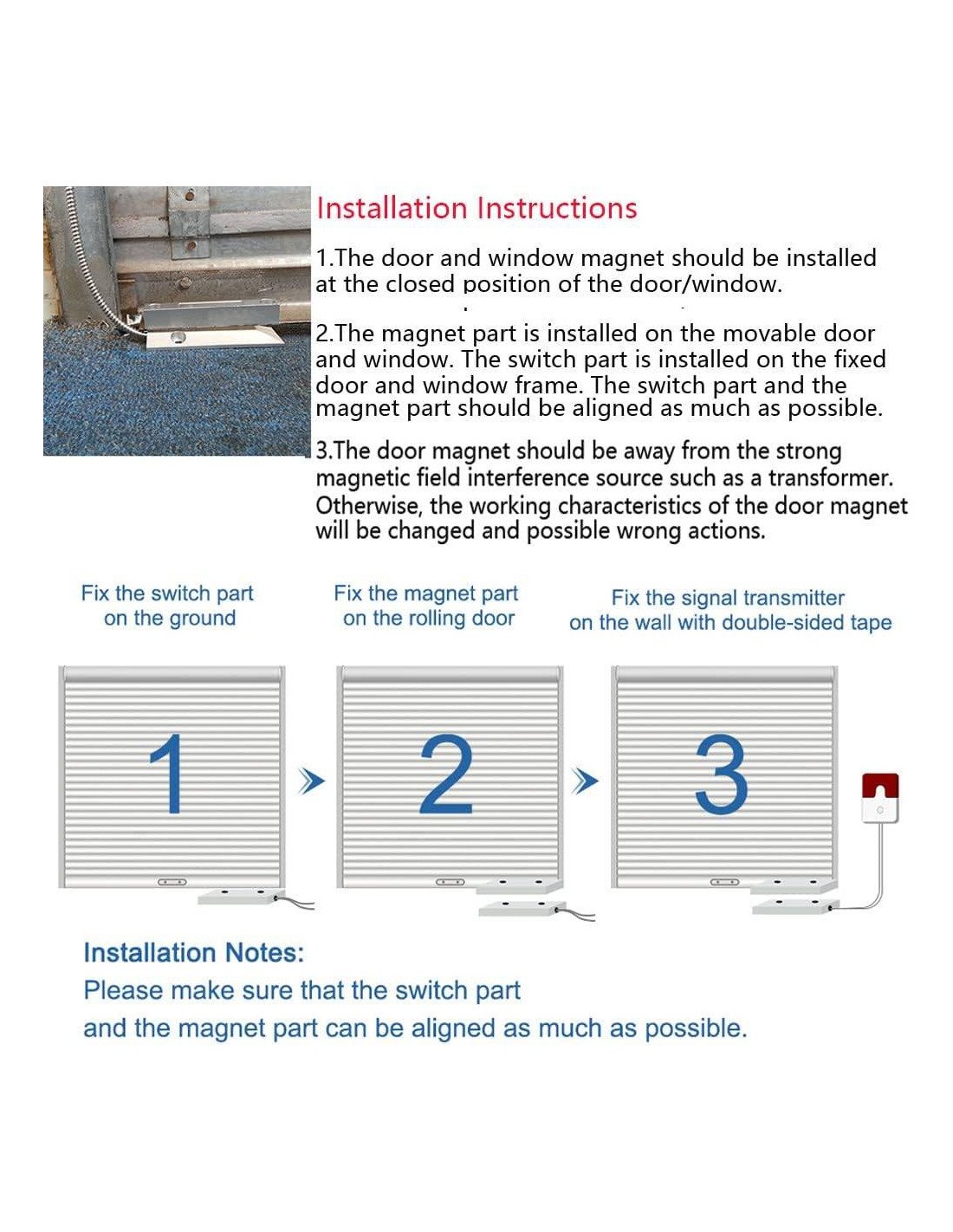

Installation instructions for magnetic doors

Magnets for doors and windows should be installed on the door and on the top of the window. The permanent magnet part is installed in the movable door and window. The part of the switch is installed in the fixed frame of the door and window. The switch part and the magnet part should be aligned and installed as far as possible. Otherwise, the deviation of the best conduction area of the magnetic field line and the contact of the sheet switch will shorten the detection distance. If the incorrect location is installed severely, the switch will not detect magnetic field attraction and will cause the switch to malfunction.

It is recommended to place the pen before drilling. The door magnet must be away from the source of interference of the string magnetic field, such as a transformer. Otherwise, the functional characteristics of the door magnet will change and incorrect actions may occur.
