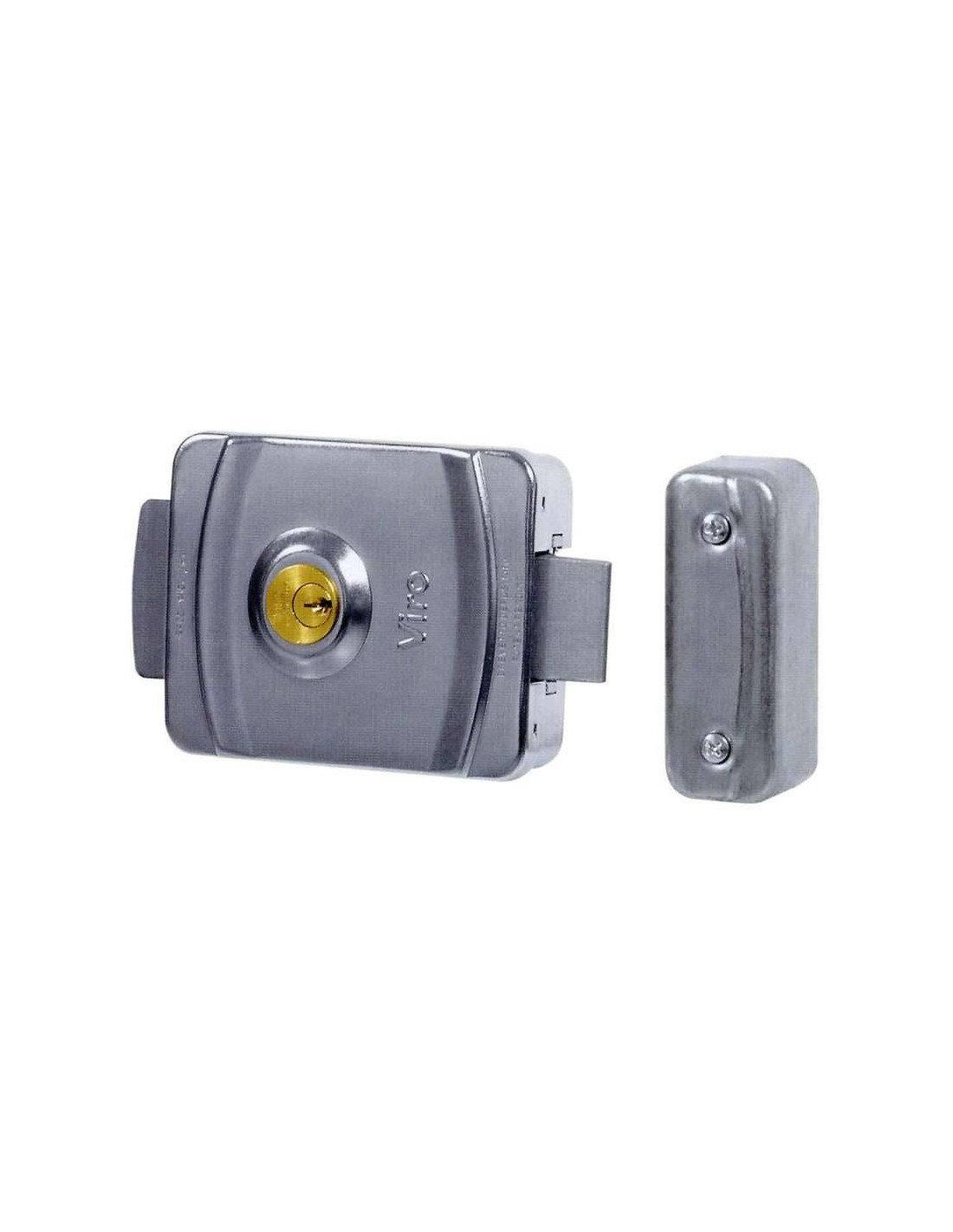

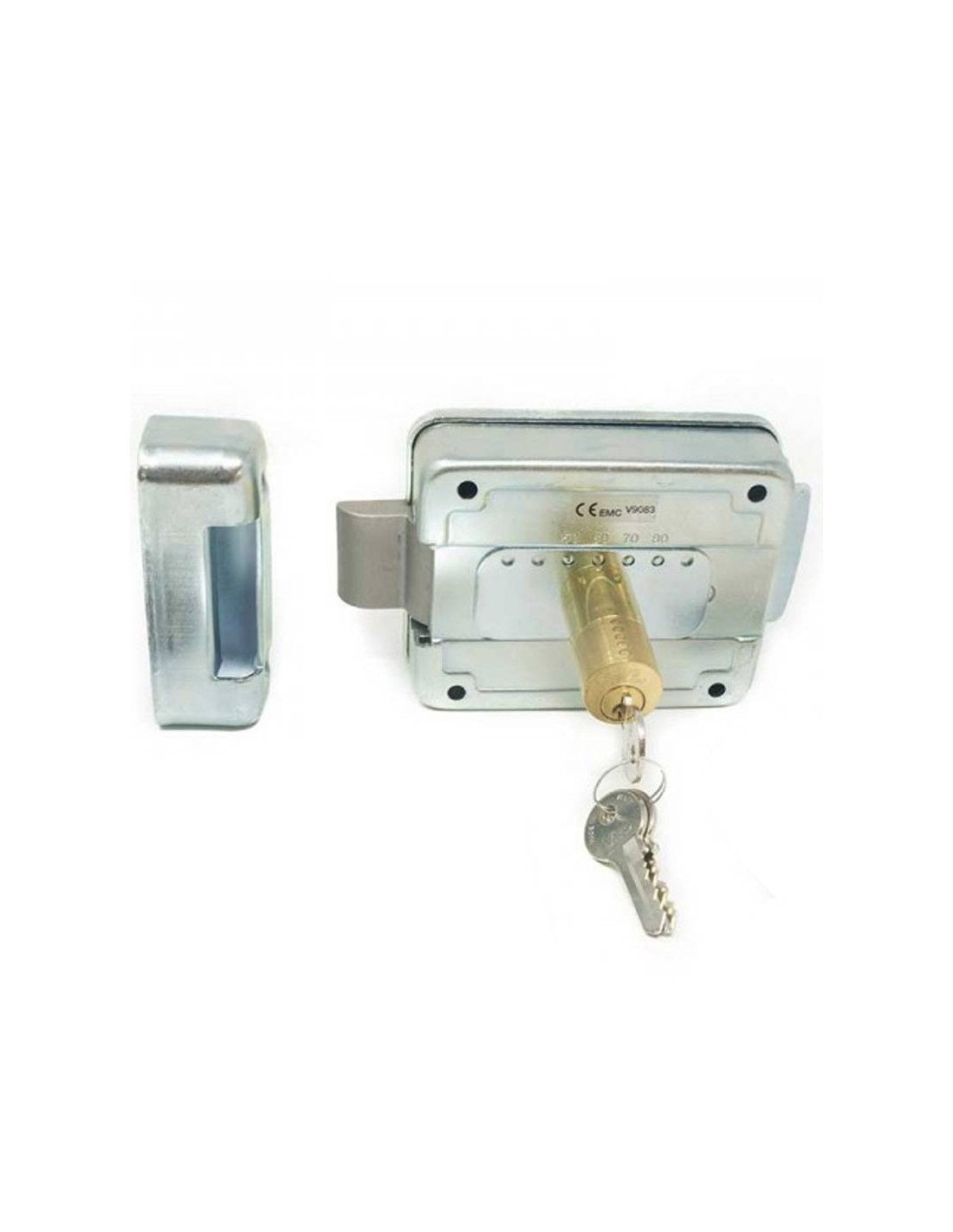

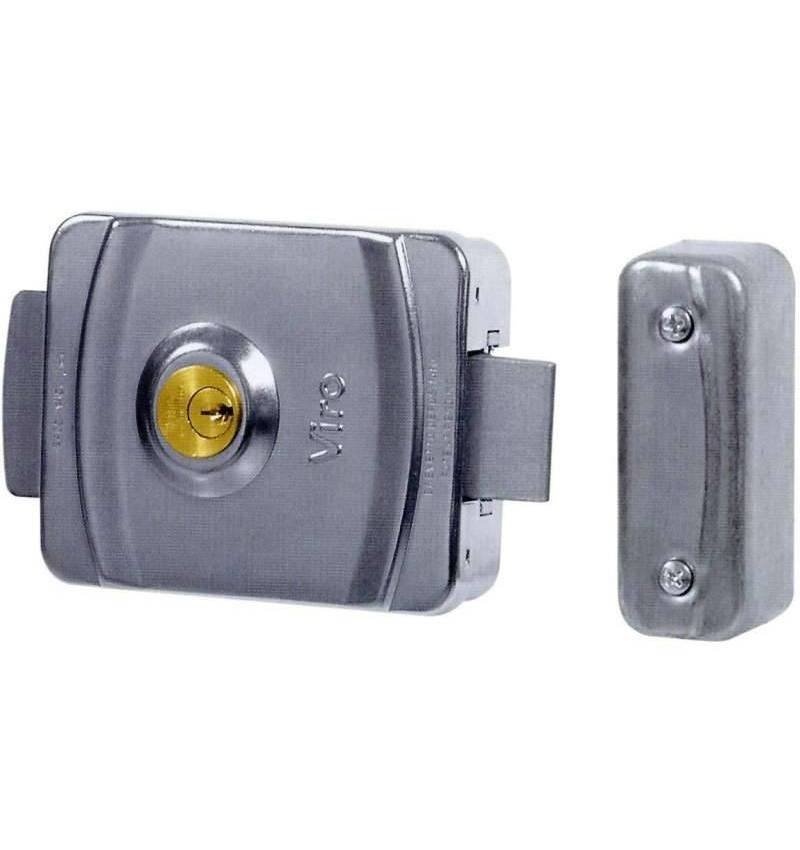

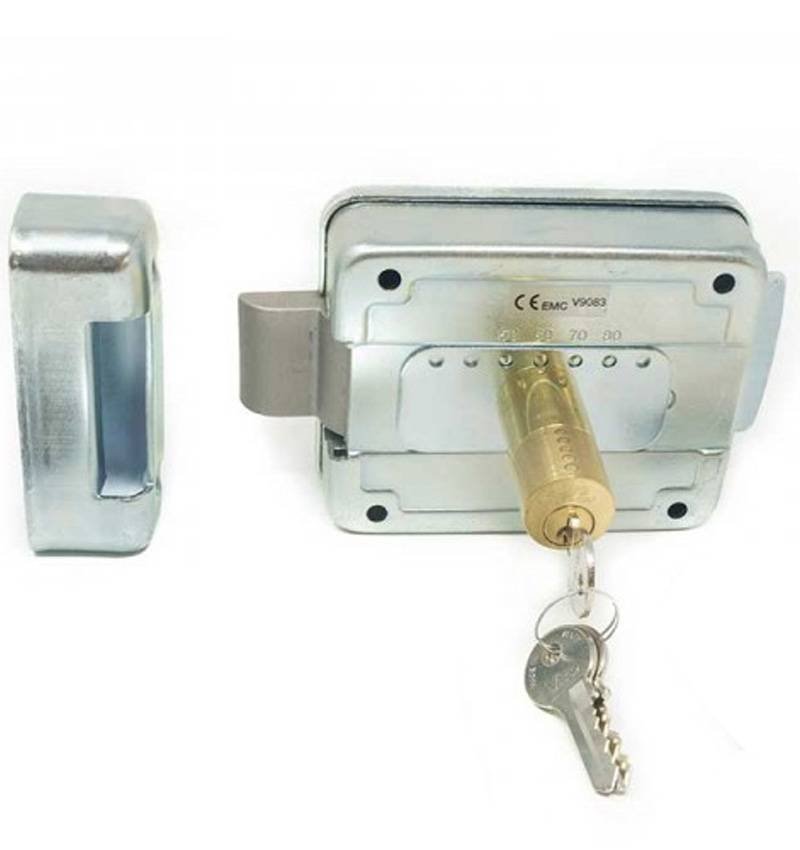

Electroneradura Viro with outer bowler, Adjustable input 50-60-70-80 mm. Largo 60mm's drinking. Assembly in horizontal or vertical.

General characteristics

• Installation in automatic or manual doors and gates.
• Food: 12V C.A.
• Box and hall zained oxidation proof, galvanized internal components.
• Circular cylinder, fixed and brass (V9083), with 3 knocked brass keys.
• Rotary bolt.
• Unique version
• Interchangeable with electric locks V90 (7920 series) and V83 (7910 series).
• The V9083 is supplied with the service function: the bolt opens upon receiving an electrical impulse and only closes again when the door has been open and then closed. Therefore it is appropriate for use with closer door and / or automation.
• Removing an inner component, the V9083 acquires the safety function: the electric lock is opened only when the electrical impulse and a manual or automatic pressure are applied simultaneously. Therefore, it is not appropriate for use with closing closers.
• It can be open with the key from the outside and with the key or with an electrical impulse from the inside.
• Lock with double resistance, high strength AISI 304 stainless steel. The distance between the bolt and the metallic hall (± 7.5 mm) guarantees that the lock will work even if there is a vertical movement between the lock and the hall (a common event due to the meteorological changes).
• Suitable also for light doors without threshold support, since the bolt is perfectly blocked at the end of its rotation.
• Supplied with hall adapter plate, to override possible differences between the pillar and the door.
