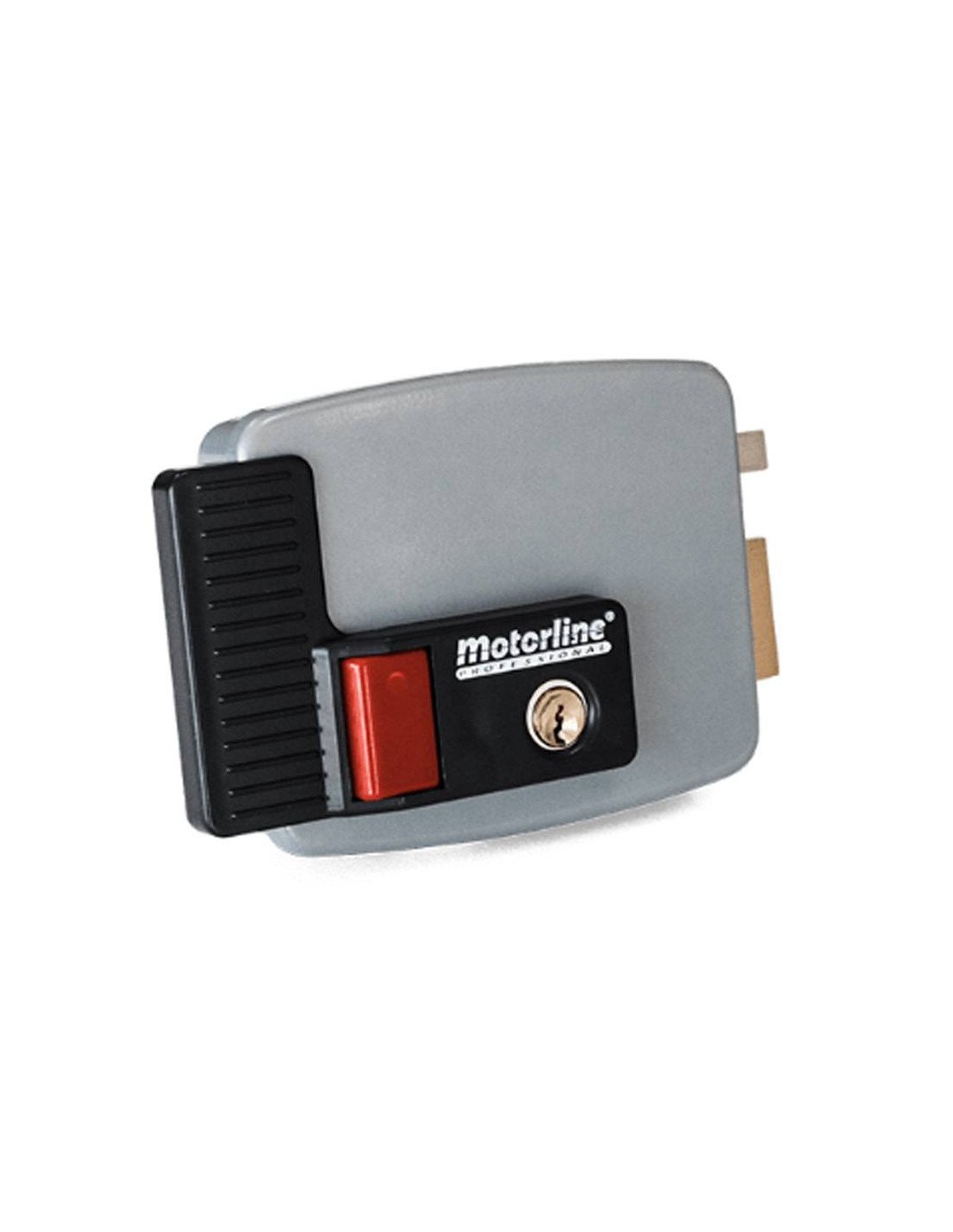

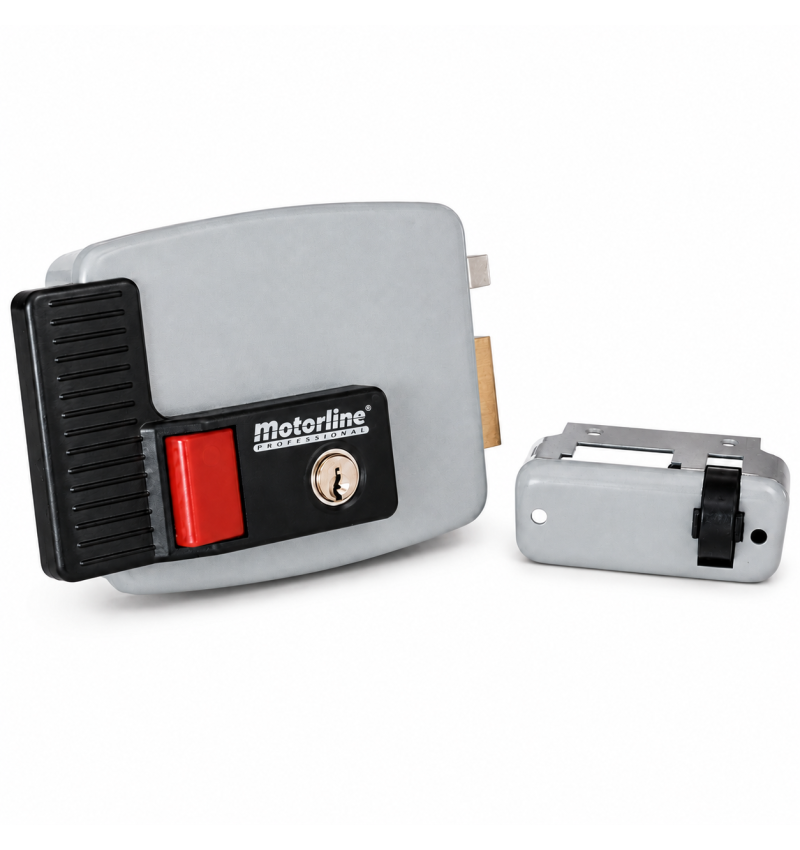

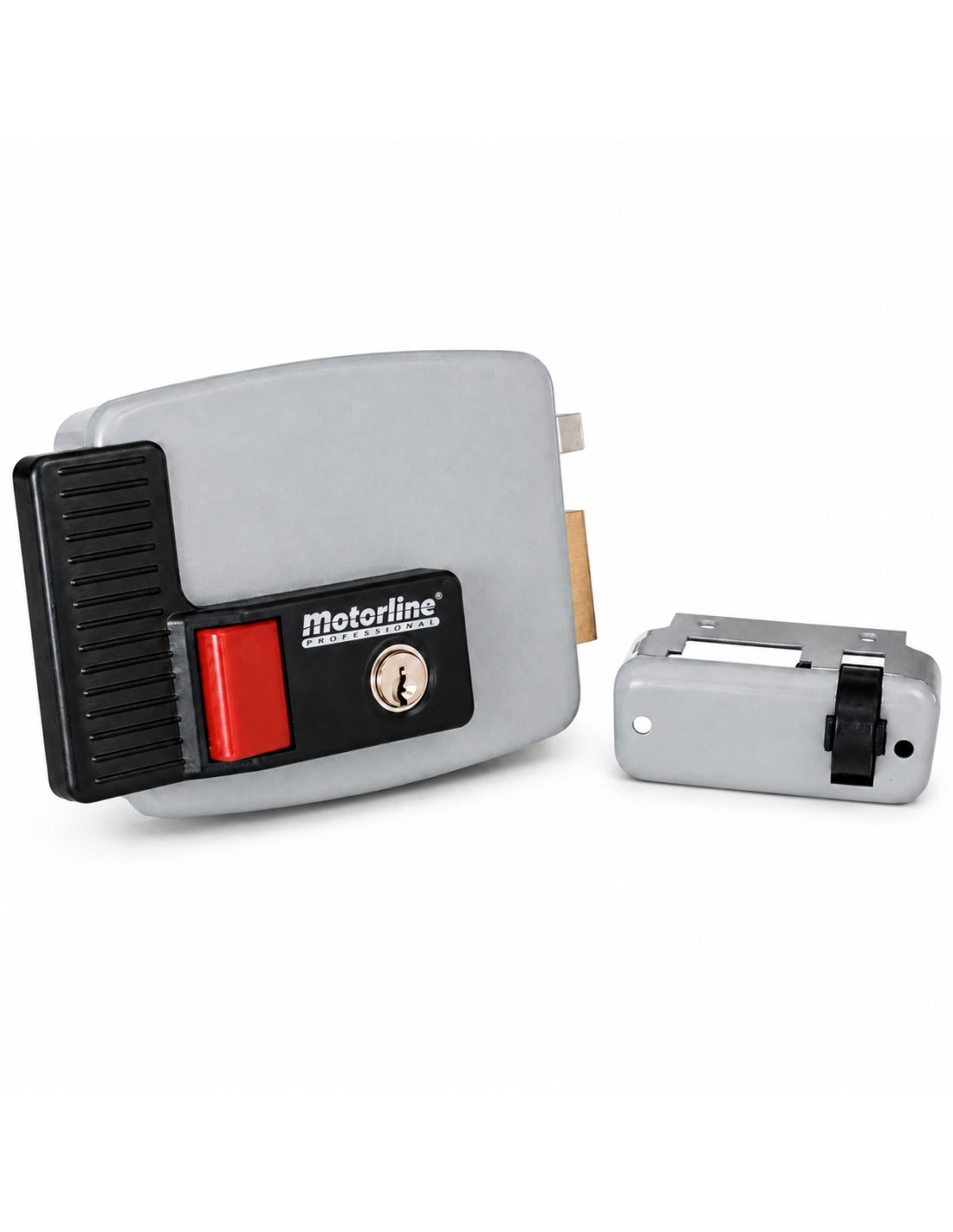

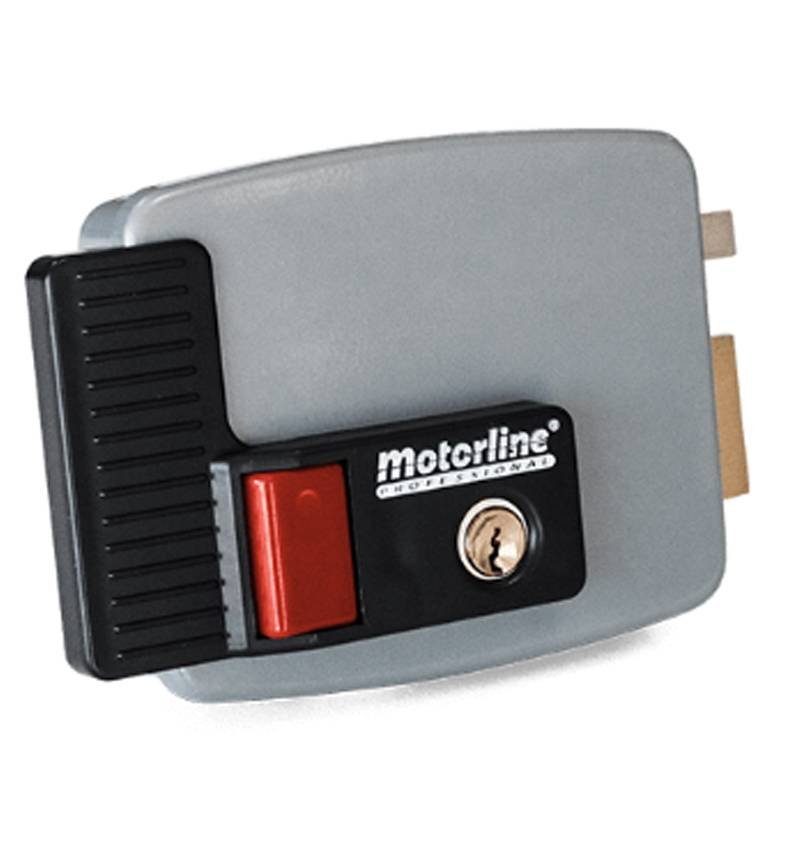

Electrocerradura Motorline EF30 12V with push button and dx / sx bulb
EF30
€36.00
VAT excluded
43,56 €
Tax incl.
The electric lock Motorline Ef30 It is designed to increase safety at door and automatic gates. Work 12 VDC, it incorporates unique cylinder and has an automatic latch lock system.
It is specially prepared for heavy doors, although it can also be adapted to light doors by removing the red bolt indicated by the manufacturer.
Save with this discounts
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
The electric lock Motorline Ef30 It is designed to increase safety at door and automatic gates. Work 12 VDC, it incorporates unique cylinder and has an automatic latch lock system.
It is specially prepared for heavy doors, although it can also be adapted to light doors by removing the red bolt indicated by the manufacturer.
Important: Selection of the hand
Before adding the product to the cart, you must select the lock orientation in the drop-down:
■ SX - Left: The lock is installed on the left side, seen from the inside.
■ DX - Right: The lock is installed on the right side, seen from the inside.
Main features
- Automatic electrooner For doors and gates.
- Feeding 12 VDC.
- Available with hand right DX or left sx.

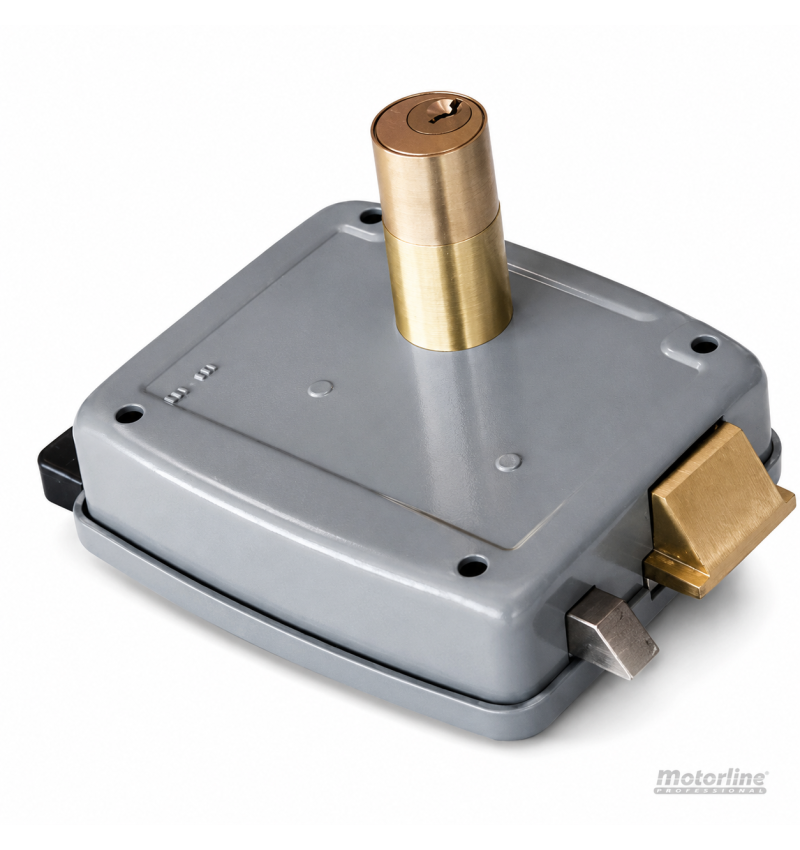

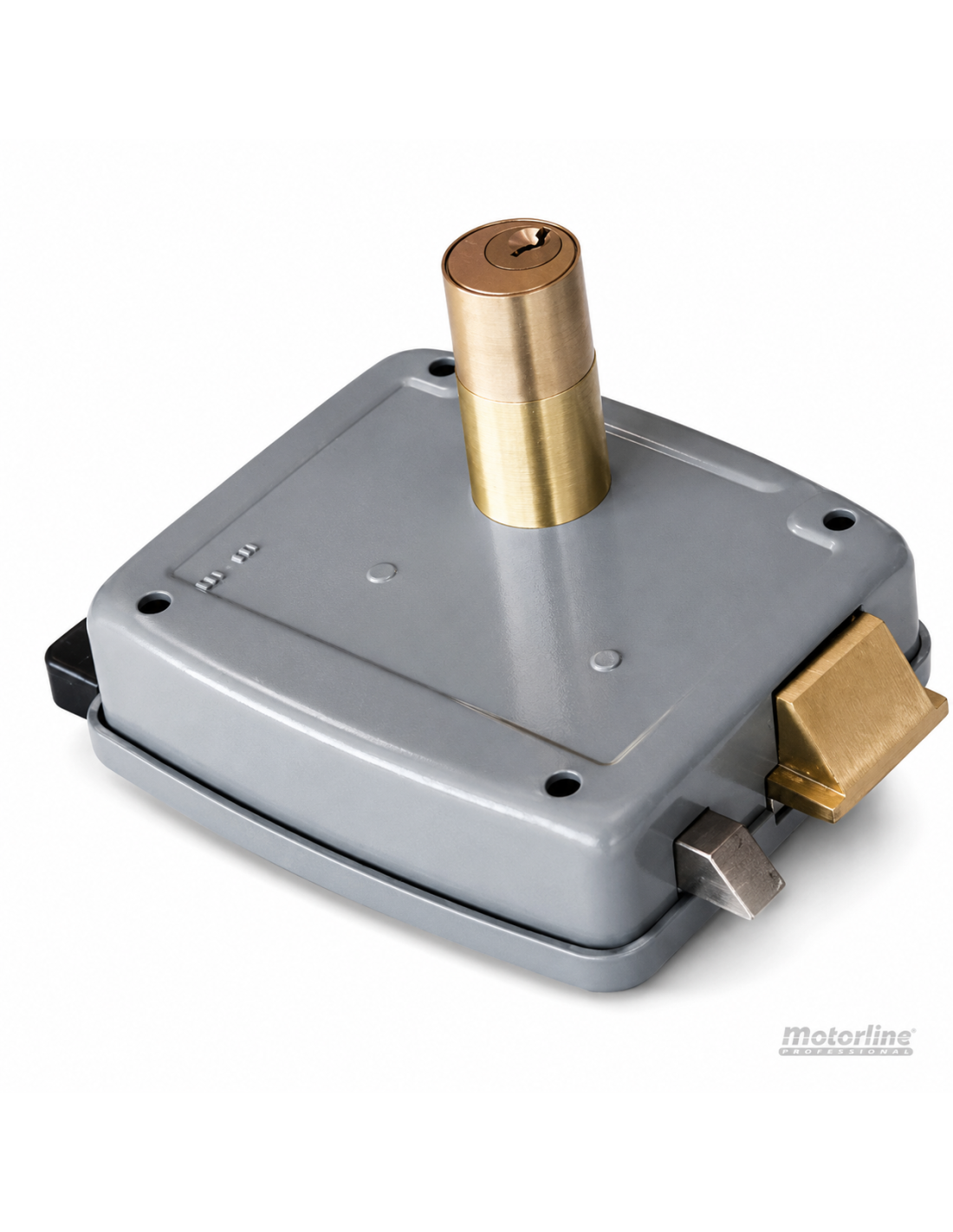

- Unique cylinder for unlocking by key.
- Patented system Automatic latch lock.
- Prepared for heavy doors and adaptable to light doors.
- Actable locking pin by push button and key.
Technical characteristics
| Feature | Specification |
|---|---|
| Brand | Motorline |
| Model | Ef30 |
| TYPE | Automatic electric lock |
| Orientations available | DX right / SX left |
| Feed | 12 VDC |
| Nominal consumption | 2.3 to |
| Maximum momentum of impulse | 500 ms |
| Strength | 3.1 Ω DC |
| Frequency | 50/60 Hz |
| Insulation class | Class |
| Main dimensions | 160 × 102 mm |
| Minimum power of the transformer | 15 VA |
| Minimum section of the cable | 1 mm² |
Installation indications
To get correct operation, the lock must be installed by maintaining a Maximum distance of 7 mm between the latch and the lock.
- Avoid installing the inverted lock or opposite.
- Use a security transformer according to the regulations, with a minimum power of 15 VA.
- The electric boost should not overcome the 500 ms.
- Use standard cables with a minimum section of 1 mm².
- Perform connections with the electrical installation disconnected.
- Before disassembling the cover, extract the cylinder key to avoid damage to the mechanism.
Note: The DX or SX selection must always be performed by observing the door from inside the property.
Measures
