Cardin Blade5 230V Electromechanical Engine Kit to Beating doors up to 5m length.

The use of this electromechanical engine is intended for two-sheet cancelas 350 kg weight or 5000 mm long. Has Encoder anti built-in crushing.

Blade is an irrevexic electromechanical gearmotor Reliable and robust for swing cancelas in 230Vac offering excellent service in residential use

• Autoblocative, the reduction system ensures that the door is locked when closing and opening (anti wind).

• Irreversible, an electric lock is not necessary but in swing doors from 3M it is recommended its installation.

• Control of the position of the door, with the help of mechanical stops, is done through an encoder with self-learning programming reducing and minimizing installation times.

• Available as an accessory as well as the Electric Limit End-running Kit to ensure precise control of the door position.

• Repositioning intervenes automatically if forces are produced on the sheet during opening or closing maneuvers.

• The control performed by the central is completed with the anti-crushing safety devices and the functions of "Soft Start" and "Soft Stop".

• In case of lack of network voltage, the manual operation is guaranteed (in the self-locking models) by a practical lever unlocking system, protected by a safety key.

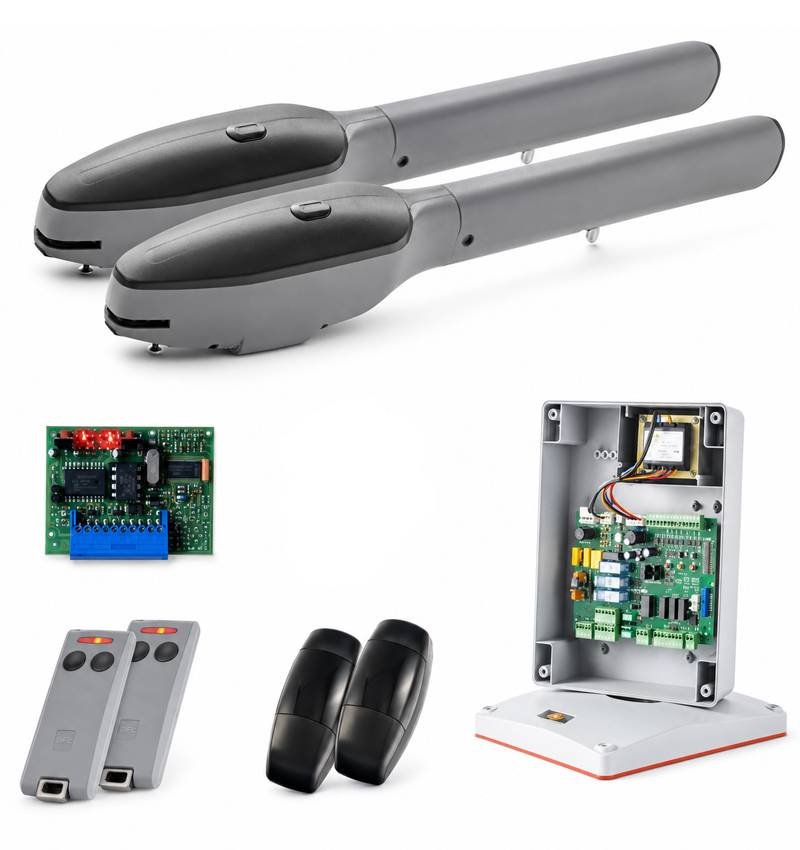

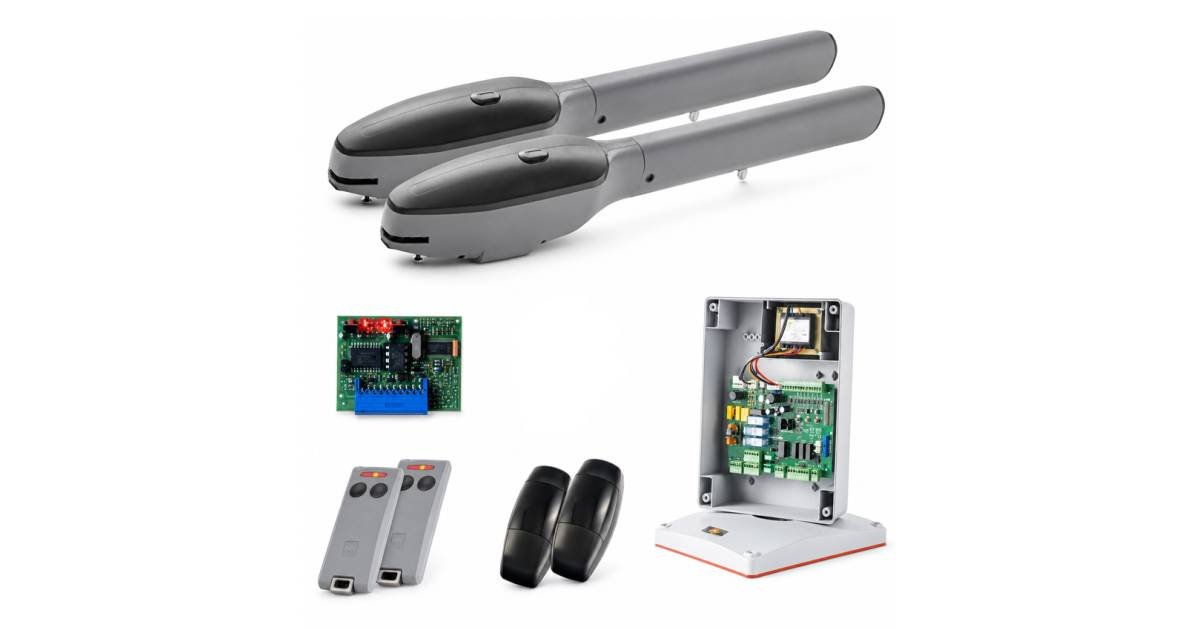

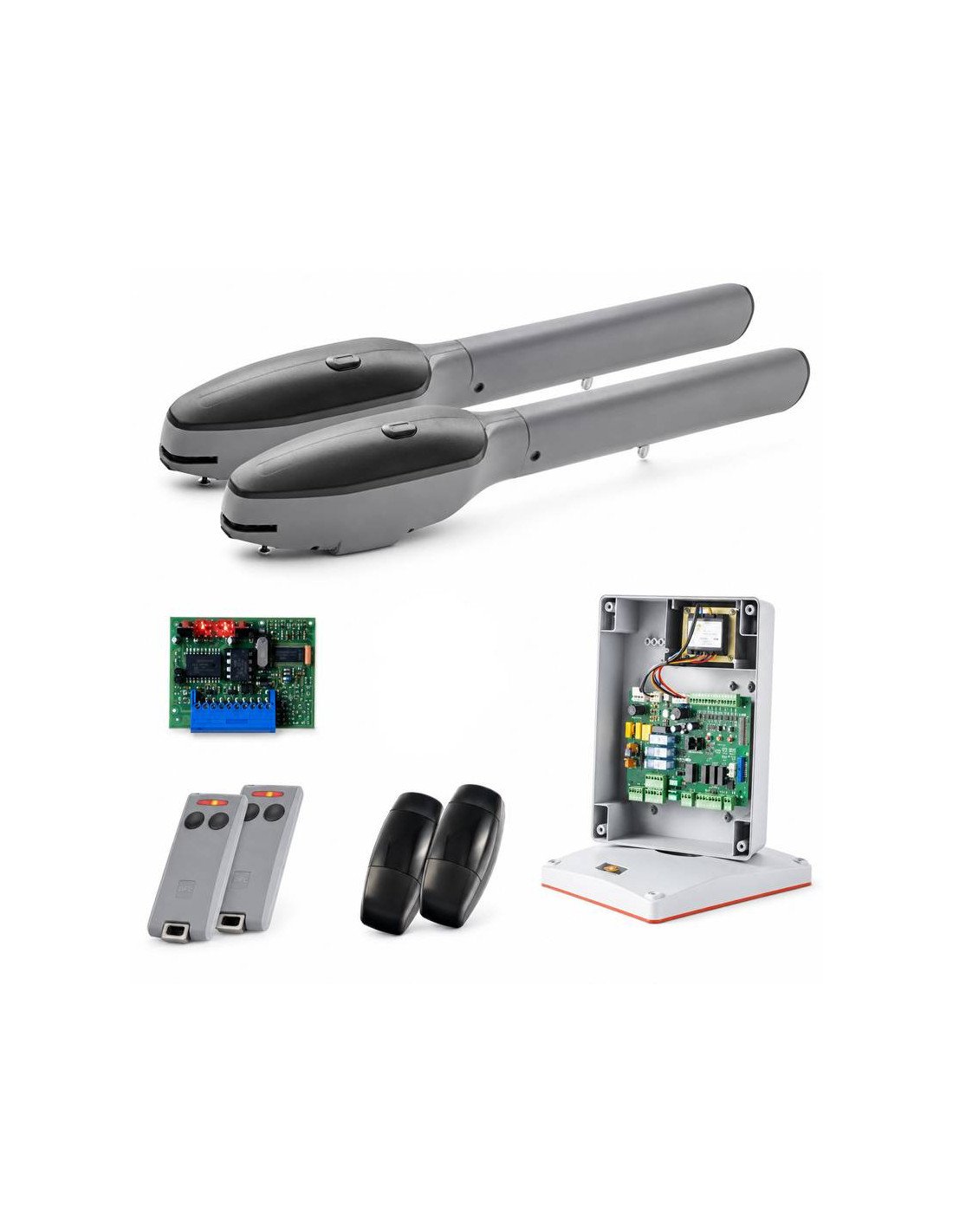

Kit content:

• 2x blade5 230: 230V electromechanical gearmotor, for residential-use swing doors, with lock for cancelas of 300 kg. Of weight or 5000 mm long. Built-in anti-crushing encoder. Requires Central T600.
• 1x T600: Central for 2 swing motors. Option Regulation Anti crushing by encoder. Step-step / STOP function. Automatic closing option. Pedestrian function. Double photocell / phototest.The race. Pre-warning / light courtesy lamp. Electronic force regulation. Soft unemployment - Communities function. Clock option. Around blow in opening. Electro lock. Closing stroke Connection for OC receptor (not included). External transformer. Connection Safety Band Connection Garage light. Connection PRG-LINK. Auxiliary channel for irrigation or lights.
• 1x OC2 Tango / FM / S508: Integrable receiver Open Collector Series Tango 2 channels AM 433.92MHz. Fixed code, FM 433,92 MHZ ROLLING CODE or FM 868 MHZ ROLLING CODE.
• 1x oto180: Synchronized surface photocelling set orientally 180º.Alcance maximum 25 meters. Feed 12/24 VAC-DC. G. IP44 Protection. AUTO CENTERO AUTO AUTO ERRORS EVERING EVERING IN THE VERTICAL CONDITION.
• 2x Controls S508 of 4 channels at 868 MHz
• 1x Mounting Kit

Technical characteristics

Measures
