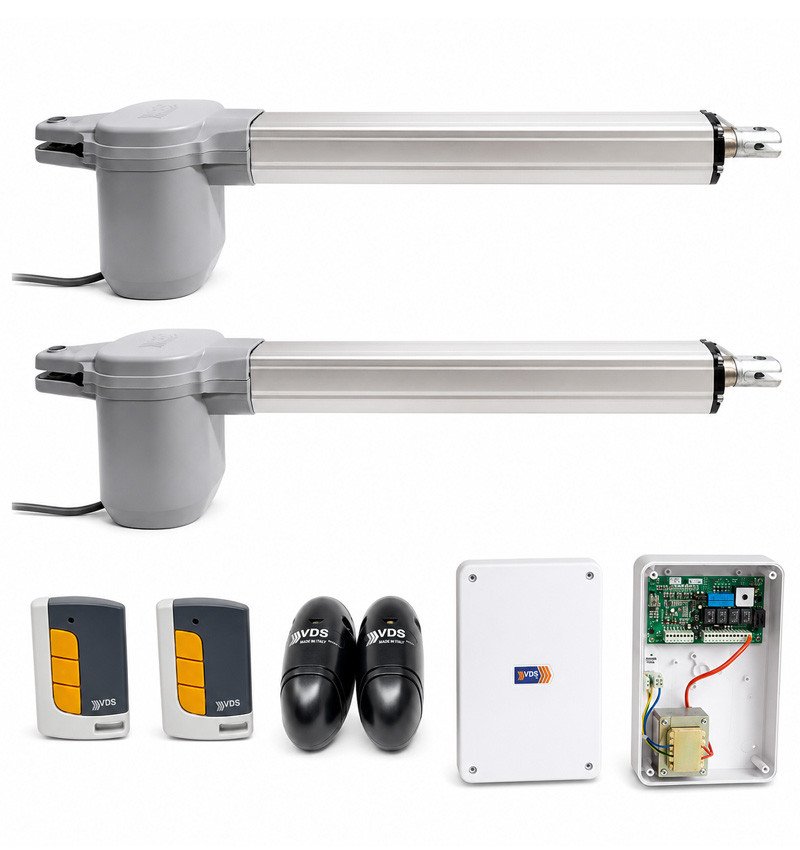

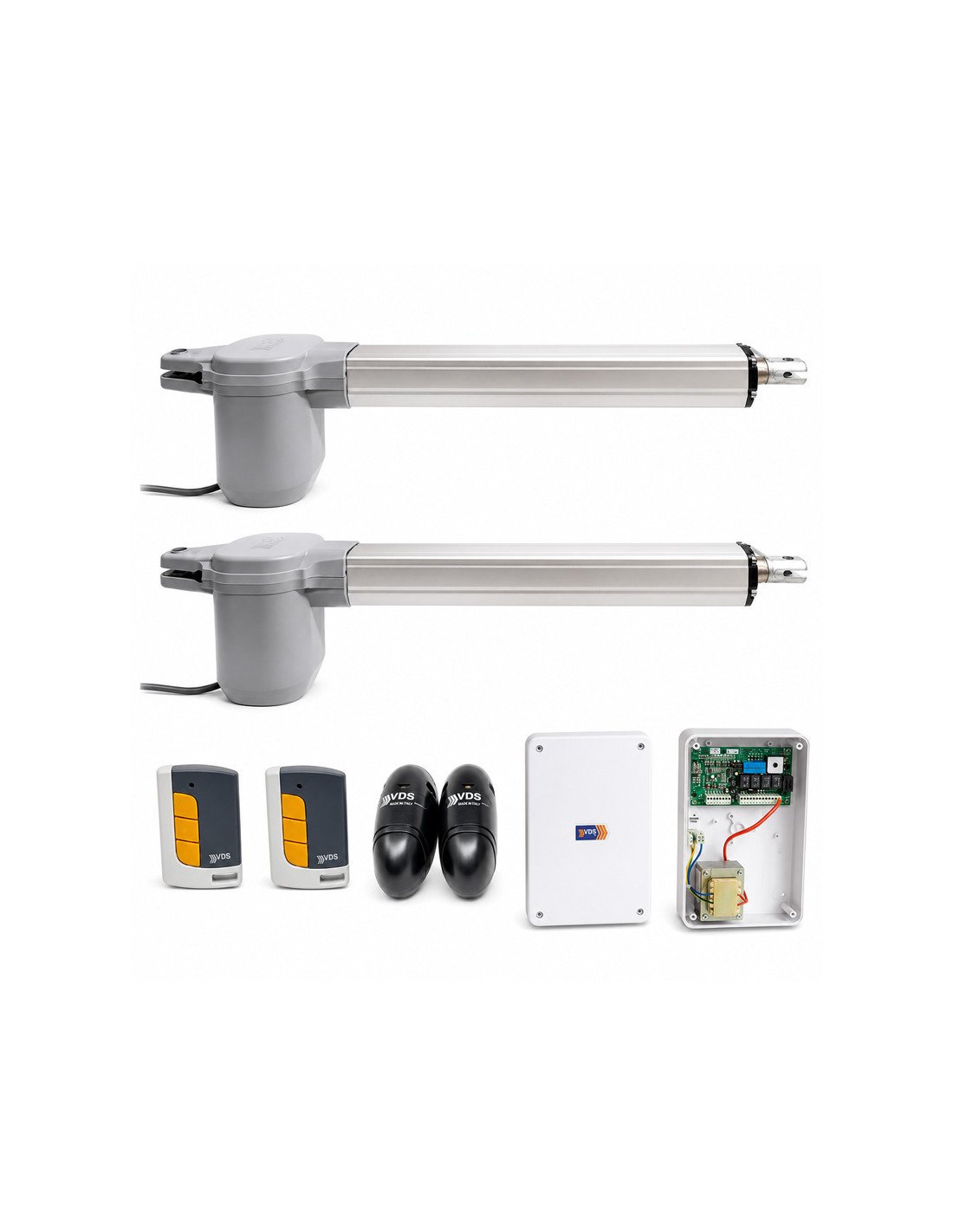

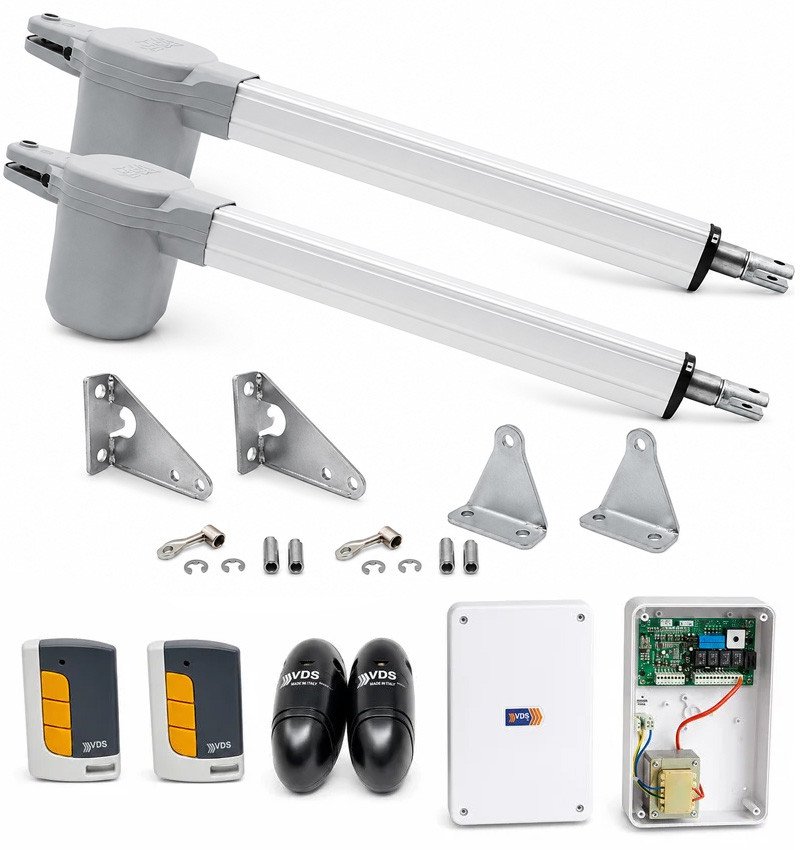

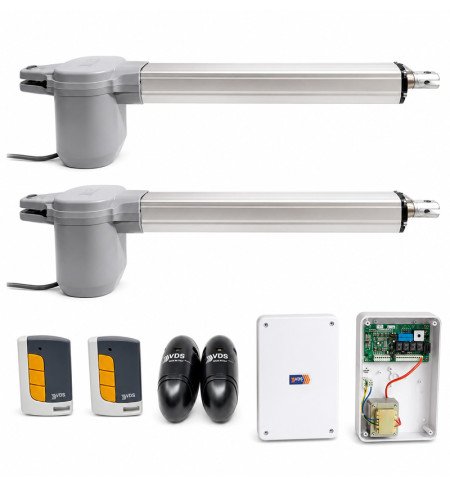

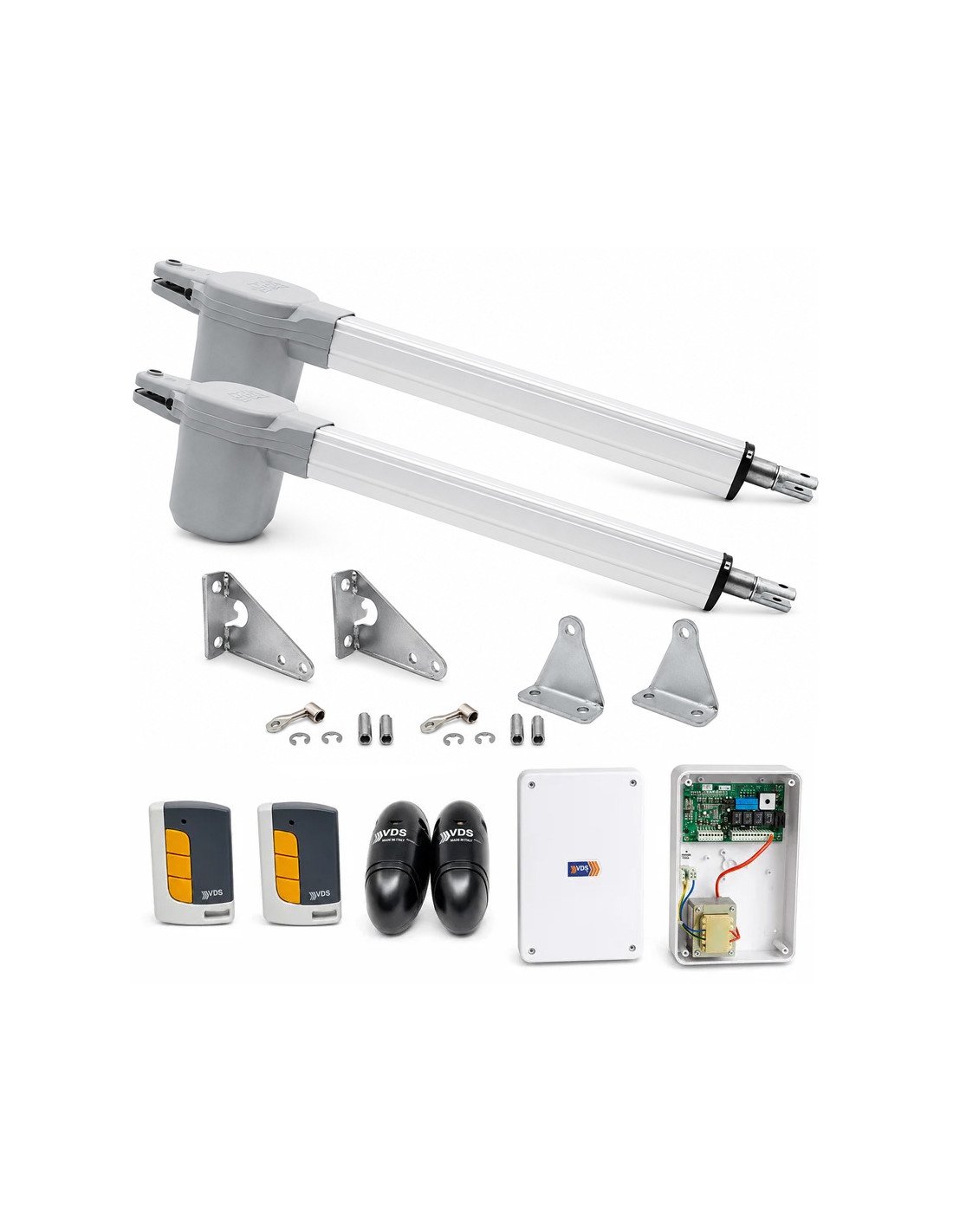

Motor kit VDS EGO 24V for 2-leaf swing doors up to 2.5 m

Motor kit VDS Ego 24v it is a complete solution to automate two-leaf beating doors, with a maximum length of 2.5 meters and a weight of up to 200 kg per leaf.

The kit incorporates two electromechanical actuators VDS EGO 24V C400, equipped with a 400 mm stroke, aluminum structure and stainless steel stem. Its 24 VDC feeding allows soft, silent and suitable operation for installations that require frequent use.

The engines are irreversible, as far as they keep the bladed leaves when the door is closed. In case of lack of current, they can be released through the manual unlocking system with key.

The maneuvering box VDS Elb24-m2 it allows to control one or two motors of 24 VDC and incorporate radio receiver, automatic travel programming, speed regulation, slowdown and obstacle detection system.

Main characteristics of the kit VDS Ego 24v

• Kit two-leaf beating doors.
• Maximum length of 2.5 meters per leaf.
• Maximum weight of 200 kg per leaf.
• Engines fed 24 VDC.
• Appropriate intensive use.
• Irreversible engines with mechanical block.
• Stem race 400 mm.
• Maximum thrust 2,000 n.
• Robust structure of aluminum.
• Stem made of stainless steel.
• Soft and silent performance.
• Unlock Emergency Manual with key.
• Protection against external agents Ip55.
• System of obstacle detection and anti-explashing.
• Automatic programming or travel manual.
• Adjustable slowdown in opening and closing.
• Radio receiver built into the maneuver box.

Kit content

Technical characteristics of the engine VDS EGO 24V C400

Functions of the maneuvering box VDS Elb24-m2

The included electronic picture is designed to control one or two engines of 24 VDC. It has different control and safety entries, as well as programming functions that allow adapting the operation of the door to the needs of each installation.

Safety and operation

The maneuvering box incorporates an adjustable system of obstacle detection. When an obstacle is detected during closing, the door stops and reopens. If the obstacle is detected during opening, the movement stops and makes a brief investment.

The plant also allows connecting photocells, safety band, pedestrian opening push button, total opening push button, flashing lamp, electron-barking and other control accessories.

Important: to correctly carry out the programming of the route, the door must have mechanical opening and closing stops. The installation, connection and regulation of the automatism must be carried out by qualified personnel.
