Engine Beninca BOB2124E 24V with encoder for swing doors up to 2.1 m
BOB2124E
€315.00
VAT excluded
381,15 €
Tax incl.

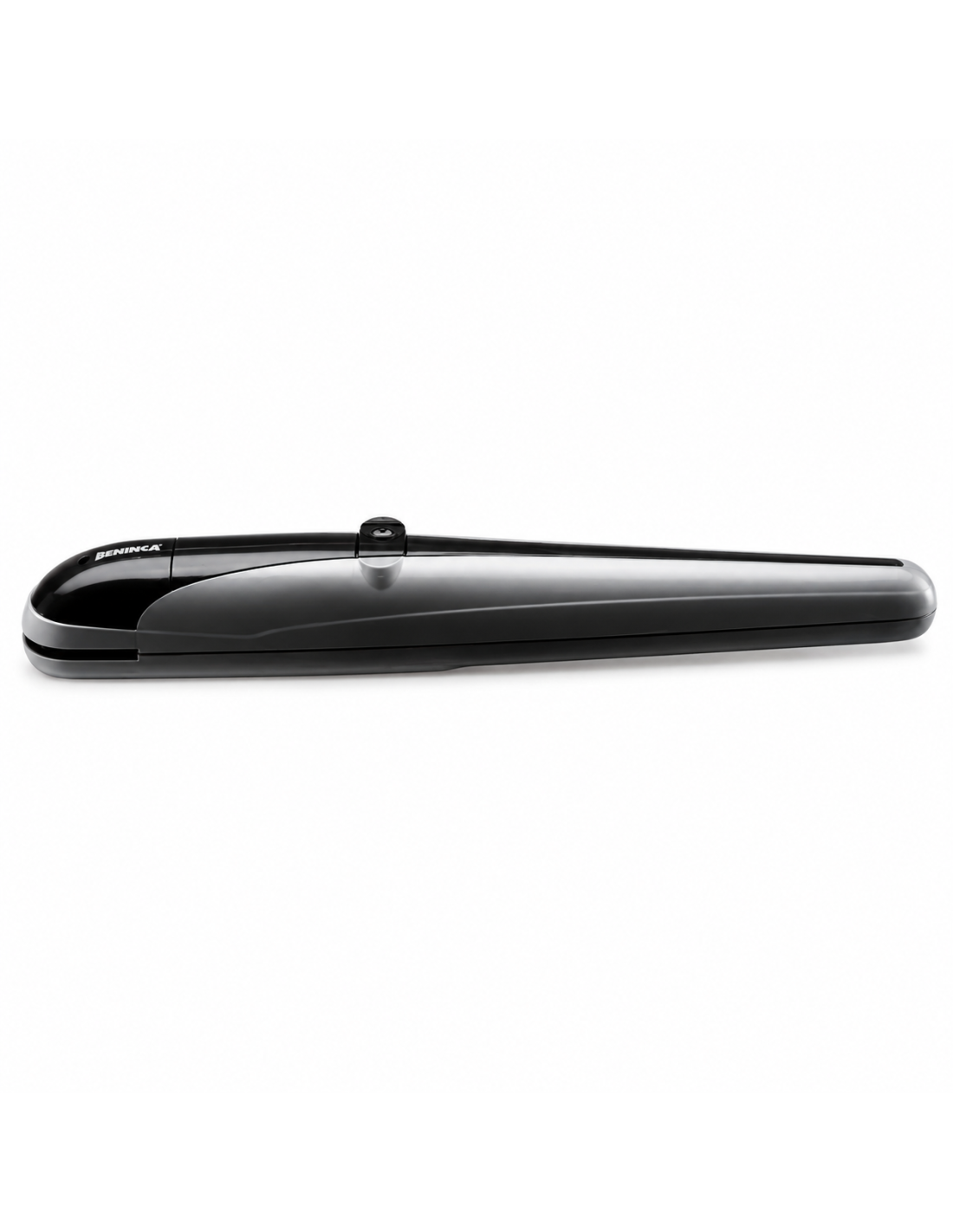

Beninca Bob2124e is an irreversible electromechanical gearmotor 24 VDC Designed for the automation of Beating doors up to 2.1 meters per leaf.
It is a car prepared for intensive use and equipped with encoder, offering precise control of the door movement and allowing the electronic plant to manage more precisely the different phases of opening and closing.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
Engine Beninca BOB2124E 24V with encoder for swing doors
Beninca Bob2124e is an irreversible electromechanical gearmotor 24 VDC Designed for the automation of Beating doors up to 2.1 meters per leaf.
It is a car prepared for intensive use and equipped with encoder, offering precise control of the door movement and allowing the electronic plant to manage more precisely the different phases of opening and closing.
Benincà Bob2124E - Individual Motor
This product corresponds to 1 unit of the Motor Benincà Bob2124E of 24 VDC with Encoder.
It is not a complete kit. Does not include maneuvering box or remote controls.
This product corresponds to 1 unit of the Motor Benincà Bob2124E of 24 VDC with Encoder.
It is not a complete kit. Does not include maneuvering box or remote controls.
24V engine with encoder for intensive use
The Bob2124e combines 24 VDC feeding with a system of integrated encoder. This device provides information about the movement of automation and allows to work with compatible Benincà central capable of managing the encoder.
In addition, the system can work with AMPLEMENTIC DETECTION OF OBSTACLES Through a compatible maneuvering center, contributing to improve safety during door movement.
Main advantages of Benincà Bob2124E
- Irreversible electromechanical motor 24 VDC.
- Prepared intensive use.
- Integrated encoder For precise movement control.
- For hinged doors up 2.1 m per leaf.
- Maximum thrust 1,800 N.
- 2 adjustable mechanical stops For opening and closing.
- Spherical-sectional endless screw Ø20 mm.
- User unlocking located at the top and easily accessible.
- Possibility of operation by emergency batteries When the installation and the central employee allow it.
Technical characteristics of Benincà Bob2124E
| Model | Benincà Bob2124E |
| Reference Benincà | 9591351 |
| Engine type | Irreversible electromechanical |
| Motor feed | 24 VDC |
| Encoder | Yes |
| Use | Intensive |
| Maximum length of leaf | Up to 2.1 m |
| Maximum absorbed current | 5.5 |
| Maximum | 1,800 N |
| Opening time | 9 - 21 seconds |
| Standard career | 270 mm |
| Timing | 325 mm |
| Degree | Ip44 |
| Operating temperature | -20 ° C to +50 ° C |
| Approximate weight | 7.9 kg |
Integrated encoder
One of the main features of Benincà Bob2124E in front of other versions of the Bob range is the incorporation of encoder.
When the engine works together with a compatible Benincà power plant, the encoder allows more control and precision to be opening during opening and closing maneuvers.
Important about the connection of the encoder
The BOB2124E needs a Central maneuver compatible with 24 VDC Benincà engines and encoder management.
The engine connection uses specific conductors for the power supply and for the encoder signal. Before replacing an existing automatism, we recommend checking the installed electronic power plant.
The BOB2124E needs a Central maneuver compatible with 24 VDC Benincà engines and encoder management.
The engine connection uses specific conductors for the power supply and for the encoder signal. Before replacing an existing automatism, we recommend checking the installed electronic power plant.

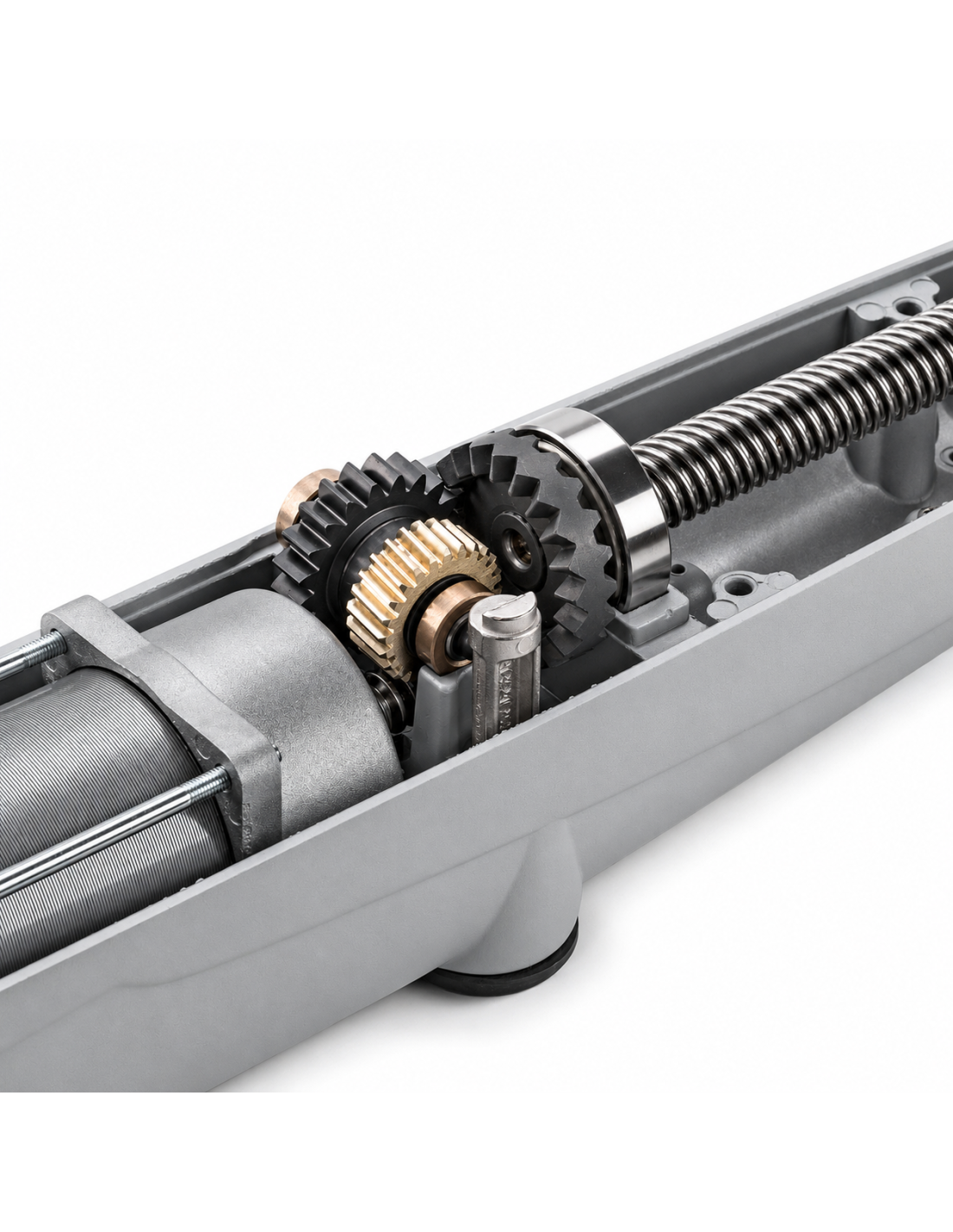

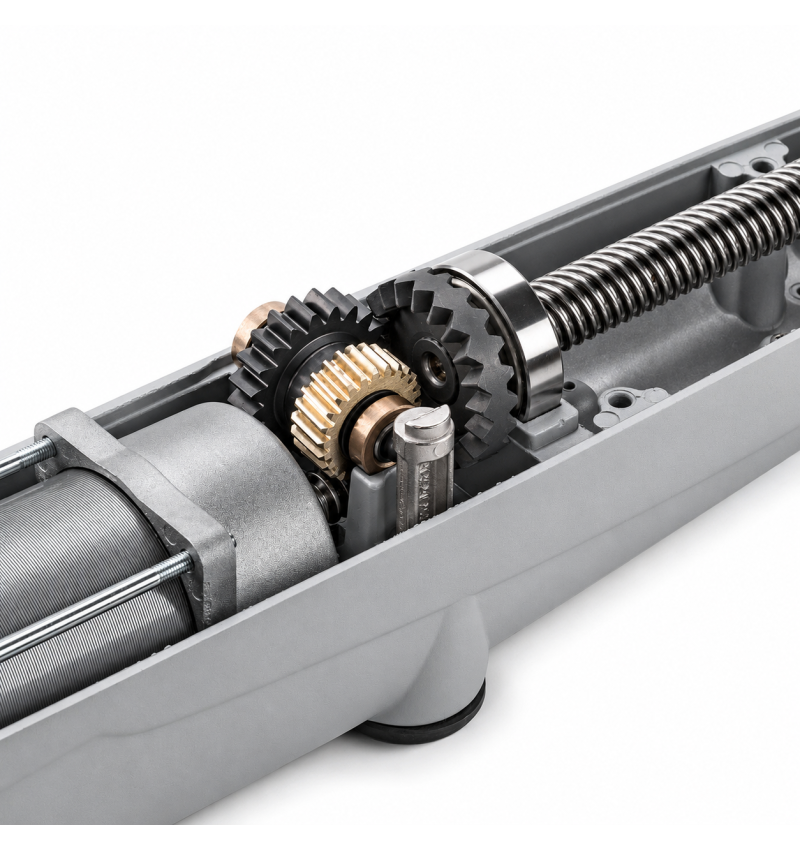

Adjustable mechanical stops in opening and closing
The engine incorporates Two adjustable mechanical stops They allow mechanically establishing the opening and closing positions of the actuator.
This system facilitates the installation and adjustment of the route, while its design with Laminated endless screw Ø20 mm It provides reliable and silent operation.
Ideal as a replacement engine
The Benincà Bob2124E It is especially indicated to replace an engine of the same model in existing facilities, keeping the feeding to 24 VDC and the system of encoder.
Are you going to replace an existing BOB2124E engine?
If you have currently installed a Benincà Bob2124E, You can check the engine label to confirm the model before placing the order.
In case of doubt, you can send us a photograph of the label of the automation and the installed electronic plant to check the substitution.
If you have currently installed a Benincà Bob2124E, You can check the engine label to confirm the model before placing the order.
In case of doubt, you can send us a photograph of the label of the automation and the installed electronic plant to check the substitution.
What does this product include?
The product corresponds exclusively to:
- 1 Electromechanical motor Benincà Bob2124E.
- Includes front and rear supports
This product is not a complete automation kit.
- Do not include maneuvering.
- Do not include remote control.
Application of Benincà Bob2124E
Motor recommended for automation Residential swing doors or facilities that require intensive use, with leaves up 2.1 meter.
The definitive choice of automation must be taken into account not only the length of the sheet, but also its Weight, structure, wind resistance, installation geometry and frequency of use.
