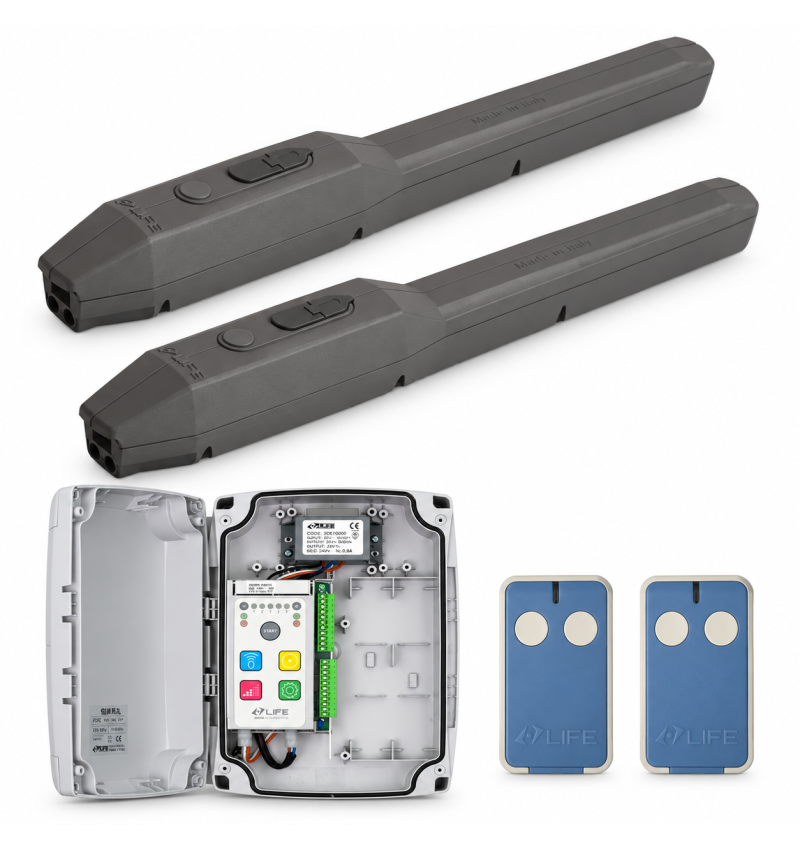

Kit LIFE OPTIMO OP3 UNI 230V For Bildren's Door 2 Leaves Up to 3 m

Kit LIFE Optimo OP3 UNI 230V for 2-sheet swing doors up to 3 m

The kit LIFE OPTIMO OP3 UNI EASY is a set for automation of two-leaf beating doors, equipped with two electromechanical engines LIFE Optimo OP3 UNI of 230VAC.

Is indicated for doors up 3 meters per leaf, always respecting the mechanical conditions, dimensions, geometry and real characteristics of the installation.

The OP3 UNI engines are fast versions of the Optimo range, with adjustable mechanical stops in opening and closing, maximum thrust 2,000 N and an estimated time of 19 seconds for an opening of 90 °.

The kit also incorporates the electronic plant LIFE GE UNI RS DL for two 230vac engines, equipped with radio receiver 433.92 MHz integrated, and it is completed with 2 controls LIFE Maxi 2 Rolling Code.

This configuration corresponds to the version EASY, designed as a basic set of motorization, central and controls. The photocells, flashing lamp and other safety devices are supplied separately.

Two-leaf swing door kit

✓ 2 engines LIFE OP3 UNI 230VAC.

✓ For leaves up 3 meters per leaf.

✓ GE UNI RS DL.

✓ Receiver 433.92 MHz integrated.

✓ 2 maxi 2 Rolling Code controls.

The LIFE OPTIMO OP3 UNI it is an irreversible electromechanical gearmotor for external automation of swing doors.

The OP3 UNI version works 230Vac and is designed for leaves up 3 meters long.

Incorporates adjustable mechanical stops in opening and closing, allowing to establish the endpoint points directly on automatism.

Your body is manufactured for outdoor installation and has a protection IP54.

Being an irreversible engine, it incorporates manual unlocking system in order to move the door manually in case of absence of food.

* The maximum length of the blade should be assessed together with weight, height, structure, wind resistance and installation dimensions.

The version OP3 UNI it differs from other choice variants because it incorporates mechanical stops for opening and closing.

This allows mechanically adjusting the ends of the route during the installation of the automation.

The kit incorporates an electronic plant LIFE GE UNI RS DL of 230VAC, designed for swinging automatisms one or two leaves.

It directly incorporates a radio receiver LIFE of 433,92 MHz, so it is not necessary to install an additional receiving card to use the included controls.

The plant has an electronic operating regulation and different entries for control devices and safety.

Your programming is done through the system Digital Life, designed to simplify configuration procedures and commissioning.

✓ one or two swinging engines of 230Vac.

✓ Radio receiver 433.92 MHz integrated.

✓ Memory up 1,000 codes.

✓ Compatible with coding LIFE Rolling Code and Auto Code.

✓ Step by Step.

✓ Entry for pedestrian opening.

✓ STOP.

✓ Tickets for safety photocells.

✓ Exit for 12vAC Electrocker.

✓ Output of accessories 24Vac.

✓ Exit for flashing.

✓ Exit for courtesy light.

✓ Function of automatic closure.

✓ Regulation of the force and detection of obstacles according to the Configuration of the Central.

The set includes 2 original controls LIFE MAXI.

Each transmitter has 2 channels and work at a frequency of 433,92 MHz.

Use coding LIFE Rolling Code of 64 bits, offering a variable code system for control of automation.

The scope declared by LIFE with compatible receptors is approximately 120 to 200 meters in favorable conditions.

Easy Version: Security Devices not included

This configuration corresponds to the kit SETUP OP3 UNI DL EASY.

The set includes engines, central with receiver and two controls, but does not include photocells, flashing lamp or key selector. These elements can be added separately according to the needs and regulations applicable to the installation.

■ LIFE VISIO – set of outdoor photocells.

■ LIFE SUNLED 23 – flashing lamp with integrated antenna.

■ LIFE DES – key selector for outer opening.

■ Controls LIFE Maxi 2 additional – to expand the number of users of the installation.

Important before selecting the automatism

The length of 3 meters per leaf is the limit indicated for the OP3 UNI model, but the choice of the engine must also be taken into account weight, height, structure, wind resistance, hinges and pillar dimensions.

The door must be scrolled manually on a regular basis and without friction before installing automation.

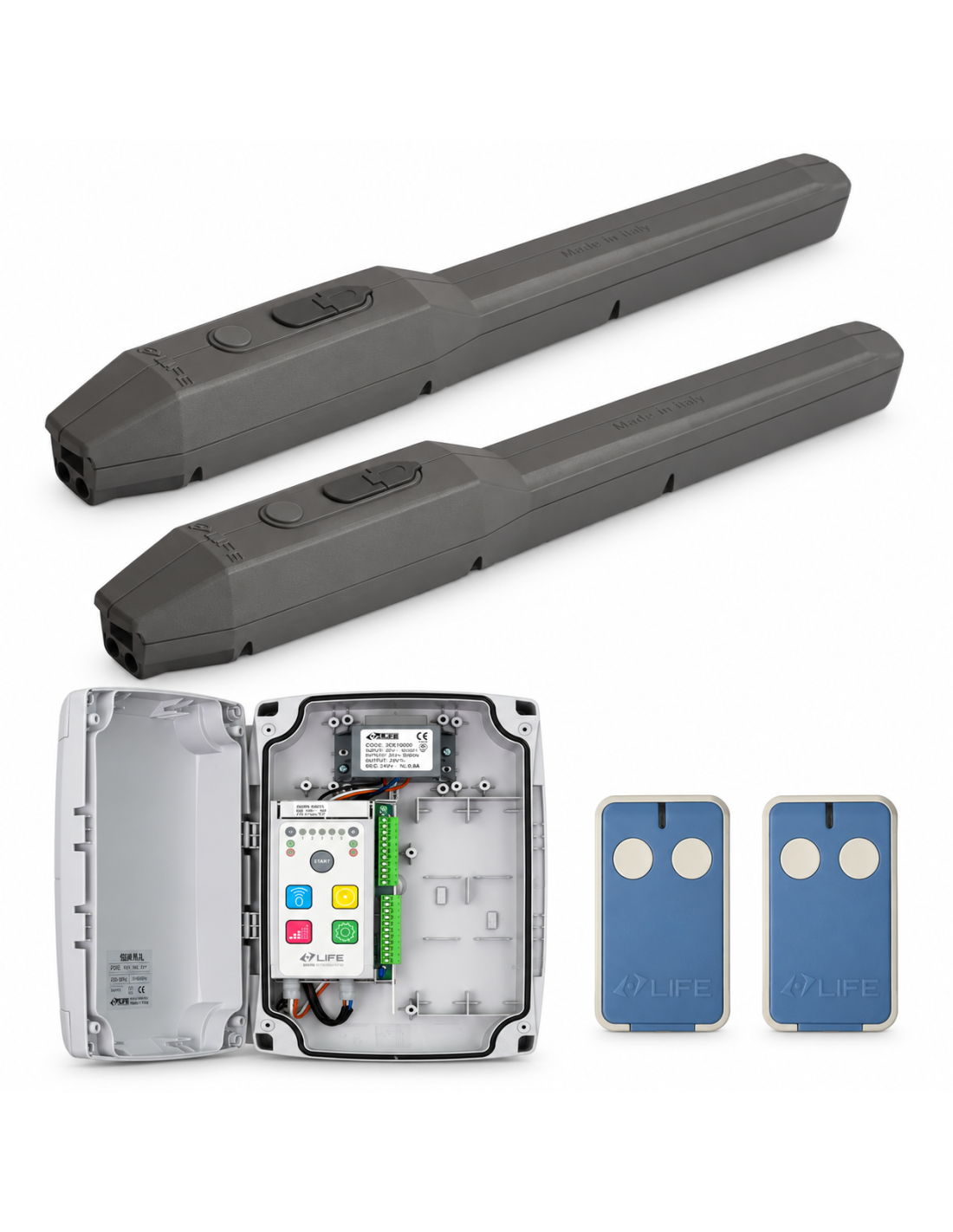

■ 2 × motors LIFE Optimo OP3 UNI 230VAC.

■ 1 × electronic central LIFE GE UNI RS DL with receiver 433.92 MHz integrated.

■ 2 × controls LIFE Maxi 2 of 2 channels 433.92 MHz Rolling Code.
