LED Lamp Dea Aura-X Multivoltage with antenna 433/868 MHz
661131
This product has a special discount!
To view the price or buy the product you have to Register or you can ask us.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky

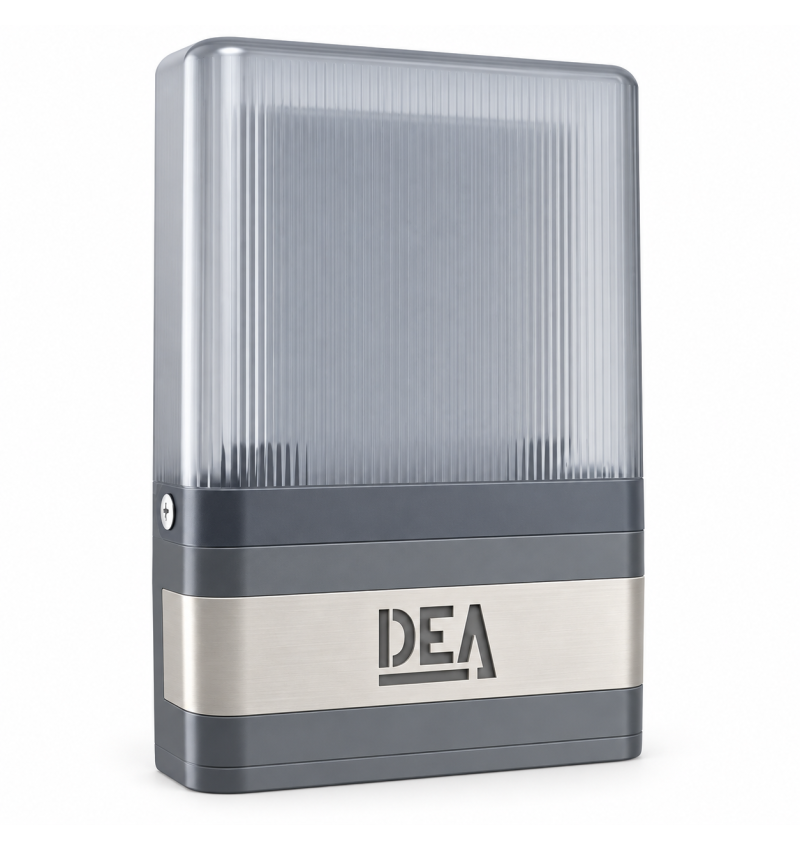

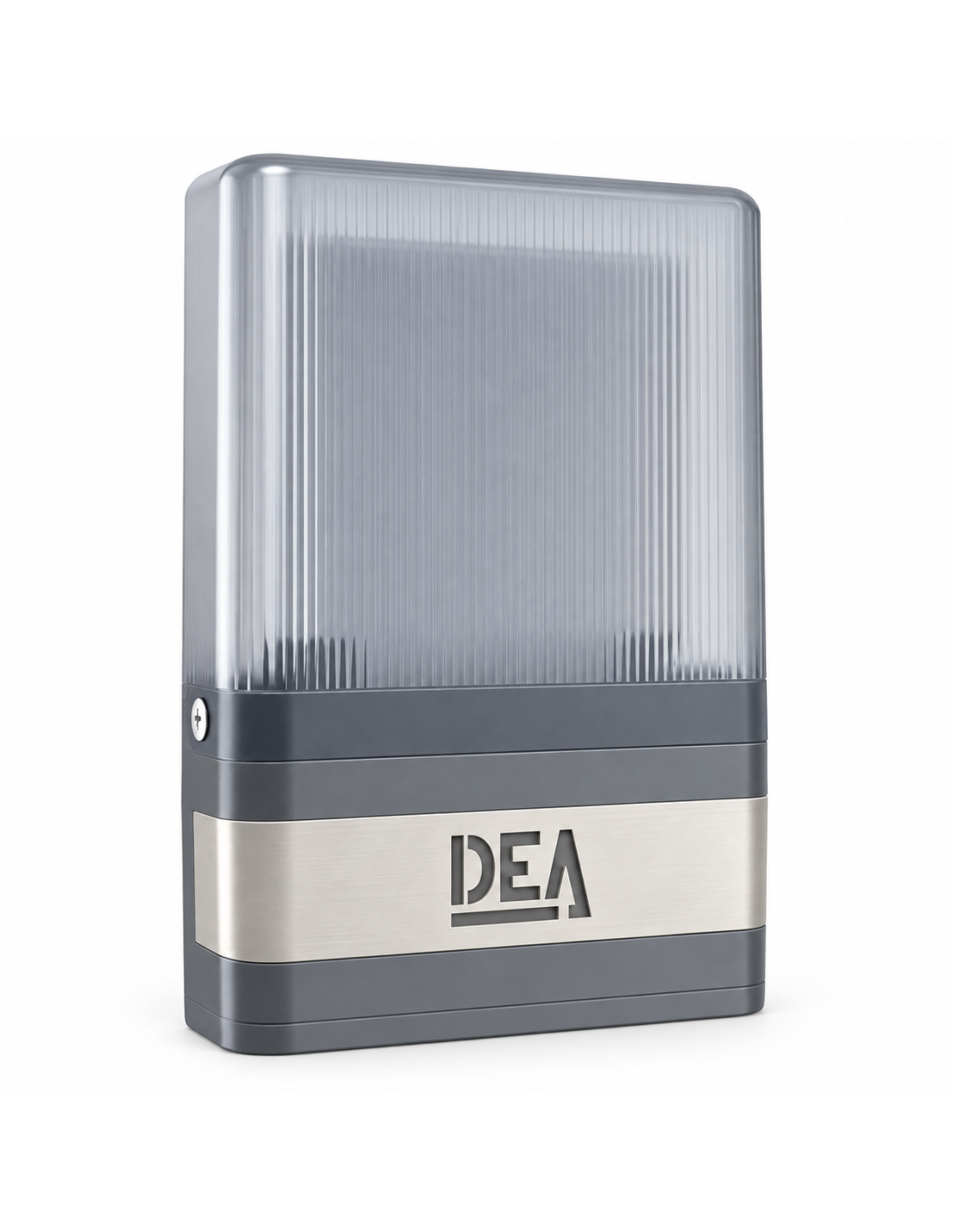

LED Lamp Dea Aura-X Multivoltage with integrated antenna
Aura-X (661131), is a multivoltage LED signaling lamp with integrated antenna for automations of doors, gates and barriers. You can feed at 24 V AC / DC, 120 V AC or 230 V BC and allows you to select the frequency of the antenna between 433 MHz and 868 MHz.
Feed
24/120 / 230 V
Integrated antenna
433/868 MHz
Lighting
18 points LED
Main features
- LED signaling lamp To indicate the movement of the door or automation.
- Multivolt feeding: 24 V AC / DC, 120 V AC and 230 V BC.
- Integrated antenna With frequency selection of 433 MHz or 868 MHz.
- Circuit with 18 white LEDs high luminosity, distributed on both sides.
- Internal selector to configure operation with Fixed or intermittent light.
- Adjustable support for installation on horizontal or vertical surfaces.
- Decubor White Fumé.
- Connection cable with a length of 5 meters.
Signaling light and antenna in a single device
Visible signage
The white LEDs of high luminosity allow us to notice visually when the automation is running.
Configurable antenna
An internal selector allows adapting the antenna to 433 MHz or 868 MHz installations.

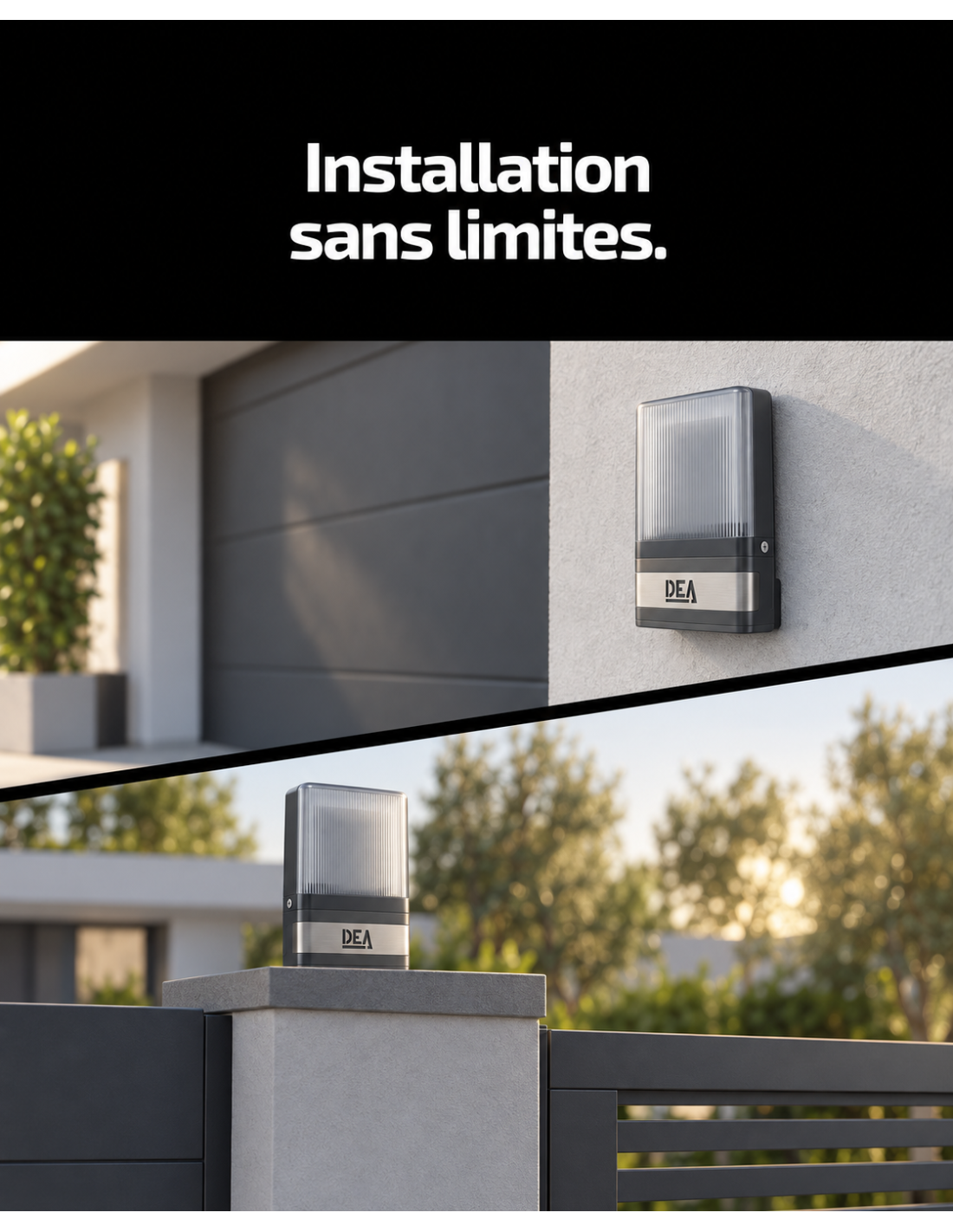

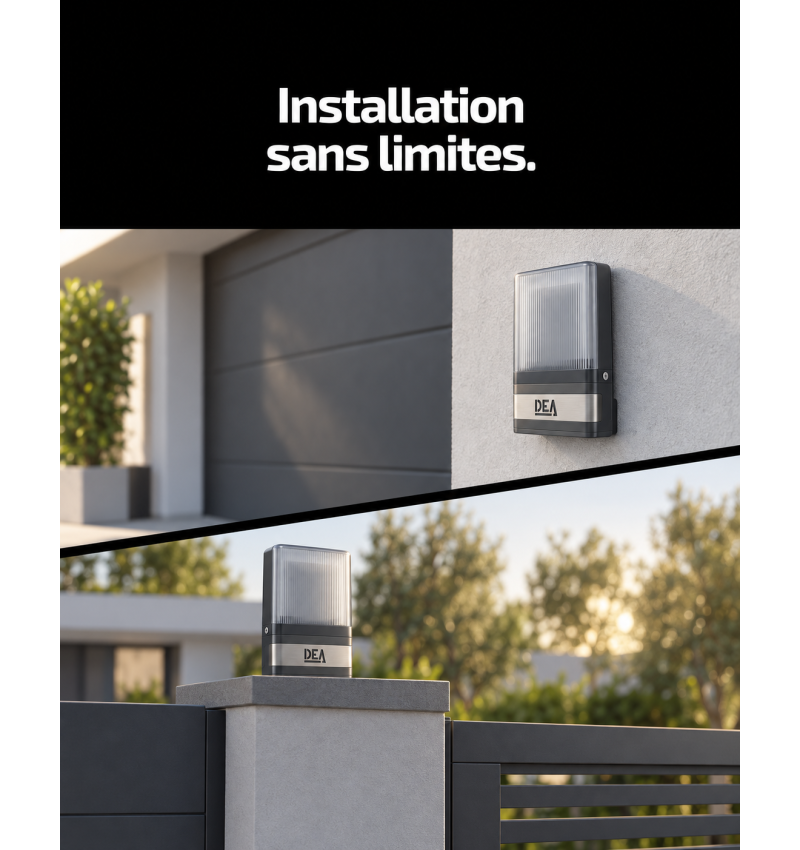

Adaptable assembly
The rotary support facilitates the placement on pillars, walls and other horizontal or vertical surfaces.
Technical data
| Feature | Specification |
|---|---|
| Brand | Dea System |
| Model | Aura-x |
| Code | 661131 |
| Type of product | LED signaling lamp |
| Feed | 24 V AC / DC, 120 V AC O 230 V BC |
| Antenna frequency | 433 MHz / 868 MHz selectable |
| Luminous source | 18 white LEDs high luminosity |
| Lighting | Fixed light or flashing selectable |
| Finish | White smoked with white light |
| Cable length | 5 meters |
| Type of assembly | Horizontal or vertical by means of adjustable support |
Supply content
- 1 LED Lamp Dea Aura-X, code 661131.
- Integrated antenna selectable for 433 MHz or 868 MHz.
- Connection cable of 5 meters.
Important for installation
Before making the connection, the supply voltage, the frequency of the antenna and the lighting mode must be selected correctly. The installation and the connection must be made by qualified personnel, following the scheme of the maneuver box and the manufacturer's instructions.
Do you have compatibility doubts? Send us the model of the maneuver box and the frequency used by the controls to help you check the appropriate configuration.
