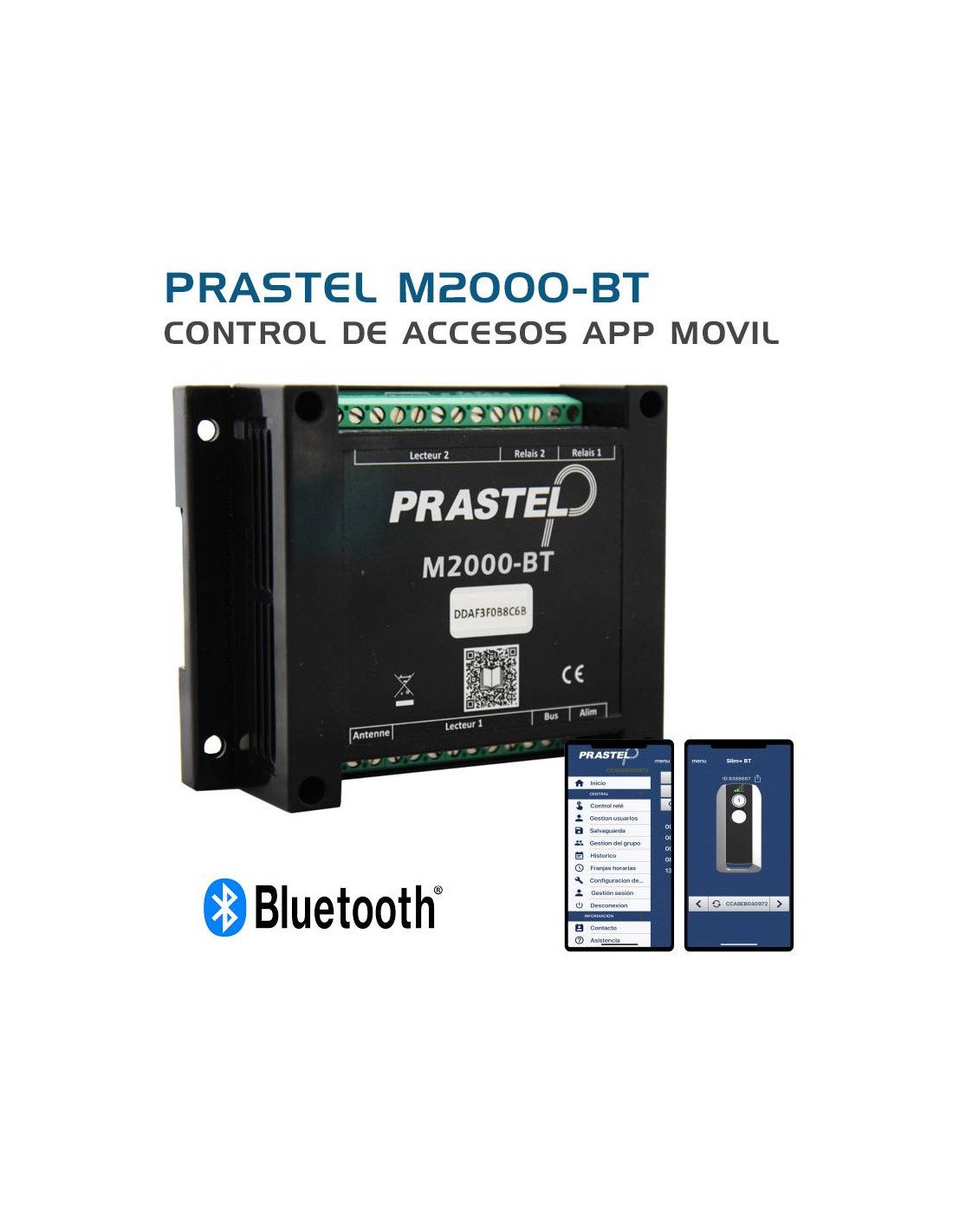

The M2000-BT switchboard is a control access unit that includes a memory of 2000 users, 2 external reader inputs and a 433 MHz radio receiver. The key innovation lies in the management and programming of simple and wireless units (through smartphones).

The M2000-BT has 2 external reader inputs as well as a 433 MHz radio receiver. Radio communication can also be very secure thanks to our AES 128 encrypted transmitters (ref SLIM+ and SLIM2E+).

TECHNICAL CHARACTERISTICS

• Capacity for 2000 users

• Built-in receiver 433.92 MHz

• 2 Wiegand reader inputs of 26, 30, 37 bits or data clock

• 4 auxiliary inputs (2 pushers, 2 magnetic loops)

• Anti-passback

• History of events (1000)

• User time intervals

• Programming: via Smartphone (suitable for Android® and iPhone®): management of full user names, programmable time slots, display of events, etc.

• ABS box with double hook: screw or DIN mounting rail

• Dimensions: 11.5 × 9 × 4 cm

• 2 virtual controls included

DOWNLOAD THE APP

How to download M2000-BT from Google Play for Android

Download M2000-BT from the iPhone app store

MANUAL

Instruction manual Prastel M2000-BT

App instruction manual Prastel M2000-BT
