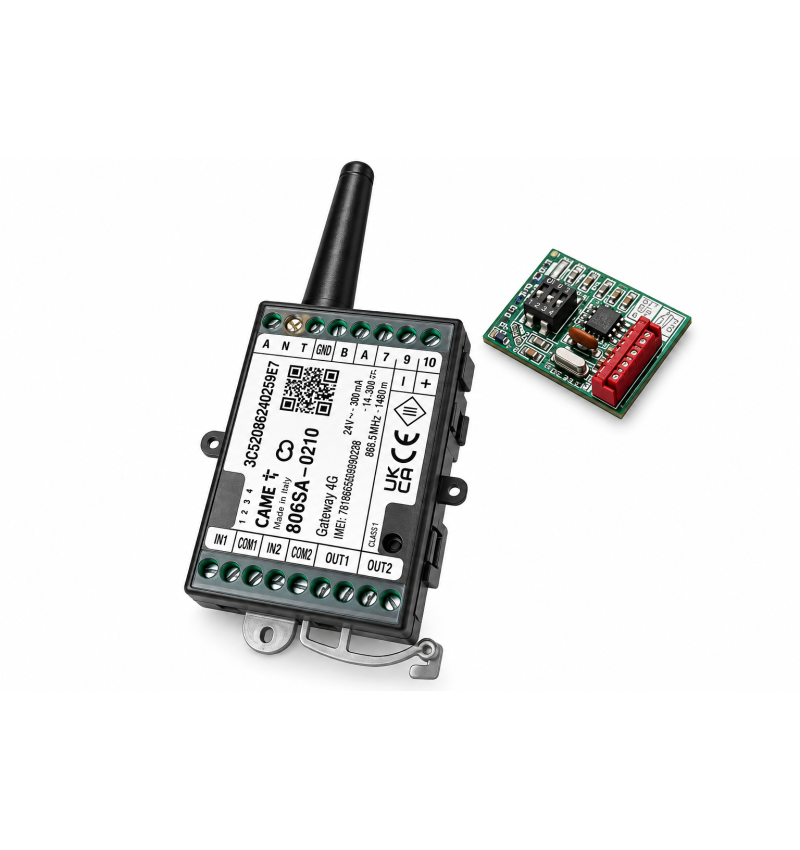

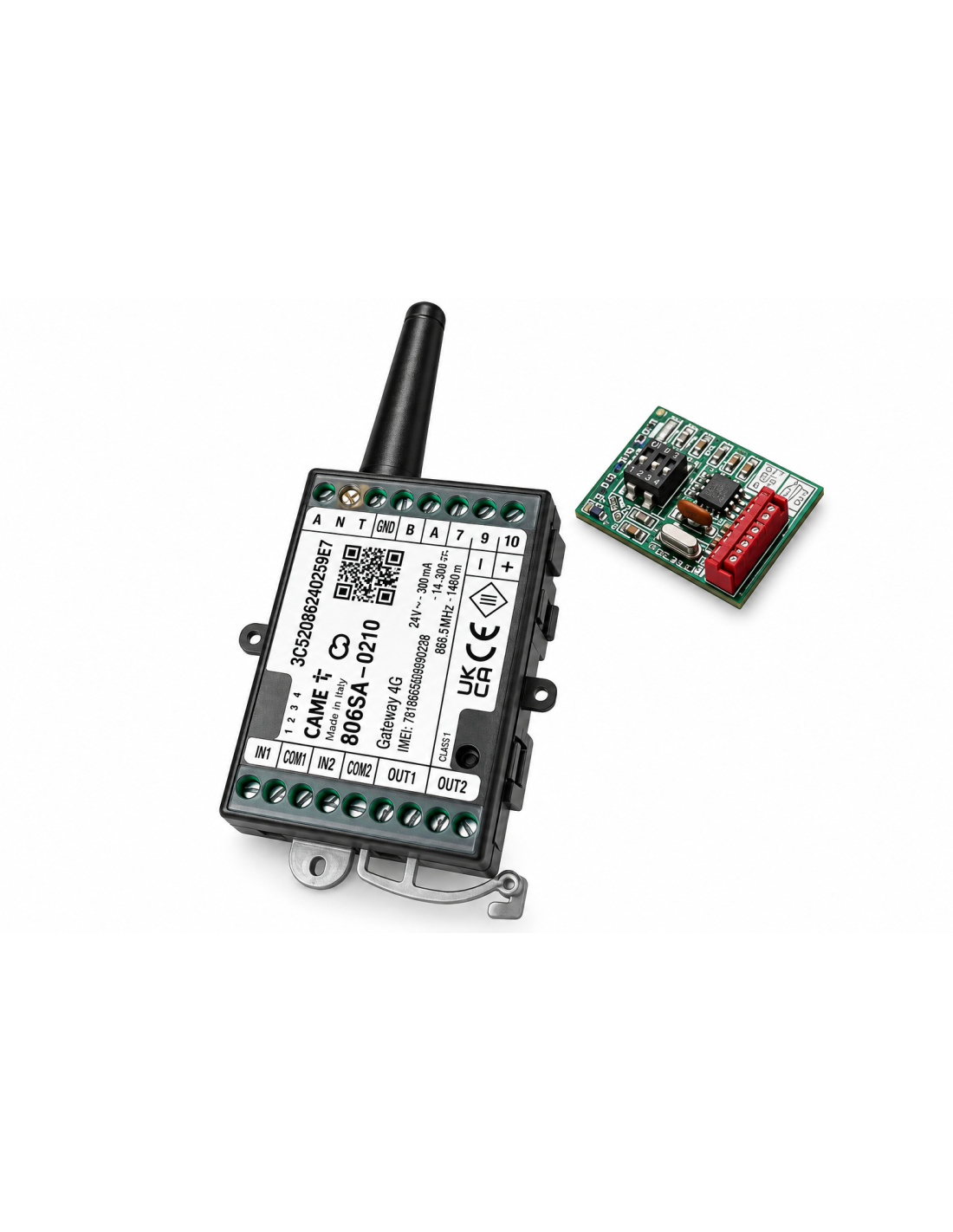

Gateway 4G CAME Connect 806SA-0210 for remote management of automation

Gateway 4G CAME 806SA-0210 for remote management CAME Connect

The CAME 806sa-0210 is a Gateway 4G autonomous Designed to connect automatisms CAME Compatible to the system CAME Connect and allow your remote management through the Internet.

This device allows to integrate an automation installation into the digital ecosystem of CAME, facilitating the Control, monitoring and remote management of compatible automatisms.

Communication with the plants CAME Compatible can be done through the interface RS485 / CRP using the module 002RSE included.

Thanks to its connectivity 4g, it is especially useful in installations where you want to have remote access without depending on a local WiFi connection.

Compatible CAME Connect

The gateway 806sa-0210 Allows you to integrate automatisms compatible with the system CAME Connect to have management and remote control functions.

End user: Management through the application CAME Automation.

Professional installer: Access to advanced configuration and maintenance functions by CAME Setup.

✓ Autonomous gateway with connectivity 4g.

✓ Reference CAME 806sa-0210.

✓ Compatible with the system CAME Connect.

✓ Remote Management of Automation CAME compatible.

✓ Includes communication module CAME 002rse.

✓ Communication through interface Rs485.

✓ It has 2 digital inputs.

✓ It has 2 relay outputs.

✓ Large rank feed 12 - 30 V AC / DC.

✓ Installation in DIN rail.

✓ Designed for professional automation and access control facilities.

Rs485: communication with central CAME Compatible by communication protocol CAME / CRP.

IN1 E IN2: Two digital inputs for states acquisition or signals of the installation.

OUT1 and OUT2: Two normally open relay outputs, with a maximum capacity of 1 A / 30 VDC.

002rse: Communication module included with the gateway.

Automation without communication CRP

Thanks to the relay outputs, the Gateway also allows you to perform certain control functions on automatisms that do not have CRP communication, depending on the installation configuration.

Important: Check compatibility

Before placing the order, verify that the electronic automation center is compatible with CAME Connect / CRP communication Or that the installation can be done through the inputs and outputs available in the gateway.

Do not confuse with other Gateway versions CAME

The reference 806sa-0210 corresponds to Gateway 4G autonomous.

CAME It has other versions of Gateway with different characteristics, so it is important to check the exact reference before placing the order.

■ 1 × Gateway 4G CAME 806sa-0210.

■ 1 × module CAME 002rse.
