Kit VDS PH 270 | Hydraulic motor for swing doors

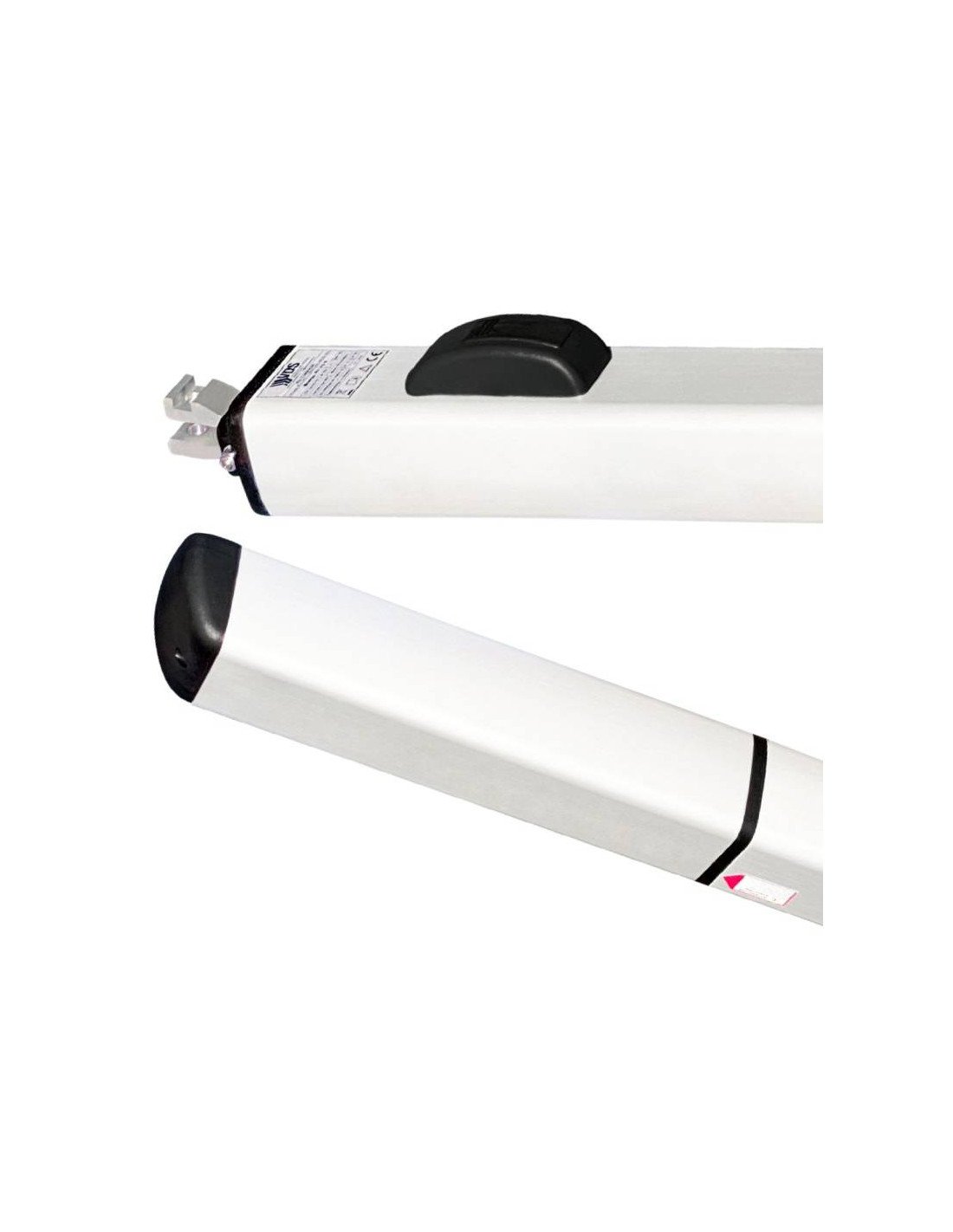

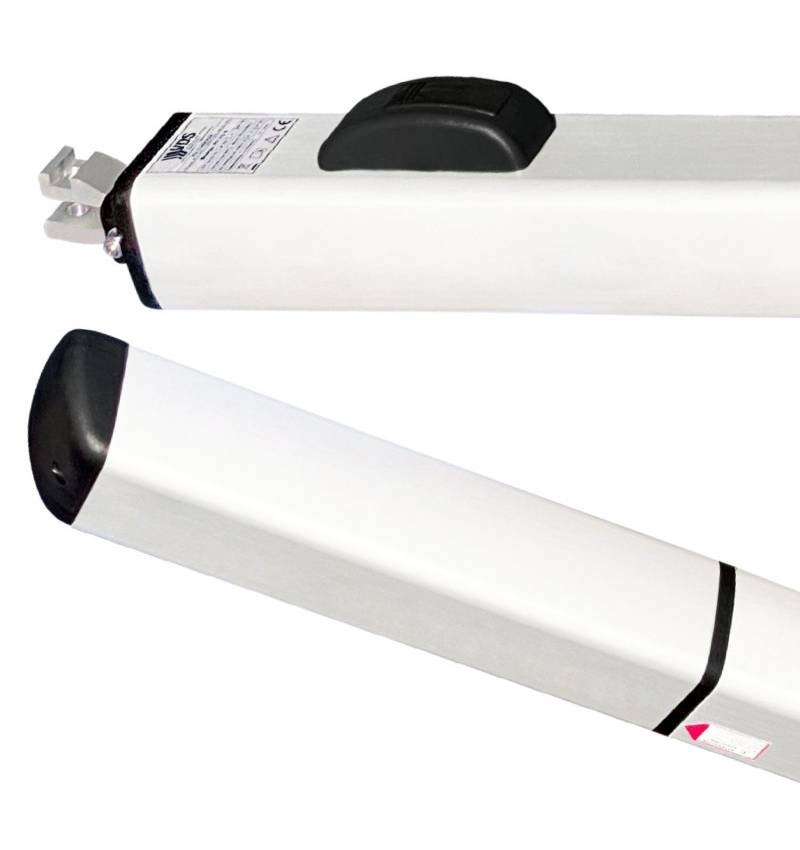

Hydraulic motor VDS PH 270 reversible To motorize residential swing doors up to 3 meters per leaf and up to 500 kg of weight.

The hydraulic motor kit VDS PH 270 (230V C270) It is the ideal solution for the automation of light residential and commercial folding doors. Designed for leaves of up to 3 meters and 500 kg, this system guarantees powerful, silent and durable operation, even under demanding conditions.

Thanks to his Hydraulic technology in oil bathIt offers a longer life and constant performance, becoming a perfect option for those seeking security, precision and reliability in the opening and closing of your door.

Featured features

• Reversible hydraulic motor in oil bath
• Regulation accurate strength and deceleration
• Anti-crushing system using bypass valves
• User unlocking with Emergency Key
• Ultrasilencious operation (<30 DBA)
• Quick and adaptable installation
• Compatible with electric lock (not included and necessary since the engine has no blockage)

Technical specifications

• Feed: 230V AC
• Power: 250W
• Push force: 1850 nm
• Race: 270 mm
• Maximum opening: 90 °
• Consumption: 1A
• Protection: IP55 (resistant to dust and water)
• Working temperature: -20 ° C A + 70 ° C

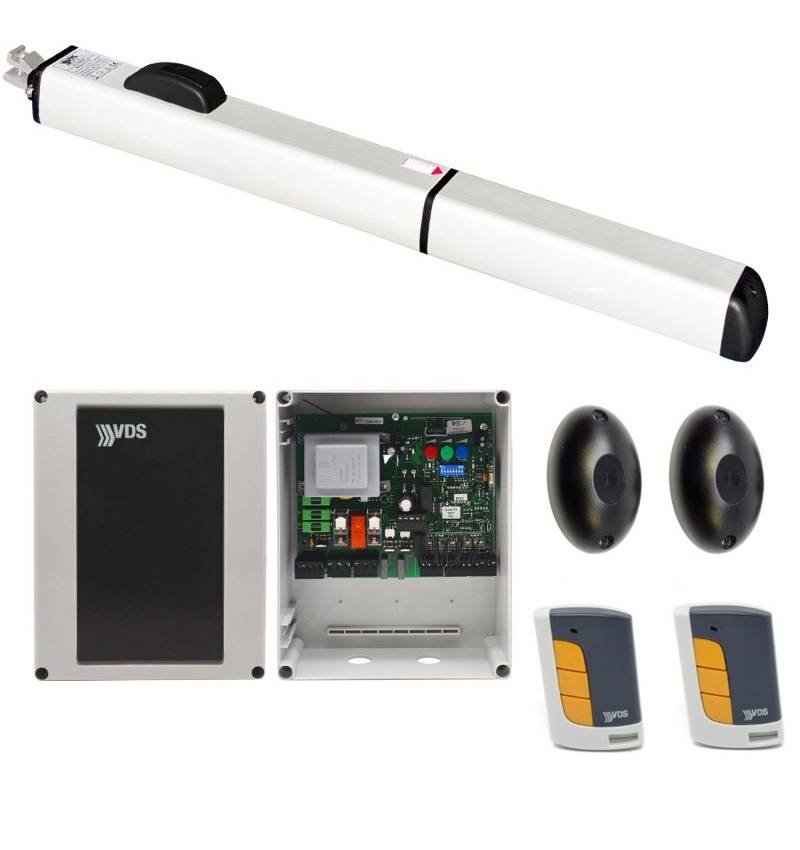

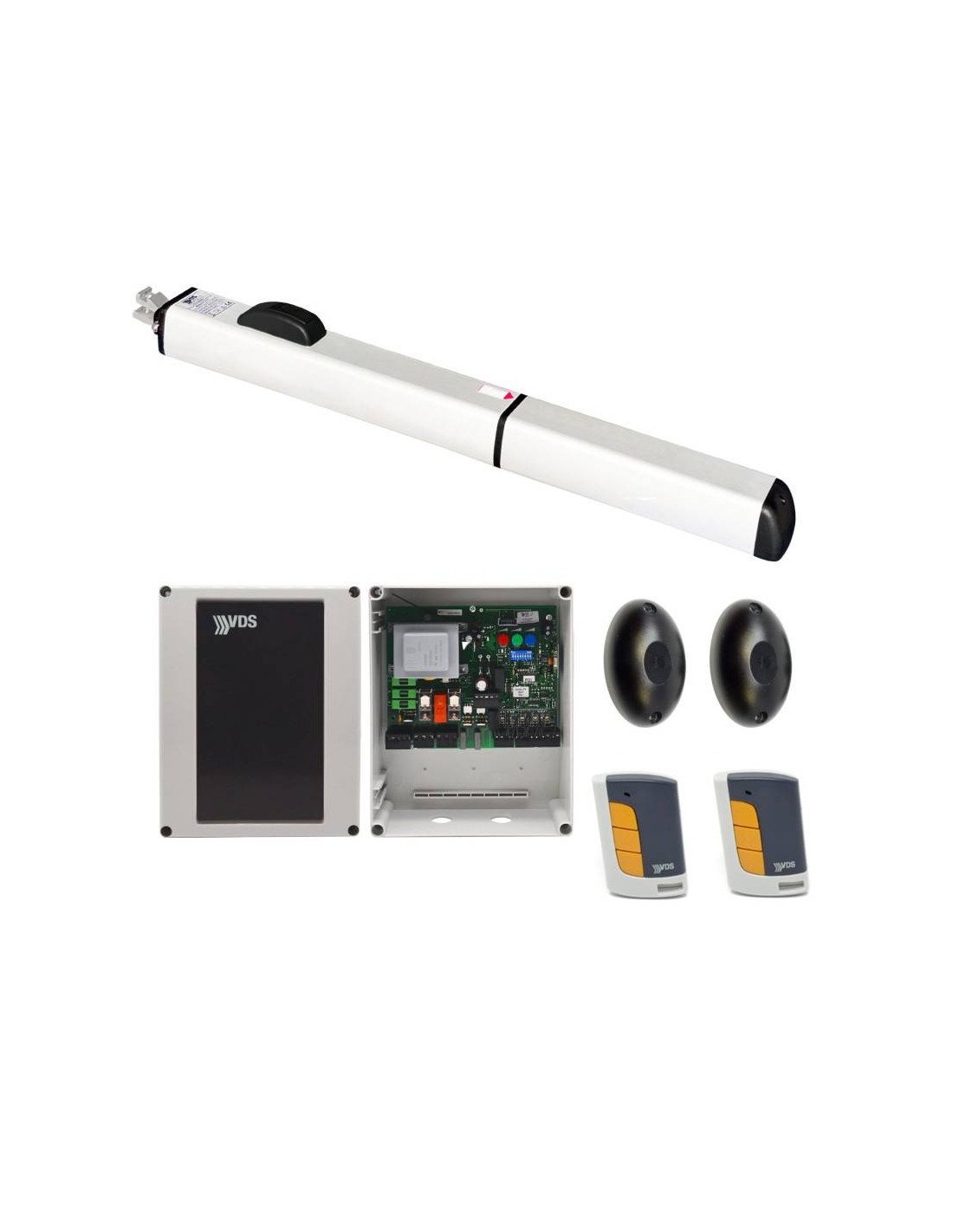

Kit content

• 1x 121927: R-reversible pH 270 engine (without blocking) 220V
• 1x E105: Maneuver box Euro M2 230VAC
• 2x E010: RollingCode Eco R 433
• 1x 12t: Security photocell TX-RX

Measure VDS Ph270

Video Tutorial Configuration Table VDS Euro230
