Kit VDS PH1 270 | Hydraulic motor for swing doors

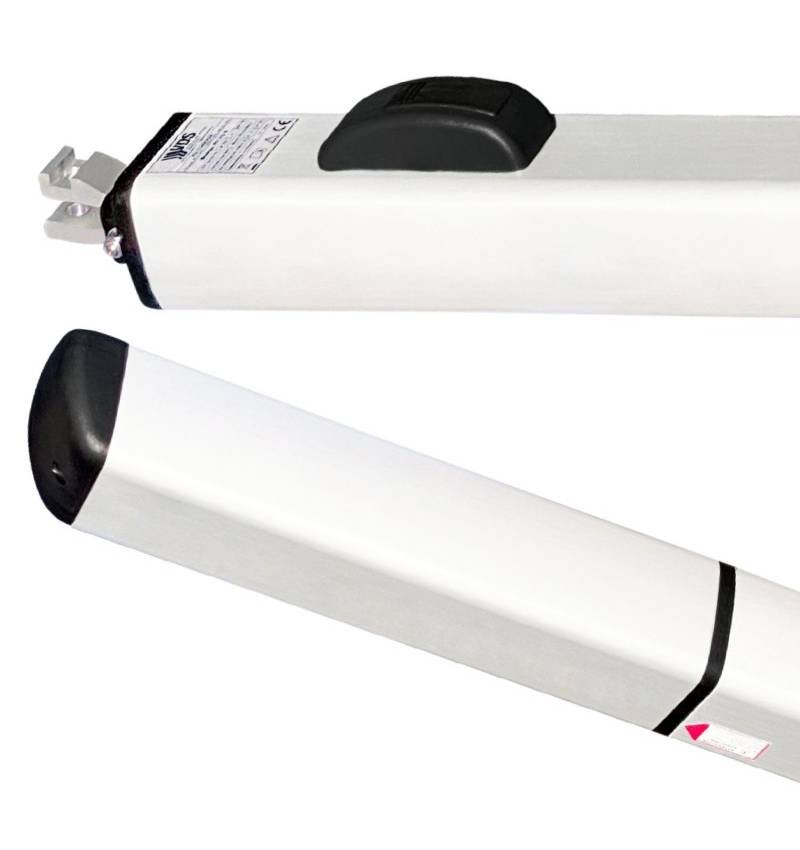

Hydraulic motor VDS Ph1 270 irreversible To motorize residential swing doors up to 3 meters per leaf and up to 500 kg of weight.

The hydraulic motor kit VDS PH1 270 (230V C270) It is the ideal solution for the automation of light residential and commercial folding doors. Designed for leaves of up to 3 meters and 500 kg, this system guarantees powerful, silent and durable operation, even under demanding conditions.

Thanks to his Hydraulic technology in oil bathIt offers a longer life and constant performance, becoming a perfect option for those seeking security, precision and reliability in the opening and closing of your door.

Featured features

• Irreversible hydraulic motor (with lock) in oil bath
• Regulation accurate strength and deceleration
• Anti-crushing system using bypass valves
• User unlocking with Emergency Key
• Ultrasilencious operation (<30 DBA)
• Quick and adaptable installation
• Compatible with electric lock (not included and is not necessary, it is only optional)

Technical specifications

• Feed: 230V AC
• Power: 250W
• Push force: 1850 nm
• Race: 270 mm
• Maximum opening: 90 °
• Consumption: 1A
• Protection: IP55 (resistant to dust and water)
• Working temperature: -20 ° C A + 70 ° C

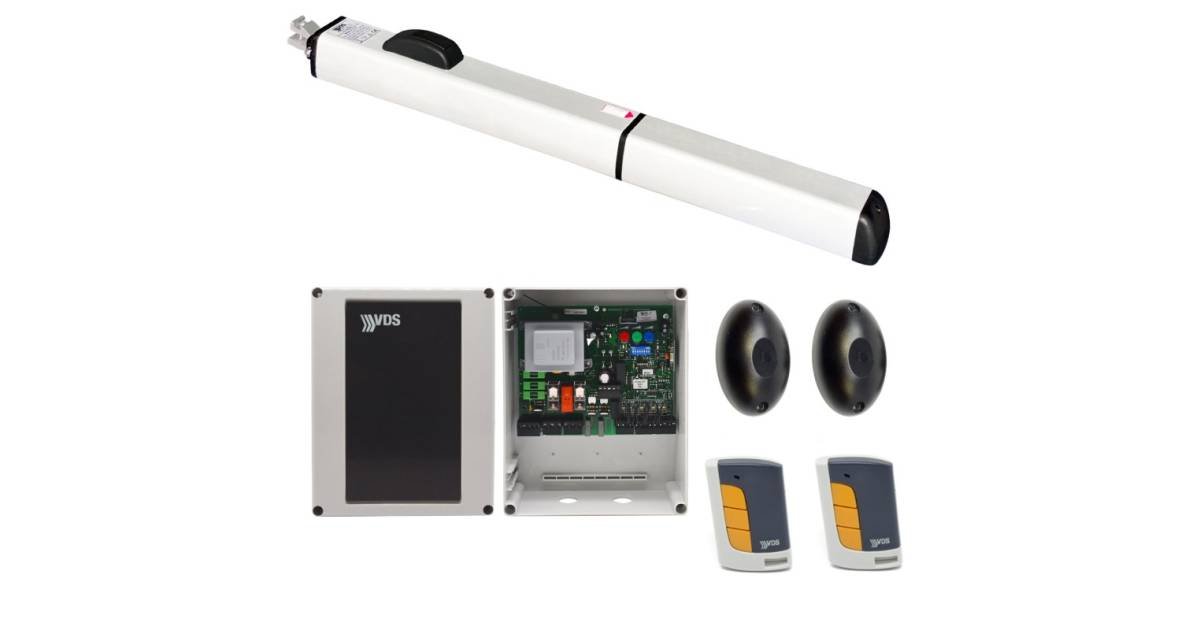

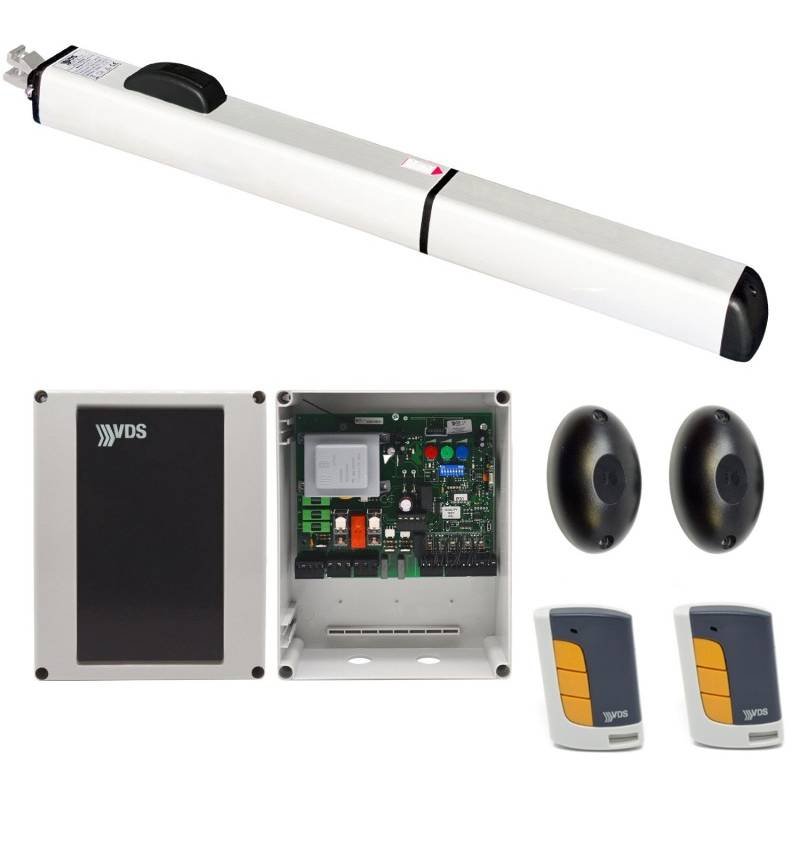

Kit content

• 1x 121913: Irreversible PH1 270 engine (with block) 220V
• 1x E105: Maneuver box Euro M2 230VAC
• 2x E010: RollingCode Eco R 433
• 1x 12t: Security photocell TX-RX

Measure VDS PH270

Video Tutorial Configuration Box VDS Euro230

Documentation

Instruction manual VDS pH 270

User Manual VDS Euro 230
