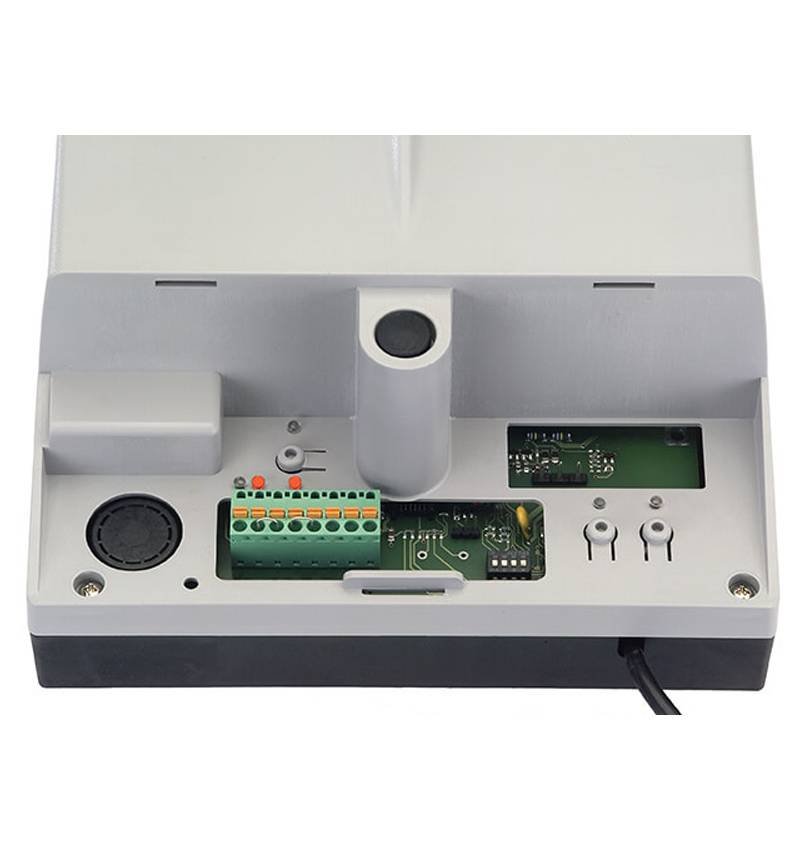

Engine FAAC D1000 for sectional door 1000 N up to 12m2
Referencia: 10566615
€231.00
IVA excluido

279,51 €

IVA incluido

Driving FAAC D1000 electromechanical 24 V by drawing for doors other, not further worked than hot-rolled and spring swings and counterweights for residential use.

Quantity

favorite_border
Add to Wishlist
Add to Wishlist


We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain

Driving FAAC D1000 electromechanical 24 V by drawing for doors other, not further worked than hot-rolled and spring swings and counterweights for residential use.

  • Quick and simple installation thanks to pre-mounted rail and fixing
  • Anti-sabotage lock: prevents the installation of locks and bolts
  • Electronic deceleration at the end of regulated course.
  • Including electronic control card FAAC XT-2 868 MHz

CHARACTERISTICS

  • Power supply: 220-240V
  • Electric motor: with 24V brushes
  • Maximum power: 350 W
  • In the case of vehicles of categories M1 and N2
  • Minimum height of lintel: 35 mm
  • Courtesy light: 230V to 40W
  • Light timing courtesy: 120 s
  • Standard speed of empty wagon: 6,6 m/min
  • Reduced speed of wagon empty: 1,3 m/min
  • Sound level at standard speed: 45 dBa
  • Encoder: electric
  • Intra-security device: series
  • Degree of protection: for indoor use only (IP20)
  • Weight: 6.4 kg
  • Size: 360x200x145mm
  • Electronic card: E1000 included
  • Frequency of use: continuous

MANUAL

Manual engine FAAC D1000

10566615

Data sheet

Force (N)
From 600N to 700N
Maximum door area (m2)
from 10m² to 13m²
