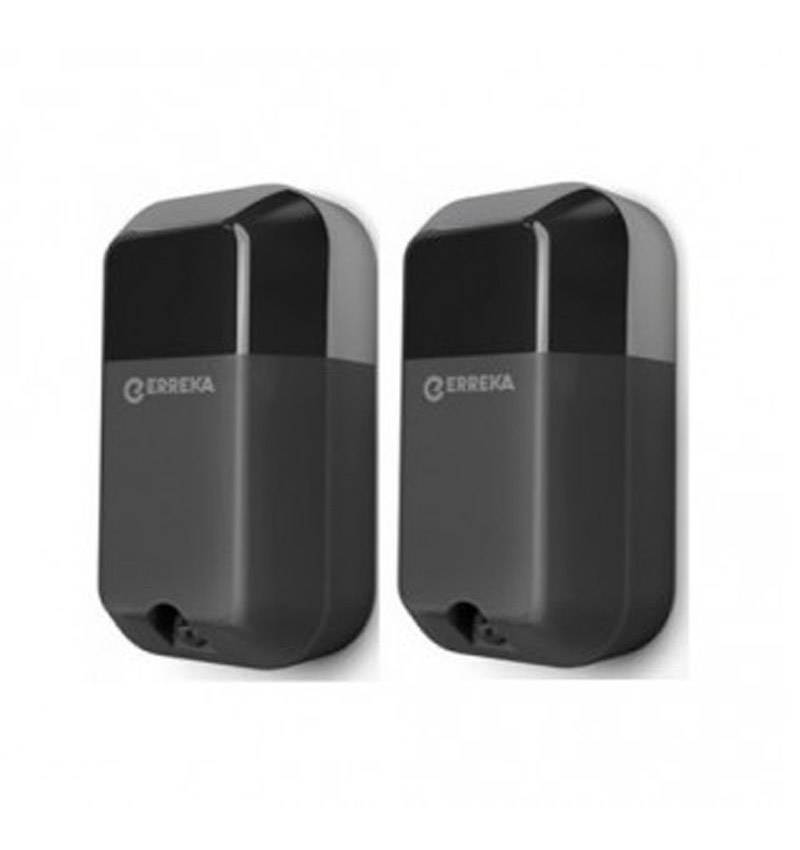

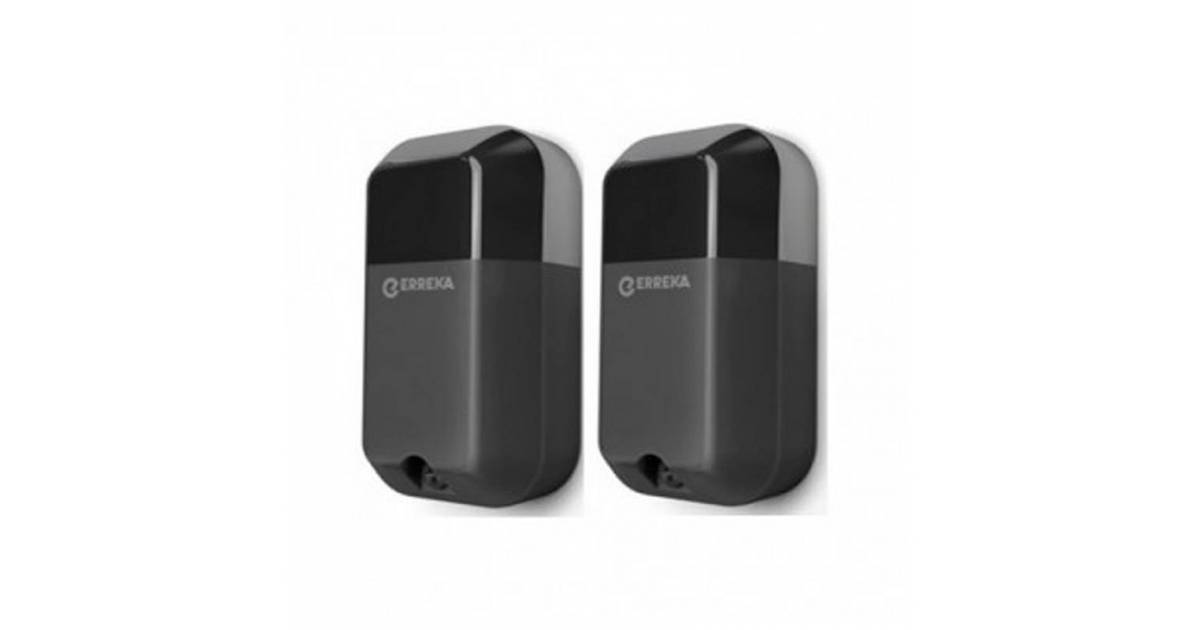

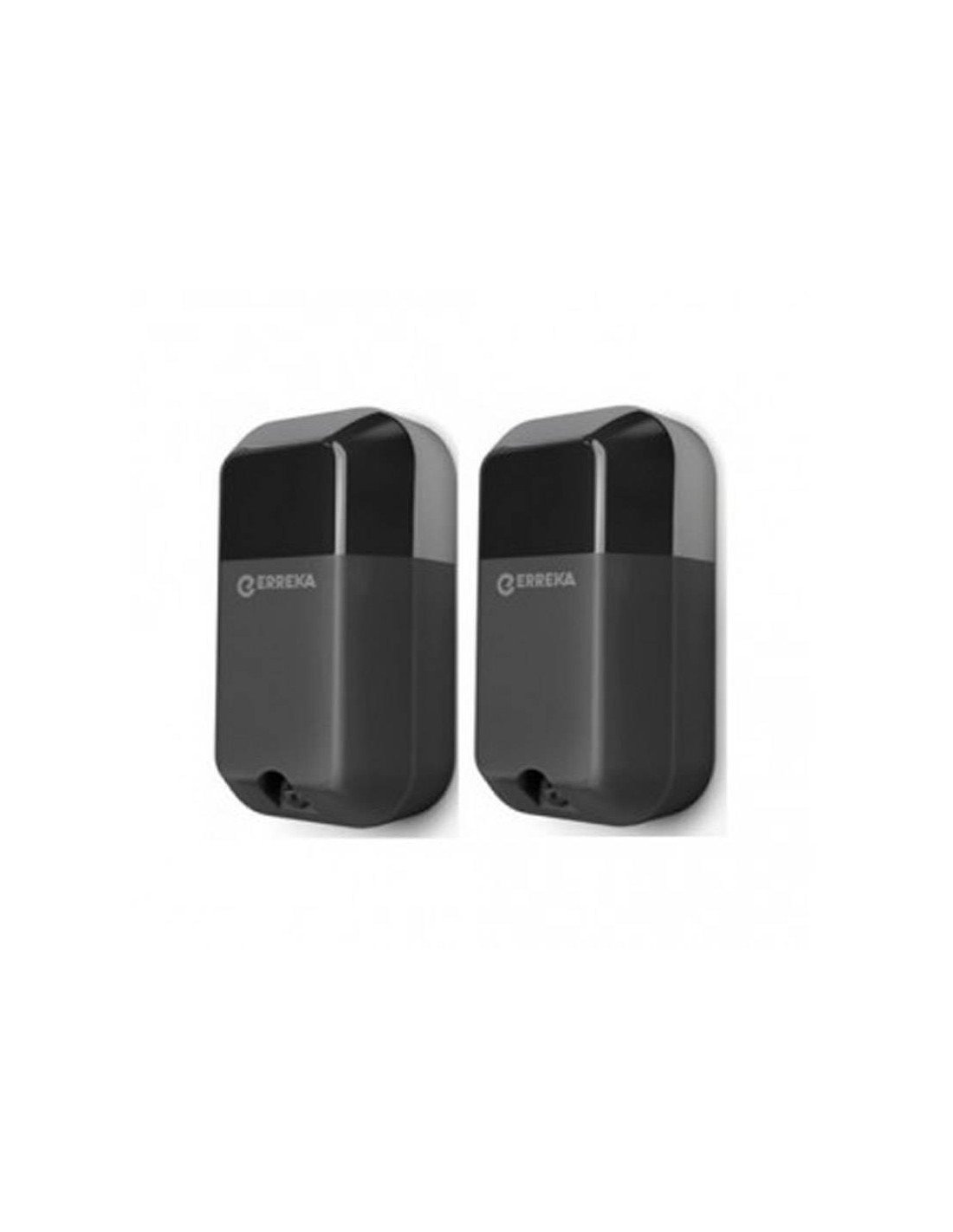

Safety photocell Erreka Ft06

The security photocell Erreka Ft06 It is an essential device to guarantee security in door automation systems and access. Designed to Detect obstacles in the passage area, prevent accidents by stopping the closing of doors automatically if it detects the presence of People, Vehicles or Objects. Its advanced technology offers a quick and accurate response, ensuring maximum protection in residential, commercial and industrial environments. The Erreka FT06 is compatible with a wide variety of automation and is installed easily able to feed 12 / 24V AC / DC.

Manufactured with high quality materials, resists adverse weather conditions, ensuring optimal and durable performance. Ideal for those seeking a reliable and effective solution in automated security systems. "

Technical characteristics Erreka Ft06

• Feed: 12-24VAC / 12-36VDC
• Consumption at 24VDC: TX 20MA, RX 25MA
• Wavelength: 940nm
• Frequency Beam infrared: 1khz
• Response time: 110ms
• Degree: IP44
• Capacity Contacts Relays: 1st to 24vdc
• Reach infrared beam: 30m Maximum COO (9m Under Adverse Conditions)
