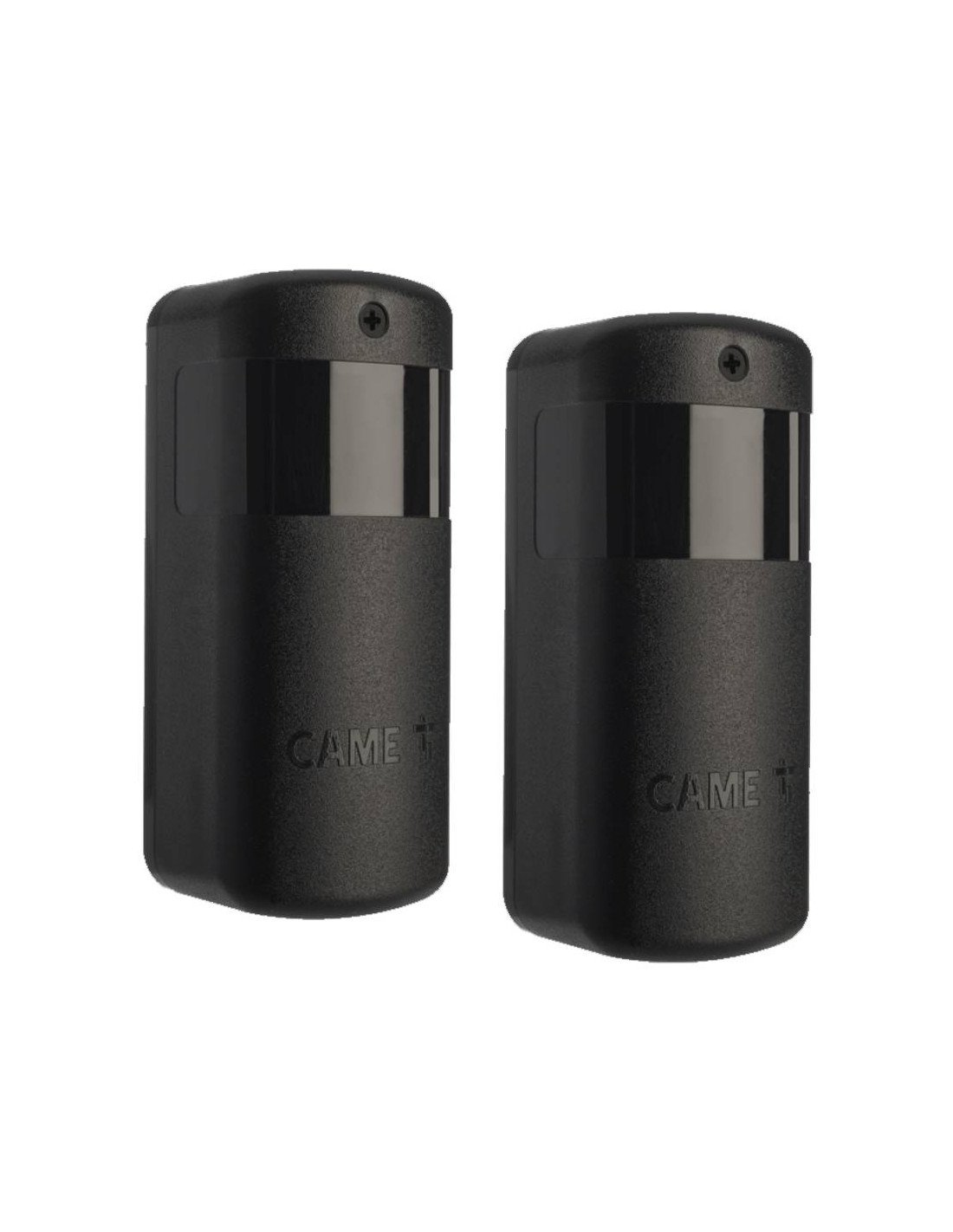

Pair of synchronized infrared beam steerable "DXR" CAME safety photocells.

CHARACTERISTICS

• Control of door movement areas.

• Infrared beam adjustable up to 180° from the vertical axis.

• Synchronization of up to 8 pairs of photocells without interference and without wired connection between sender and receiver.

• Double-height column is available for installations in passages where large trucks transit.

• Regulation of the capacity of the infrared ray.

• Filter function to prevent false detections due to weather and solar interference.

• Adjustable contact output to also use the photocell as a control device.

• Also available in a version with an aluminium alloy case.

• The 806TF-0060 version, with battery-powered transmitter, also allows a sensitive resistive safety edge to be controlled to protect the movable gate blade.

• Available in the traditional version (black trim) and the BUS CXN version (light blue trim)

MEASUREMENT

AVAILABLE MODELS

• 806TF-0030 (DXR20CAP): 12-24 V steerable synchronized infrared photocells. Range: 20 m.

• 806TF-0040 (DXR20CAM): 12-24V steerable synchronized infrared ray aluminum photocells. Range: 20 m.

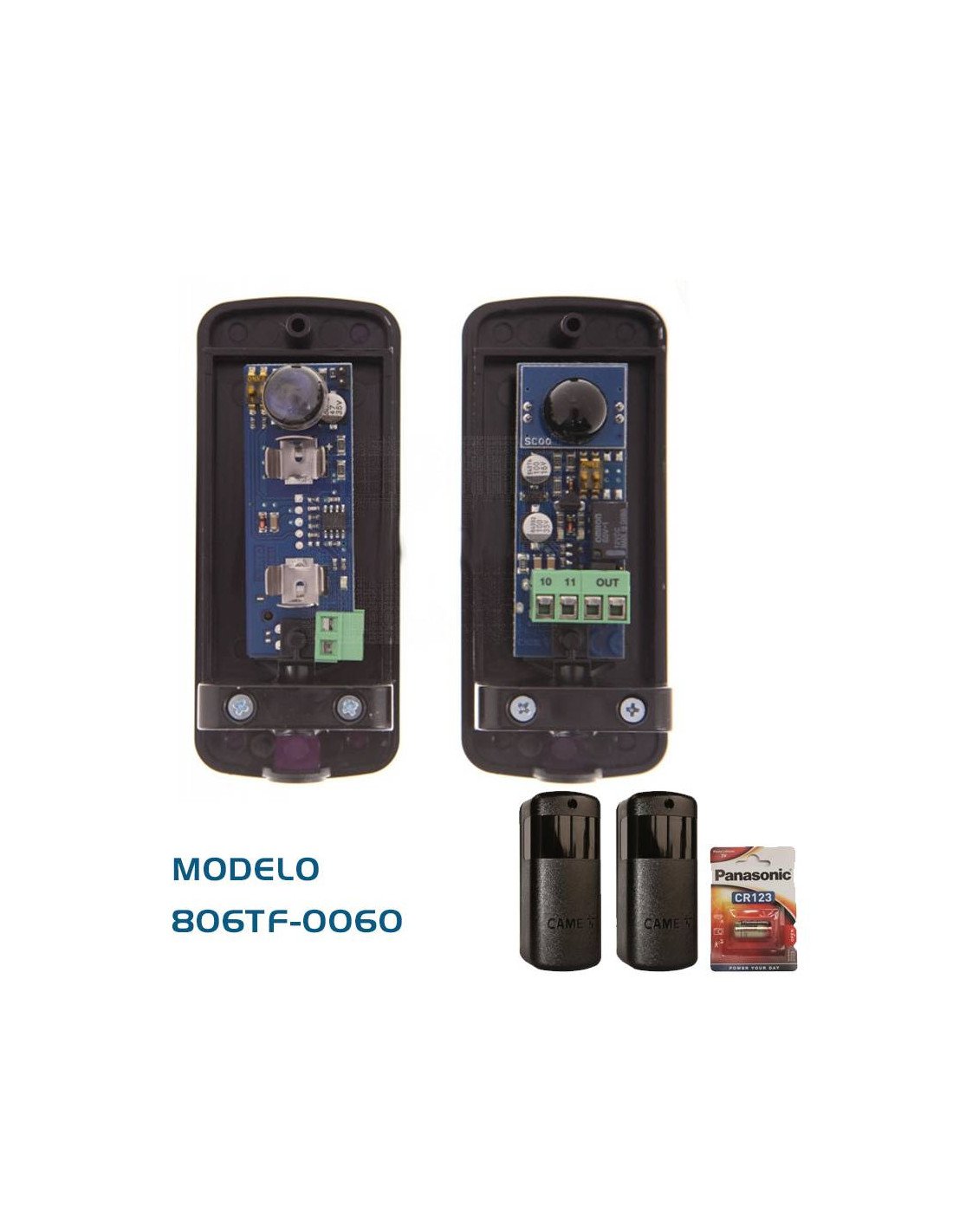

• 806TF-0060 (DXR10BAP): Adjustable synchronized infrared photocells with 12-24V receiver and battery-powered transmitter. Range: 10 m.

• 806TF-0110 (DXR20SAP): Pair of steerable synchronized infrared ray BUS CXN photocells. Range: 20 m.
