ROGER M90/F2ES

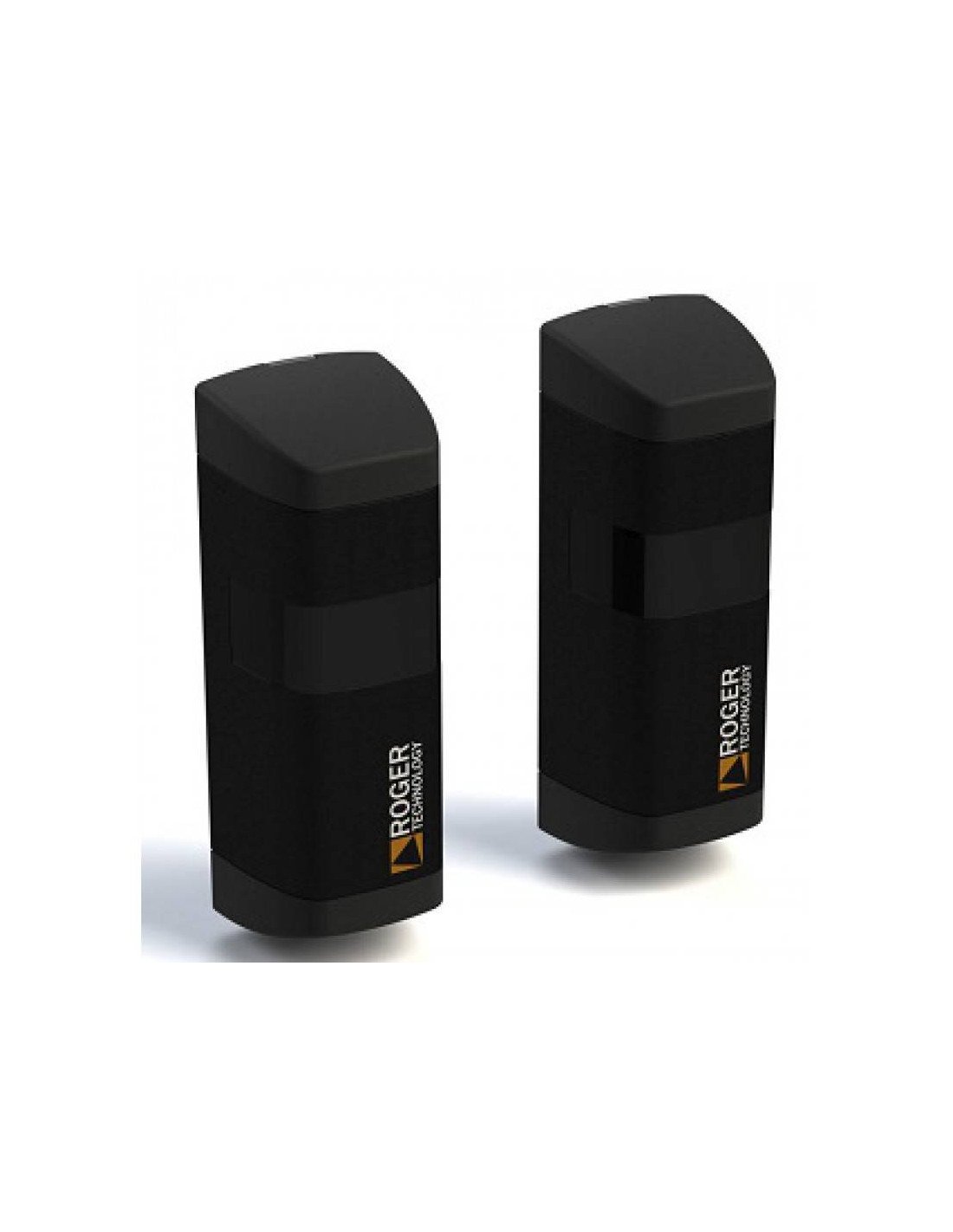

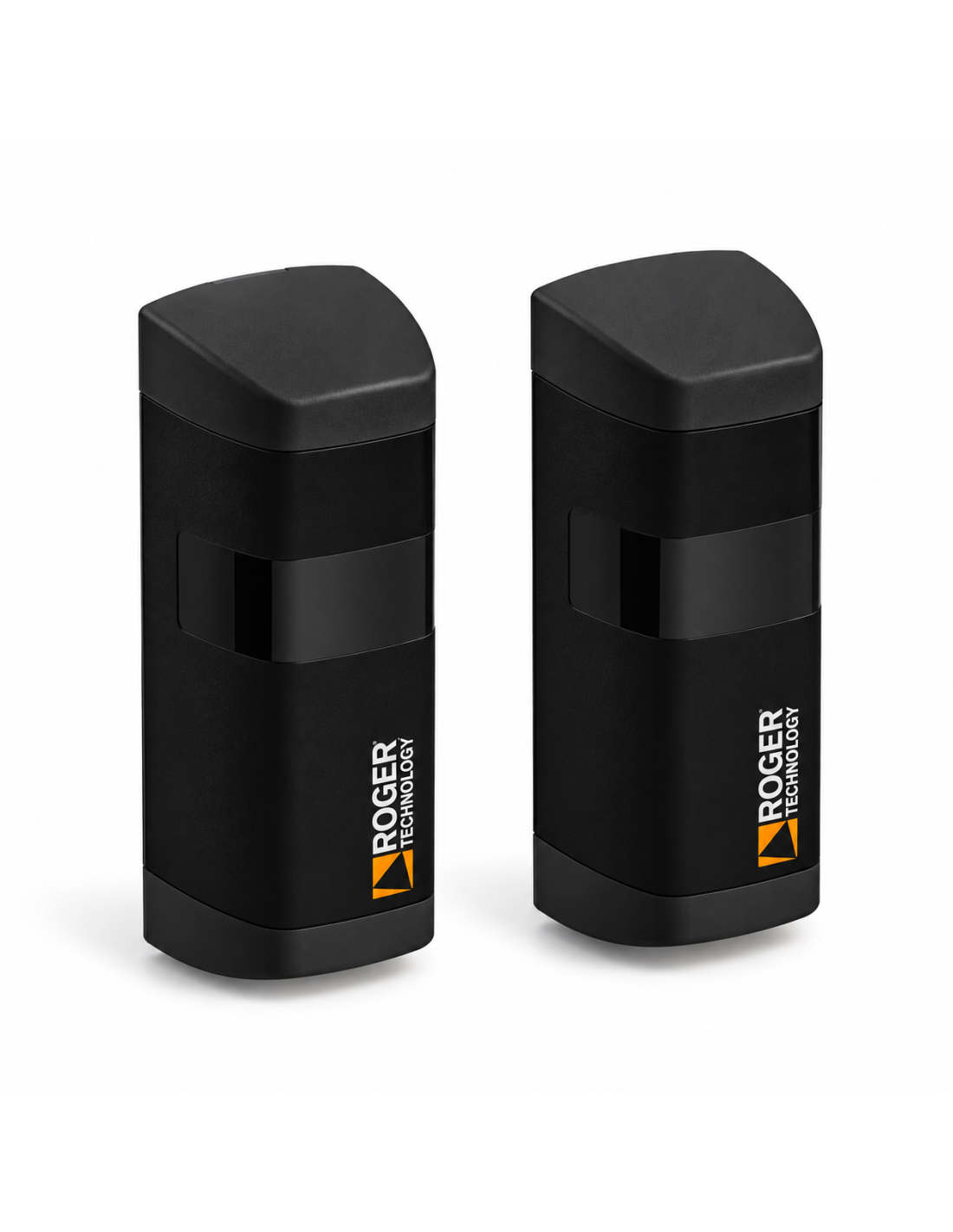

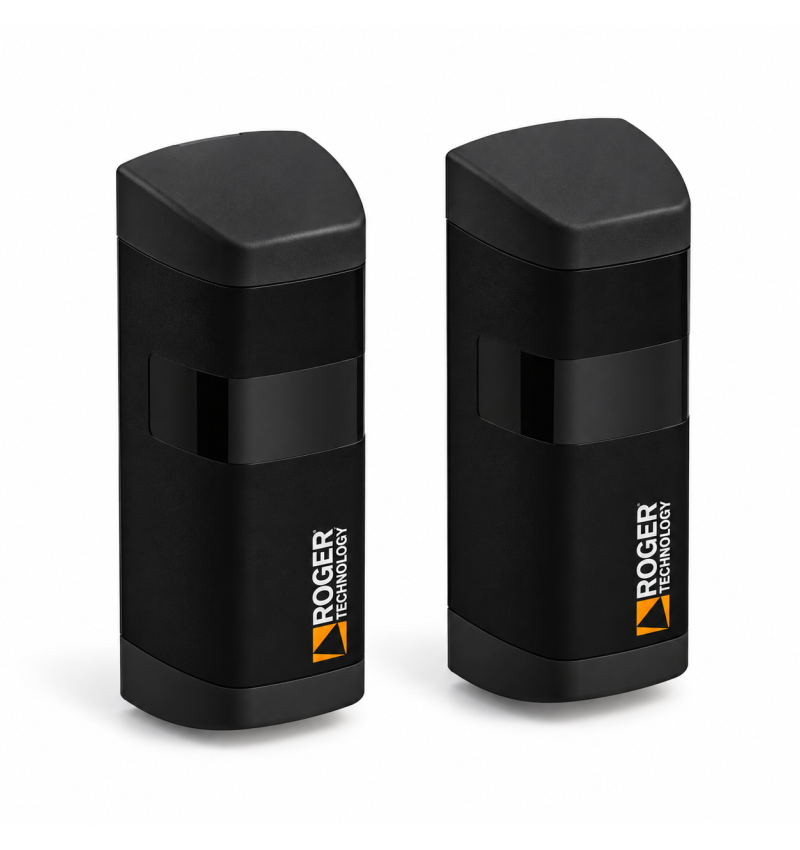

Photocell of safety ROGER M90/F2ES, radio-receptor of 24Vac.

TECHNICAL CHARACTERISTICS

• Standard: 12/24V AC 50Hz - 12/24V DC
• Absorption line: TX=19mA, RX=20mA
• Operating temperature: -20+55°C
• Degree of protection: IP55
• Maximum distance in free field: 10 - 15 m
• Maximum number of synchronized photocells2
• Current max relay: 0.5A RX
• Máx tense relay: 30V
• Type of installation: Exterior
• Maximum dimensions of product (L x W x H): 110 X 35 X 24
• Weight of packed product (Kg): 0.2

ACTION

MANUAL

Instruction manual ROGER M90/F2ES
