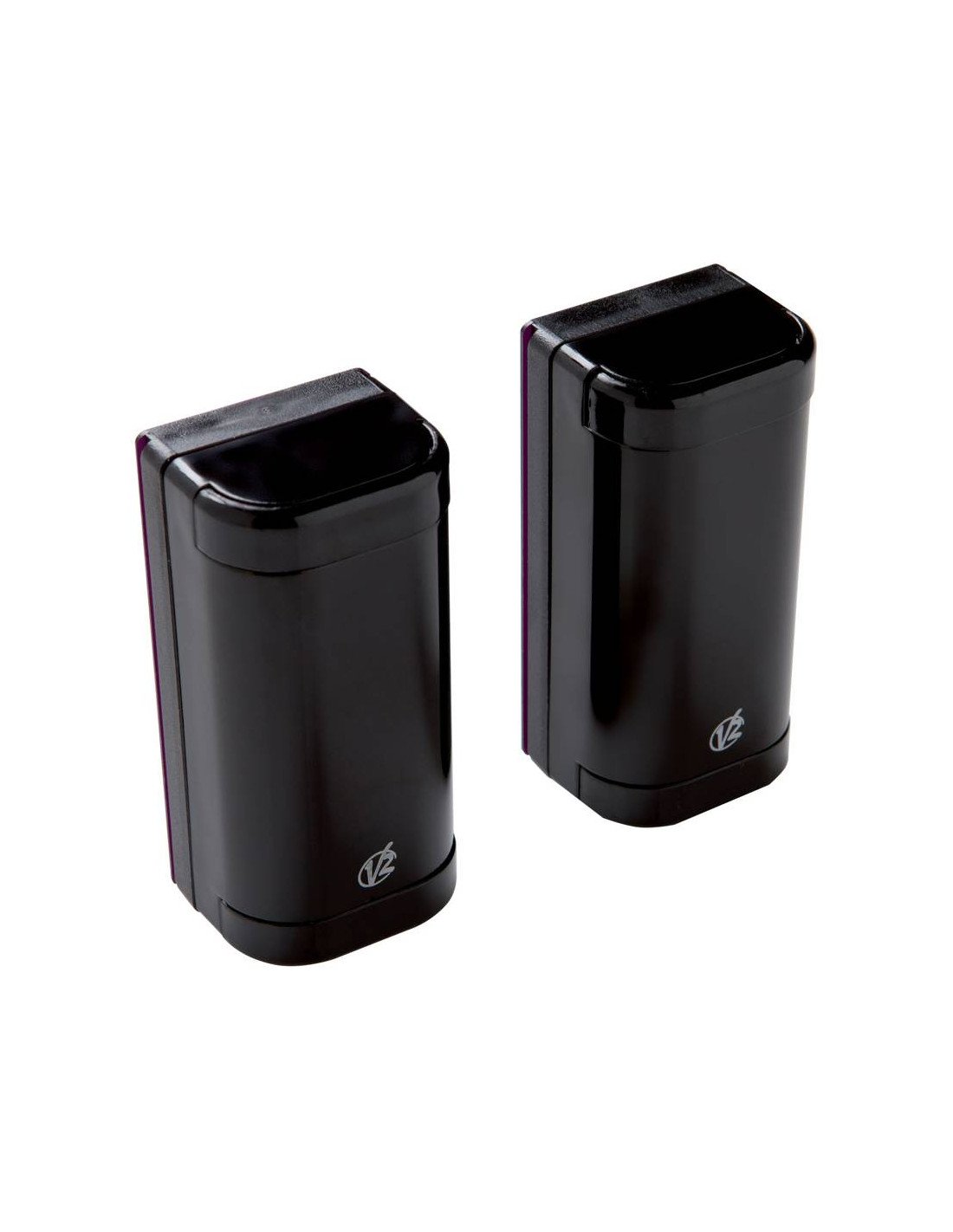

Other, of circular cross-section V2 SENSIVA synchronized and oriented 30o.

CHARACTERISTICS

• Can be installed inside GARDO columns

• 30° orientation in any direction

• Synchronized: the synchronization circuit allows two pairs of photocells to be installed very close together without interfering with each other

• Safe: immune to sunlight

TECHNICAL CHARACTERISTICS

• Optical range: 25 m
• Size: 42x90x36 mm
• The power supply: 12÷24 Vac / 12÷36 Vdc Vac/dc
• Power relays contacts: 1A max 30 Vdc A
• Operating temperature: -20 ÷ +60 °C
• Grade of protection: IP54

MANUAL

Instruction manual for the photocell V2 SENSITIVE
