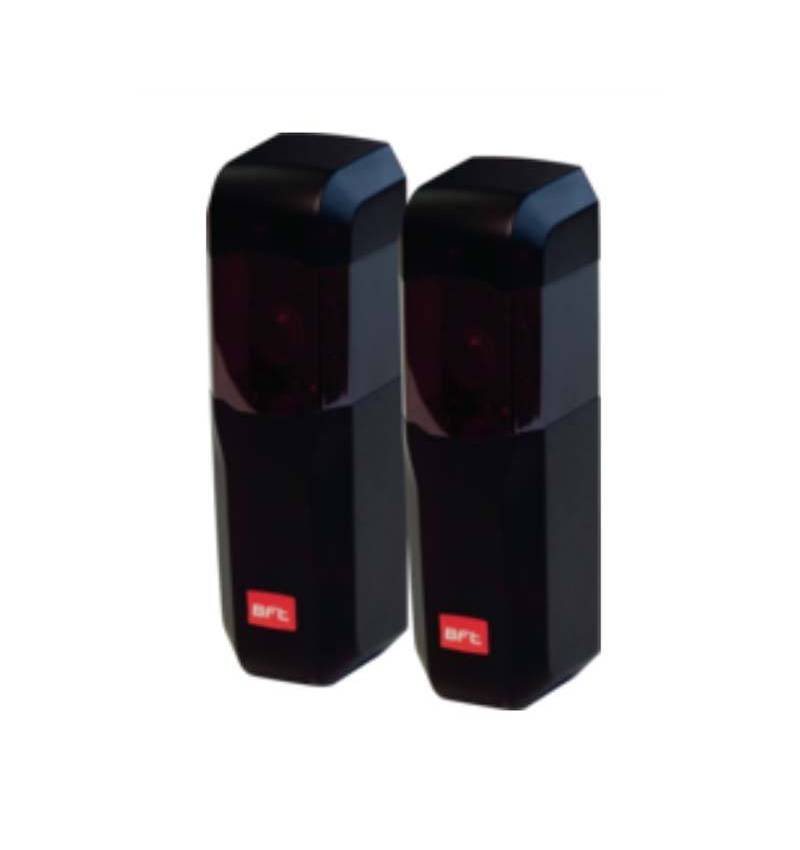

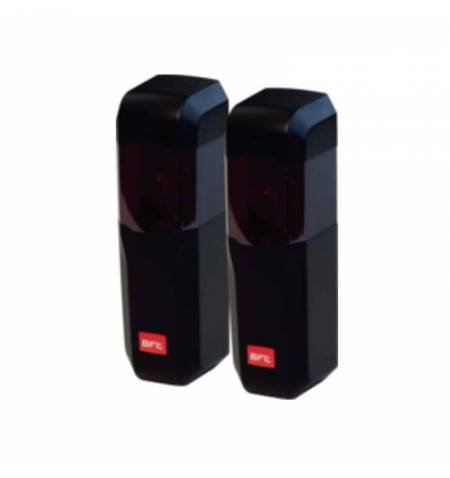

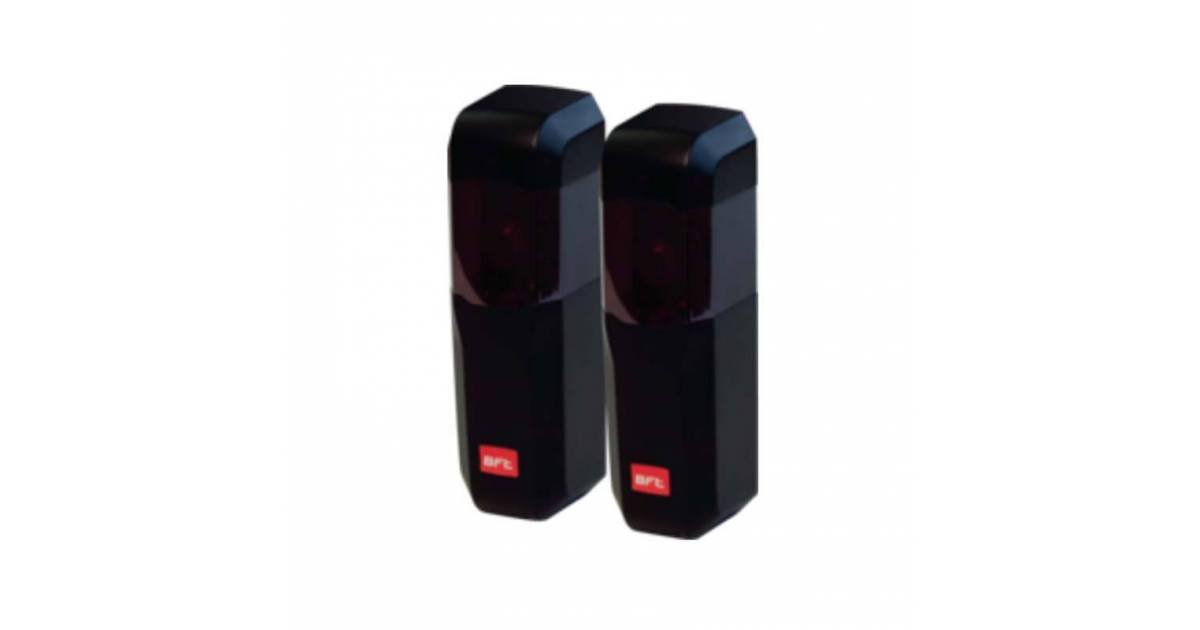

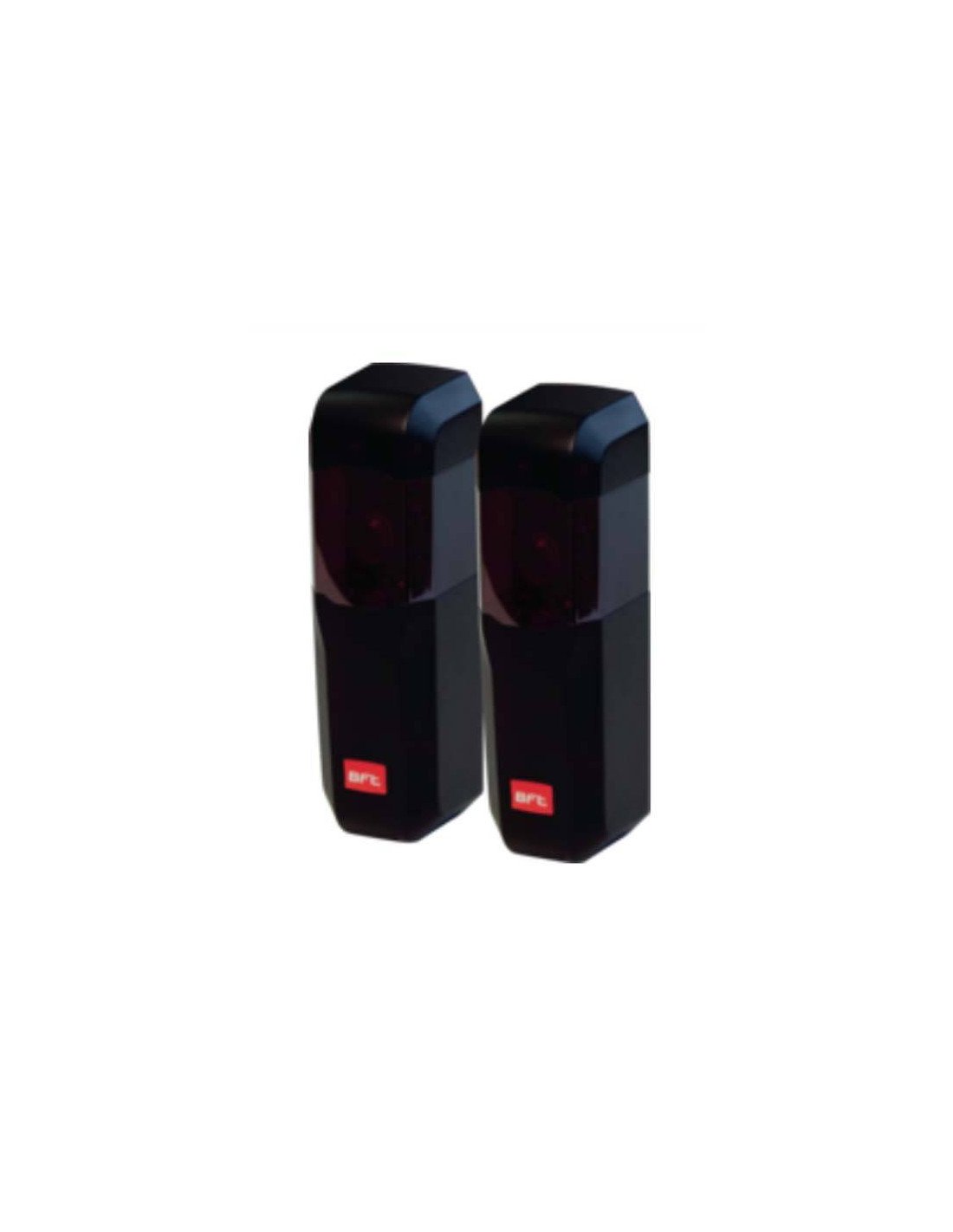

Safety photocell BFT Compact A20 180° transmitter receiver
Referencia: P111782
€32.00
IVA excluido

38,72 €

IVA incluido

For use in the manufacture of motor vehicles, designed to offer a high level of flexibility of installation thanks to their compact size, the possibility of adjusting the head 90° horizontally, left and right (180° total), and a wide input range of power supply 12-33 V AC and 15-35 V DC. What. Nominal range of 20 meters.

Quantity



We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain

For use in the manufacture of motor vehicles, designed to offer a high level of flexibility of installation thanks to their compact size, the possibility of adjusting the head 90° horizontally, left and right (180° total), and a wide input range of power supply 12-33 V AC and 15-35 V DC. What. Nominal range of 20 meters.

CHARACTERISTICS

Compact design and size: COMPACTA has been designed to maximize space by reducing the size to a minimum so that it can be integrated into different types of facilities. All this with the design language of BFT, with lines with characteristic shapes and structures that combine elegance, functionality and practicality.

Flexibility: COMPACTA has a wide power range, from 12-33 V AC to 50/60 Hz and 15-35 V DC, making it usable in many different installations. In addition, it can be linked to all power stations of BFT which offer controlled security management.

Easy to install: the possibility of orientating the infrared band up to 90° to the left or to the right (180° in total), allows the photocells to be installed on walls or columns that are not aligned with each other, saving time and allowing a simple and complete installation. In the vertical plane, the optics are fixed, but its structure allows to recover small differences of alignment up to +/-5°. Once the correct orientation of the optics is found, the housing is easily attached to the base with a click.

MANUAL

Instruction manual BFT A20 TO 180

P111782

Specific References

Download

Manual BFT COMPACT A20

Download (1.38MB)
