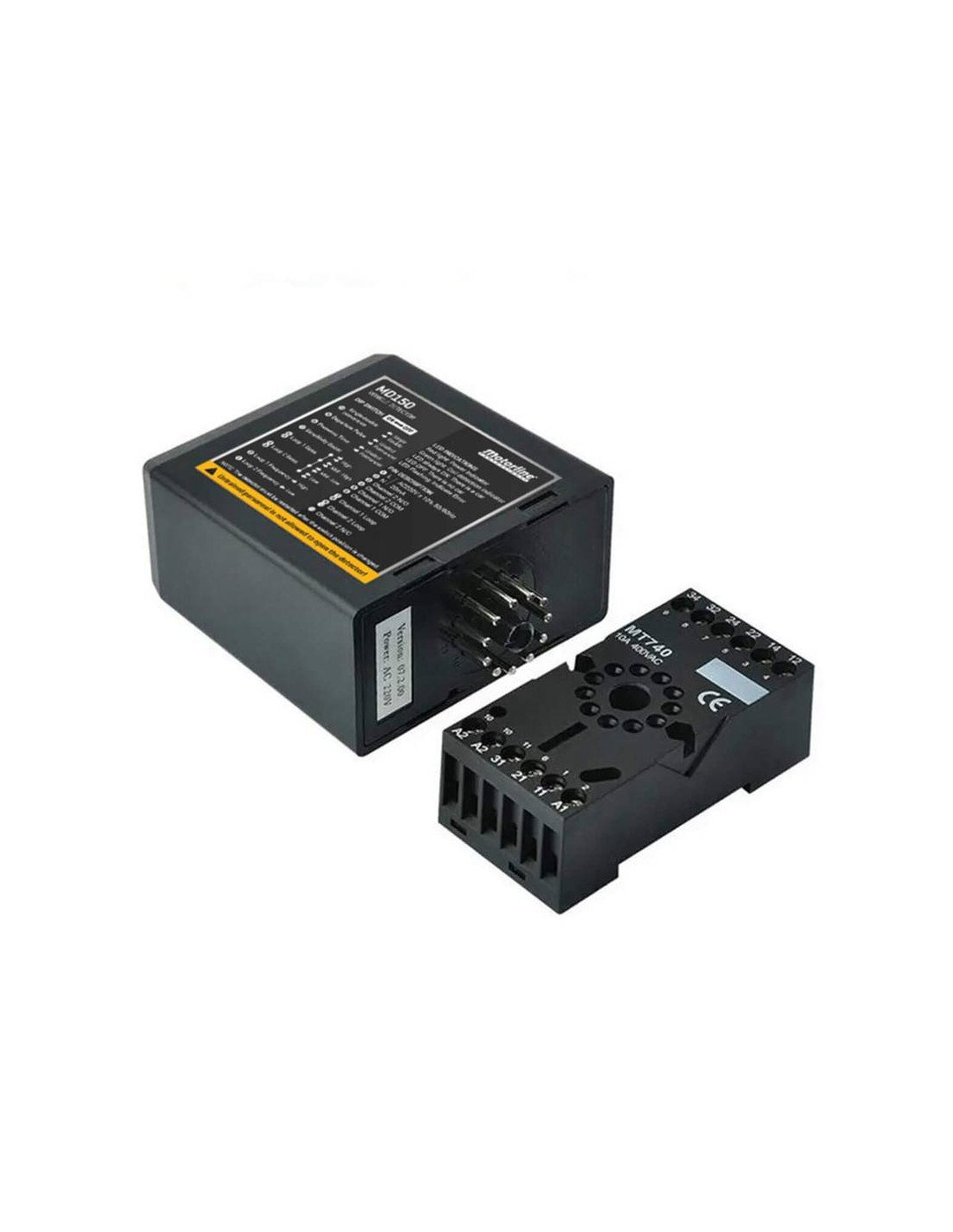

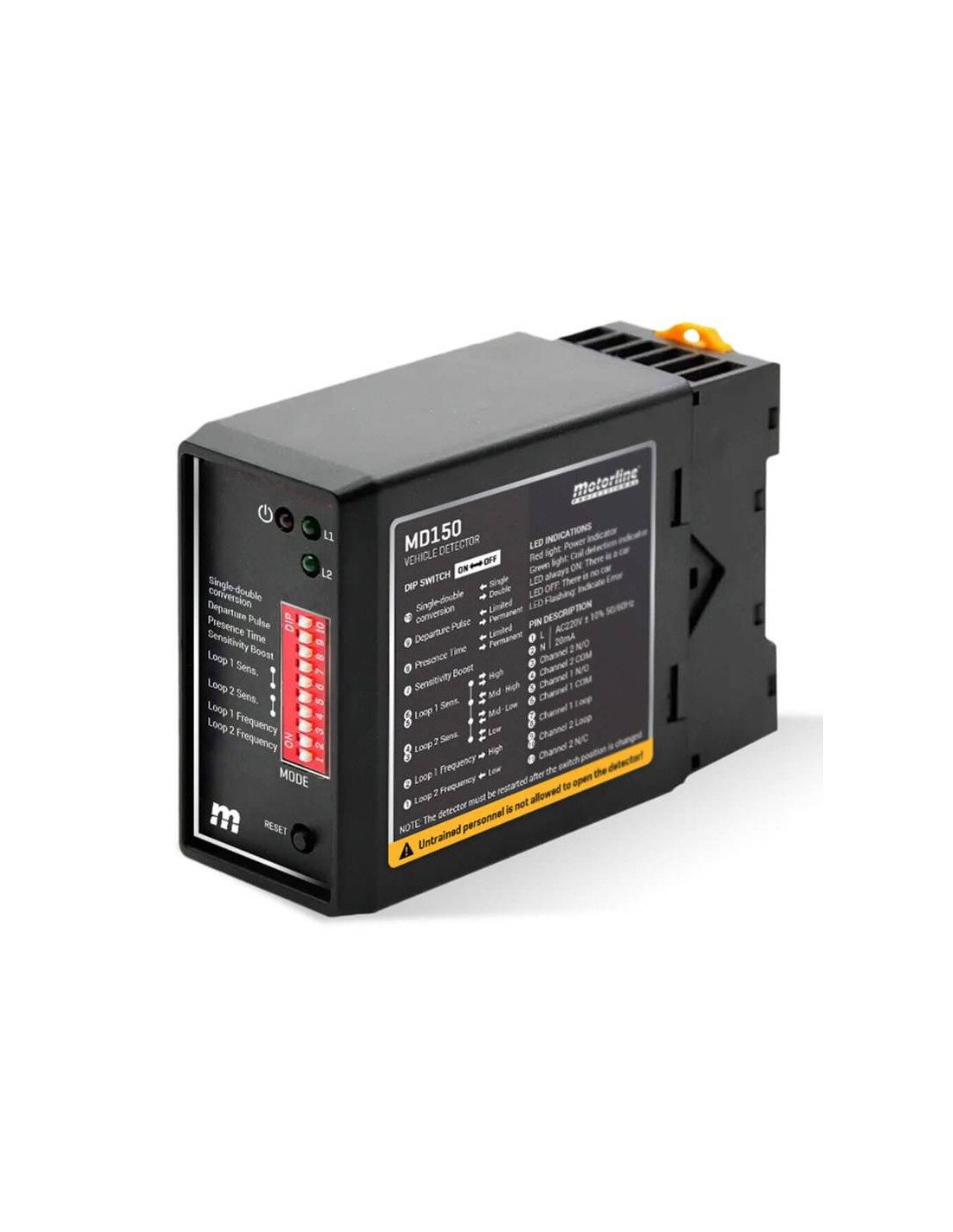

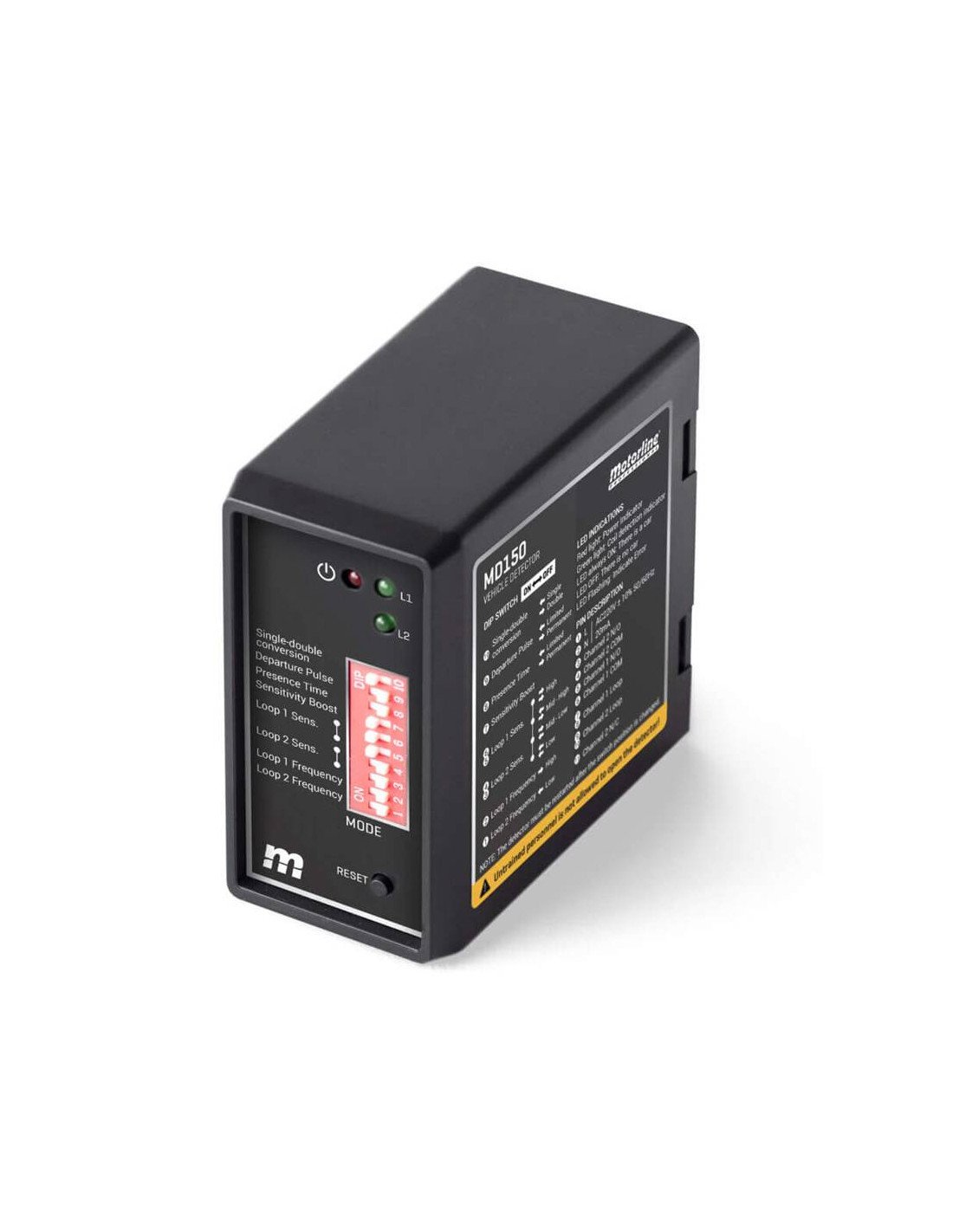

Magnetic ground spindle Motorline MD150 for vehicle detection and automatic opening of barriers or doors.

The ground magnetic spiral is useful for accurately detecting the presence of metal objects, such as cars and trucks, even when vehicles are not in motion.

MOTORLINE FUNCTIONS MD150

✔ Possibility to connect 2 magnetic coils

✔ In Relay 2 it is possible to use a NO or NC output

✔ Sensitivity setting: 4 levels of setting

✔ Single or double push opening

✔ Timed or active relays during spiral activation

✔ Frequency adjustment

TECHNICAL CHARACTERISTICS

New features

To simplify work on site

Now with this device you can configure the NO/NC relay contact on channel 2 for important functions such as the automatic opening order and protection against unwanted closing.

Single or double impulse aperture

Keep the gate open whenever a vehicle passes through a spiral until it crosses the other spiral. This prevents the gate from closing prematurely, ensuring that the vehicle passes through both spirals safely.

Various Applications

Manual Motorline MD150

Instruction manual Motorline MD150
