Metallic mass detector Motorline MSMF-Loop Wireless Bidirectional A 868 MHz
MSMF-LOOP
€88.00
VAT excluded
106,48 €
Tax incl.
Metallic mass detector wireless two-way at 868 MHz Motorline Msmf-loop To use with the MRMF-REC receiver, being able to perform Vehicle detections in accesses or roads No need to carry out works to bury wiring like magnetic turns.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky

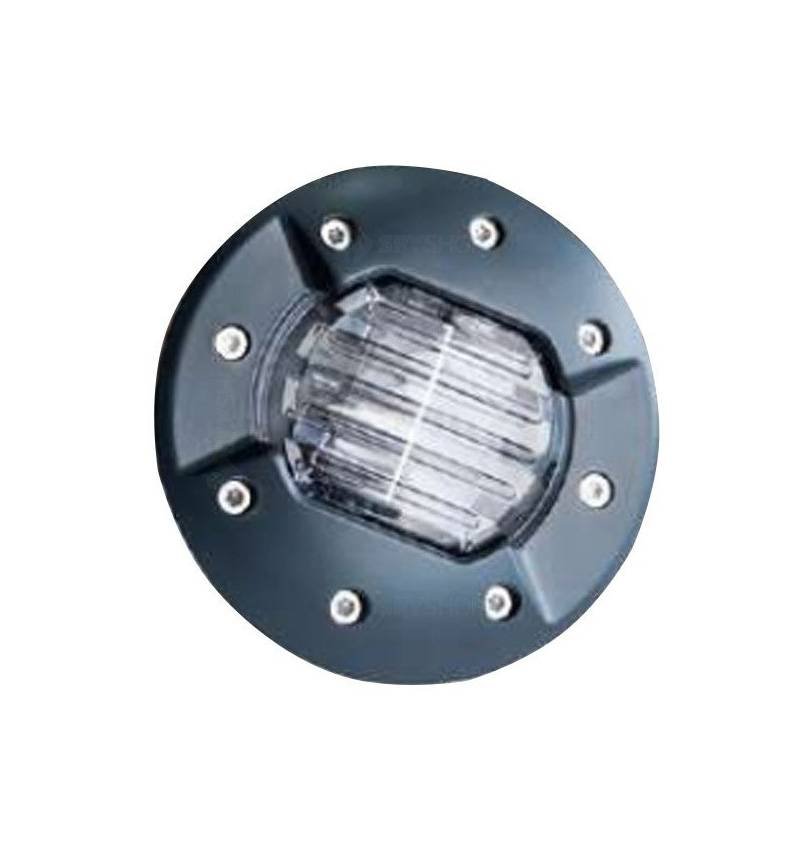

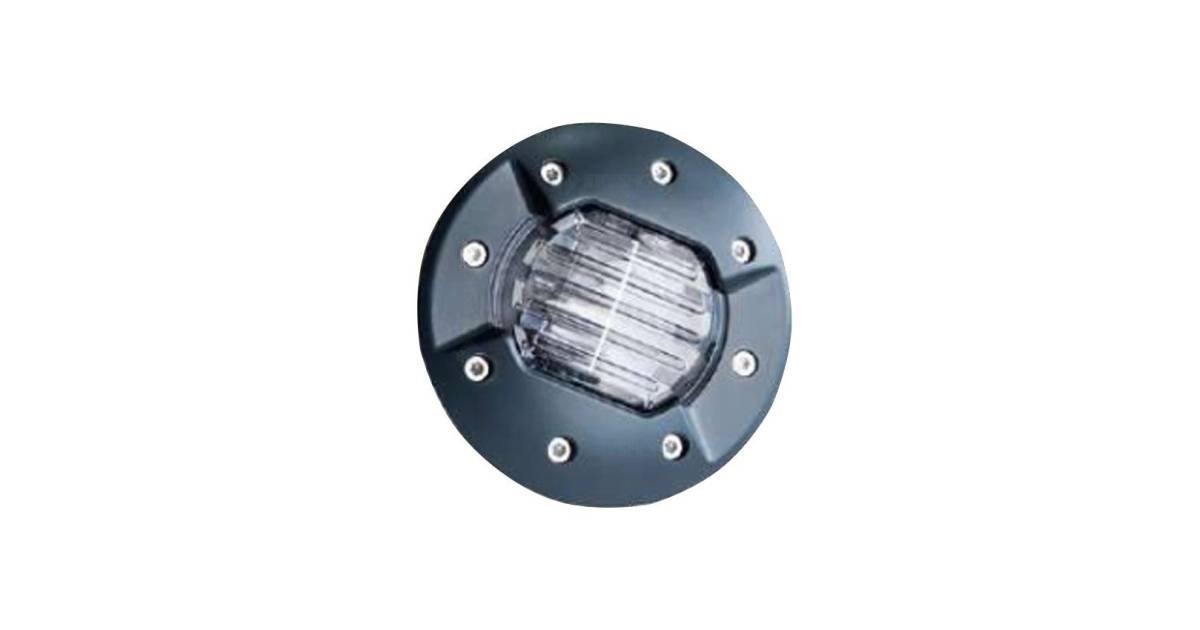

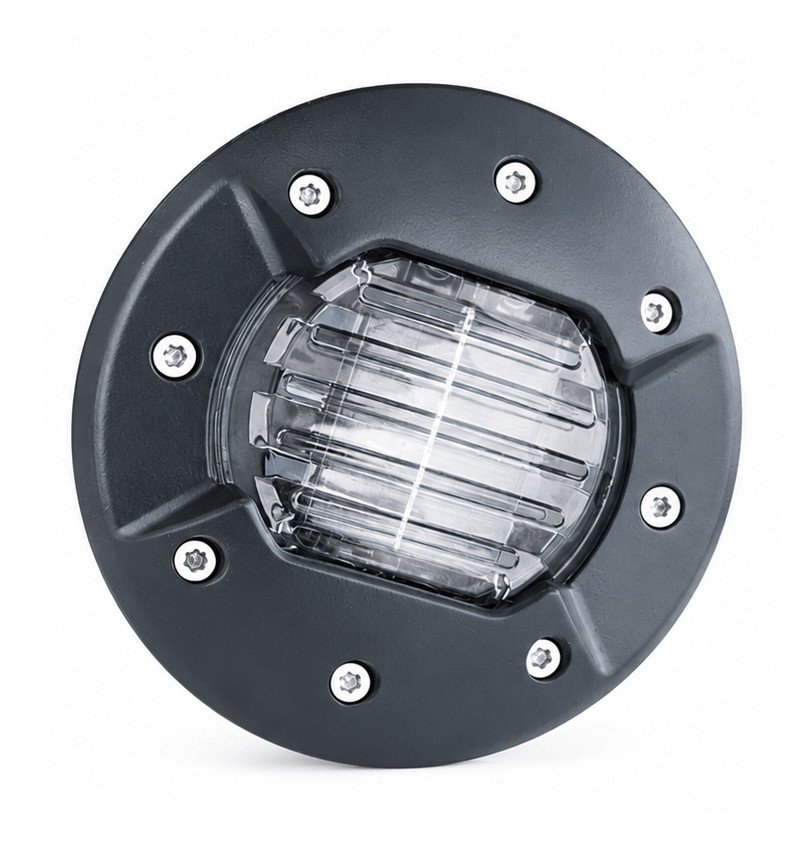

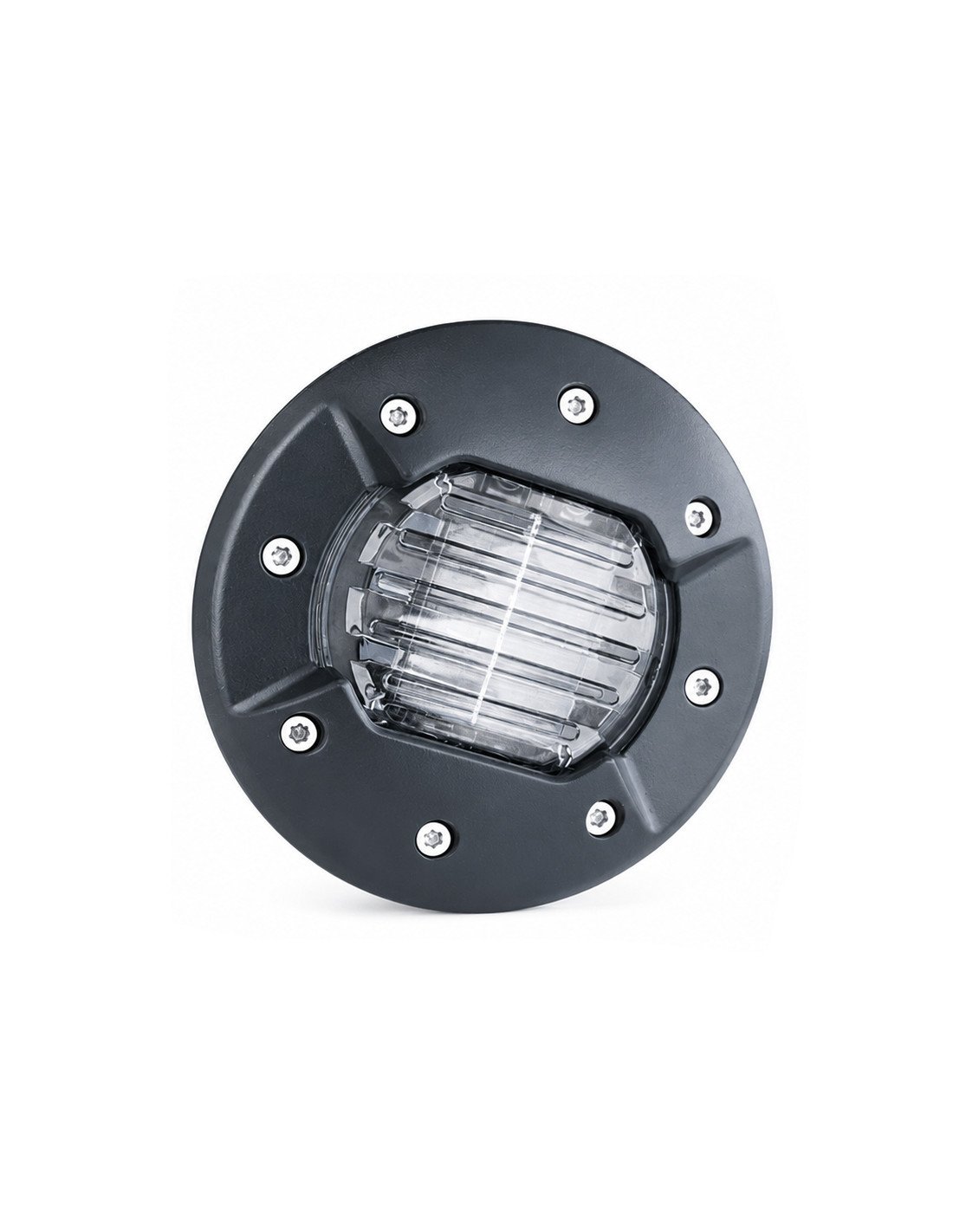

Motorline MSMF-Loop | Metallic mass detector
Magnetic sensor prepared for adverse environmental conditions, such as rain, snow and haze:
• Supports the vehicle passage of up to 40 tons without suffering damage
• Ability to detect the movement direction of the vehicle, avoiding unwanted automation openings in transverse traffic areas
• Luminous signaling of the way to indicate the place of passage and operate the system
• Rechargeable battery power with integrated solar panel
• Simple installation, just make a hole to embed the sensor and 2 screws
• Bidirectional communication at 868 MHz with the MRMF-REC receiver, allowing a distance of up to 30 meters
• Easy to program and configure
• Protection class: IP68
Connectivity for versatile operation
The MRMF-REC stands out for its versatile connectivity, which allows to connect up to 8 MSMF-Loop sensors with bidirectional communication at 868 MHz, guaranteeing a quick, stable and interference operation.
Technical characteristics
| Technical data (MSMF-Loop) | |
| Feed | 3.35 V solar panel + 3.2 V and 1800 MAh rechargeable battery or non-rechargeable battery of 3.6 V and 7800 mAh |
| Sensor | Magnetometer |
| Labor | 868.0 MHz ~ 869.8 MHz |
| Modulation | FSK |
| Static load capacity | 40 ton |
| RF range (open field) | 50 m |
| Dimensions | Ø145 × 45 mm |
| Degree | Ip68 |

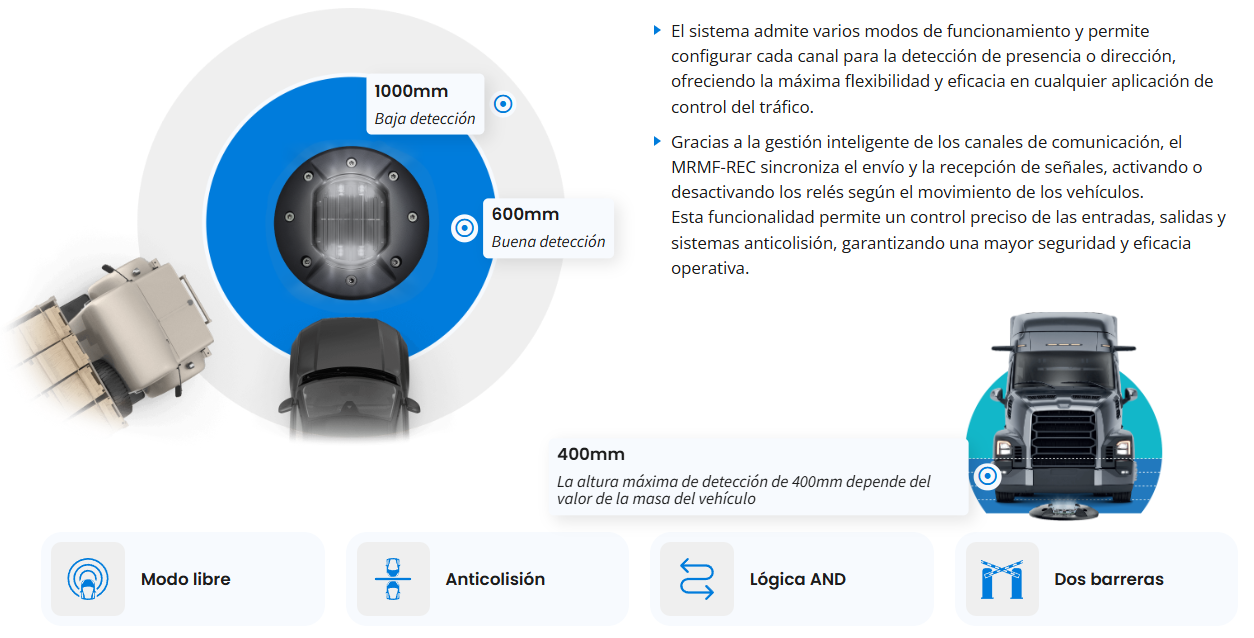

| Vehicle detection scope | 1 m |
| RF power (max.) | 14 dBm |
| RF Sensitivity | -100 dBm |
