KIT Motors Aprimatic XT424B electromechanical 24V  Residential doors up to 2.5m
Referencia: RKXT424AA
€378.00
IVA excluido

457,38 €

IVA incluido

KIT Motors Aprimatic XT424B electromechanical 24Vdc irreversible for residential folding doors up to 2.5 meters or 250KG.

The unlocking of these engines can be dismantled by Torx key.

Quantity



We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain

APRIMATIC XT424B 日本語 Electromechanical motors Batteries

KIT Motors Aprimatic XT424B electromechanical 24Vdc irreversible for residential folding doors up to 2.5 meters or 250KG.

The unlocking of these engines can be dismantled by Torx key.

Technical characteristics:

  • Leaf length: 2.5 m
  • Sheet weight: 250 kg
  • Food: 24Vdc
  • Type of transmission: Helical gear
  • Race: 400 mm
  • Push force: 2500 N
  • Working factor: 20%
  • Cycles: 30 maneuvers/day
  • Protection: IP44
  • Working temperature: -20 oC/+50 oC
  • Maximum current: 4.2 A
  • Power absorbed: 100 W
  • Unlock: Metal key
  • Dimensions: 799 x 98 x 170 mm

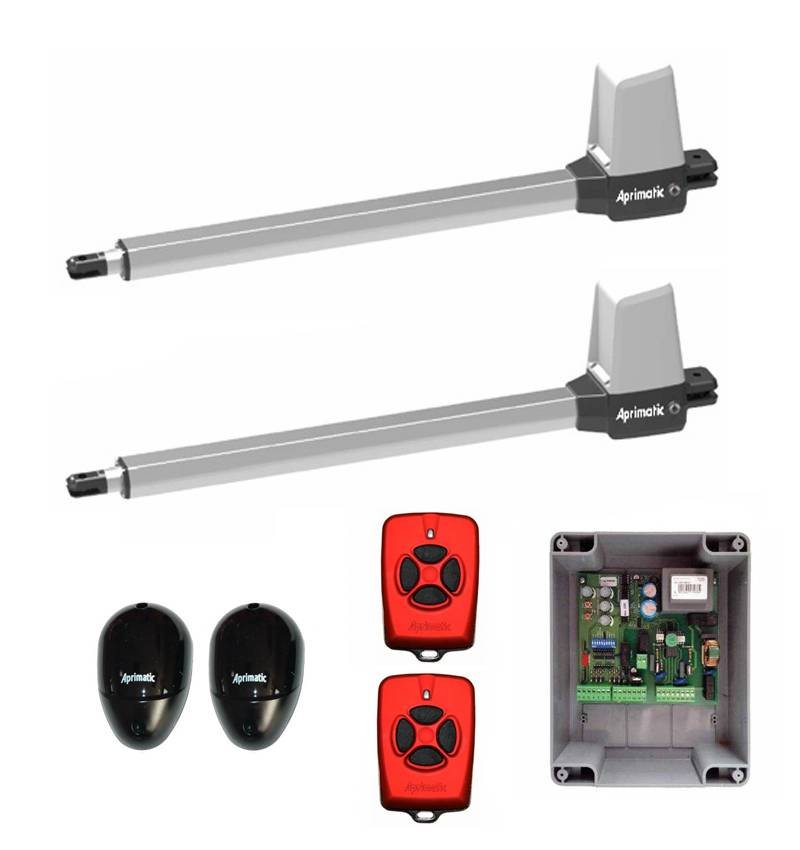

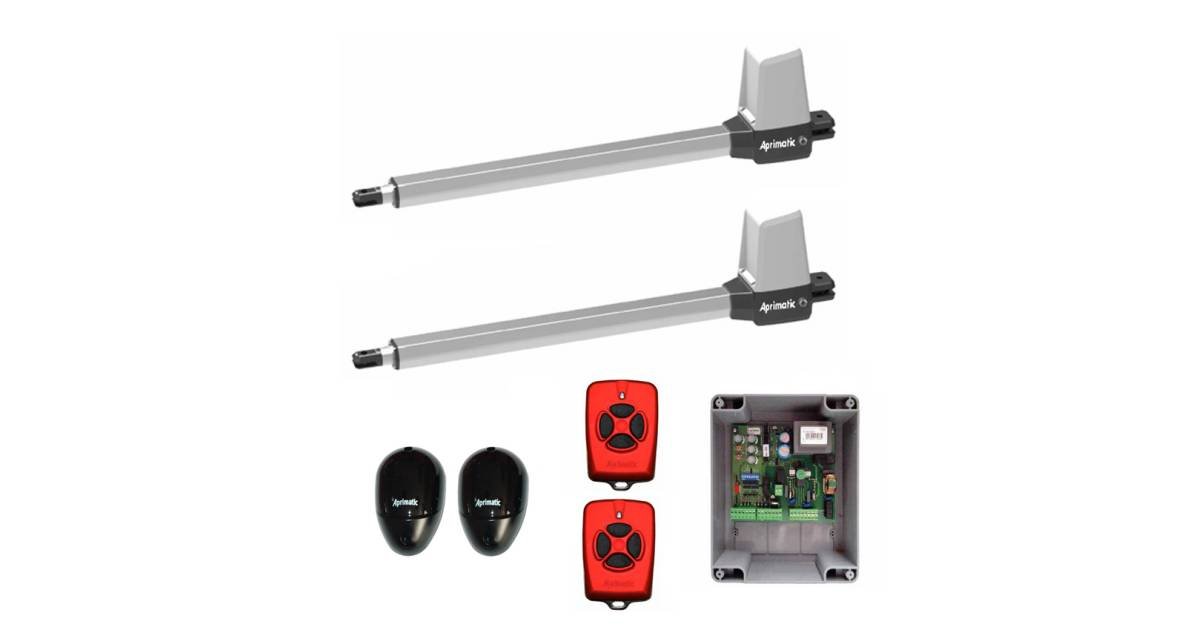

KIT Contents:

  • 2 operators XT 424B to 24 Vcc
  • Type of manoeuvres AB 124M
  • 2 TX4S quadrant transmitters
  • Couple photocells ER 10

Measures and details XT 424B:

RKXT424AA

Data sheet

Type of engine
Electromechanical 24V
Full kit
Complete kit for 2 sheets
Type of door
Residential door

Specific References

Download

MANUAL APRIMATIC XT424B

Download (709.32KB)

MANUAL TABLE AB124M

Download (583.87KB)
