EMFA TOR2000 Δ Hydraulic drum engines for 2-leaf doors

KIT Hydraulic motors EMFA TOR2000For residential or community doorsintensive useAnd maximum length4 meters per leaf and up to 600KG. The operator has aelegant design in triangular edition.

✓ Hermetic hydraulic circuit. All the closing elements with NBR 90 shore torque joints.

✓ You don't need your purge.

✓ No risk of leakage.

✓ Team REVERSIBLE.

✓ For 4mts maximum blade length cancellations. 600Kg

Description EMFA TOR200

Hydraulic equipment with elegant design in triangular edition, icon that represents our MAP brand.

It is equipped withadjustable hydraulic buffer in closure, with what prevents shorts. The automatic unlocking allows the manual drive of the door only by driving the electro-lock with its key. It's intensive use.

Its design allows you to reach the end of the race with the same strength you have throughout the journey, achieving a perfect closure. Thesound level is almost imperceptible, being equipped by alobe pump that decreases noise. It also incorporates nylon support in front and rear support forremove the possible vibrations from the engine to the door.

Provides a greatprotection from overheating, as theengine is submerged in oilAnd equipped with thermal probe. Through the limiters we canregular anti-plasting.

The hydraulic operator EMFA TOR2000 is an unlocked drive (reversible) thereforethe installation of the electroclosed for the blocking of the leaves. In the event of lack of the electric current, the electrical lock could be unlocked with a key both internally and externally for manual opening of the doors.

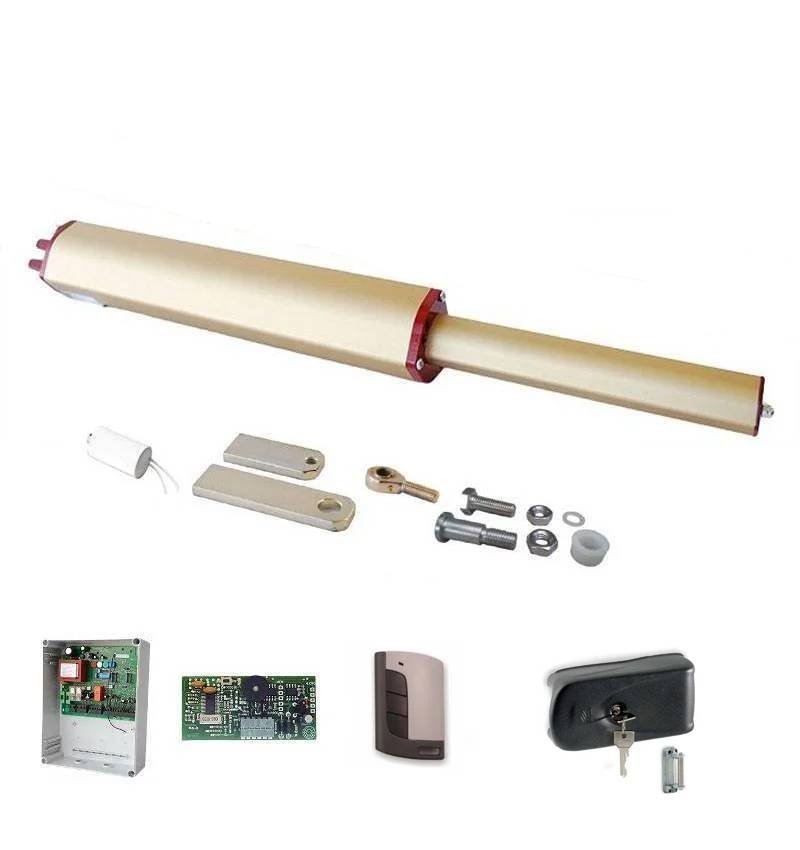

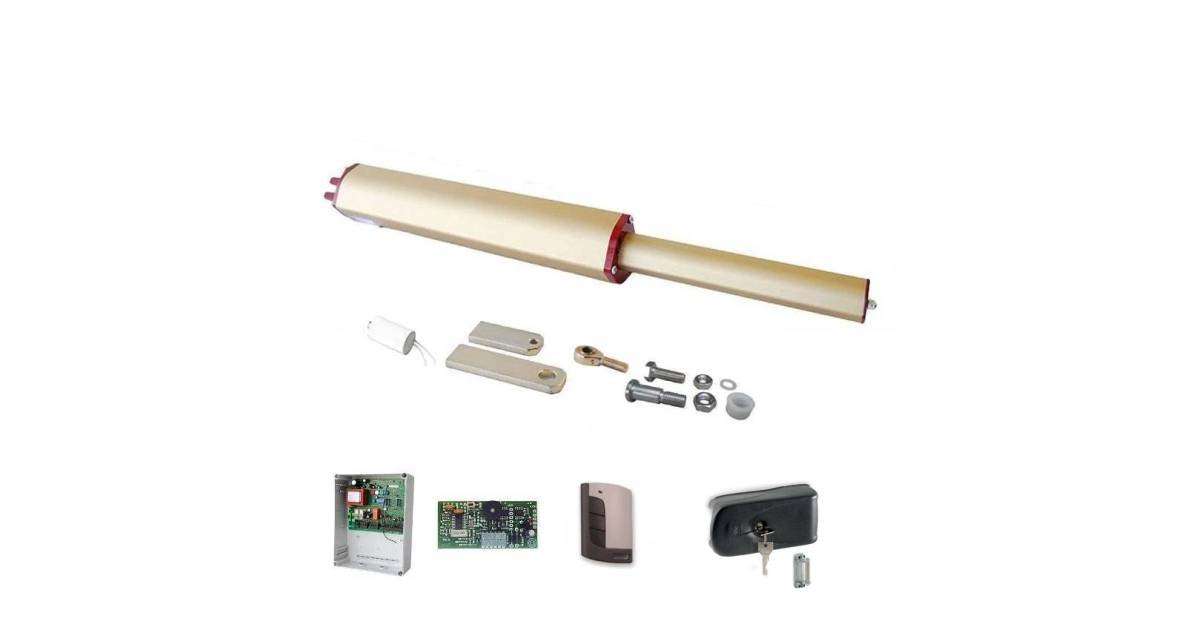

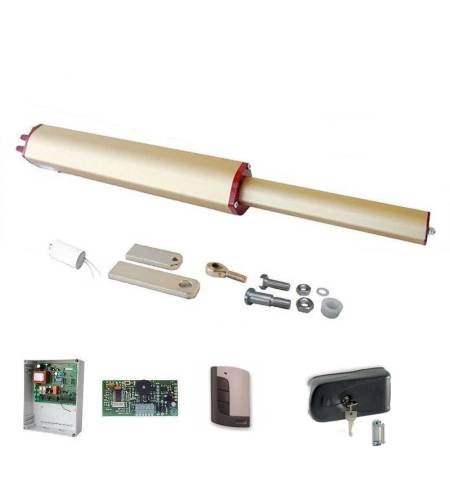

KIT CONTIENE:

• 1 unid Hydraulic motor TOR 2000 race 250mm
• 1 unid CRFEM+R manoeuvres with 433 MHz receiver
• 1 unid Command TERRA TE3 DC
• 1 unid Electroclosed CISA

MANUAL

Instruction manual EMFA TOR 2000
