Hydom ROTOR-UNIC tilting engine mounts; ■ a complete range of telescopes, torsion bars and saxophone hardware according to the needs of the installation.

PARTS AND ACCESSORIES OF MACHINERY

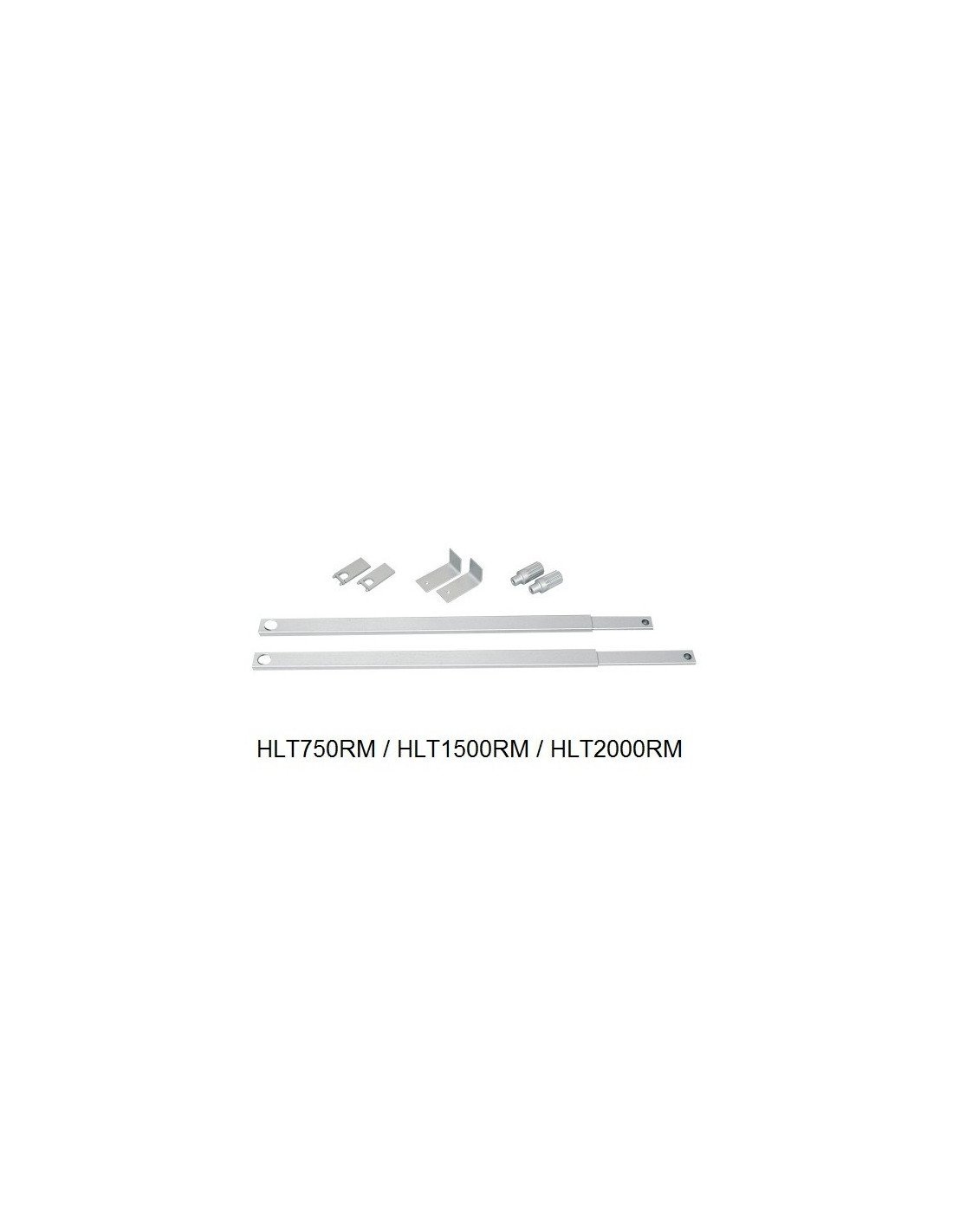

• HLT750RU: Telescopic rotor-unic side assembly length 750 mm. (for doors up to 3 m high)
• HLT1500RU: Telescopic rotor-unic side assembly length 1500 mm. (for doors 3 to 6 m high)
• HLT2000RU: Telescopic rotor-unic side assembly length 2000 mm. (for doors over 6 m in height)

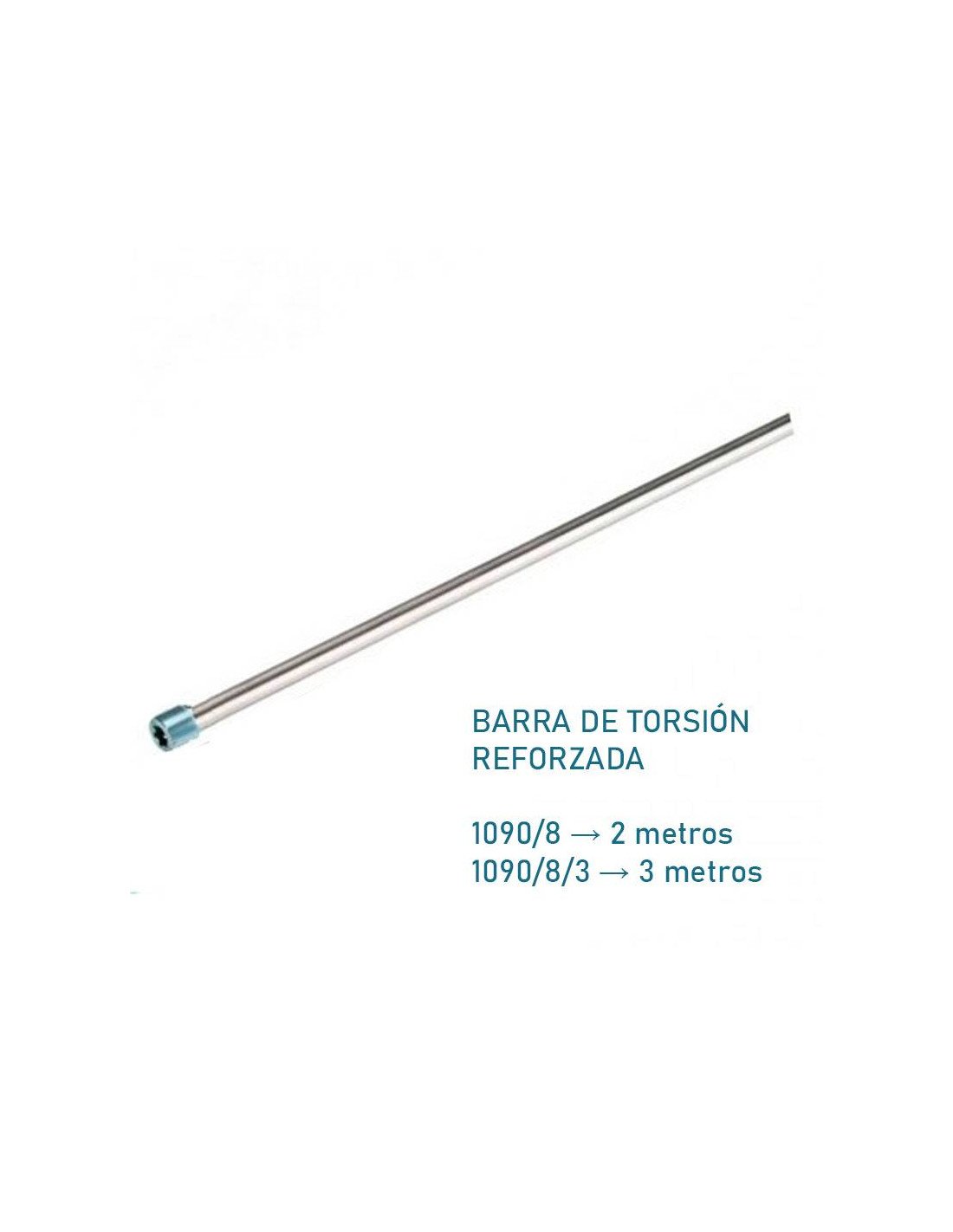

• 1090/8: Transmission tube Ø28x18 (2000 mm) for the Minimax and Rotor-Unic engines.
• 1090/8/3: Transmission tube Ø28x18 (3000 mm) for the Minimax and Rotor-Unic engines.

EXPLANATION FOR MOUNTING BY TELESCOPIC RODS

In case of making a mount with telescopic rods we will always need "HLT750RU" or "HLT1500RU" or "HLT2000RU" + the transmission tube (1090/8) which will be 2m each unit, so you'll need as many units as meters make the door.

Example: for a door 2.5 meters high x 4 meters wide: i will need 1 unit "HLT750RU" + 2 units "1090/8" of a kind used in motor vehicles 28x18x2000mm .

SAXON HARDWARE

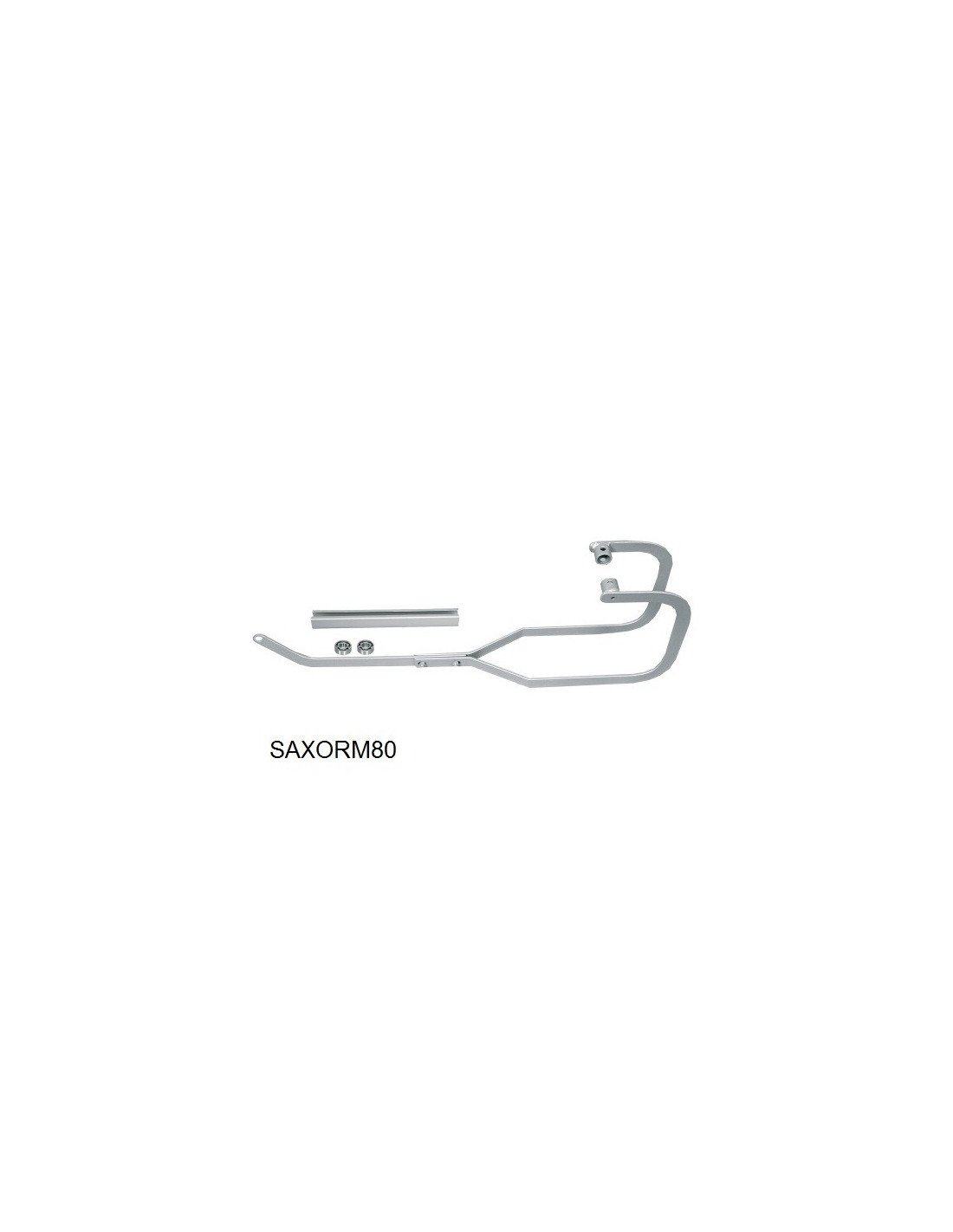

WHAT: Rotor-Unic SAXO central hardware assembly length 800 mm.
