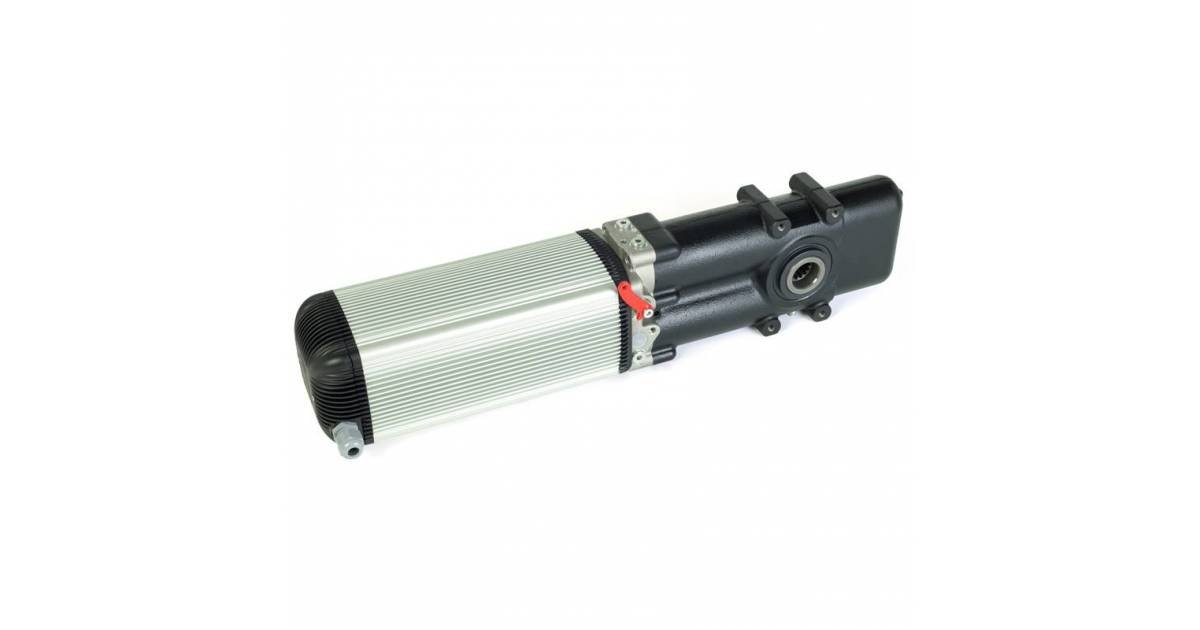

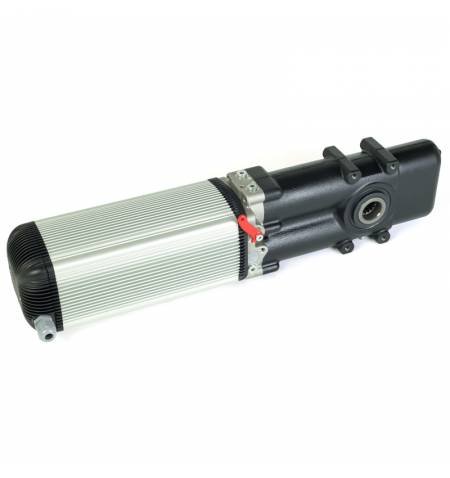

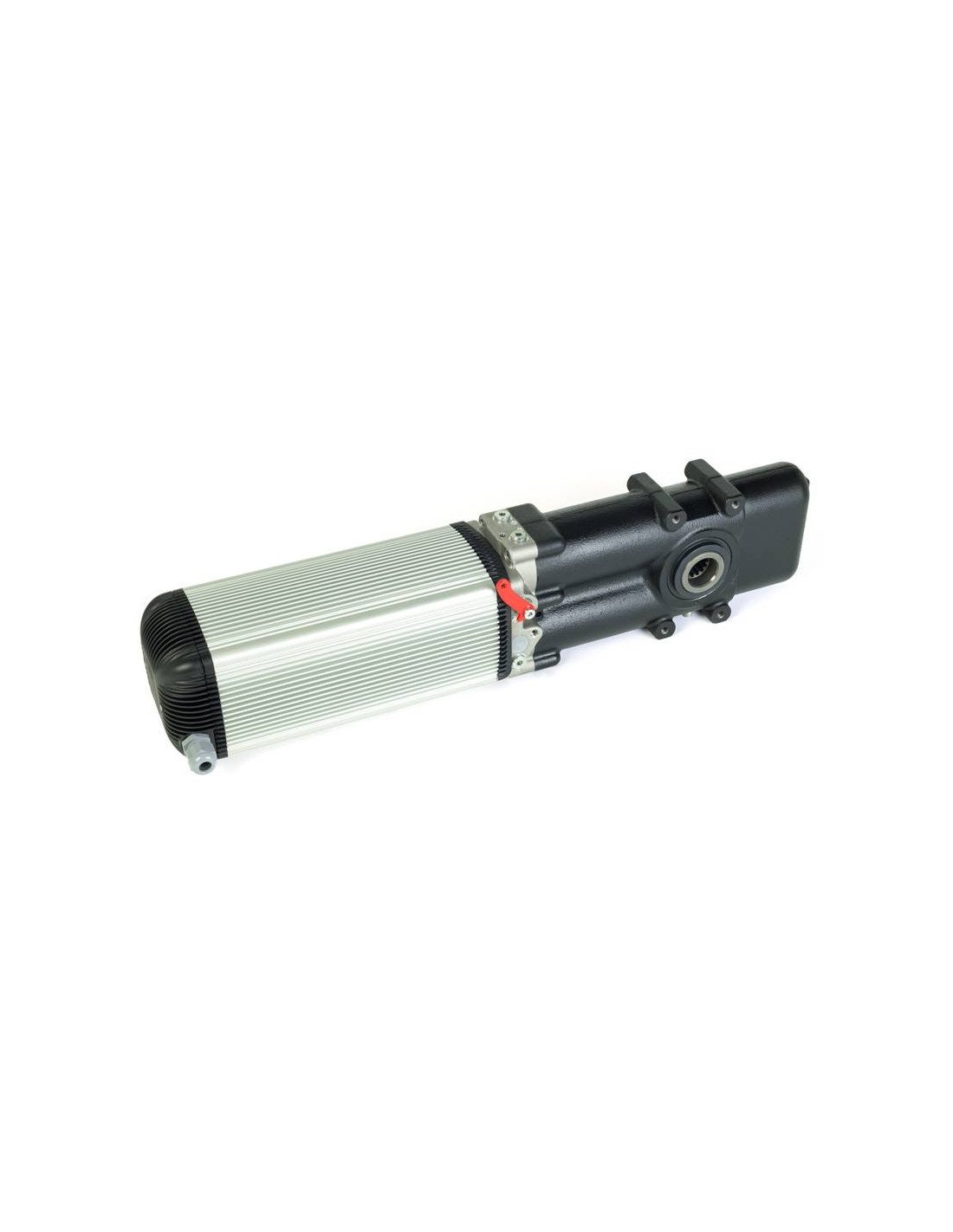

Hydraulic tilting motor Hydom rotor-unic | For tilting doors Intensive use
Referencia: ROTOR-UNIC
The motor Rotor-Unic, is a hydraulic operator for counterweight tilting doors up to 20m², Ideal for Motorize Very intensive garages.
The actuators of the Rotor-Unic Ru3D and RU3R series offer unbeatable advantages in terms of smooth and silent performance, durability and quality / price ratio.
Its advanced technical benefits make them a hundred and ideal mechanisms to automate tilting doors for intensive use.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain
Except bulky
Hydrom Rotor-Unic Hydraulic Tilting Motor

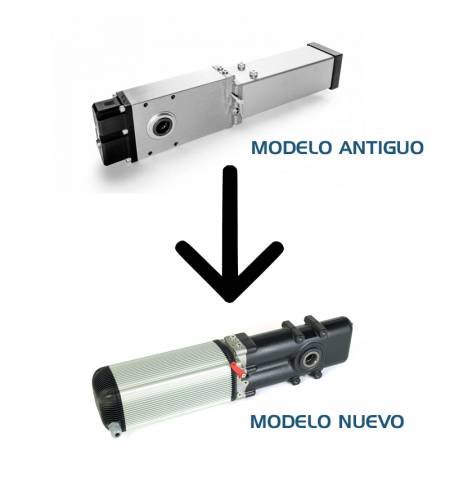

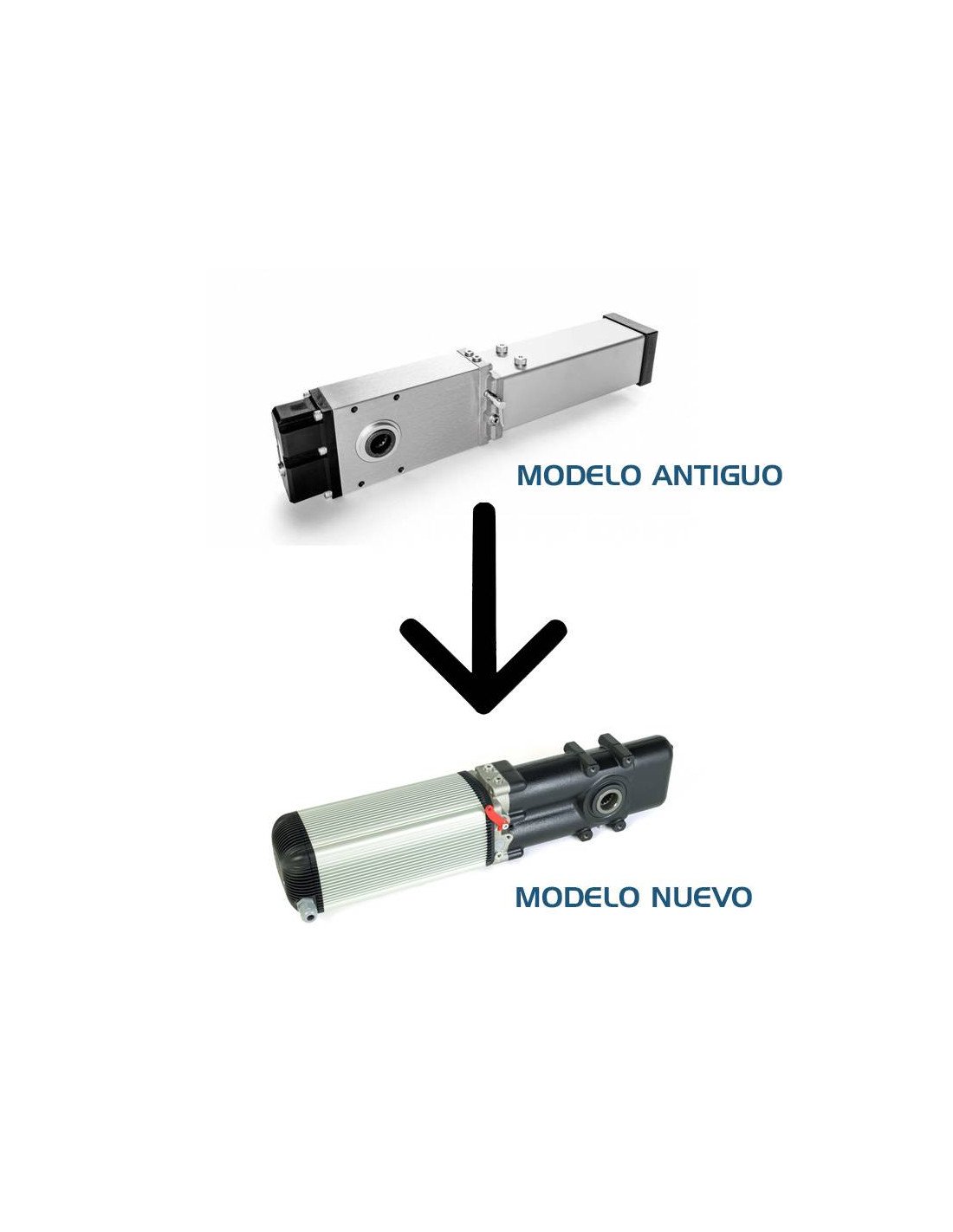

The new rotor-unic engine, is a hydraulic operator for counterweight tilting doors up to 20m², Ideal for Motorize Very intensive garages.
The actuators of the Rotor-Unic series offer unbeatable advantages in terms of smooth and silent performance, durability and quality / price ratio.
Its advanced technical benefits make them a hundred and ideal mechanisms to automate tilting doors for intensive use.
Features Hydom Rotor-Unic:
✓ Independent pressure safety valves in opening and closing
✓ 230V - 50Hz single-phase motor with overheating protection
✓ Engine power: 220W
✓ Manual unlock lever.
✓ Unlike selectable locking and adjustable speed.
Measures HYDOM ROTOR-UNIC
- Height: 655 mm
- Width: 140 mm
- Depth: 123 mm
Hydrom Rotor-Unic Hydraulic Motor Range
- 2ru3s33: Hydraulic actuator for tilting door Intensive use with selectable lock.
- 2rut3s33: Hydraulic actuator for tilting door Intensive use muffled with selectable lock.
- 2rut3s33-hour: Rotor-unique hydraulic actuator for tilting door Max. 20 m² Intensive use cushioned with selectable lock for free doors.
Technical characteristics Hydom rotor-unic
| Features | 2ru3s50 | 2rut3s50 | 2rut3s50-H |
|---|---|---|---|
| Voltage | 230 V 50 Hz / Optional: 115 V 60 Hz, 230 V 60 Hz | ||
| Engine power | 220 W - 1500 rpm | ||
| Consumption | 450 W | ||
| Capacitor | 10 μF (230 V 50 Hz) | ||
| Thermal protection | 90 ° C | ||
| Race time | 22 s | ||
| Block | Selectable | ||
| Soft unemployment | Not | Yes | Yes |
| Works in horizontal | Not | Not | Yes |
| Maximum rotation | 189 ° | ||
| Temperature margin | 0 ° C to 80 ° C (Optional: -20 ° C ~ +80 ° C) | ||
| Degree of protection (IP) | Ip55 | ||
| Weight | 19.5 kg | ||
| Flow | 0.33 cc / rev | ||
| Maximum pressure | 1.2 MPa | ||
| Labor | 0-500 nm | ||
| Race | - | ||
| Oil capacity | 2000 cm³ | ||
| Oil type | HLPD-32 (Optional: Hydoil) | ||
| Dimensions | 122 mm × 141 mm × 622 mm | ||
