Security photocell Geba LS 6P with mirror | 12/24 V and reach 15 m
GEBA LS 6P
€39.00
VAT excluded
47,19 €
Tax incl.

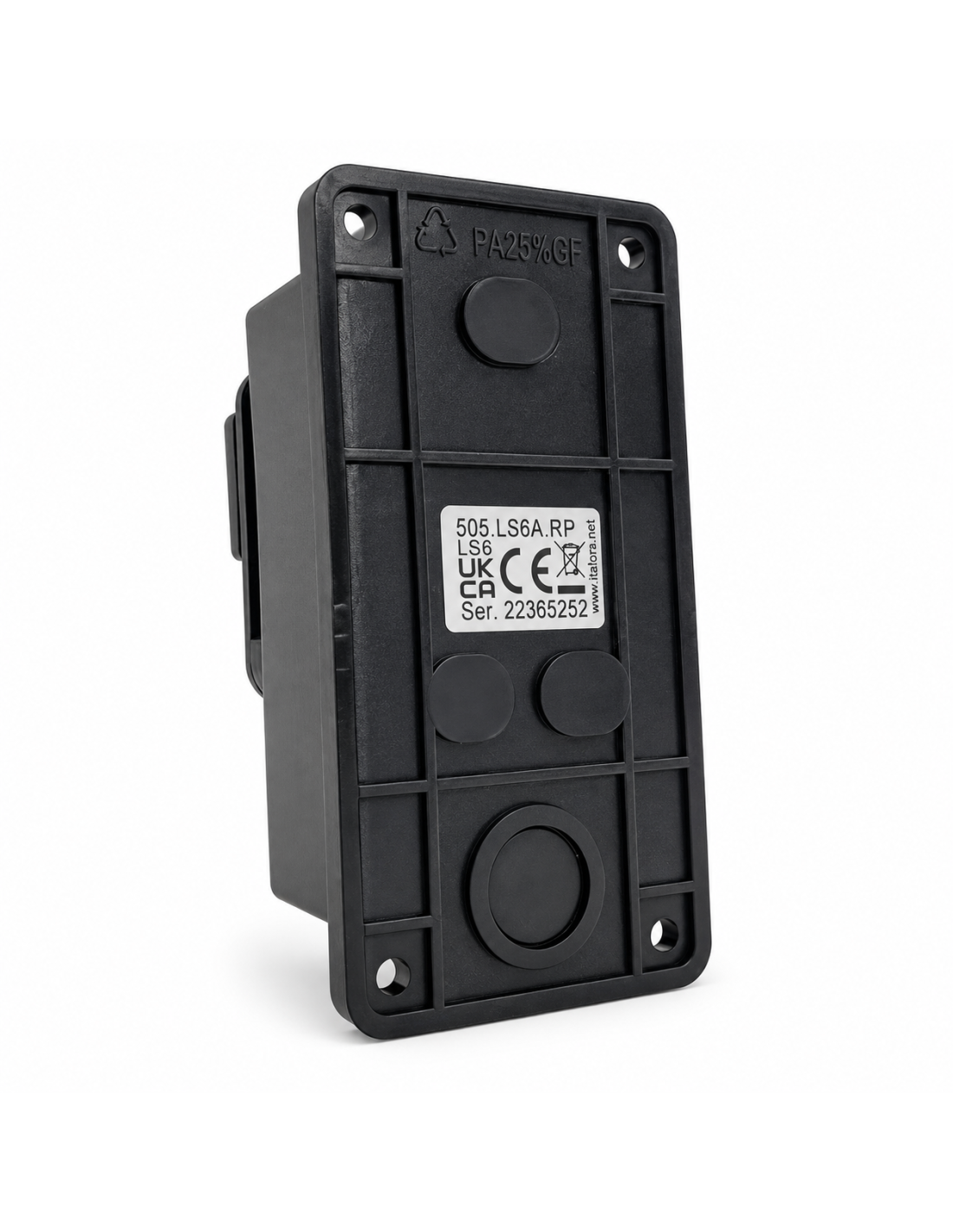

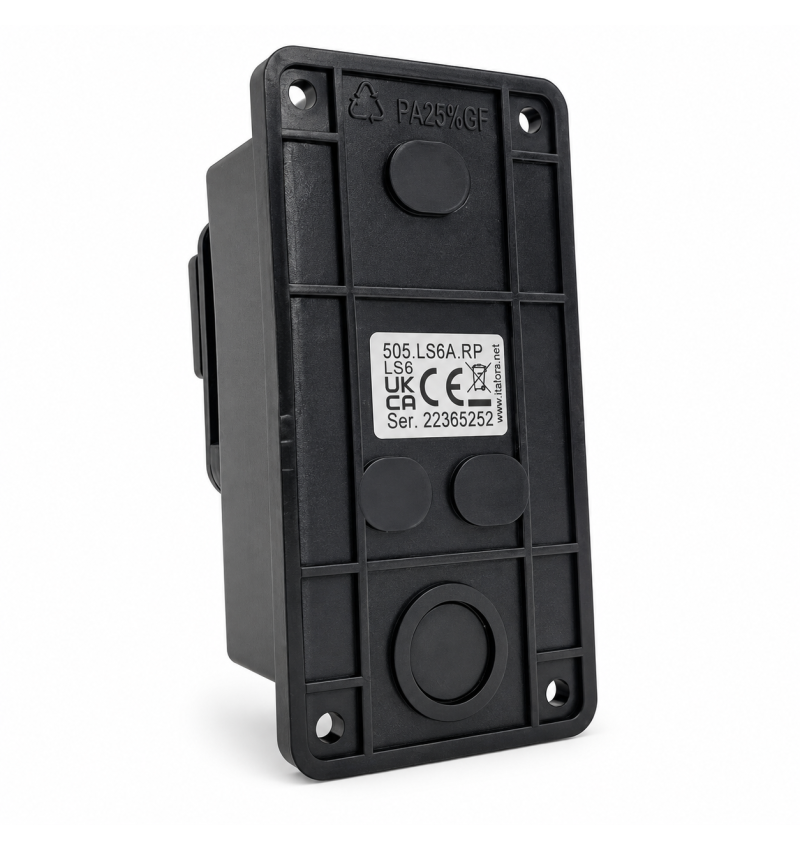

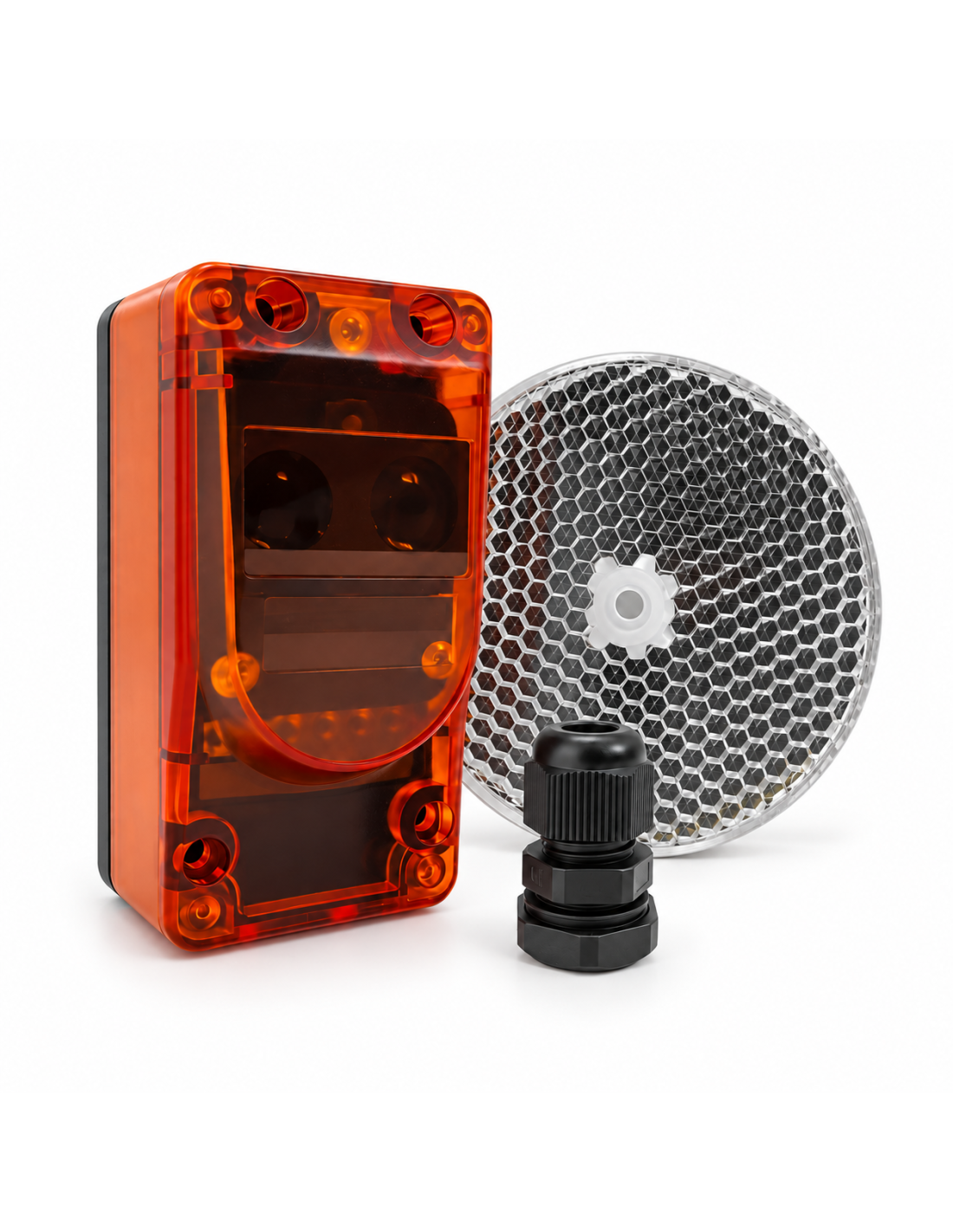

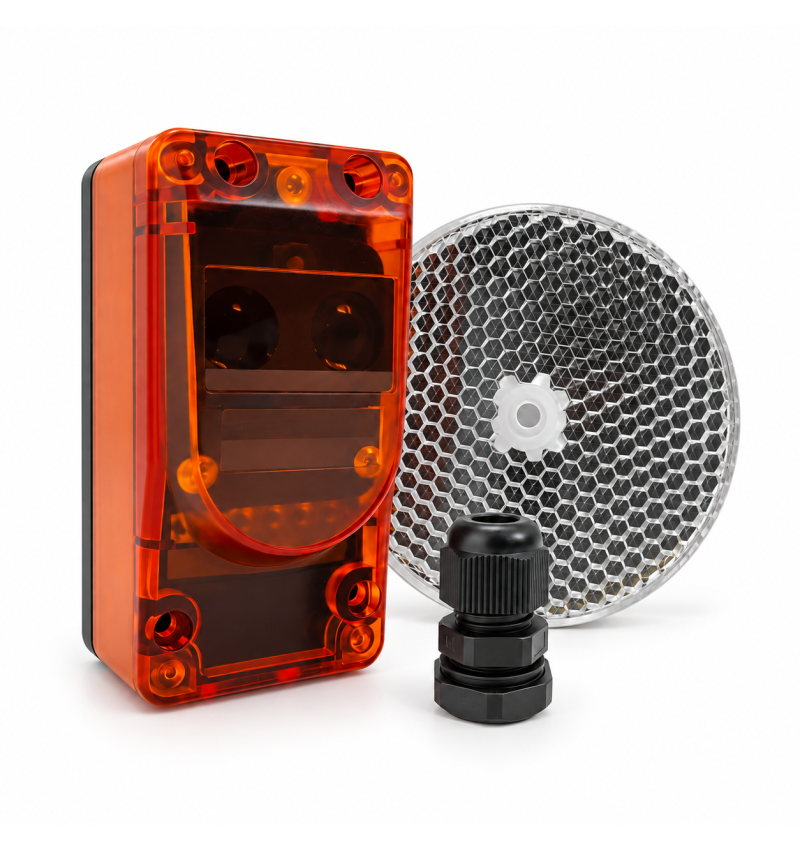

Geba LS 6P is a reflection photocell with a polarized filter, feeding 12 to 30 V AC / DC and a maximum range of 12 meters.
It is designed to detect obstacles in automatic doors, gates, barriers and other automation. The emitter and receiver are in the same housing, while the catadioptric reflector returns the beam of light: In this way, it is only necessary to carry wiring on one side of the installation.
Save with this discounts
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
Geba LS 6P is a reflection photocell with a polarized filter, feeding 12 to 30 V AC / DC and a maximum range of 12 meters.
It is designed to detect obstacles in automatic doors, gates, barriers and other automation. The emitter and receiver are in the same housing, while the catadioptric reflector returns the beam of light: In this way, it is only necessary to carry wiring on one side of the installation.
| Important: the maximum range indicated by the manufacturer is 12 meters. To obtain reliable operation, the photocell and the reflector must be correctly confronted and aligned. |
Advantages of the Photocell Geba LS 6P
- Reflection system with polarized filter.
- Maximum range of 12 meters.
- Multivolt feeding from 12 to 30 V AC / DC.
- Relay output with com, no and NC contacts.
- Test input for compatible power plants.
- LED indicators to facilitate alignment and diagnosis.
- IP65 protection for installations exposed to dust and water.
- Wide range of operating temperature: from -25 ° C to + 60 ° C.

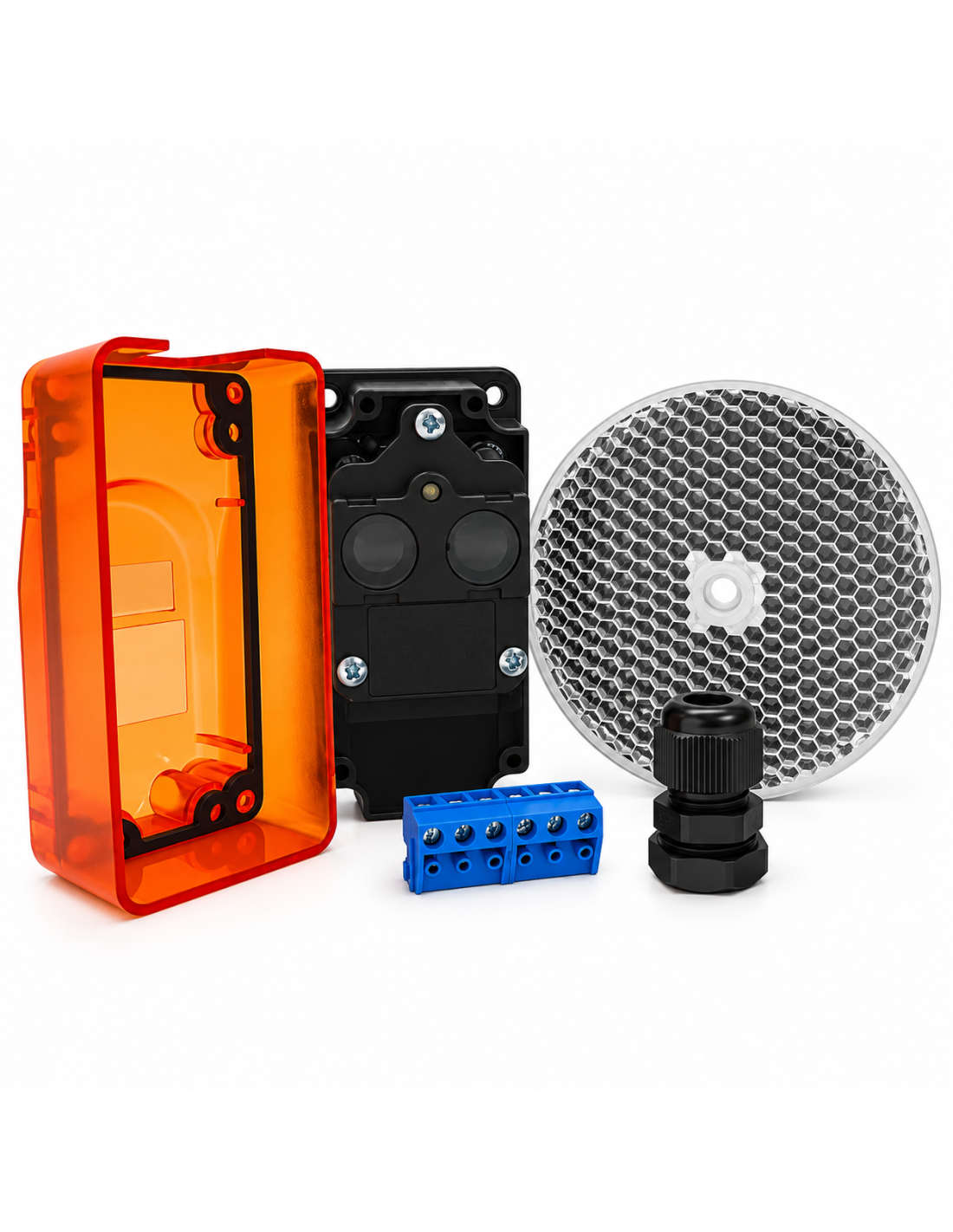

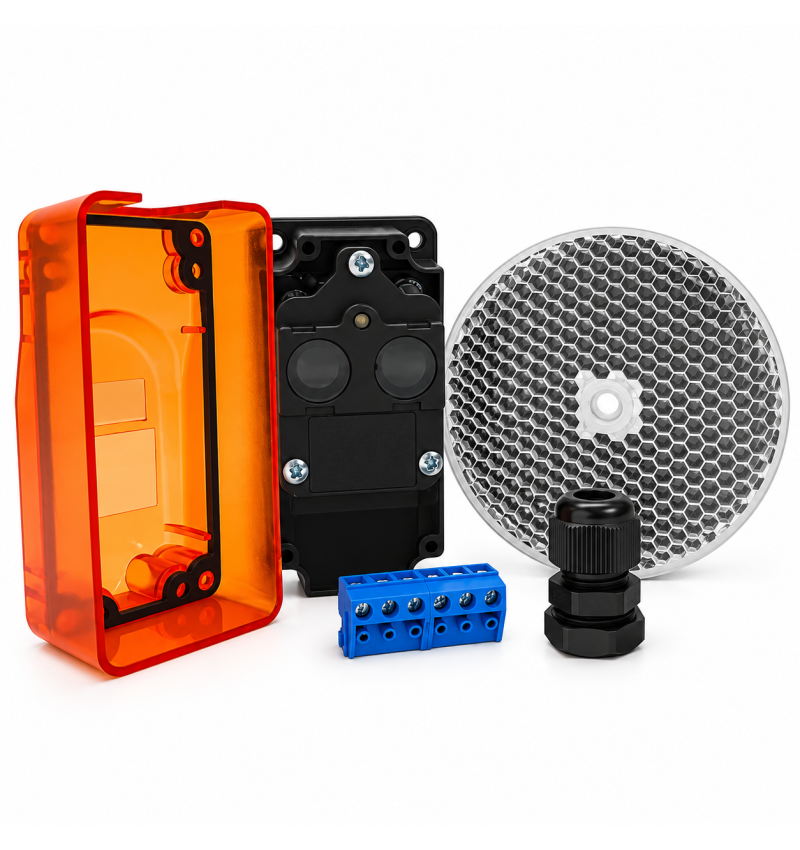

- 80 mm diameter catadioptric reflector.
Reflection
The GEBA LS 6P sends a beam of light towards the reflector installed on the opposite side of the step. When a person, a vehicle or an object interrupts the beam, the photocell commute its relay output to communicate the detection to the control plant.
Thanks to this system, the power and connection to the plant are made only in the photocell. The reflector does not need wiring.
Technical data
| Feature | Specification |
|---|---|
| TYPE | Polarized reflective photocell |
| Maximum range | 12 m |
| Feed | 12-30 V AC / DC |
| Relay contact | 0.5 A at 120 V AC / 1 A A 30 V DC |
| Exit | Relay with com, no and nc contacts |
| Switching time | 10 ms maximum |
| Operating temperature | Of -25 ° C to +60 ° C |
| Degree | Ip65 |
| LED Emitor | 625 nm; Average angle of 1.5 ° |
| Dimensions of the photocell | 86.8 × 44.8 × 40.4 mm |
| Diameter of the reflector | 80 mm |
LED indicators
Green and red LEDs allow quickly checking the signal quality and help perform a precise alignment.
| Red LED | Green LED | State |
|---|---|---|
| Off | On | Correct signal |
| On | Off | Insufficient signal: Check alignment and cleaning |
| Off | Off | Check wiring and power |
Connections

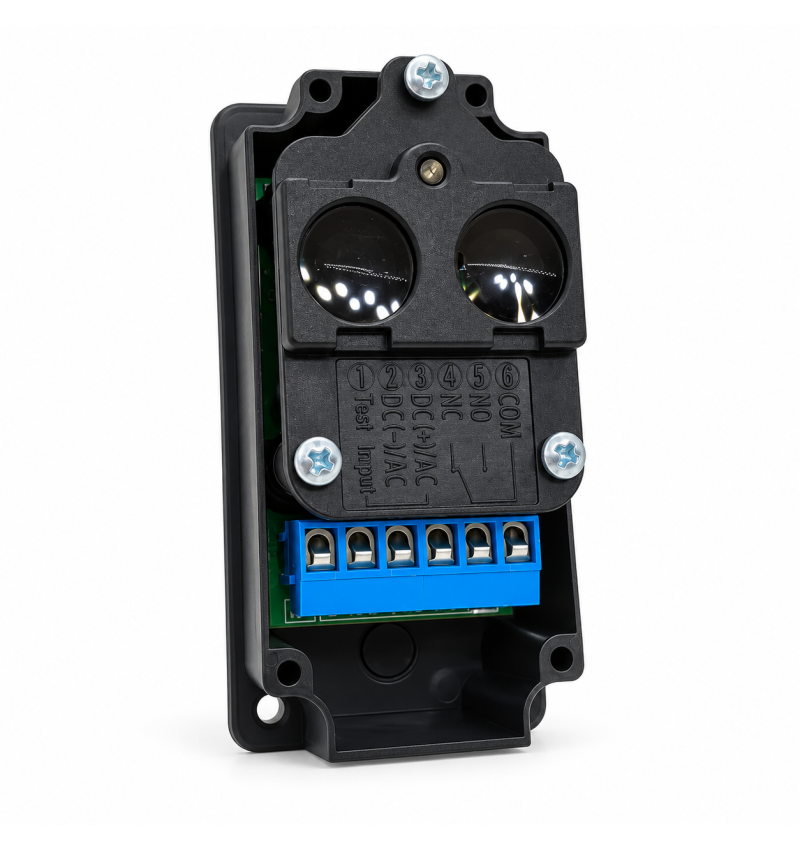

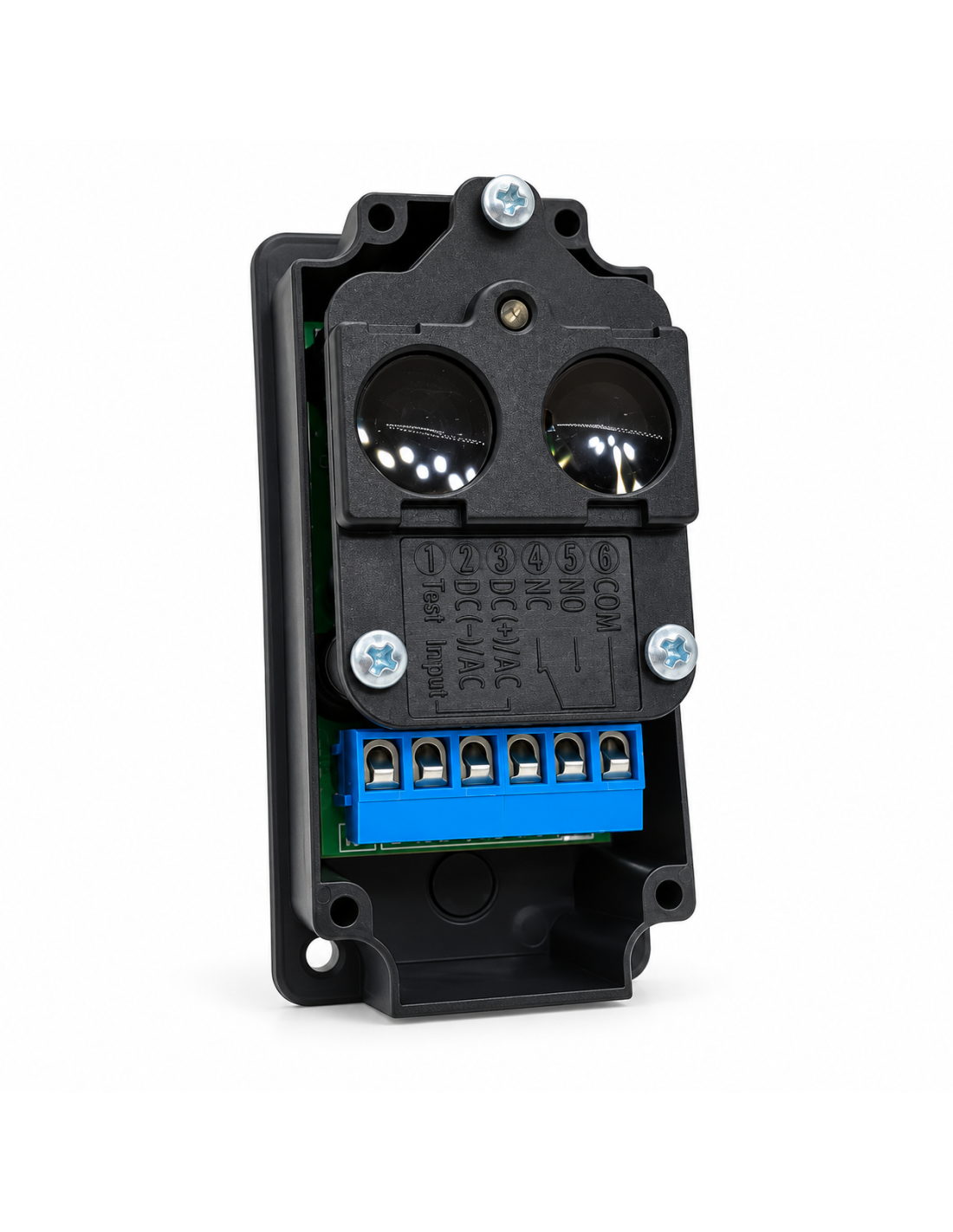

| Cable color | Function |
|---|---|
| White | Test entrance |
| Blue | DC negative / AC power |
| Black | Positive DC / AC Food |
| Brown | Contact NC |
| Gray | Contact com |
Note on contact NO: The manufacturer's scheme identifies this contact, but it is not assigned a driver color. Check the supplied version and your connection box before wiring.
Installation recommendations
- Install the photocell and reflector confronted, on firm and non-vibration surfaces.
- Perform the alignment by observing the LED indicators.
- Keep the optics and surface of the reflector clean.
- Check that the security entry of the plant supports a potential-free relay contact.
- Verify the operation of security after completing the installation.
| Security: Assembly, connection and maintenance must be performed by qualified personnel, respecting applicable regulations. Before manipulating the wiring, disconnect the power. |
