Table of manoeuvres AERF "CONFORT 1H0' for a...

Table of manoeuvres for a 230 V motor (tipping, swinging or sliding) - Figure 1

Table of manoeuvres AERF "CONFORT 1H0' for a 230V motor (tipping, swinging or sliding)

Table of manoeuvres AERF "CONFORT 1H0' for a 230V motor (tipping, swinging or sliding)

Name: Table of manoeuvres AERF "CONFORT 1H0' for a 230V motor (tipping, swinging or sliding)
Brand: AERF
SKU: CONFORT 1H0
Price: 72 EUR
Availability: InStock

Reference CONFORT 1H0

€72.00

VAT excluded

87,12 €

Tax incl.

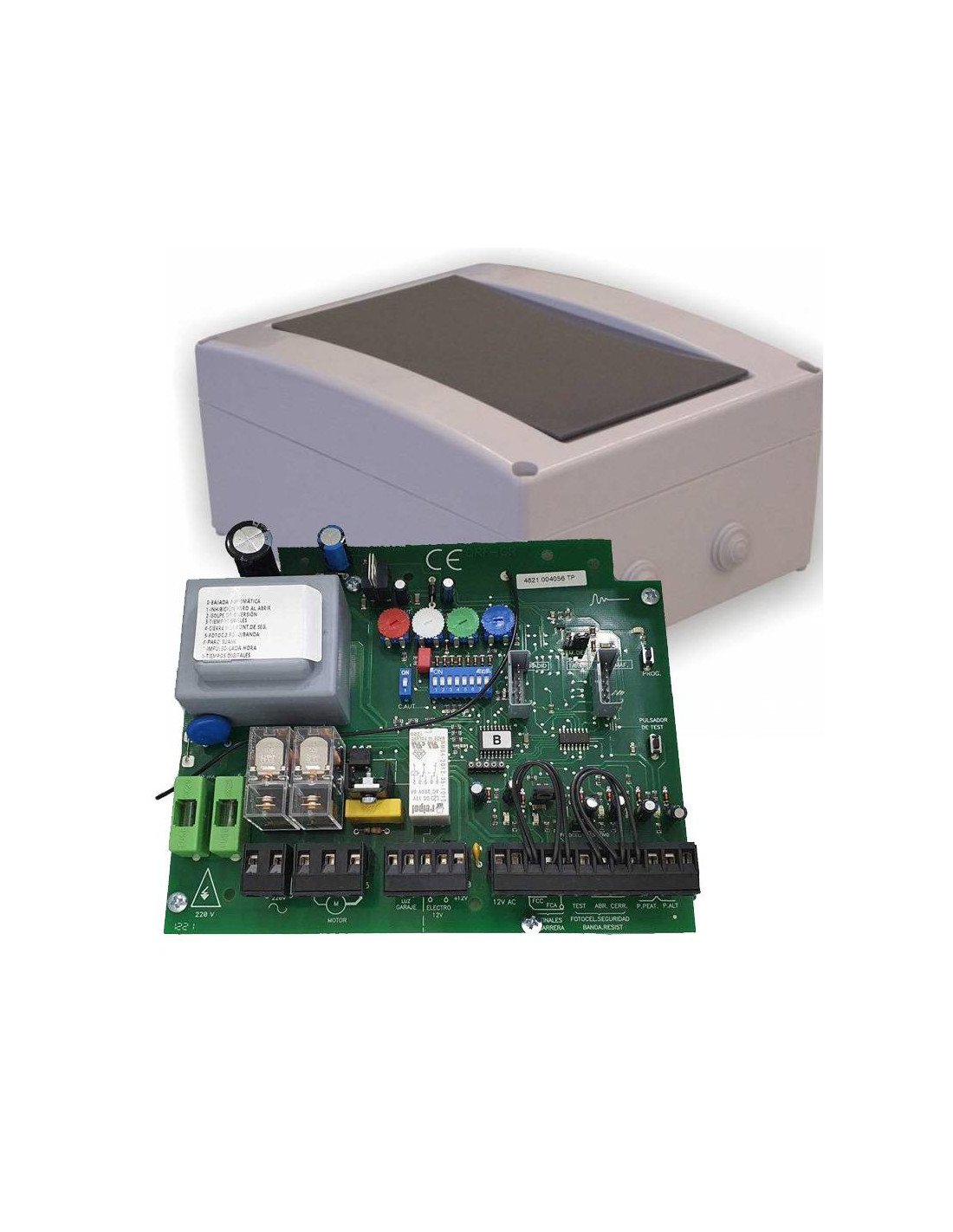

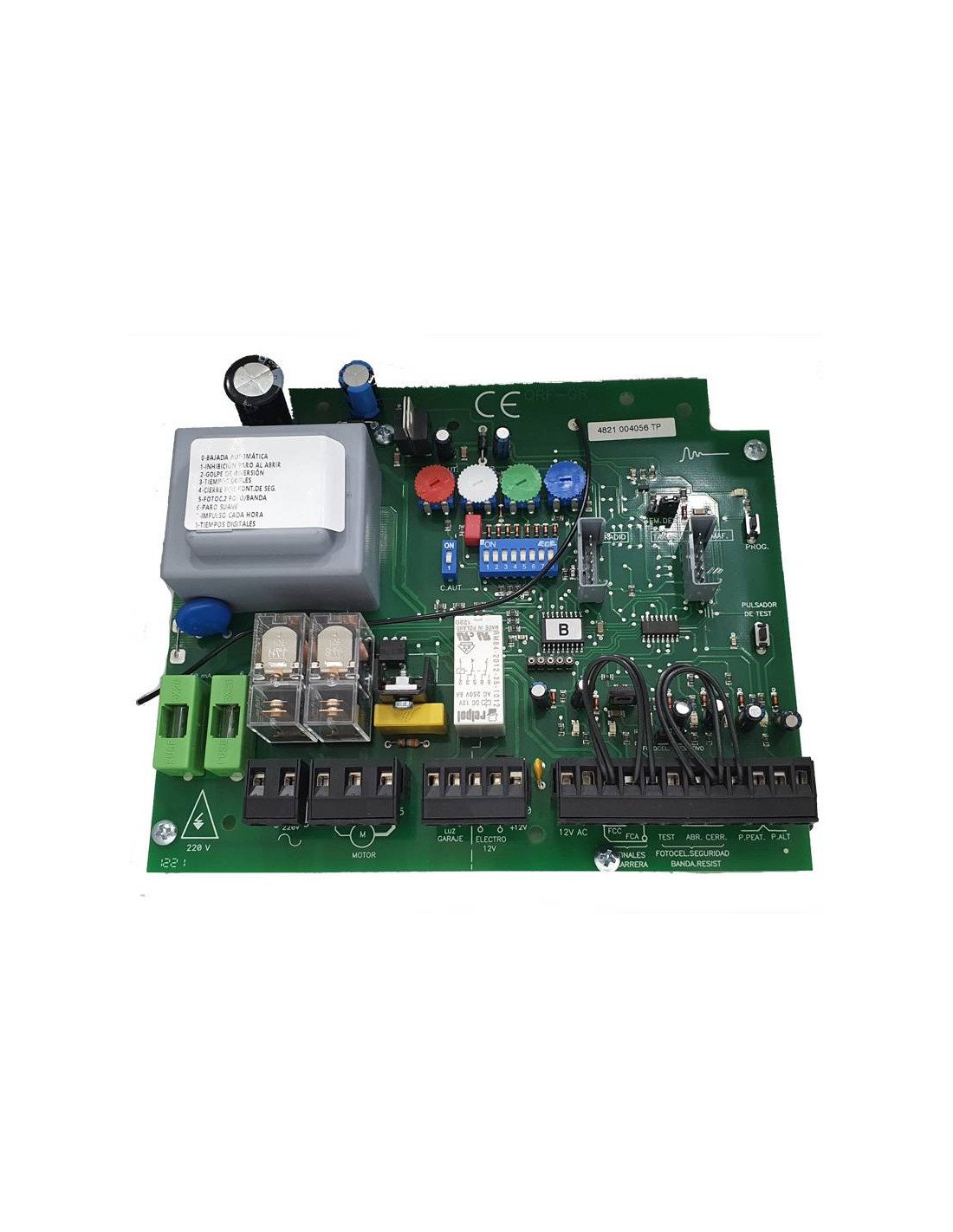

Manoeuvre chart COMFORT 1H0 for 1 motor at 230V ideal for tilting motors, single-bladed lathes, slides or roller shutters, with force regulation and smooth stopping at the end of opening and closing maneuvers, ease of programming and light indicators at control inputs make it very versatile and practical for most automatic systems.

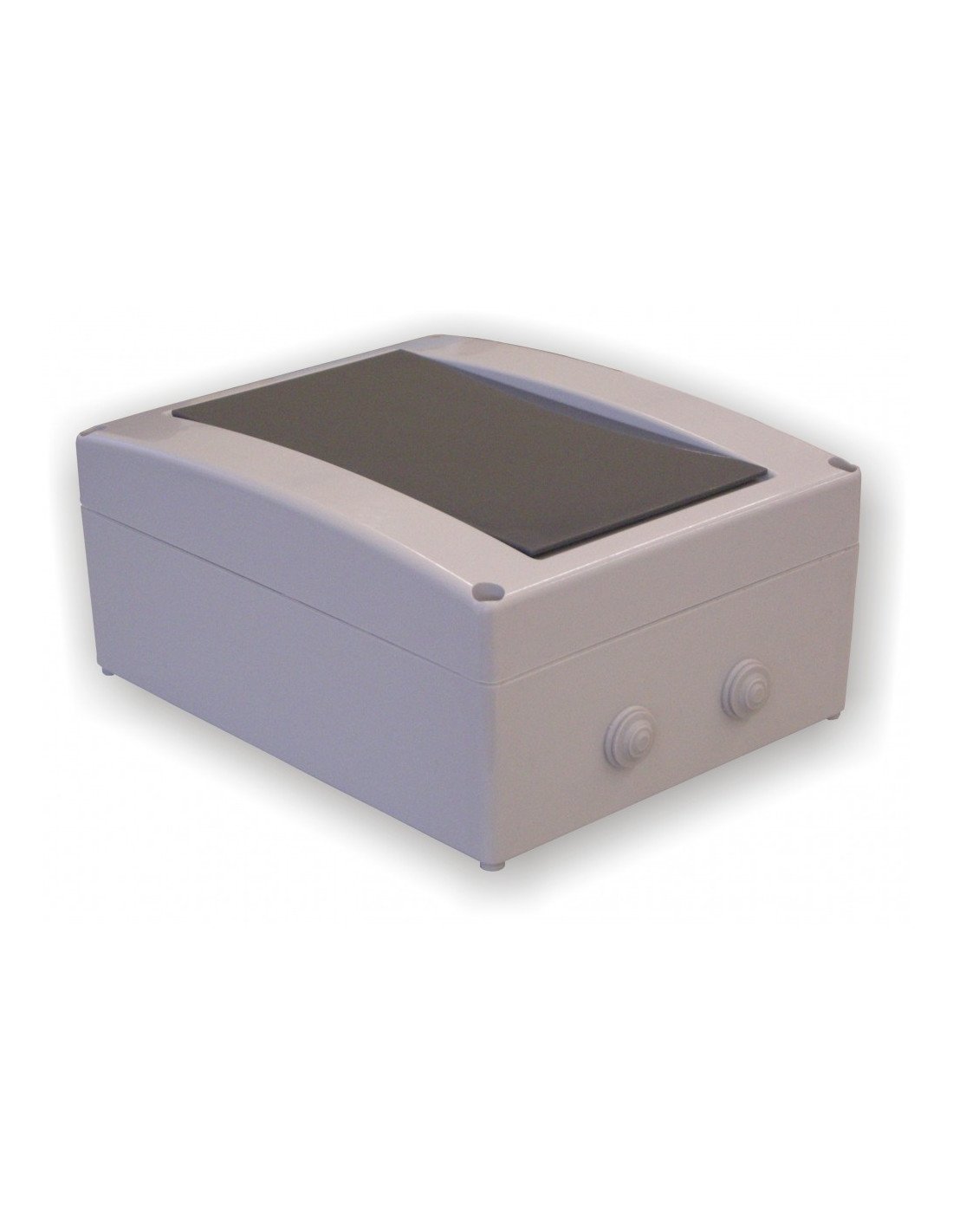

Box is not equipped with receiver, a wired receiver or a 6-pin receiver card may be used.

Save with this discounts

5 units

€69.84 ud.

Total price €349.20

You save €10.80
10 units

€68.40 ud.

Total price €684.00

You save €36.00

Quantity	Unit discount	You Save
5	3%	€10.80
10	5%	€36.00

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain Except bulky

Box is not equipped with receiver, a wired receiver or a 6-pin receiver card may be used.

CARD CONNECTIONS

Traffic light card 6 pins TSE model (not included)
6 pin radio receiver card, SRT or SRT MINI models (not included)

CHARACTERISTICS

Soft stop function on opening and closing.
The force regulator.
Type of closure may be automatic by means of an independent regulator for the pause time by memory or manual.
Independent opening and closing time regulator.
End run connections opening and closing.
Output for activation of 12 V AC/DC electric lock with possibility of reversal, contact garage light, flashing light, alternating button and pedestrian button.
It has two independent safety entrances, one for the photocell that acts during the closing of the door and another that can be connected to a photocell or to a pneumatic band with resistive contact. The latter can be selected by means of a micro-switch. With the switch on OFF the safety acts only on opening, stopping the door, or for the door and inverts for 1 second both on opening and on closing.
The table has an output for photocell testing. It can be used in the case of mounting test input photocells or emitter/receiver photocells.
Radio card and optional traffic light.
