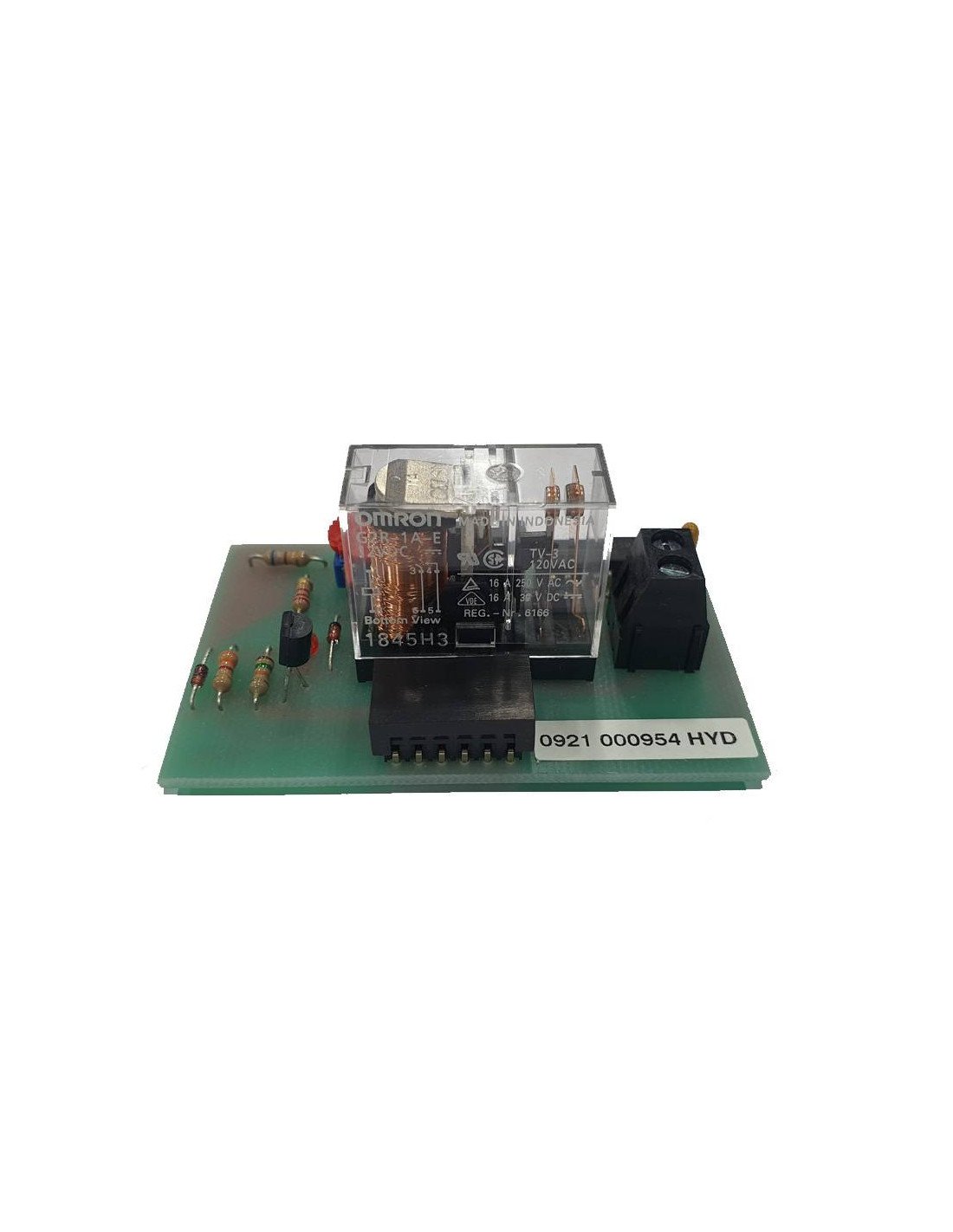

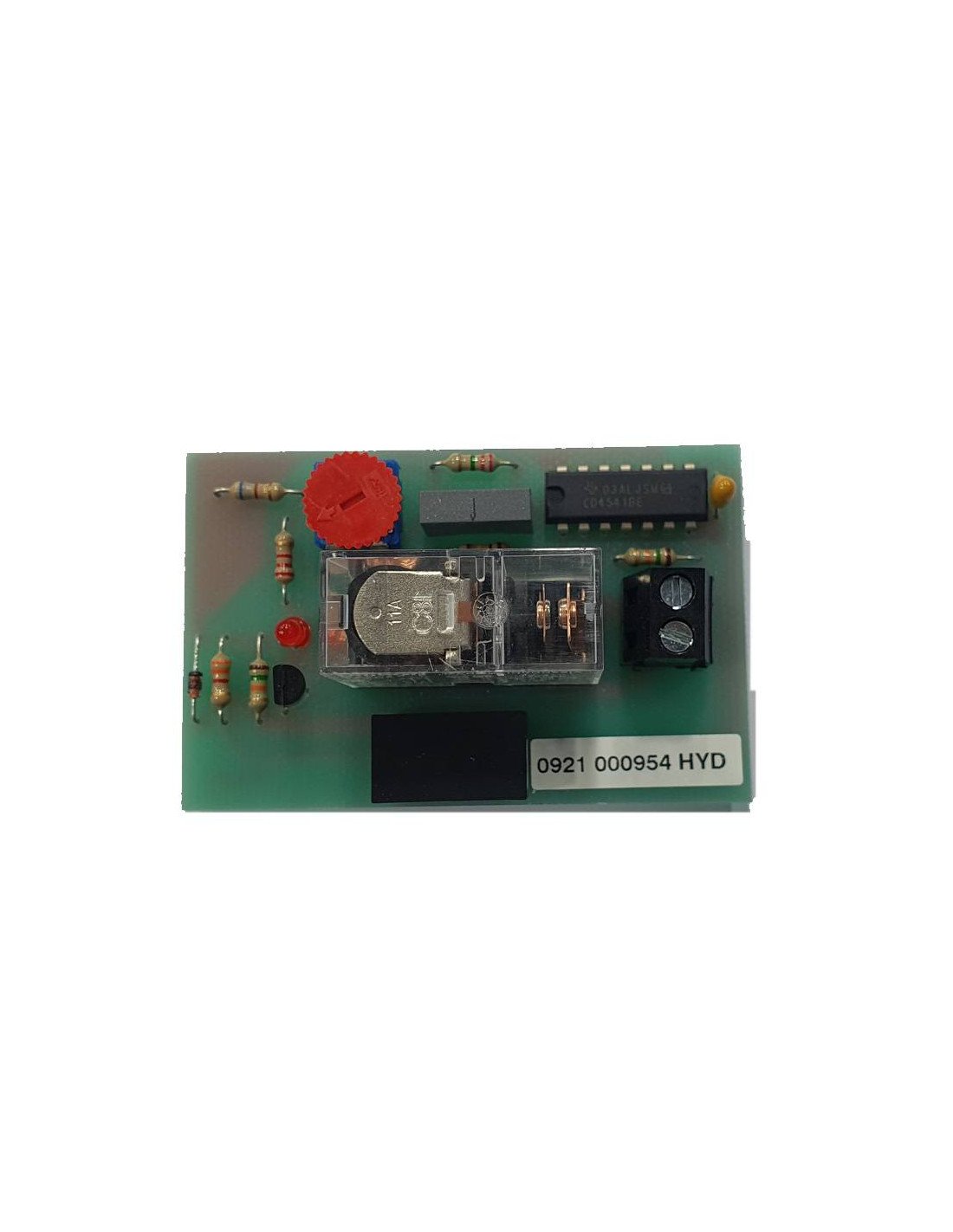

Plug-in card Timed garage light, designed to activate the garage light in place of the usual timer when the manoeuvre to open the control panel is initiated.

It incorporates a relay with voltage-free contact with 16A 230V contact.

The card is self-powered when inserted into the appropriate connector on the control panel (usually traffic light card connector).

COMPATIBILITY

■ Control panel AERF COMFORT 1H0

■ Hydom QMB2 control panel

OPERATION

The relay is activated when the operator executes the opening manoeuvre to activate an automatic light, and remains activated for the time selected on the timer.

When the power supply is connected to the operators, the garage light relay will also be activated.

The operation of the automation system will not be modified.

CHARACTERISTICS

• Contact Type: N.O. Voltage Free
• Maximum Voltage: 230Vac
• Maximum Current: 16A
• Timing: 30 sec to 5 minutes

MANUAL

TLT Instruction Manual
