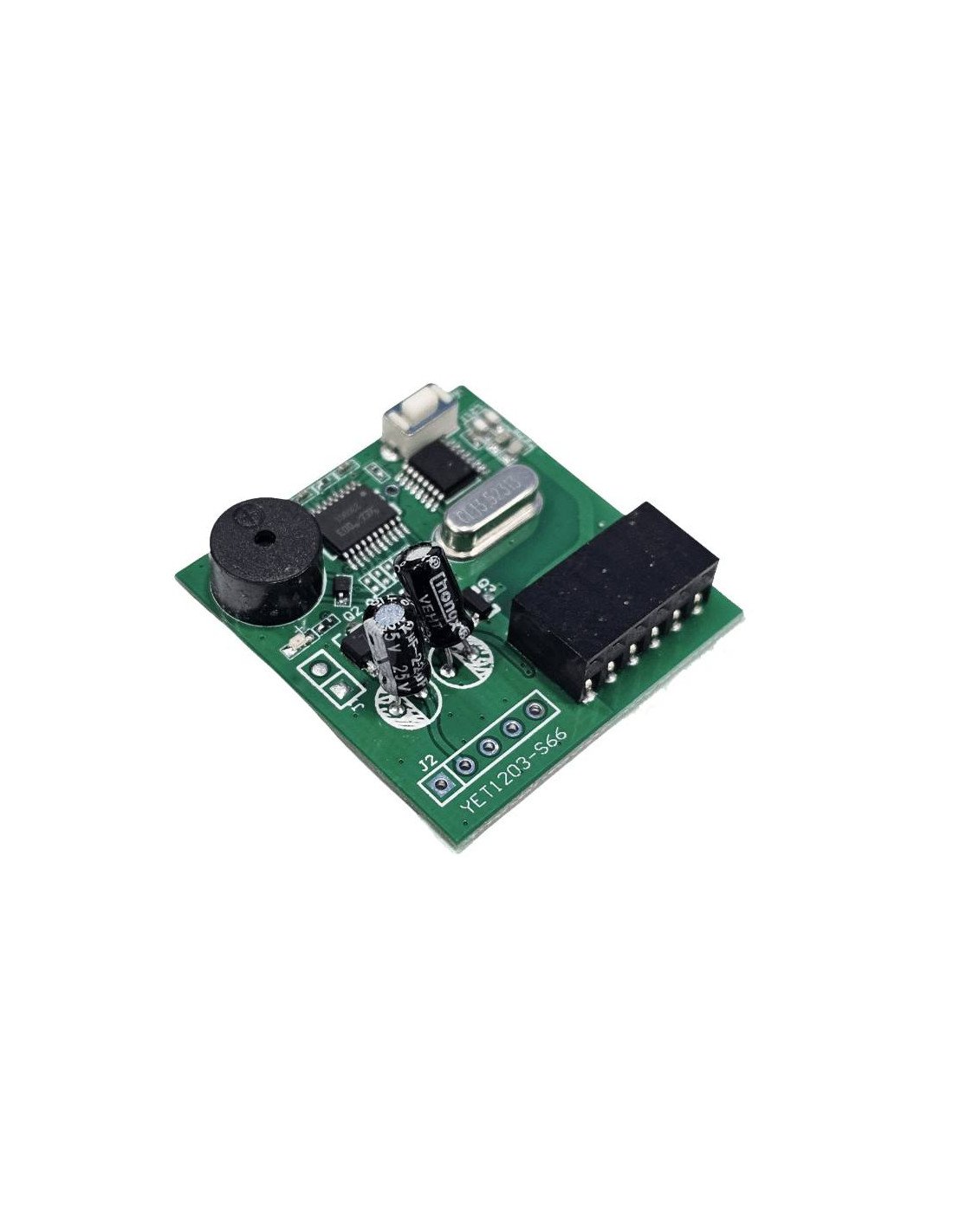

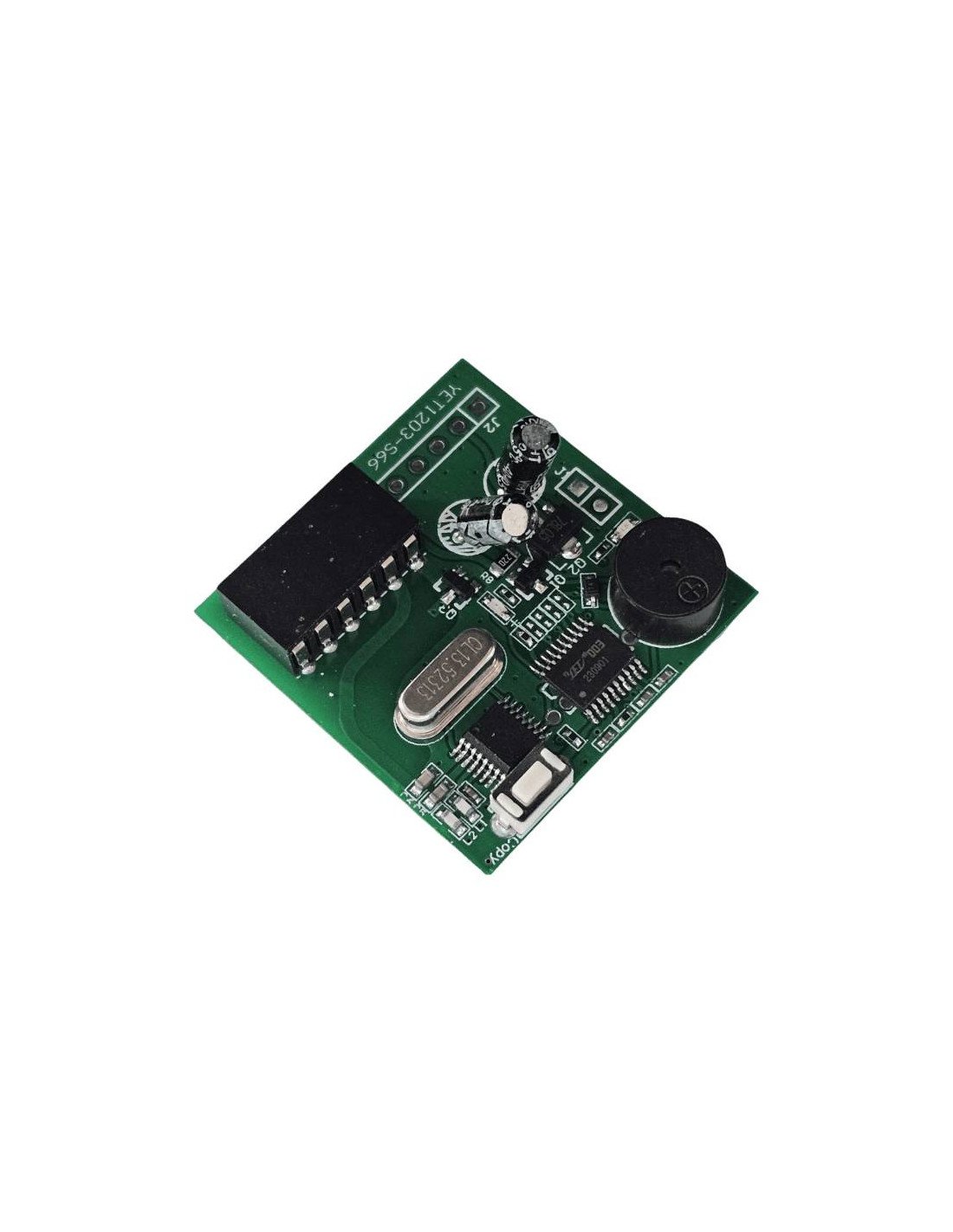

Card receiver 433.92 MHz RolligCode Keeloq connector 6 pins

Universal 433.92 MHz receiver card compatible with Keeloq transmitters with 6-pin connector.

Compatible with control panels: JCM, AERF, ERREKA, FORSA, among others

MEMORIZE A TRANSMITTER

• Press the receiver's learn button for two seconds until the receiver's LED lights up and beeps as well.
• Once it beeps, the memory will open and we release the PROGR button
• Press and hold the Rolling Keeloq 433.92 MHz remote control for a second to be stored on the receiver.
• A beep will be heard indicating the memorization of the controller.
• We can press other controls to memorize it on the receiver
• We will wait 10 seconds without pressing anything so that the receiver can exit the program, which will make us two beeps indicated.

CLEAR RECEIVER MEMORY

• Press and hold the receiver's learn button for 10 seconds until the receiver's LED lights up, we hear consecutive beeps.
• We will wait 10 seconds without pressing anything so that the receiver can exit the program, which will make us two beeps indicated.

SPECIFICATIONS

• Working Voltage: DC12V
• Working temperature: -20ºC -+ 70ºC
• Working frequency: 433.92 MHz
• Code Type: RollingCode Keeloq
• Memory Capacity: 250 Codes
• Dimensions: 32x33x12 mm
