Oleodinelage FAAC 580 230V of intensive use for tilting doors up to 15m²

Name: Oleodinelage FAAC 580 230V of intensive use for tilting doors up to 15m²
Brand: FAAC
SKU: 580
Price: 863 EUR
Availability: InStock

Reference 580

€863.00

VAT excluded

1.044,23 €

Tax incl.

Oleodinelage FAAC 580 230V Of Intensive Use for Basted Tilting Doors up to 15m².

FAAC 580

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain Except bulky

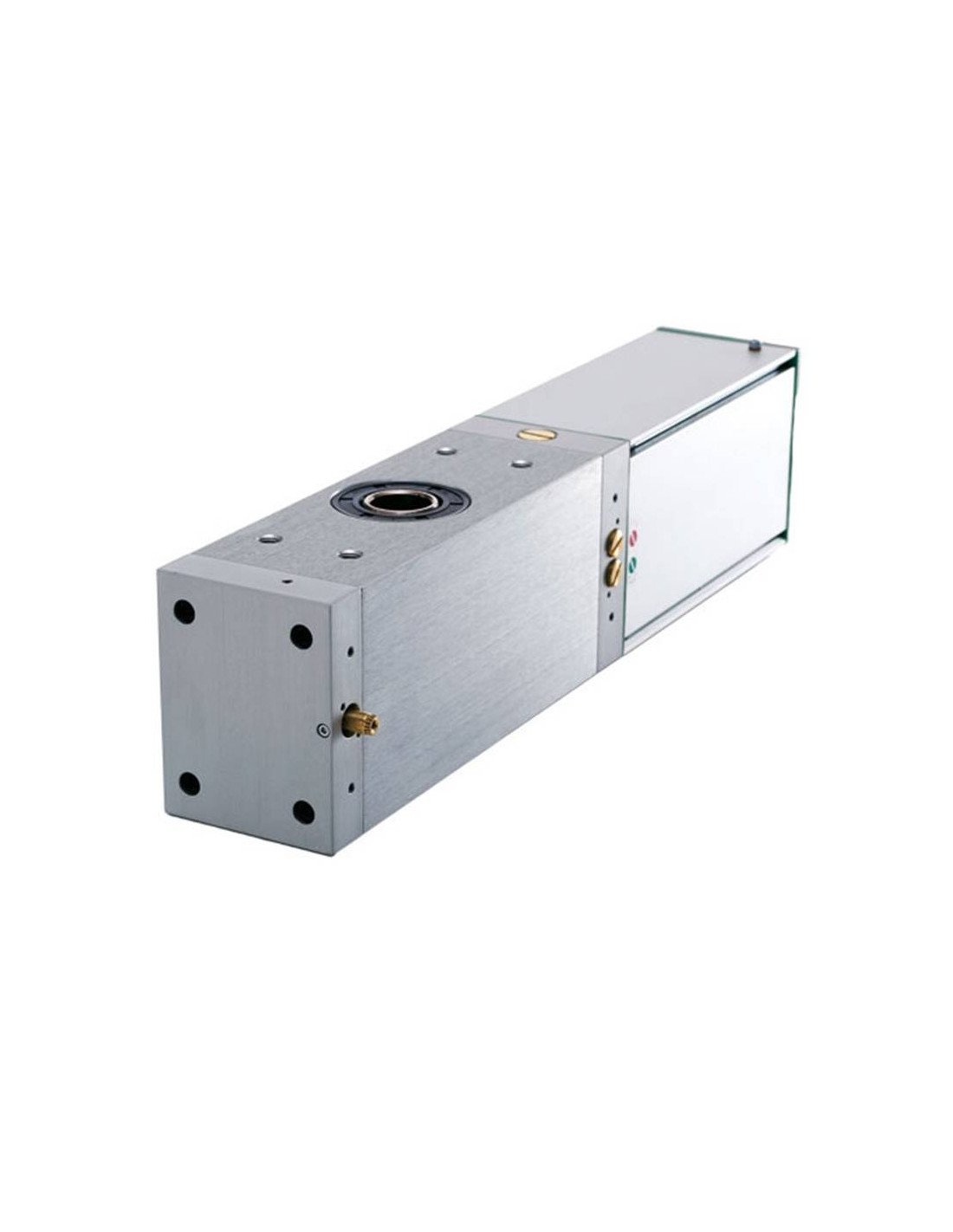

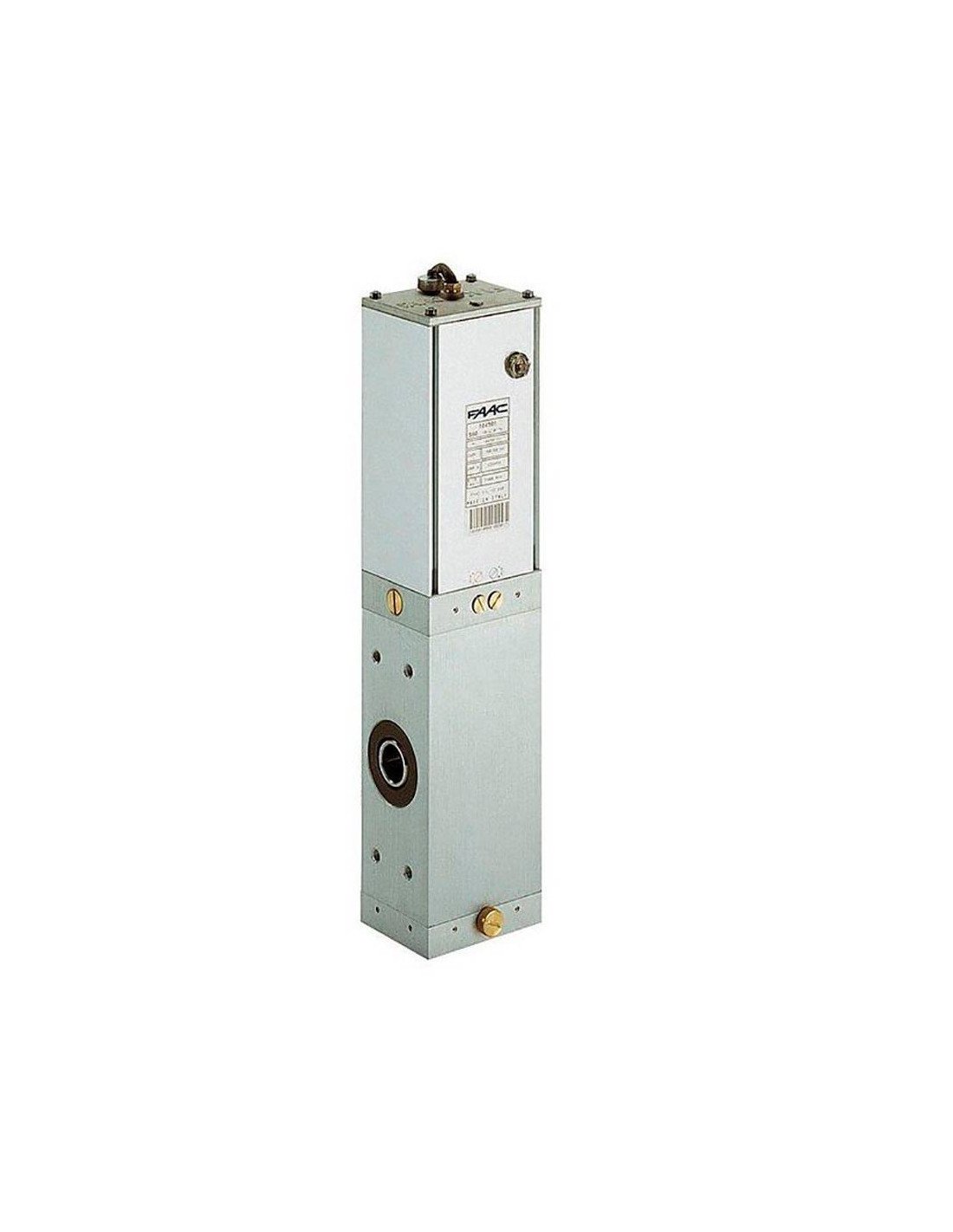

FAAC 580 | Hydraulic motor for tilting doors

The oleodynamic engine FAAC 580 230V is the ideal solution for Automation of tilting doors countered for intensive use, guaranteeing reliable, silent and high performance operation. Designed to support Doors up to 15 m², this actuator stands out for its advanced Oleodynamic technology It offers maximum anti-employment security, reduced maintenance and optimum performance even under demanding conditions.

Features

✔ Reliable and silent actuator, with reduced maintenance.
✔ Anti-explaught safety guaranteed by an oleodynamic device.
✔ Warranty of the door stability in opening, even with strong wind.
✔ Elevation up to 15 kg / m².
✔ Max dimensions of the door: 3500mm x 3000mm (Length X Height)
✔ Max dimensions From the door with two actuators: 6000mm x 4000mm (Length X Height)

Technical characteristics FAAC 580

	580 CBAC	580 SB
Model	580 CBAC	580 SB
Supply voltage	220-240V ~ 50/60 Hz	220-240V ~ 50/60 Hz
Electric motor	Asynchronous monophase	Asynchronous monophase
Max power	220 W	220 W
Max	450 nm (*)	450 nm (*)
Flow	0.75 l / min (*)	0.75 l / min (*)
Angular velocity	9 ° 15 '/ S (*)	9 ° 15 '/ S (*)
Opening time (at 90 °)	20 s	20 s
Operating room temperature	-20 ° C ÷ + 55 ° C	-20 ° C ÷ + 55 ° C
Thermoprotection in the motor winding	120 ° C.	120 ° C.
Degree	Ip55	Ip55
Oil type	FAAC HP OIL	FAAC HP OIL
Weight	12 kg	12 kg
Dimensions (l x a x h)	480 x 96 x 110 mm	480 x 96 x 110 mm
Max dimensions from the door (l x a)	3.50 x 3.00 m (**)	3.50 x 3.00 m (**)
Max. door	15 kg / m²	15 kg / m²
Frequency	Non-incorporated	60 cycles / hour
Electronic card	Non-incorporated	Non-incorporated

Available models:

580 CBAC (104501): Oloodinelamic actuator with hydraulic unlocking in opening / closing.
580 SB: (140503): Oleodynamic actuator without blocking with hydraulic hose output.
