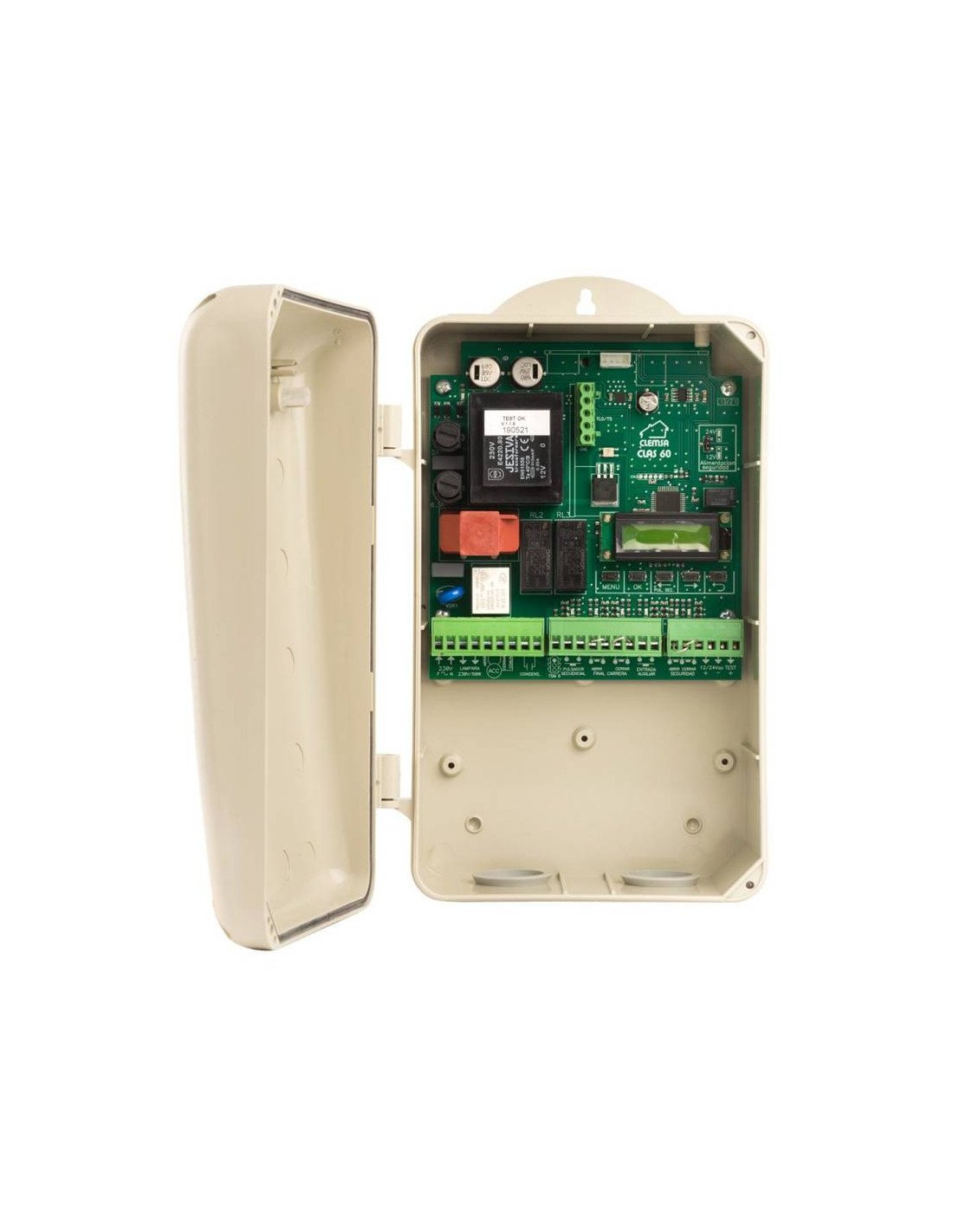

Control panel Clemsa CLAS 60 for rolling and sliding actuators 230V. What. Maximum operating power 1000W. Programming by display.

CHARACTERISTICS

• Maximum engine load 1000 W.
• Operating logic that can be selected: automatic, semi-automatic, manual.
• Programmable opening and closing times, opening and closing delays, pedestrian opening and closing from 0 to 256 s.
• Programmable functions: Stop at opening, reverse at closing, photocell closure, warning, reverse stroke, partial times, current return closure, photocell shutdown.
• Exit from accessories 12/24.
• Signalling lamp output 230V and traffic light TSM 6.
• Connector for auxiliary cards and receivers Clemsa.
• Programming by LCD display.
• Protected by IP 54.
• Operating temperature from -20oC to +55oC.
