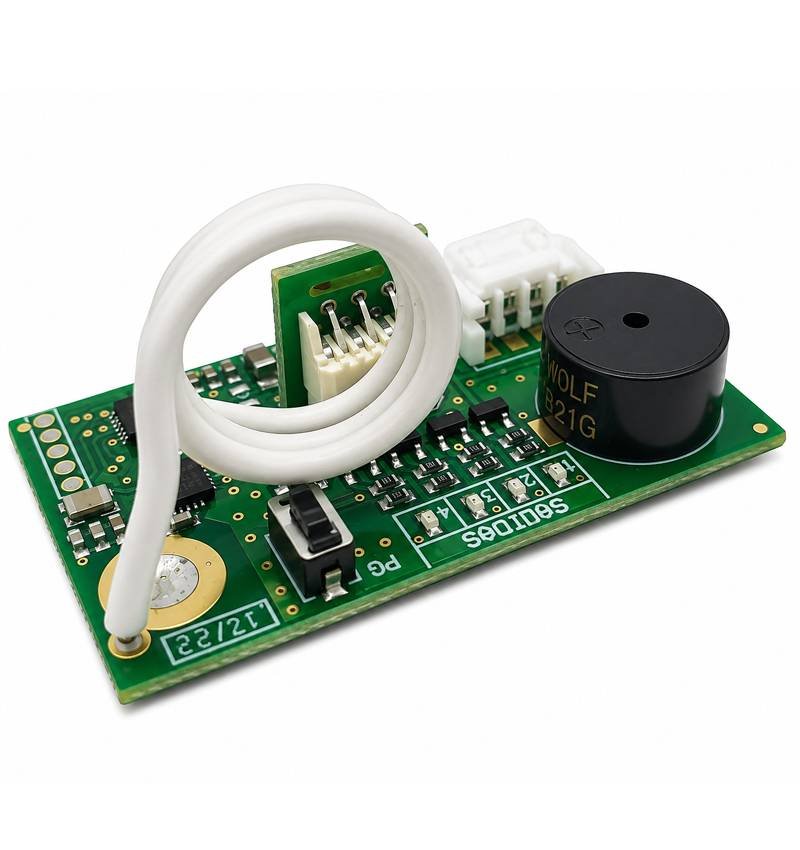

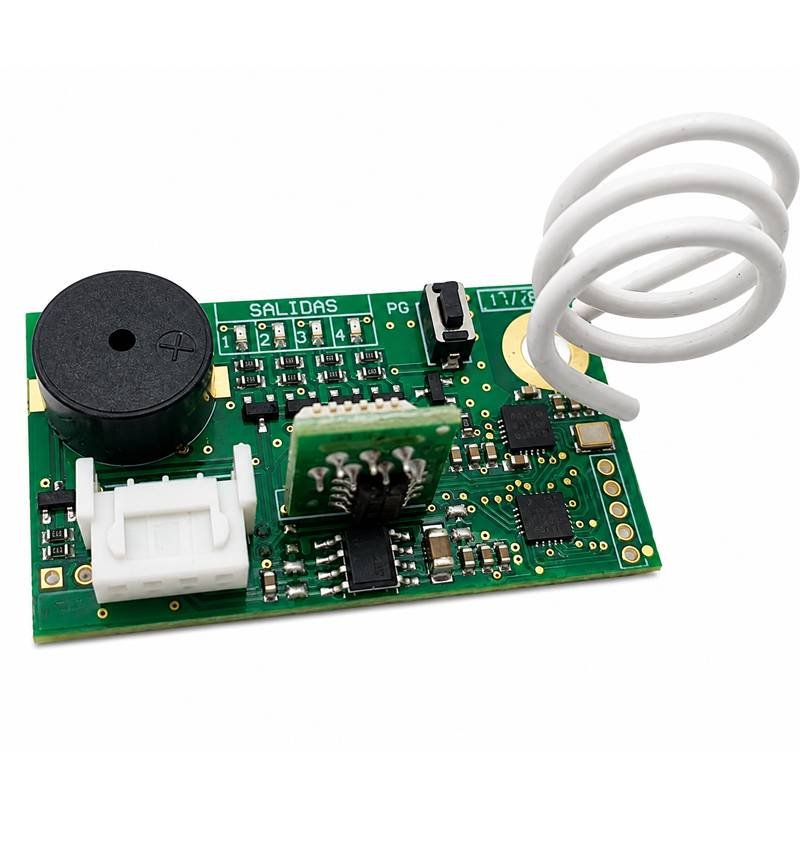

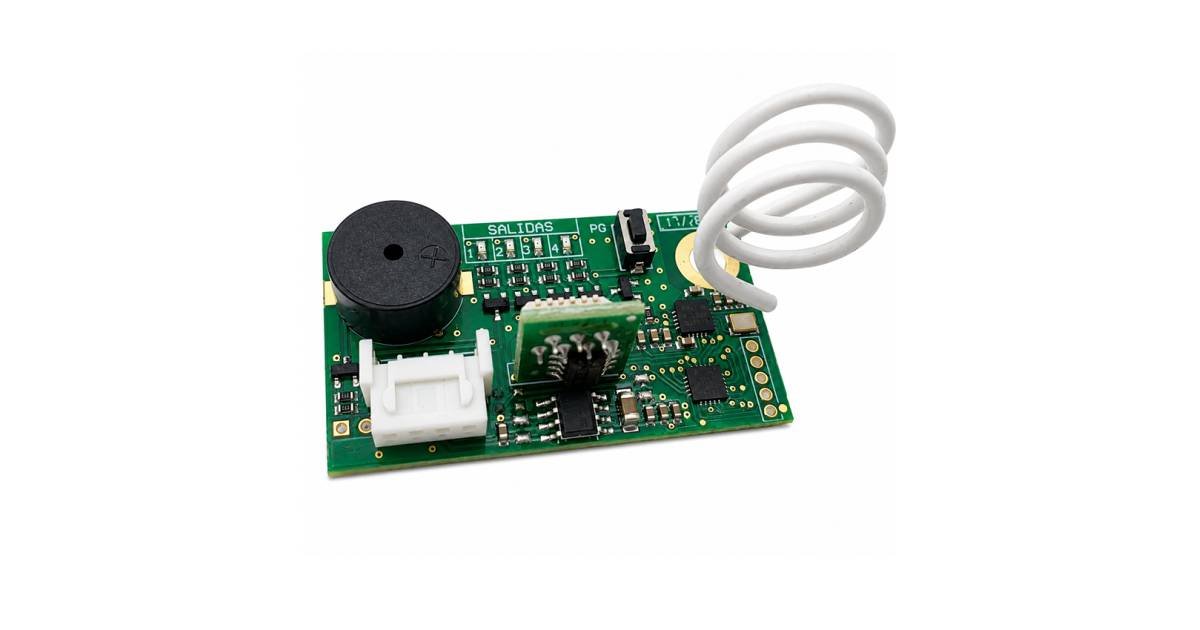

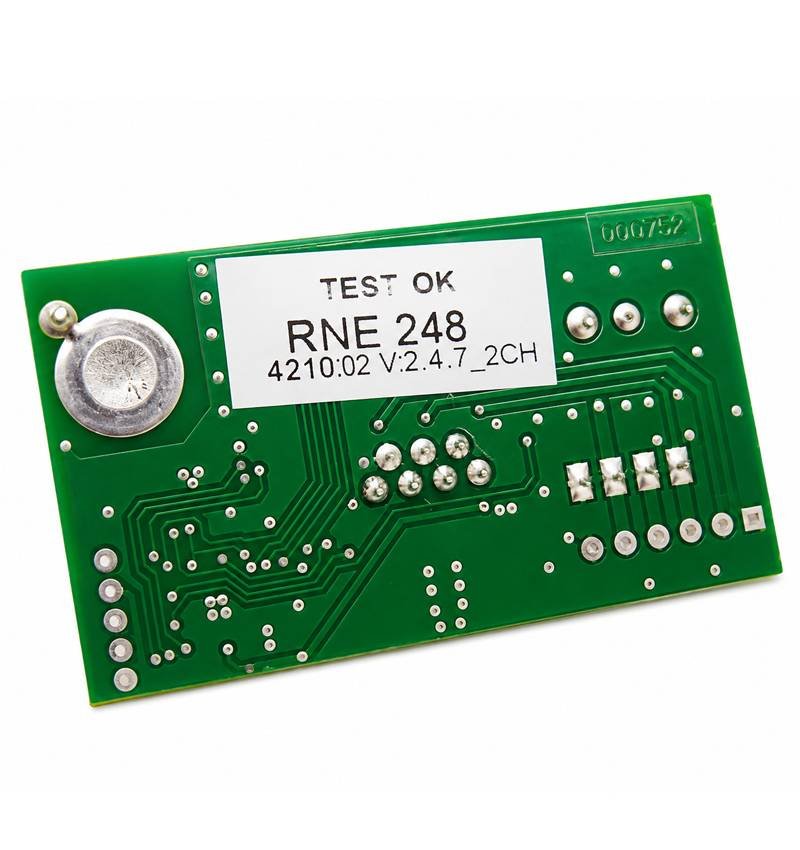

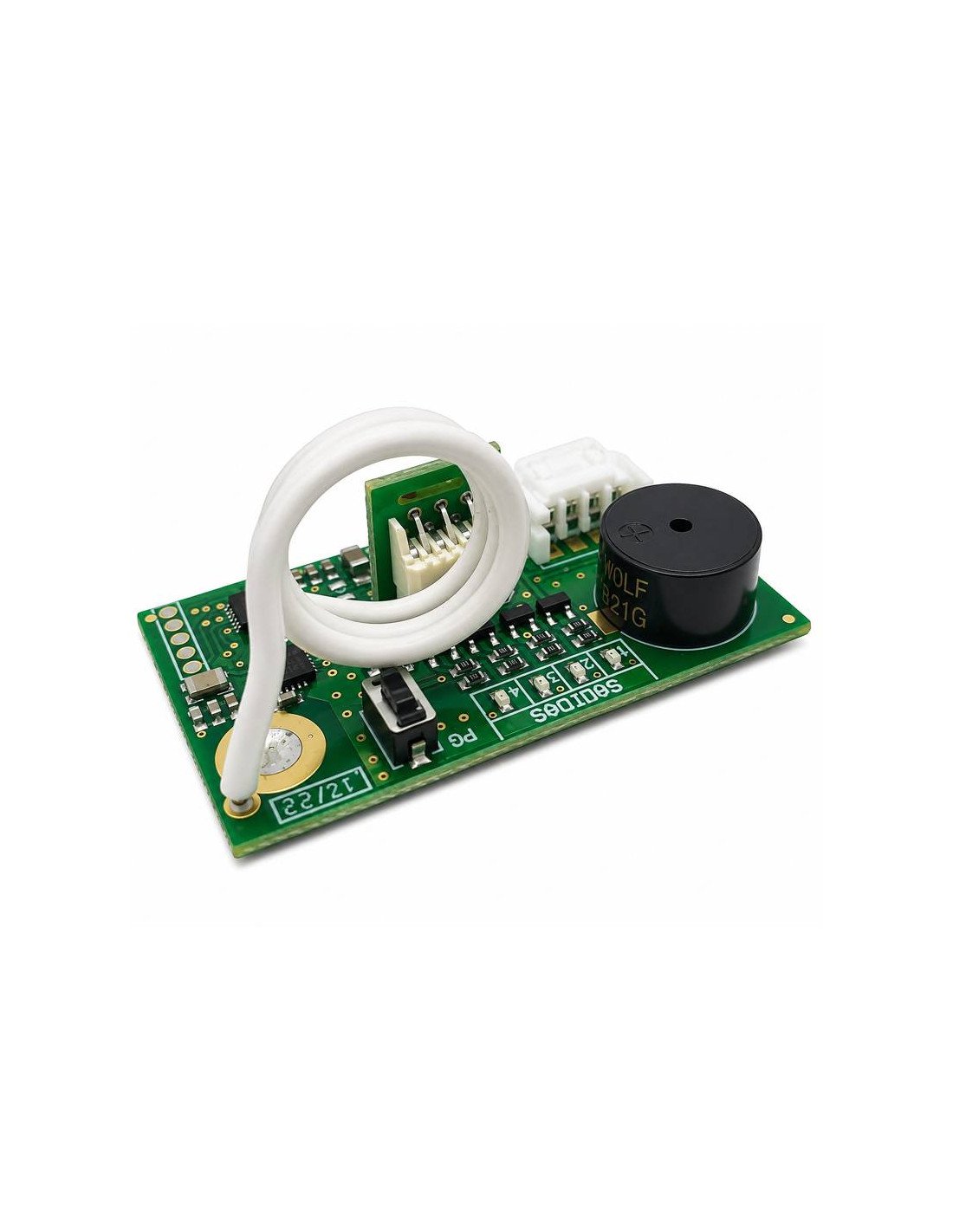

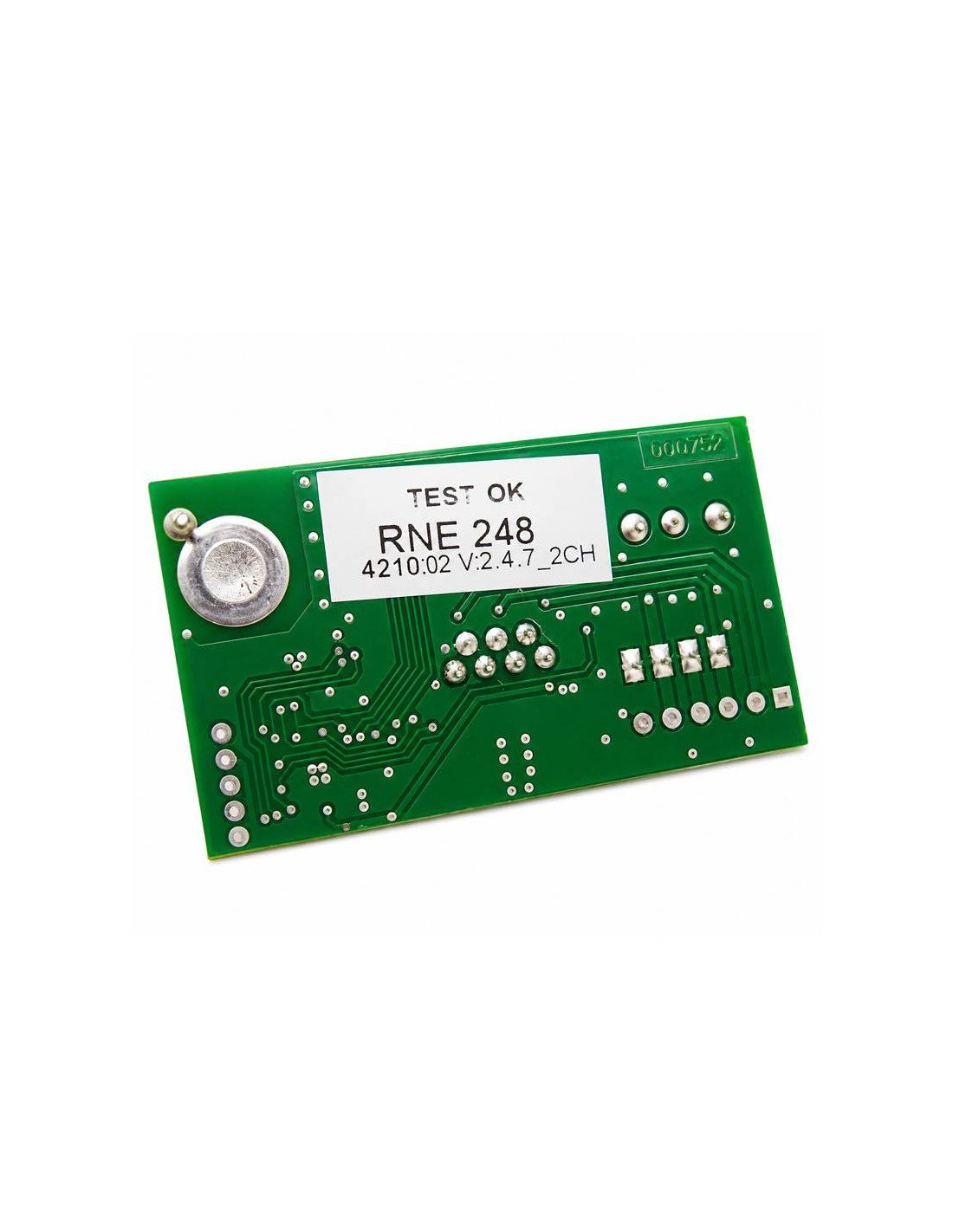

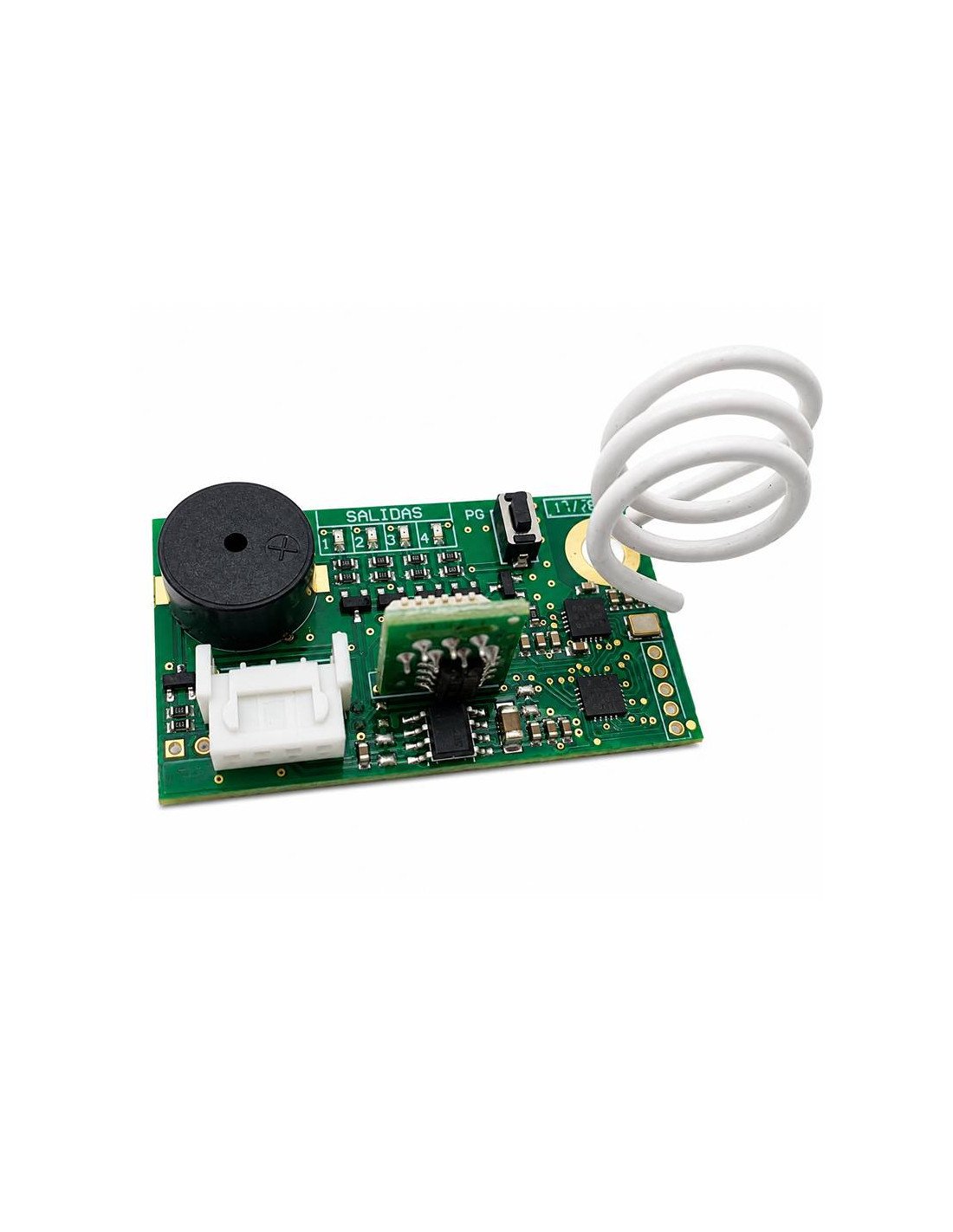

Clemsa RNE248 Mutan-II 433 MHz and 868 MHz

The Clemsa Rne248 Mutan-II It is a high-performance plug-in receiver designed for control frames and automatic door automatisms. This model stands out for its ability to work simultaneously at frequencies 433 MHz and 868 MHz, offering an advanced, safe and compatible solution with Clemsa Mutan and Mutan-II emitters.

Thanks to its multifrequency technology and Mutan-II evolved security system, the RNE248 receptor provides greater protection against unauthorized clonings and accesses.

Main features

• Dual frequency: Simultaneous operation at 433,92 MHz and 868.35 MHz.
• Compatible with Clemsa Mutan and Mutan-II emitters.
• 2 output channels.
• Memory for up to 400 users.
• Integrated Anthone System.
• Unique installation key To increase security.
• Programming by direct, supervised or by push-button.
• Plug-in For compatible maneuver boxes.
• Compatible with CLEMSA PT programmers.

Mutan-II technology

The family Mutate-II It represents an evolution of traditional Clemsa radio frequency systems, incorporating new security and advanced management functions.

Among its main advantages include:

• Anticlonation system to avoid unauthorized duplicates.
• Exclusive key for each installation.
• Greater safety versus fraudulent copies.
• Multifrequency or selectable frequency.
• Advanced management of high and low emitters.

Advance

The CLEMSA RNE248 receiver incorporates an Intelligent Mulnzing system that automatically detects duplicate emitters running with the same code.

When the receiver detects a possible cloning, the system automatically places these issuers in a "reservation" status, preventing their operation until they are reviewed by compatible programmer.

This function significantly increases the safety of the installation versus copied or unauthorized controls.

Simple programming

The receiver allows different programming methods:

• Programming by pushbutton.
• High supervised via radio.
• Automatic direct (Mutan-II mode).

In addition, the system allows you to configure the outputs and manage the issuers quickly and easily.

Compatibility

The RNE248 receiver is compatible with:

• Clemsa Mutan controls.
• Clemsa Mutan-II controls.
• ClemSa PT programmers.
• Maneuver tables compatible with Clemsa plug-in receivers.

Technical characteristics

• Model: CLEMSA RNE248.
• Power: 9 to 12 VDC.
• Consumption: 30 mA
• Frequency: 433,92 MHz and 868.35 MHz.
• Number of channels: 2.
• Maximum capacity: 400 users
• Dimensions: 50 x 28 x 10 mm.
• Operating temperature: -20 ºC to +70 ºC.

Advantages of the Clemsa RNE248 receiver

• Greater security in community and residential facilities.
• Compatibility with existing Clemsa systems.
• Stable and reliable operation.
• Ideal for automations of garage doors and automatic accesses.
• Possibility of working in double frequency.
• Large memory capacity for communities.
