Minimax hydraulic motor kit with Saxo for tilting doors

Name: Minimax hydraulic motor kit with Saxo for tilting doors
Brand: HYDOM
SKU: K-1RM2D25-S

Reference K-1RM2D25-S

Do you want to add any extra commands?

This product has a special discount!

To view the price or buy the product you have to Register or you can ask us.

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain Except bulky

Hydraulic motor HYDOM MINIMAX for semi-intensive use for oversized two-bladed hinged doors (maximum 14m2). Allows manual opening and closing in the event of a power failure.

Maintenance on this engine is practically zero.

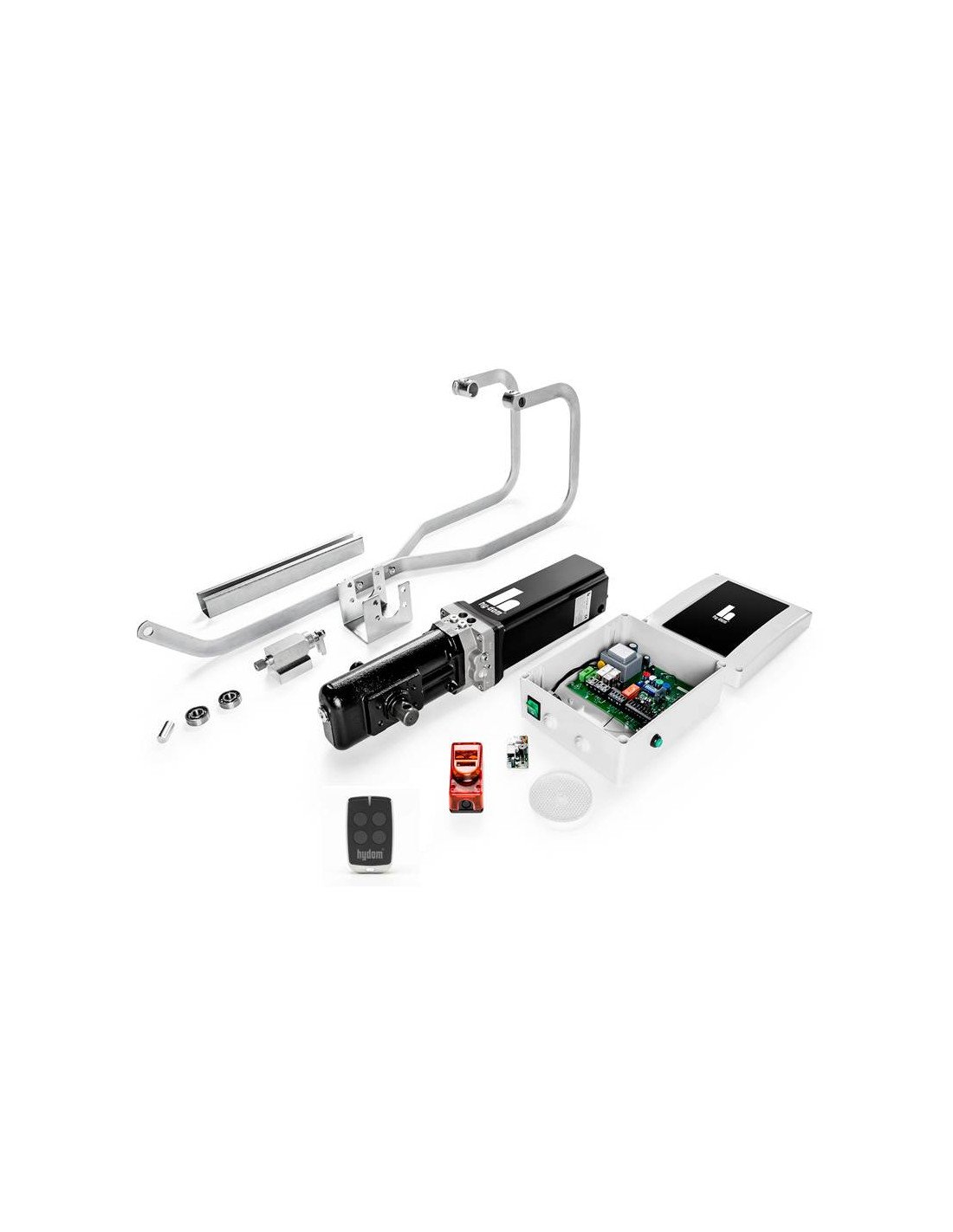

THE KIT CONTAINS:

1 unit 1RM2D25: Hydraulic motor without lock.
1 unit 0301001.0: Hydraulic lock with 1 metre whip.
1 unit SAXORM80: center gear 800mm for the MINIMAX.
1 unit QBM2PI: Table of manoeuvres for 1 230 V engine
1 unit SRT: receiving card 433 MHz.
1 unit HD4: 4 channel transmitter 433 MHz
1 unit PHOTORP: Safety photocell with cathode ray reflector.

MINIMAX CHARACTERISTICS WITHOUT LOCKING

This Regulation shall enter into force on the twentieth day following that of its publication in the Official Journal of the European Union

For counterweighing doors and sliding doors (horizontal version) up to 14 m2 in total area. Semi-intensive use.

• Hydraulic sequence to keep locks retracted during the opening and closing manoeuvre
• Independent force-regulating valves
• Single-phase motor 230V - 50Hz with protection against overheating
• Damping at the end of the opening and closing path (1RMT)
• 1RM*2D25: Requires external locking
