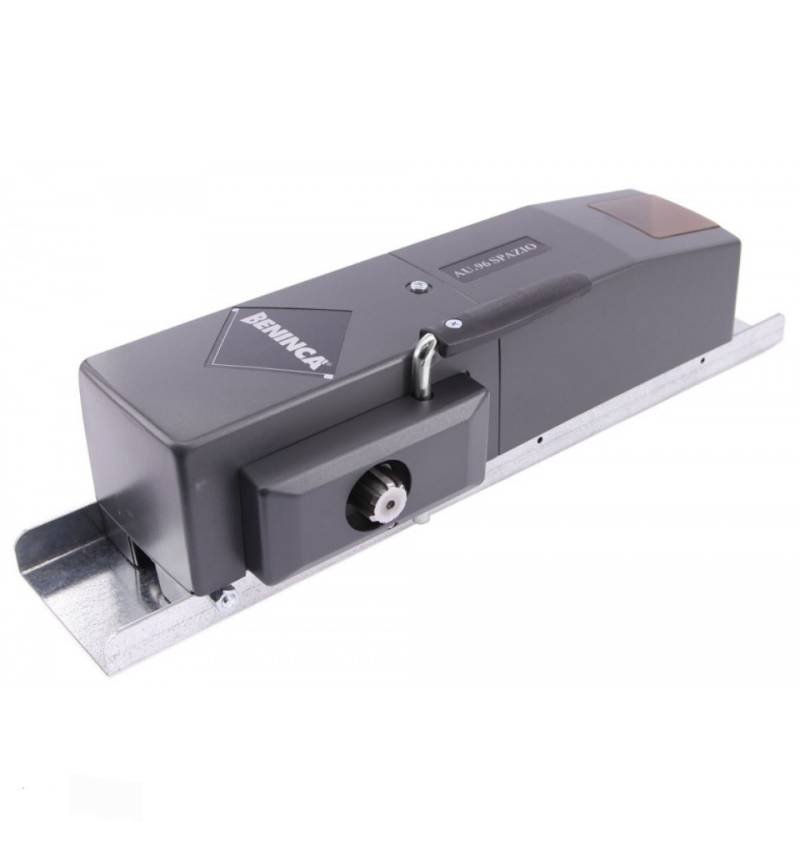

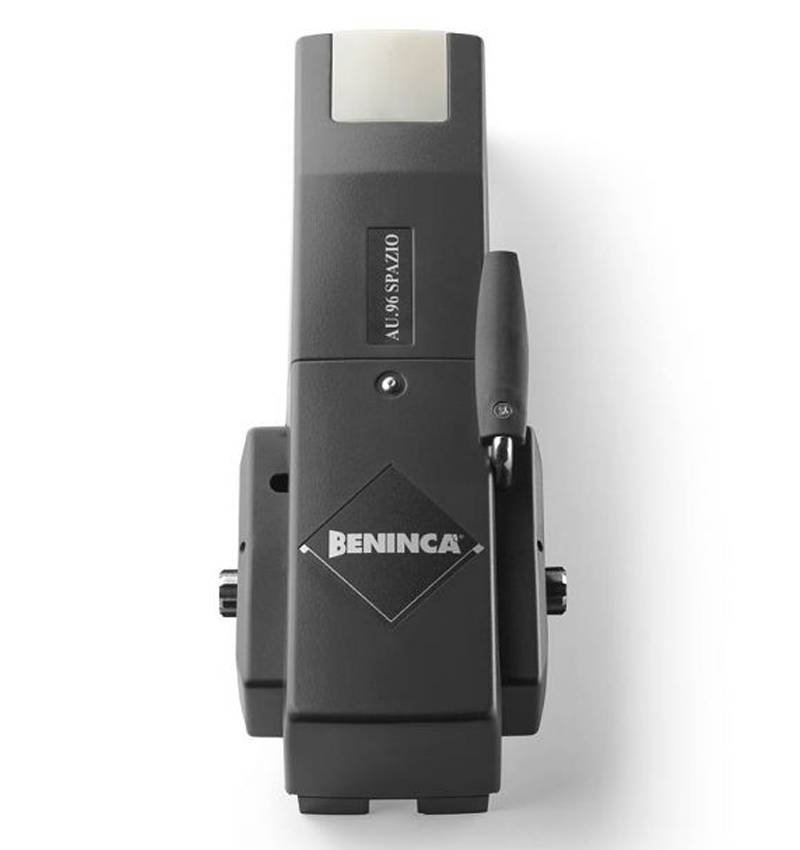

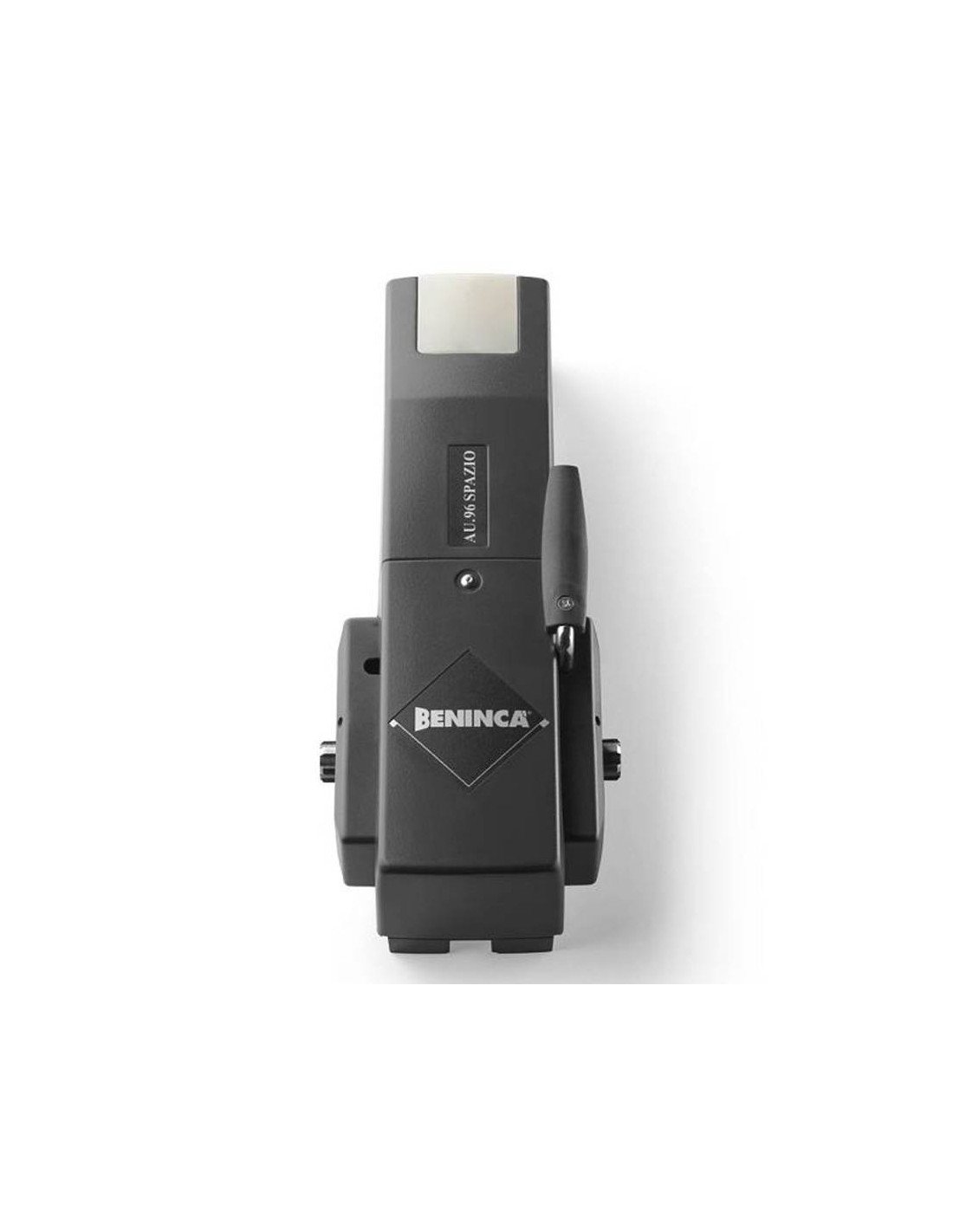

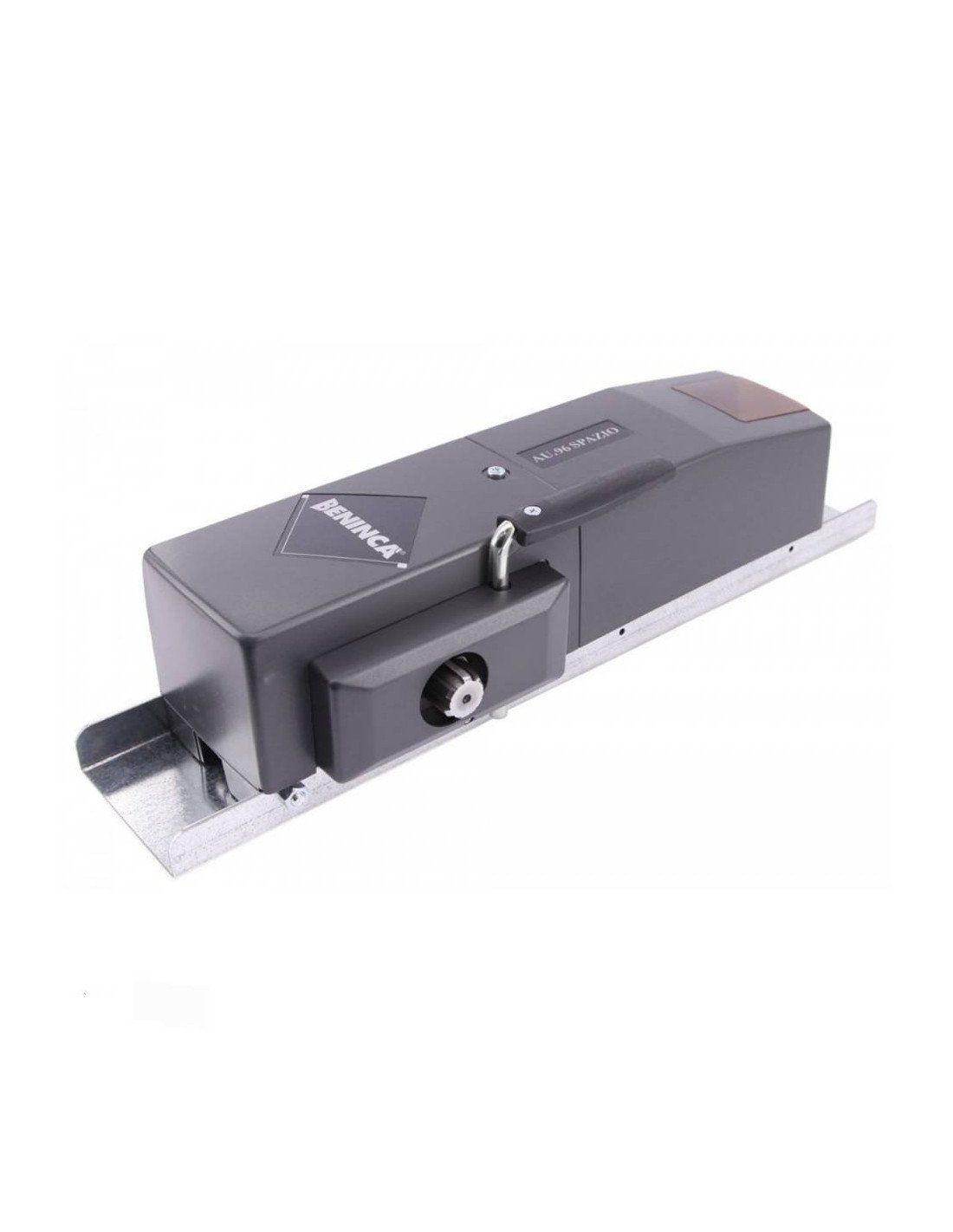

Beninca Au96 230V tilting motor kit up to 12 m² with telescopic fittings

Beninca AU96 electromechanical motor for residential-use tilting doors, designed to automate sheets up to 12 m² with total reliability.

The Beninca Au96 It is an irreversible operator of 230 Vac equipped with career finishes and high strength metal transmission, ideal for private garages and communities with moderate traffic that require a robust, durable and safe system.

Main features

✔ Electromechanical motor 230 Vac

✔ Integrated race end

✔ Irreversible version for greater security

✔ Special for counterattom tilting doors

✔ Maximum door surface: 12 m²

✔ Aluminum and bronze gears for a long service life

✔ Reliable operation under demanding climatic conditions

Technical characteristics Beninca Au96

• Absorbed: 170 W
• Feed: 230 VAC
• Motor feed: 230 VAC
• Work cycle: 30%
• Degree: IP40
• Maximum absorbed current: 0.85 a
• Maximum pair: 480 nm
• Operator weight: 13 kg
• Fixing plate: 1250 mm
• Maximum door of the door: 12 m²
• Operating temperature: -20 ºC / +70 ºC
• Minimum temperature for opening: 10 °

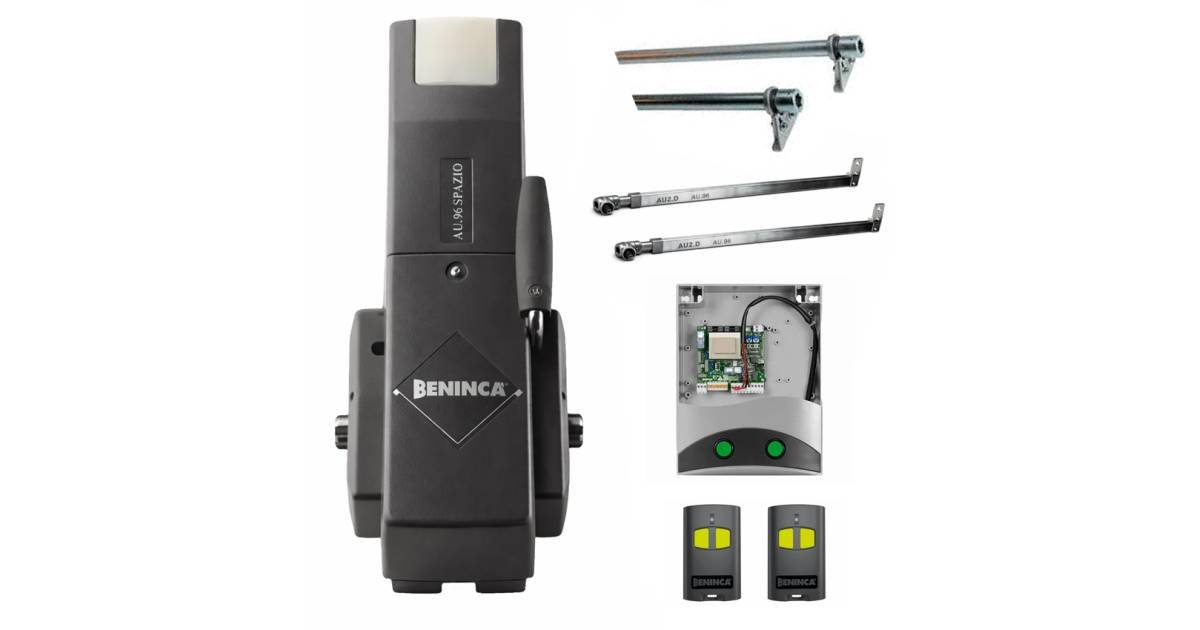

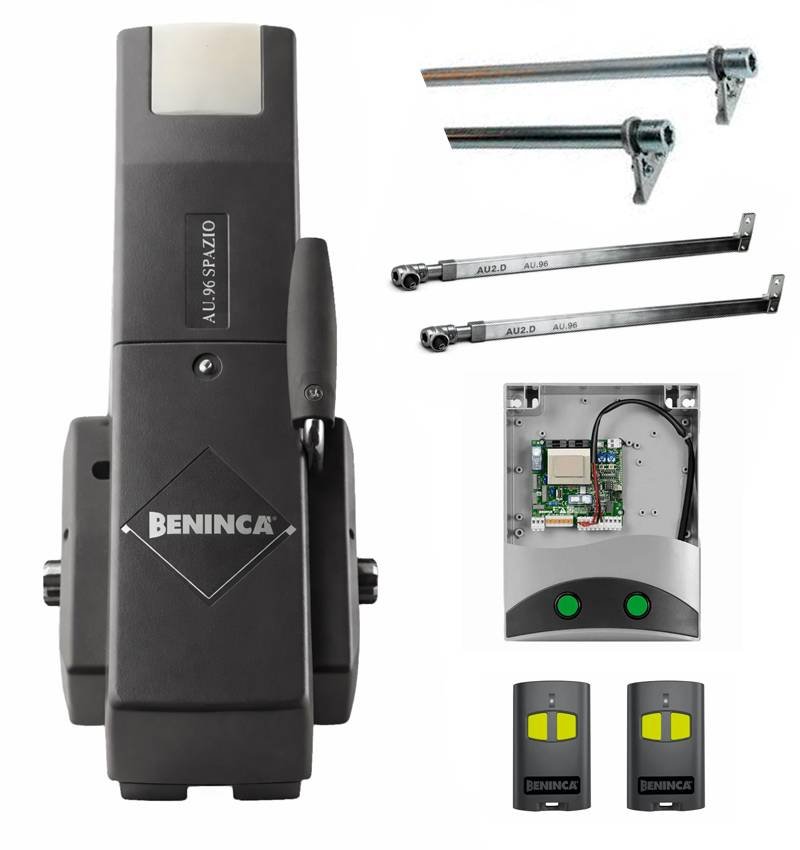

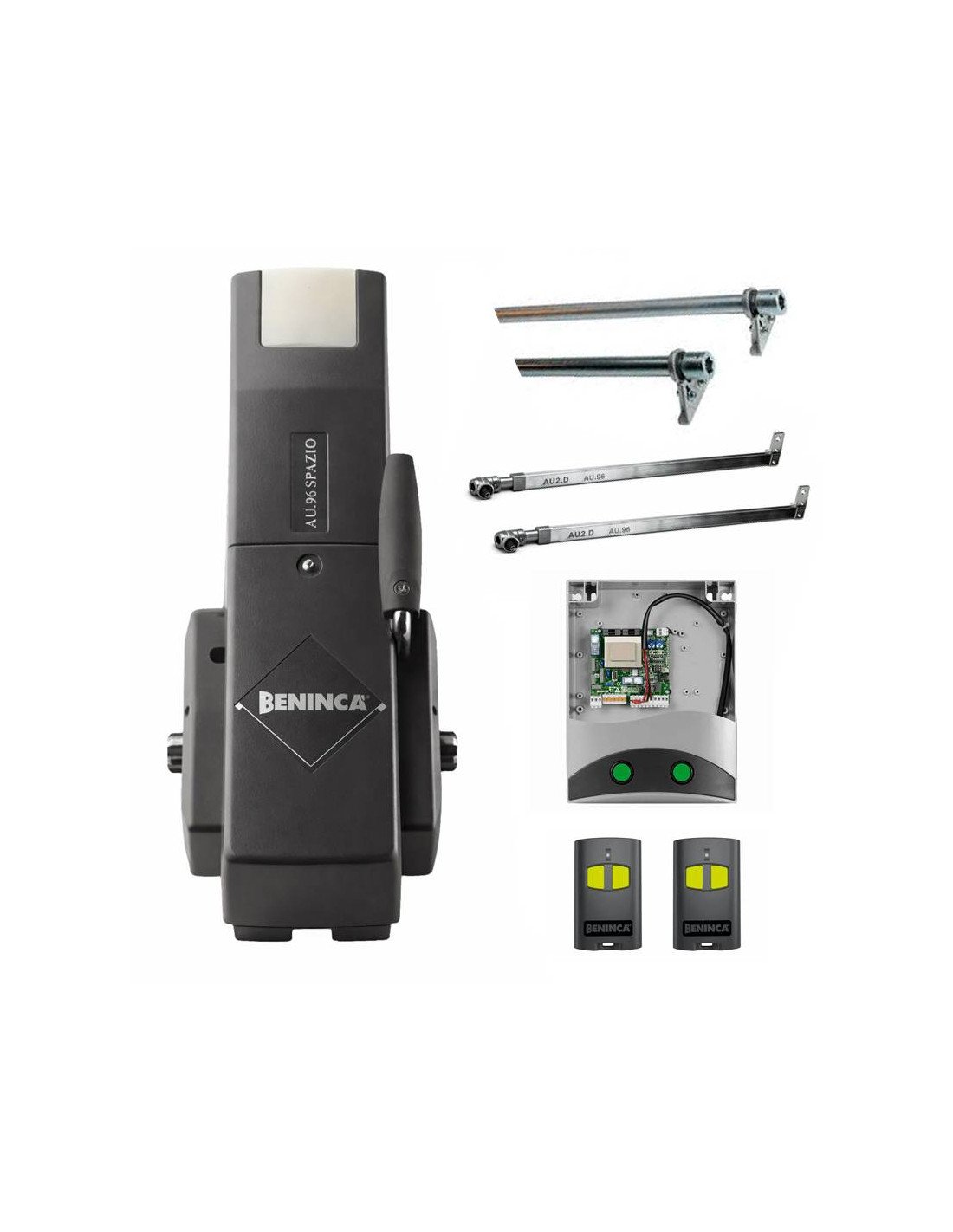

Content of the Beninca AU96 kit

• 1 unit 9590006: Au.96C 230 V tilting motor with 600 mm bench
• 1 unit 9868040: Couple of 2000 mm Au.45ZL tubes with sleeve
• 1 unit 9099058: Couple of telescopic fittings AU2.D without Dolla
• 1 unit 9176142: Maneuver box Cell.P 6B
• 2 units 9863173: Controls to.go2va rolling code of 2 channels

Documentation

Manual Beninca Au96
